Intermatic PX50 50 watt pool and spa safety transformer in a beige steel enclosureIntermatic 50 Watt Pool and Spa Safety Transformer, Input 120V, Output 12, 13, 14 Volt, Beige Steel Enclosure, PX50 In stock$14399

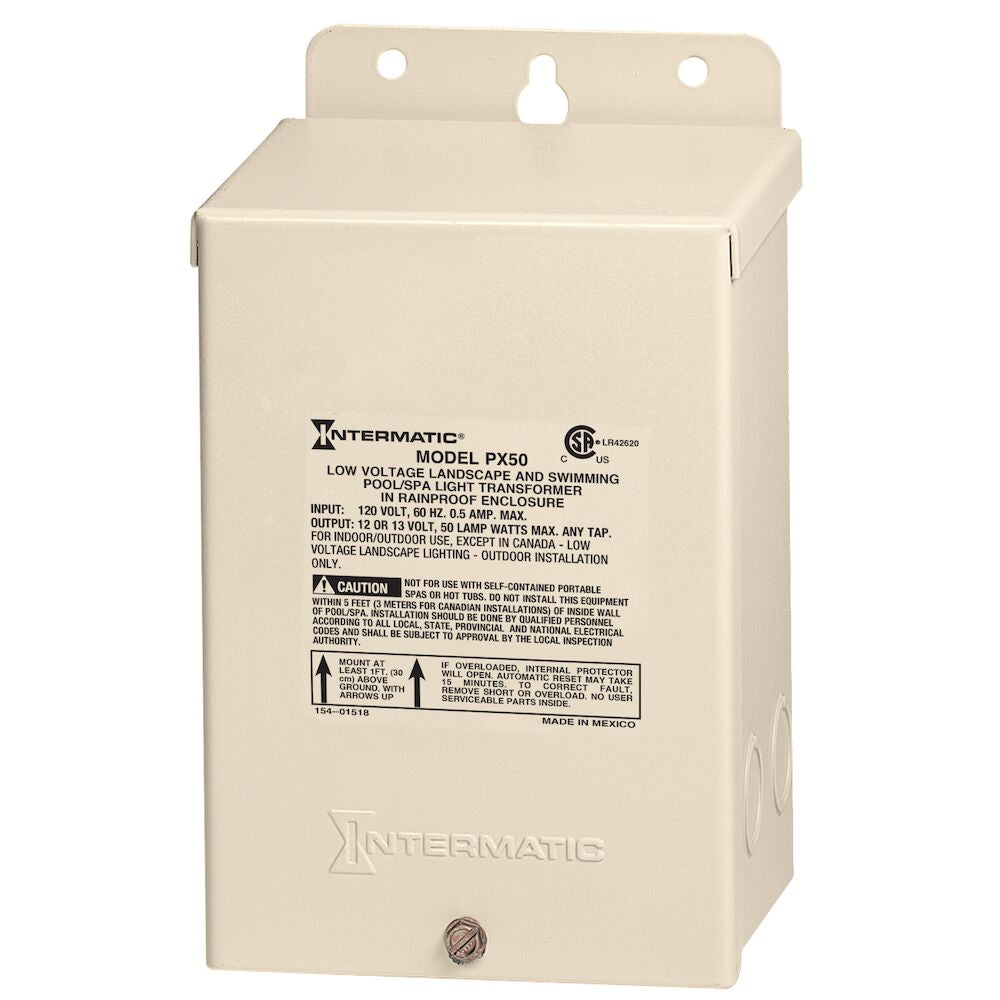

Intermatic PX50 50 watt pool and spa safety transformer in a beige steel enclosure
Shop all Intermatic

Intermatic 50 Watt Pool and Spa Safety Transformer, Input 120V, Output 12, 13, 14 Volt, Beige Steel Enclosure, PX50

Ask a questionMPN PX50
$14399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Built for pool and spa lights Designed to supply 12 volts to pool and spa lights, submersible fixtures and outdoor garden lights.
  • 50 watt rating Size the transformer to the total wattage of the fixtures it will carry.
  • Three output taps 12, 13 and 14 volt outputs, so voltage lost down a long run can be compensated for.
  • Grounded shield A grounded shield between the primary and secondary windings assures safe operation.
  • Built in circuit protection Disconnects power to the transformer in the event of a defect or an overload.
  • Beige steel enclosure Housed in a beige steel enclosure for equipment pad mounting.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic 50 Watt Pool and Spa Safety Transformer, Input 120V, Output 12, 13, 14 Volt, Beige Steel Enclosure, PX50, SKU INT-30-747. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic 50 Watt Pool and Spa Safety Transformer, Input 120V, Output 12, 13, 14 Volt, Beige Steel Enclosure, PX50
Intermatic

50 Watt Pool and Spa Safety Transformer, Input 120V, Output 12, 13, 14 Volt, Beige Steel Enclosure, PX50

$14399
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7299
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$6099
Intermatic On/Off Trippers Set, 156T1978A
Intermatic

On/Off Trippers Set, 156T1978A

$1199
Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121
Intermatic

Heavy Duty 15 Amp Outdoor Timer, P1121

$5599
Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige
Intermatic

PX100 Safety Transformer, 100W, Steel Enclosure, Beige

$12540
Subtotal

Similar products

Other products people compare with this one.

Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 143T135 DPST relay with 240 VAC coil, rated 3 HP Intermatic DPST Relay with 240 VAC Coil, 3 HP, for Pool and Spa Pump Control, 143T135$7699 Intermatic 300W | 120V to 12V Transformer | PX300 Intermatic 300W | 120V to 12V Transformer | PX300$16199 Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S$17799 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic T30000R5 100 amp load center subpanel with eight breaker spaces Intermatic 100 Amp Load Center Subpanel, 8-Breaker Spaces, T30000R5$18999 Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600$34399 Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S$24499 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$37499 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999
Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R$27499 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price

Product details

The Intermatic PX50 is a 50 watt safety transformer for pool and spa lighting. It takes 120V in and offers 12, 13 and 14 volt taps out, in a beige steel enclosure.

What it is for

Transformers of this type are specifically designed to supply 12 volts to pool and spa lights, submersible fixtures and outdoor garden lights. The safety construction is what separates them from a general purpose transformer: a grounded shield sits between the primary and secondary windings to assure safe operation, and built in circuit protection disconnects power to the transformer if a defect or an overload occurs.

Choosing the tap

The three output voltages exist because cable runs lose voltage. A short run to a single fixture is happy on the 12 volt tap. A long run, or several fixtures on one circuit, may arrive dim on 12 volts and read correctly when moved up to 13 or 14.

Sizing

Total the wattage of everything on the circuit and stay under the transformer rating. This is the 50 watt unit; Intermatic builds the same enclosure style in larger ratings for bigger lighting loads.

Specifications
Brand Intermatic
Manufacturer part number PX50
UPC 078275127593
Type Pool and spa safety transformer
Rating 50 watt
Input 120V
Output 12, 13, 14 volt
Enclosure Beige steel
Shielding Grounded shield between the primary and secondary windings
Protection Built in circuit protection disconnects power in case of defect or overload
Application Pool and spa lights, submersible fixtures, outdoor garden lights
Shipping weight 5.45 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9299 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$6099 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5599 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$27499 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$27799 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12699 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11499 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$34199 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13199 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5199 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$37499

Questions and answers

What people ask about this product, answered by our pool techs.

Why are there three output voltages?
Long cable runs drop voltage before it reaches the fixture. The 13 and 14 volt taps let you feed a little extra so the lamp still sees close to 12 volts at the far end.
What size transformer do I need?
Add up the wattage of every fixture on the circuit and pick a transformer rated above that total. This one is a 50 watt unit.
What makes it a safety transformer?
A grounded shield sits between the primary and secondary windings, and built in circuit protection disconnects power to the transformer if there is a defect or an overload.
Can it run garden lights as well as pool lights?
Yes. It is intended for pool and spa lights, submersible fixtures and outdoor garden lights.
