Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosureIntermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige In stock$12540

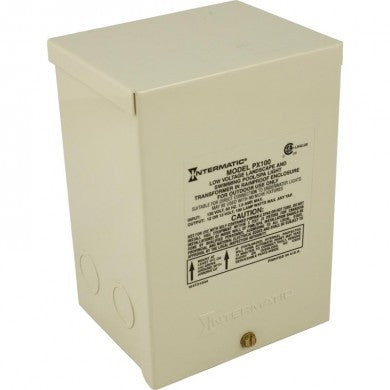

Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure
Shop all Intermatic

Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige

Ask a questionMPN PX100
$12540
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 100 watt output Sized for a low voltage pool, spa or garden lighting load up to 100 watts.
  • Selectable output Tapped for 12, 13 or 14 V so you can compensate for voltage drop on a long wire run.
  • Grounded shield A grounded shield between the primary and secondary windings separates line voltage from the low voltage side.
  • Built in circuit protection Cuts power to the transformer if a fault or an overload occurs on the load side.
  • Steel enclosure Housed in a beige steel case measuring 7.25 inches high, 5.25 inches wide and 4.5 inches deep.
  • Made for wet locations Designed for pool and spa lights, submersible fixtures and outdoor garden lighting.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige, SKU INT-30-749. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige
Intermatic

PX100 Safety Transformer, 100W, Steel Enclosure, Beige

$12540
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7099
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Intermatic On/Off Trippers Set, 156T1978A
Intermatic

On/Off Trippers Set, 156T1978A

$1199
Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121
Intermatic

Heavy Duty 15 Amp Outdoor Timer, P1121

$5499
Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D
Intermatic

208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D

$5099
Subtotal

Similar products

Other products people compare with this one.

Intermatic PX50 50 watt pool and spa safety transformer in a beige steel enclosure Intermatic 50 Watt Pool and Spa Safety Transformer, Input 120V, Output 12, 13, 14 Volt, Beige Steel Enclosure, PX50$13899 Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S$17199 Intermatic 300W | 120V to 12V Transformer | PX300 Intermatic 300W | 120V to 12V Transformer | PX300$15699 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11599 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9199 Intermatic T30000R5 100 amp load center subpanel with eight breaker spaces Intermatic 100 Amp Load Center Subpanel, 8-Breaker Spaces, T30000R5$18399 Intermatic 143T135 DPST relay with 240 VAC coil, rated 3 HP Intermatic DPST Relay with 240 VAC Coil, 3 HP, for Pool and Spa Pump Control, 143T135$7499 Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600$33299 Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S$23799 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399
Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1899 Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R$26699 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price

Product details

The Intermatic PX100 is a 100 watt safety transformer that steps 120 V line power down to low voltage for pool lights, spa lights, submersible fixtures and outdoor garden lighting.

Selectable output taps

The secondary is tapped for 12, 13 or 14 V. That choice exists because voltage drops over a long run of wire. A fixture at the far end of a buried run may see noticeably less than the transformer sends, and moving up a tap brings it back into range so the lamp reaches full brightness and full rated life.

Safety construction

A grounded shield sits between the primary and secondary windings, which is what makes this a safety transformer rather than a plain step down unit: it keeps line voltage separated from the low voltage side feeding fixtures in and around water. Built in circuit protection disconnects power if a defect or an overload appears.

Sizing and mounting

Input is 120 V at 3 amps and output capacity is 100 watts, so total the wattage of every fixture on the circuit before you commit. The beige steel enclosure measures 7.25 inches high, 5.25 inches wide and 4.5 inches deep.

Specifications
Brand Intermatic
Manufacturer part number PX100
UPC 078275024090
Type Safety transformer
Wattage 100 Watt
Input 120 V, 3 Amp
Output 12, 13 or 14 V
Enclosure Beige steel enclosure
Height 7.25"
Width 5.25"
Depth 4.5"
Shipping weight 6.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9299 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7099 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$5999 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5499 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$26699 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$26999
Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12299 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11199 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$33099 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$12799 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9199 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5099 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11599 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1899 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399 Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600$33299

Questions and answers

What people ask about this product, answered by our pool techs.

What voltage does it put out?
12, 13 or 14 V, selectable. The higher taps let you make up for voltage drop over a long run of wire so the lamp still sees roughly 12 V.
How much load will it carry?
100 watts. Add up the wattage of the fixtures on the circuit and stay within that figure.
What is the input?
120 V at 3 amps.
What are the enclosure dimensions?
7.25 inches high by 5.25 inches wide by 4.5 inches deep, in beige steel.
