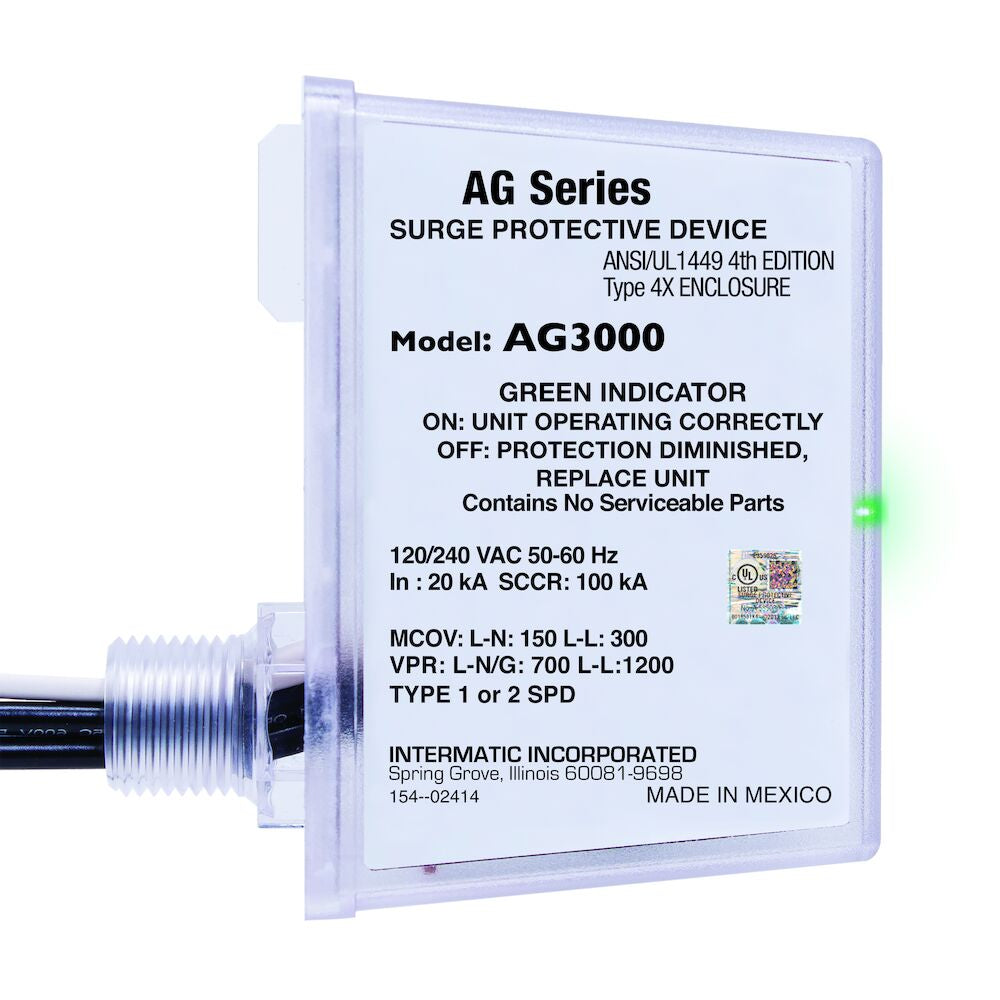

Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor

Ask a questionMPN AG3000
$9199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Three modes of protection Covers line to ground, line to line and line to neutral rather than a single path.
  • TPMOV technology A thermally protected metal oxide varistor, which removes the hazardous failure modes plain MOV designs are known for.
  • Status at a glance A green LED tells you the protection is still live, so a spent unit does not sit there unnoticed.
  • Outdoor rated The Type 4X enclosure is watertight and UV resistant, so it can live outside on the wall.
  • Type 1 or Type 2 Can be installed at the service entrance or downstream at a distribution panel.
  • Warranty behind it Three years on the product, plus a $7,500 connected equipment warranty for three years.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor, SKU INT-30-3001. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor
Intermatic

AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor

$9199
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7099
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Intermatic On/Off Trippers Set, 156T1978A
Intermatic

On/Off Trippers Set, 156T1978A

$1199
Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121
Intermatic

Heavy Duty 15 Amp Outdoor Timer, P1121

$5499
Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige
Intermatic

PX100 Safety Transformer, 100W, Steel Enclosure, Beige

$12540
Subtotal

Similar products

Other products people compare with this one.

Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11599 Intermatic 143T135 DPST relay with 240 VAC coil, rated 3 HP Intermatic DPST Relay with 240 VAC Coil, 3 HP, for Pool and Spa Pump Control, 143T135$7499 Intermatic PX50 50 watt pool and spa safety transformer in a beige steel enclosure Intermatic 50 Watt Pool and Spa Safety Transformer, Input 120V, Output 12, 13, 14 Volt, Beige Steel Enclosure, PX50$13899 Intermatic 300W | 120V to 12V Transformer | PX300 Intermatic 300W | 120V to 12V Transformer | PX300$15699 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1899 Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S$17199 Intermatic T30000R5 100 amp load center subpanel with eight breaker spaces Intermatic 100 Amp Load Center Subpanel, 8-Breaker Spaces, T30000R5$18399 Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S$23799 Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R$26699 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price
Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600$33299 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399

Product details

The Intermatic AG3000 is a three mode surge protective device for 120/240 VAC single phase power, rated for use as a Type 1 or Type 2 device and housed in an outdoor enclosure. It wires directly to a disconnect or switch.

What it protects

Most homes have surge strips on the television and the computer and nothing at all on the equipment that costs the most to replace. Heat pumps, air handlers, mini splits and pool pad electronics all sit downstream of the same panel, and a single event can take them out. The AG3000 goes in ahead of that equipment.

How it is built

Protection runs on three modes, line to ground, line to line and line to neutral. The clamping element is a TPMOV, a thermally protected metal oxide varistor, which is designed to fail safely instead of the way an unprotected MOV can. The enclosure is Type 4X, watertight and UV resistant, and it is UL Listed to ANSI/UL 1449.

Knowing it still works

A green LED reports the state of the protection. That matters, because a surge device that has already absorbed its last hit looks identical to a working one from the outside. Intermatic backs the unit with a three year product warranty and a $7,500 connected equipment warranty for three years.

Specifications
Brand Intermatic
Manufacturer part number AG3000
UPC 078275130678
Type Surge protective device (SPD)
Modes 3-mode: L-G, L-L, L-N
Voltage 120/240 VAC 1Ph
Device type Type 1 or Type 2
Enclosure Type 4X watertight and UV resistant plastic
Indicator Green LED protection status
Technology TPMOV thermally protected metal oxide varistor
Listing UL Listed to ANSI/UL 1449
Product warranty 3 years
Connected equipment warranty $7,500 for 3 years
Applications Distribution panel, service entrance, HVAC equipment, residential or light commercial
Installation Connect or wire directly to the disconnect or the switch
Shipping weight 0.65 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9299 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7099 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$5999 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5499 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$26699 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$26999 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12299 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11199 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$33099 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$12799 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5099 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11599 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1899 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399 Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600$33299

Questions and answers

What people ask about this product, answered by our pool techs.

What does three mode protection mean?
The device clamps surges on three paths: line to ground, line to line and line to neutral. A single mode unit only covers one of those.
Can it be mounted outside?
Yes. The enclosure is Type 4X, watertight and UV resistant, so it is built for outdoor mounting.
How do I know it is still protecting?
A green LED on the unit shows the status of the protection. If the light is out, the device has done its job and needs replacing.
Where does it get installed?
It wires directly to the disconnect or the switch, and can be used at a distribution panel, at the service entrance, or at HVAC equipment as a Type 1 or Type 2 device.
