Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustmentIntermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME In stock$26999

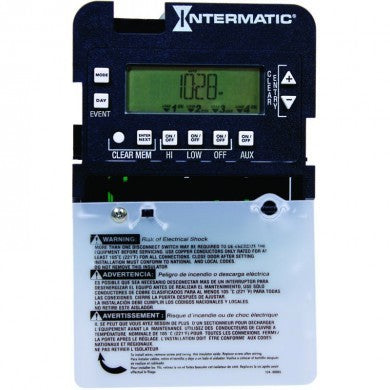

Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment
Shop all Intermatic

Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME

Ask a questionMPN P1403ME
$26999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Seasonal adjustment Runs the filter pump longer through the peak summer months and shorter through the cold ones, without anyone touching it.
  • Full two speed control Separate daily schedules for each speed, with efficient low speed operation year round and user programmable high speed events.
  • Four circuits The pump circuits plus an additional circuit for auxiliary equipment.
  • Rated 30A, 3HP, 120/240V Sized for a pool pump load, with automatic voltage adjust for either supply.
  • Mechanism only It snaps into most Intermatic enclosures. The enclosure is not part of this listing.
  • Backup memory A supercapacitor holds the program for more than 100 hours through a power cut.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME, SKU INT-57-127. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME
Intermatic

Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME

$26999
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012
Gecko Alliance

Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012

$16799
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$25899
Hayward Digital Control Interface Assembly, SPX3200LCD
Hayward

Digital Control Interface Assembly, SPX3200LCD

$44599
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$30299
Subtotal

Similar products

Other products people compare with this one.

Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$26699 Pentair 522465 EasyTouch PL4 and PSL4 indoor control panel Pentair Genuine OEM EasyTouch PL4/PSL4 Indoor Control Panel, 522465$32299 Intermatic T21004R 60 amp load center with T104M time clock mechanism Intermatic T21004R 60 Amp Load Center with T104M Mechanism, 4 Breaker Spaces$24399 Intermatic T101P201 24 hour 120V mechanical time switch in a Type 3R plastic enclosure Intermatic 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure, T101P201$18143 Web Price Intermatic PF1102M 240V freeze protection thermostat mechanism Intermatic Freeze Protection Thermostat Only for 240V Applications, Mechanism, PF1102M$16699 Intermatic PF1102 freeze protection thermostat in beige Type 3R metal enclosure Intermatic PF1100 Series Freeze Protection Thermostat for 240V Pool Equipment, Type 3R Metal Enclosure, PF1102$22899 Intermatic Single Circuit Freeze Protection Control 120/240V | PF1103T Intermatic Single Circuit Freeze Protection Control 120/240V | PF1103T$30758 Intermatic Control Panel w/Transformer 220V/100W | T40004RT1 Intermatic Control Panel w/Transformer 220V/100W | T40004RT1$37899 Intermatic DUAL BOX W/DUAL T104M 208-277V TIMERS | T10404R Intermatic DUAL BOX W/DUAL T104M 208-277V TIMERS | T10404R$33599
Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13499 Intermatic Complete Timer W Metal Case 120V | T101R3 Intermatic Complete Timer W Metal Case 120V | T101R3$13499 WPCTC replacement time clock for the WPC-2 wireless pool control S.R. Smith WPC-2 Replacement Time Clock for Pool Cleaner Booster, WPCTC$12099 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11199 Intermatic P1353ME programmable 3 circuit digital control timer mechanism Intermatic Programmable 3 Circuit Digital Control Timer Mechanism, P1353ME$43399 Intermatic T106M 208/277 volt SPDT time clock mechanism Intermatic T106M 208/277 Volt, SPDT Time Clock Mechanism$10099 Intermatic T101P3 24-hour 120V mechanical time switch, SPST, with Type 3R plastic enclosure Intermatic T101P3 24-Hour 120V Mechanical Time Switch, SPST, Type 3R Plastic Enclosure$9544 Intermatic T103M 110V time clock mechanism only Intermatic Time Clock Mechanism Only, 110V, T103M$9199 Intermatic 2T511GA gray metal Type 3R rain tight outdoor time clock case Intermatic Rain Tight Outdoor Time Clock Case, Type 3R Metal, Gray, 2T511GA$8599 Intermatic MECHANISM ONLY 120V | T101M Intermatic MECHANISM ONLY 120V | T101M$8099

Product details

The Intermatic P1403ME is a 24 hour programmable electronic controller for 1 or 2 speed pool pumps, supplied as the mechanism only. It carries four circuits in total: the pump control plus an additional circuit for auxiliary equipment.

Seasonal adjustment

The feature the model is named for. A pool needs a long filter run in July and a short one in November, and most owners set one schedule in spring and forget it. Seasonal adjust lengthens the run through the peak swimming months and shortens it as the season turns, which keeps the water right and keeps the power bill from carrying summer hours into winter.

Two speed and programming

Full two speed control means each speed gets its own daily schedule: efficient low speed operation for general circulation across the year, with high speed events programmed where you want them. Setup runs on screen, voltage adjusts automatically, and a supercapacitor holds the program for more than 100 hours if power is lost.

Installation

This is the mechanism, not a complete timer in a box. It snaps into most Intermatic enclosures, so it suits a replacement where the existing enclosure and wiring are sound. Wiring a 30A, 3HP, 120/240V pump circuit is work for a qualified electrician.

Specifications
Brand Intermatic
Manufacturer part number P1403ME
UPC 078275139947
Type Electronic pump motor controller, mechanism only
Circuits 4 total, including an additional auxiliary circuit
Pump control 1 or 2 speed
Rating 30A, 3HP, 120/240V
Voltage Automatic voltage adjust
Program backup Supercapacitor, 100+ hours
Enclosure Not included, snaps into most Intermatic enclosures
Programming On-screen setup
Shipping weight 1.68 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9299 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7099 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$5999 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5499 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$26699 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12399 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11199 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$33099 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13499 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9199 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5099 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11599 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399 Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600$29999

Questions and answers

What people ask about this product, answered by our pool techs.

Does an enclosure come with it?
No. This is the mechanism only. It snaps into most Intermatic enclosures, so keep the one you have or order an enclosure separately.
What does the seasonal adjust feature do?
It lengthens filter pump run time through the peak summer swimming months and shortens it as the water cools, automatically, so you are not paying for summer run times in November.
Will it run a two speed pump?
Yes. It gives full two speed control with separate daily schedules, low speed operation for general filtering and high speed events you program yourself.
What happens to my program in a power cut?
A supercapacitor backs the memory up for more than 100 hours, so a normal outage does not wipe the schedule.
