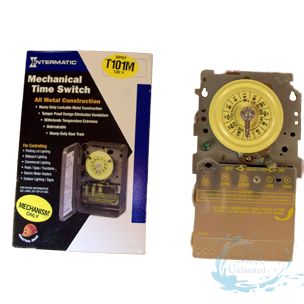

Intermatic MECHANISM ONLY 120V | T101MIntermatic 24 Hour Mechanical Time Switch Mechanism Only, SPST 120V, T101M In stock$8099
Intermatic MECHANISM ONLY 120V | T101M
Shop all Intermatic

Intermatic 24 Hour Mechanical Time Switch Mechanism Only, SPST 120V, T101M

Ask a questionMPN T101M
$8099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Mechanism only The 24 hour time switch mechanism without an enclosure, for installing in an Intermatic enclosure.
  • Fits Intermatic timers Designed to fit Intermatic timer models T101P3, T101P4 and T101R3.
  • Up to 12 operations a day Provides 1 to 12 on/off operations each day, with a minimum on/off time of 1 hour.
  • 40 amp, 120 volt SPST Single pole, single throw switching with a 120V, 60 Hz clock supply.
  • Trippers included Equipped with one ON tripper and one OFF tripper, plus a manual override.
  • Pool equipment loads Intended for filter pumps, heat pumps and lighting, in residential, commercial and industrial use.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic 24 Hour Mechanical Time Switch Mechanism Only, SPST 120V, T101M, SKU INT-30-680. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic 24 Hour Mechanical Time Switch Mechanism Only, SPST 120V, T101M
Intermatic

24 Hour Mechanical Time Switch Mechanism Only, SPST 120V, T101M

$8099
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012
Gecko Alliance

Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012

$16799
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$25899
Hayward Digital Control Interface Assembly, SPX3200LCD
Hayward

Digital Control Interface Assembly, SPX3200LCD

$44599
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$30299
Subtotal

Similar products

Other products people compare with this one.

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9299 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7099 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$5999 WPCTC replacement time clock for the WPC-2 wireless pool control S.R. Smith WPC-2 Replacement Time Clock for Pool Cleaner Booster, WPCTC$12099 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5499 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5099 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11199 Intermatic PB913N84 24 hour timer mechanism with mounting ears Intermatic 24 Hour Timer Mechanism, 2 On/Off with Ears, PB913N84$4499 Intermatic T101P3 24-hour 120V mechanical time switch, SPST, with Type 3R plastic enclosure Intermatic 24-Hour 120V Mechanical Time Switch, SPST, Type 3R Plastic Enclosure, T101P3$9544 Intermatic PB913N66 24 hour panel mount time clock timer mechanism, 120V Intermatic Time Clock Timer Mechanism PF and RC Series Panel Mount 24hr 120V, PB913N66$5699
Intermatic T103M 110V time clock mechanism only Intermatic Time Clock Mechanism Only, 110V, T103M$9199 Intermatic P1101 outdoor mechanical plug-in timer with built-in enclosure Intermatic Outdoor Mechanical Plug-In Timer with Built-In Enclosure, P1101$6199 Intermatic 156T4042A heater control (fireman's) switch kit Intermatic Heater Control (Fireman's) Switch Kit, 156T4042A$4499 Intermatic WG1570-10D 125 volt 60 Hz replacement time clock motor Intermatic 125 Volt, 60 Hz Replacement Time Clock Motor, WG1570-10D$4248 Intermatic 15 Minute Spring Wound Timer | FF15MC Intermatic 15 Minute Spring Wound Timer | FF15MC$4499 Intermatic TIMER SPRNG WOUND 30MIN CLMSHL | FF30MC Intermatic TIMER SPRNG WOUND 30MIN CLMSHL | FF30MC$4499 Intermatic 2T2502GA beige plastic weatherproof case for the T100R timer Intermatic Beige Plastic Case for T100R, 2T2502GA$5299 Eaton Corporation Cutler-Hammer CUTLER HAMMER DUAL BREAKER 2 POLE 20/50 AMP | BQ220250 Eaton Corporation Cutler-Hammer CUTLER HAMMER DUAL BREAKER 2 POLE 20/50 AMP | BQ220250$4999 Intermatic 2T511GA gray metal Type 3R rain tight outdoor time clock case Intermatic Rain Tight Outdoor Time Clock Case, Type 3R Metal, Gray, 2T511GA$8599 Intermatic Complete Timer W Metal Case 120V | T101R3 Intermatic Complete Timer W Metal Case 120V | T101R3$13499

Product details

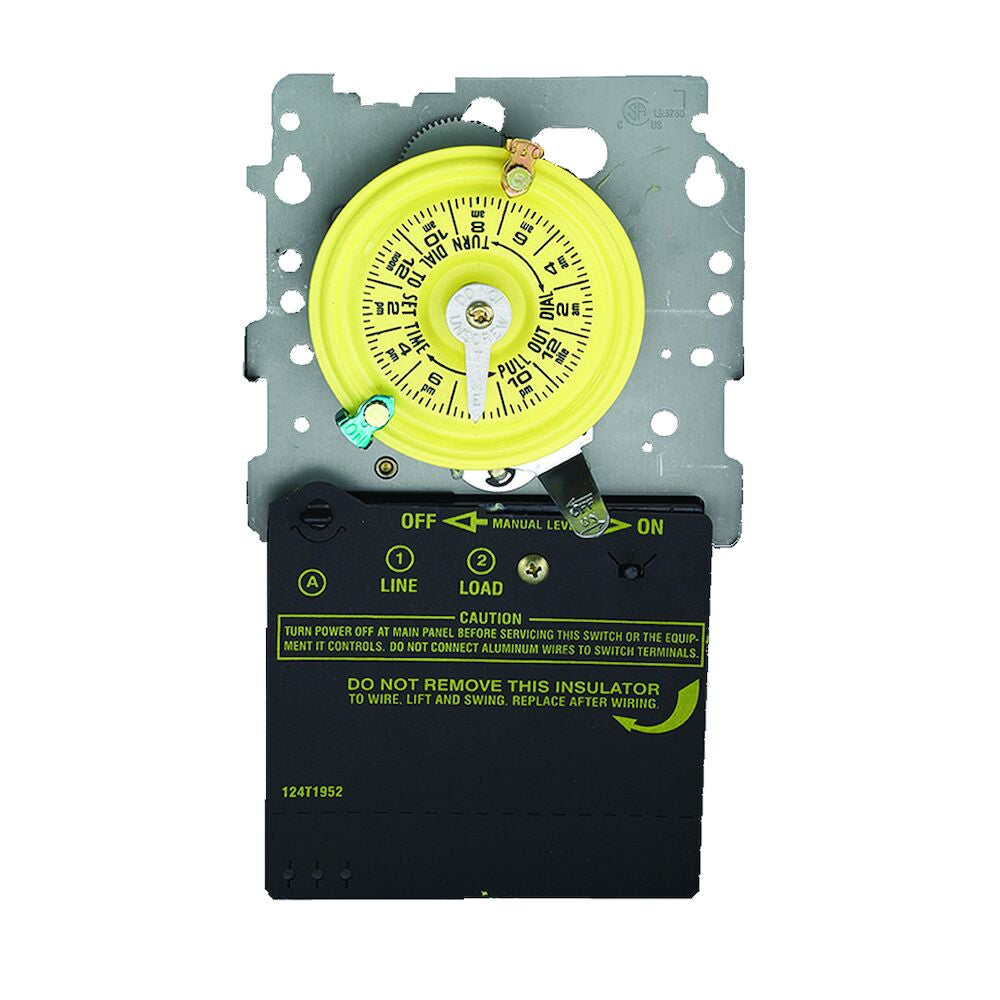

The Intermatic T101M is a 24 hour, 120V, SPST mechanical time switch mechanism, sold as the mechanism only, designed to fit Intermatic timer models T101P3, T101P4 and T101R3.

What it does

The T101M switches a load on and off from a 24 hour dial. It provides up to 12 on/off operations each day, with a minimum on/off time of 1 hour, and it is equipped with one ON tripper and one OFF tripper and a manual override. Intermatic intends it for commercial, industrial and residential use, with applications such as filter pumps, heat pumps and lighting.

Ratings

The mechanism is single pole, single throw, with a 120V, 60 Hz clock supply. It is rated 40 amp resistive, inductive, tungsten or 1000 VA pilot duty at 120, 208 or 240 volts AC, and its motor ratings are 2 HP (24 FLA) at 120V AC and 5 HP (28 FLA) at 240V AC.

Before you order

This is the mechanism only. It does not include an enclosure, so it is meant for replacing the mechanism in an existing Intermatic timer or for installing in an Intermatic enclosure. Make sure the supply voltage and switching style of your timer match before you order.

Specifications
Brand Intermatic
Manufacturer part number T101M
UPC 078275000230
Type 24 hour mechanical time switch mechanism, mechanism only
Switching SPST (single pole, single throw)
Clock supply 120V, 60 Hz
Load rating 40 amp resistive, inductive, tungsten or 1000 VA pilot duty, 120/208/240 volt AC
Motor rating 2 HP (24 FLA) at 120V AC, 5 HP (28 FLA) at 240V AC
Operations 1 to 12 on/off operations each day, minimum on/off time 1 hour
Includes One ON tripper and one OFF tripper
Dial color Yellow
Fits Intermatic T101P3, T101P4 and T101R3 timers; installs in almost all Intermatic enclosures
Applications Filter pumps, heat pumps, lighting
Shipping weight 1.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9299 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7099 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$5999 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic Safety Transformer, 100W, Steel Enclosure, Beige, PX100$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5499 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$26699 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$26999 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12399 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11199 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$33099 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13499 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor, AG3000$9199 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5099 Intermatic PS3000 surge protector for pool and spa equipment Intermatic Surge Protector for Pool and Spa Equipment, 120/240V, PS3000$11599 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399

Questions and answers

What people ask about this product, answered by our pool techs.

Does the Intermatic T101M include an enclosure?
No. The T101M is the time switch mechanism only. It is installed in an Intermatic enclosure, and it fits almost all of them.
Which Intermatic timers does the T101M fit?
The Intermatic T101M is designed to fit Intermatic timer models T101P3, T101P4 and T101R3, and it can be installed in almost all Intermatic enclosures.
How many times a day can the T101M switch on and off?
The Intermatic T101M provides up to 12 on/off operations each day, with a minimum on/off time of 1 hour.
What voltage and load does the T101M handle?
The Intermatic T101M is a 120V, SPST mechanism rated 40 amp resistive, with 2 HP (24 FLA) motor load at 120V AC and 5 HP (28 FLA) at 240V AC.
