Intermatic P1353ME programmable 3 circuit digital control timer mechanismIntermatic Programmable 3 Circuit Digital Control Timer Mechanism, P1353ME In stock$42599

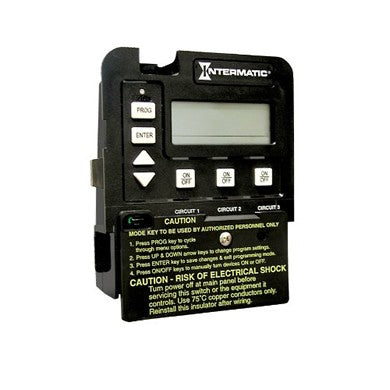

Intermatic P1353ME programmable 3 circuit digital control timer mechanism
Shop all Intermatic

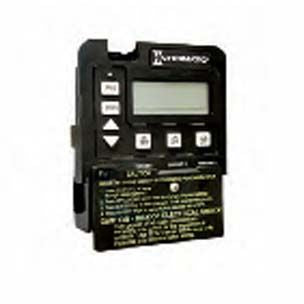

Intermatic Programmable 3 Circuit Digital Control Timer Mechanism, P1353ME

Ask a questionMPN P1353ME
$42599
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Three circuits Programs up to three separate circuits from one mechanism.
  • Nine events a day Up to nine on and off events per day on the schedule.
  • Seven preset modes Choose from seven pre-programmed modes covering single speed pumps and two speed pump or cleaner pump combinations.
  • Handles the logic for you The timing and protection that filter pump, cleaner pump and two speed combinations require is already built into the software.
  • Countdown and override Both features let you interrupt a cycle when the pool or spa needs service, without losing the program.
  • Mechanism only It installs into almost any Intermatic enclosure, so an existing enclosure can usually be kept.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic Programmable 3 Circuit Digital Control Timer Mechanism, P1353ME, SKU INT-30-1309. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic Programmable 3 Circuit Digital Control Timer Mechanism, P1353ME
Intermatic

Programmable 3 Circuit Digital Control Timer Mechanism, P1353ME

$42599
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012
Gecko Alliance

Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012

$17399
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$26999
Hayward Digital Control Interface Assembly, SPX3200LCD
Hayward

Digital Control Interface Assembly, SPX3200LCD

$45999
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$31199
Subtotal

Similar products

Other products people compare with this one.

Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$27799 Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$27499 Pentair 522465 EasyTouch PL4 and PSL4 indoor control panel Pentair Genuine OEM EasyTouch PL4/PSL4 Indoor Control Panel, 522465$33299 Intermatic T21004R 60 amp load center with T104M time clock mechanism Intermatic T21004R 60 Amp Load Center with T104M Mechanism, 4 Breaker Spaces$25199 Intermatic Single Circuit Freeze Protection Control 120/240V | PF1103T Intermatic Single Circuit Freeze Protection Control 120/240V | PF1103T$35099 Intermatic PF1102 freeze protection thermostat in beige Type 3R metal enclosure Intermatic PF1100 Series Freeze Protection Thermostat for 240V Pool Equipment, Type 3R Metal Enclosure, PF1102$23099 Intermatic DUAL BOX W/DUAL T104M 208-277V TIMERS | T10404R Intermatic DUAL BOX W/DUAL T104M 208-277V TIMERS | T10404R$32899 Intermatic Control Panel w/Transformer 220V/100W | T40004RT1 Intermatic Control Panel w/Transformer 220V/100W | T40004RT1$37299 Intermatic Multi Circuit Freeze Protection Control Center & Panel 240V | PF1112T Intermatic Multi Circuit Freeze Protection Control Center & Panel 240V | PF1112T$41099 Intermatic T101P201 24 hour 120V mechanical time switch in a Type 3R plastic enclosure Intermatic 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure, T101P201$18143 Web Price
Intermatic PF1102M 240V freeze protection thermostat mechanism Intermatic Freeze Protection Thermostat Only for 240V Applications, Mechanism, PF1102M$17999 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13199 Intermatic Complete Timer W Metal Case 120V | T101R3 Intermatic Complete Timer W Metal Case 120V | T101R3$13099 WPCTC replacement time clock for the WPC-2 wireless pool control S.R. Smith WPC-2 Replacement Time Clock for Pool Cleaner Booster, WPCTC$12399 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11499 Intermatic T106M 208/277 volt SPDT time clock mechanism Intermatic T106M 208/277 Volt, SPDT Time Clock Mechanism$10499 Intermatic T101P3 24-hour 120V mechanical time switch, SPST, with Type 3R plastic enclosure Intermatic T101P3 24-Hour 120V Mechanical Time Switch, SPST, Type 3R Plastic Enclosure$9544 Intermatic T103M 110V time clock mechanism only Intermatic Time Clock Mechanism Only, 110V, T103M$9099 Intermatic MECHANISM ONLY 120V | T101M Intermatic MECHANISM ONLY 120V | T101M$8699

Product details

The Intermatic P1353ME is a programmable digital control timer mechanism that runs up to three circuits, with up to nine on and off events a day. It accepts 120, 208 or 240 VAC.

What it controls

Seven pre-programmed modes cover the common equipment pad arrangements, from a single speed pump to two speed pump and cleaner pump combinations. Programmed modes that include auxiliaries will control pumps up to 3 HP as well as underwater, landscape and fountain lighting. The timing and the protection that filter pump and cleaner pump combinations and two speed pumps require is already integrated into the software, so you are choosing a mode rather than building the interlocks yourself.

Working around the schedule

Countdown and override let you interrupt a cycle when the pool or spa needs service and then pick the schedule back up, rather than reprogramming the clock every time somebody vacuums.

Fitting it

This is the mechanism only. It installs into almost any Intermatic enclosure, so in most cases the existing box on the wall stays and only the mechanism is changed. Confirm the fit against your enclosure, and have the wiring done by a qualified electrician.

Specifications
Brand Intermatic
Manufacturer part number P1353ME
UPC 078275086609
Type Programmable digital control timer mechanism
Circuits 3
Events 9 ON/OFF per day
Input voltage 120, 208, 240 VAC
Pre-programmed modes 7
Pump rating Programmed modes with auxiliaries control pumps up to 3 HP
Supplied as Mechanism only
Shipping weight 2.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9599 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$6099 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5599 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$27499 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$27799 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12699 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11499 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$34199 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13199 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5199 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$37499

Questions and answers

What people ask about this product, answered by our pool techs.

Do I need a new enclosure?
Usually not. The P1353ME mechanism installs into almost any Intermatic enclosure, so an existing box can generally be reused. Confirm the fit against the enclosure you have.
Can it run a two speed pump?
Yes. The seven pre-programmed modes include single speed pump and two speed pump or cleaner pump combinations, and the timing and protection those combinations need is built into the software.
What else can it switch besides the pump?
Programmed modes that include auxiliaries can control pumps up to 3 HP as well as underwater, landscape and fountain lighting.
What are countdown and override for?
They let you interrupt a running cycle when the pool or spa needs service, and then return to the schedule, instead of reprogramming the clock.
