Raypak 009832 D-2 power vent kit in cool dark gray galvanized steel cabinet for 206 to 267 pool heatersRaypak D-2 Indoor Power Vent 206-267 120/240V, 009832 In stock$76499

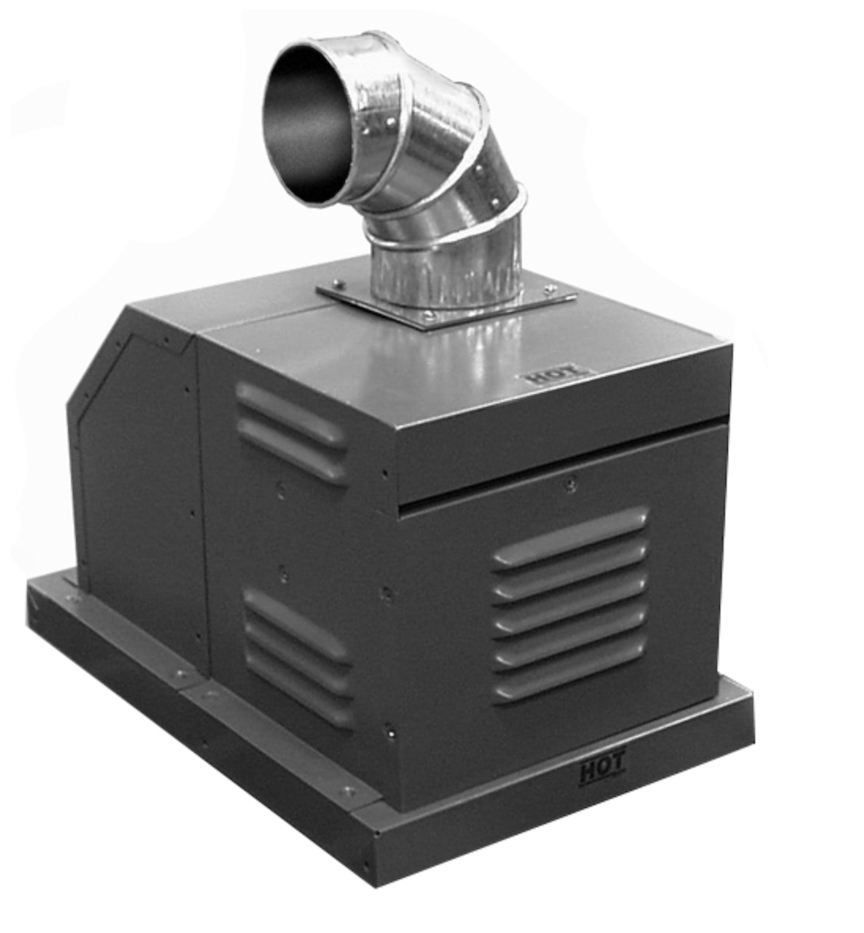

Raypak 009832 D-2 power vent kit in cool dark gray galvanized steel cabinet for 206 to 267 pool heaters
Shop all Raypak

Raypak D-2 Indoor Power Vent 206-267 120/240V, 009832

Ask a questionMPN 009832
$76499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits 206 to 267 made for Raypak model 206 to 266 and 207 to 267 IID pool heaters.
  • Replaces the draft hood the D-2 takes the place of the standard draft hood on the heater.
  • Indoor or outdoor rated for either installation, including through-the-wall venting.
  • Draft proving switch confirms the blower is running before the heater is allowed to fire.
  • Any discharge direction with a field supplied adjustable 90 degree elbow the flue can exit in any direction.
  • 82 percent thermal efficiency the heater keeps its rated efficiency with the power vent installed.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak D-2 Indoor Power Vent 206-267 120/240V, 009832, SKU RHM-151-9832. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak D-2 Indoor Power Vent 206-267 120/240V, 009832
Raypak

D-2 Indoor Power Vent 206-267 120/240V, 009832

$76499
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak

Genuine OEM Protek Shield Module Assembly, 017960F

$5699
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347
Raypak

Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347

$29699
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak

Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F

$25899
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak

Genuine OEM Propane and Natural Gas Pilot, 002003F

$8499
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak

Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345

$33499
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329
Raypak

100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329

$10699
Subtotal

Similar products

Other products people compare with this one.

Raypak 010745 D-2 indoor power vent, 120V, for models 206A through 408 Raypak D-2 Indoor Power Vent 120V for Models 206A-408, 010745$79399 Raypak 010744 D-2 indoor power vent kit in a cool dark gray galvanized steel cabinet Raypak 120V 336A-408 D-2 Indoor Power Vent, 010744$89199 Raypak 008156F D-2 power vent blower for 206 through 408 heaters Raypak 206-408 D-2 Power Vent Blower, 008156F$38999 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$84199 Hayward UHXPOSHZ14008 8 in. positive pressure indoor vent adapter for Universal H-Series H400 heaters Hayward Positive Pressure Indoor Vent Adapter for Universal H-Series H400 Heaters, 8 in., UHXPOSHZ14008$58399 Rheem 009833 D-2 power vent kit with Cool Dark Gray galvanized steel cabinet Rheem PolyTuf Powder Coated Cool Dark Gray Galvanized Steel Cabinet D-2 Power Vent Kit, 009833$76999 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$42099 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$93899 Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$38699 Raypak 010059F copper tube bundle heat exchanger for 206A and 207A pool heaters Raypak Copper Tube Bundle R206A, R207A, 010059F$80899
Raypak 014875F copper tube bundle for the model 156A pool heater Raypak Copper Tube Bundle for Model 156A Pool Heater, 014875F$53999 Raypak 010398F burner tray without burners for 406A pool heater Raypak 406A Burner Tray Without Burner 010398F$60099 Raypak 010392F burner tray with burners for the model 266A pool heater Raypak Burner Tray with Burners for Model 266A Pool Heater, 010392F$62499 Raypak 010393F burner tray with burners for the 336A pool and spa heater Raypak Burner Tray with Burners for 336A Pool/Spa Heater, 010393F$73999 Jandy R0719500 VersaFlo power interface board kit for Pro Series JXi heater Jandy VersaFlo Power Interface Board Kit for Pro Series JXi Heater, R0719500$62399 Raypak 014854F burner tray with gas valve, propane gas, for the 156A pool heater Raypak Burner Tray with Gas Valve, Propane Gas 156A, 014854F$59699 Raypak 010062F copper tube bundle with polymer headers for 406A and 407A heaters Raypak Genuine OEM Copper Tube Bundle 406/407, 010062F$1,02099 Raypak 010423F burner tray for the 336A pool heater Raypak 336A Burner Tray Without Manifold and Burners, 010423F$39999 Raypak 014874F copper tube bundle assembly for 106A BTU heaters with polymer heads Raypak Tube Bundle Assembly for 106A Heaters, Copper for Polymer Heads, 014874F$50899 Raypak 010055F copper ASME tube bundle for 206A and 207A pool heaters Raypak Genuine OEM Tube Bundle Copper ASME 206A, 010055F$1,02399

Product details

The Raypak 009832 is the D-2 power vent kit for Raypak model 206 to 266 and 207 to 267 IID pool heaters. It replaces the standard draft hood and lets the heater be vented under power, indoors or out.

How it works

The D-2 mounts in place of the draft hood and pushes flue gases out through the vent rather than relying on natural draft. A draft proving switch checks that the blower is running before the heater is allowed to fire. With the vent installed the heater holds 82 percent thermal efficiency.

Installation options

The kit is rated for indoor or outdoor installation and is through-the-wall capable. Add a field supplied adjustable 90 degree elbow and the flue can be turned to discharge in whatever direction the room or wall requires. The cabinet is galvanized steel with a PolyTuf powder coat in cool dark gray, matched to the heater.

Electrical

The vent is listed at 240 VAC and draws 1 A. Confirm your heater model falls in the 206 to 266 or 207 to 267 range before ordering.

Specifications
Brand Raypak
Manufacturer part number 009832
UPC 840891018360
Type D-2 power vent kit
Fits Raypak model 206 to 266 and 207 to 267 IID pool heaters
Electrical 240 VAC, 1 A
Cabinet PolyTuf powder coated galvanized steel, cool dark gray
Installation Indoor or outdoor, through-the-wall capable
Draft proving switch Included
Thermal efficiency 82%
Shipping weight 36 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5699 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25899 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$33499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4899 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$42099 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8499 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10699 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$93899 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$84199 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,33299 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$38699 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which heaters does this vent fit?
Raypak lists the 009832 D-2 power vent for model 206 to 266 and 207 to 267 IID pool heaters.
Can I install it outdoors?
Yes. The D-2 is rated for indoor or outdoor installation and can vent through a wall.
What does the draft proving switch do?
It confirms the blower is actually moving air before the heater is allowed to fire, so the heater never runs without a working vent.
Can the flue exit sideways or upward?
Yes. Using a field supplied adjustable 90 degree elbow, the flue gases can be discharged in any direction.
