Rheem PolyTuf Powder Coated Cool Dark Gray Galvanized Steel Cabinet D-2 Power Vent Kit, 009833 In stock$746⁹⁹

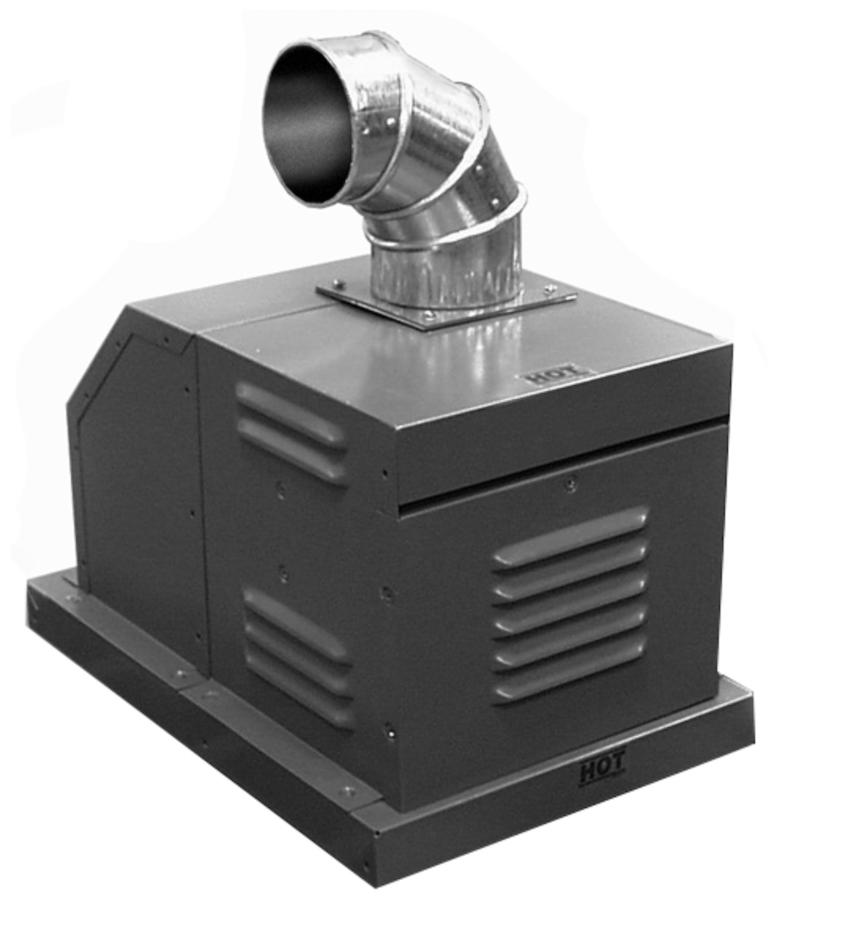

Rheem 009833 D-2 power vent kit with Cool Dark Gray galvanized steel cabinet

Rheem PolyTuf Powder Coated Cool Dark Gray Galvanized Steel Cabinet D-2 Power Vent Kit, 009833

Name: Rheem PolyTuf Powder Coated Cool Dark Gray Galvanized Steel Cabinet D-2 Power Vent Kit, 009833
Brand: Raypak
SKU: RHM-151-9833
Price: 746.99 USD
Availability: InStock

Ask a questionMPN 009833

$746⁹⁹

FREE Delivery

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

D-2 power vent The factory power vent kit for indoor and restricted vent installs on these heaters.
Cabinet included Comes with the PolyTuf powder coated galvanized steel cabinet in Cool Dark Gray.
Fits the large IID heaters Built for models 336-406 and 337-408 with IID ignition.
240 VAC, 1 A The blower runs on 240 volt power and draws 1 amp.
Raypak Rheem OEM The genuine part, number 009833, not a generic blower kit.
Finish built for weather PolyTuf powder coat over galvanized steel is the same treatment used on the heater cabinet.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select Rheem PolyTuf Powder Coated Cool Dark Gray Galvanized Steel Cabinet D-2 Power Vent Kit, 009833

Raypak

Rheem PolyTuf Powder Coated Cool Dark Gray Galvanized Steel Cabinet D-2 Power Vent Kit, 009833

$746⁹⁹

Select

Raypak

Genuine OEM Protek Shield Module Assembly, 017960F

$51⁹⁹

Select

Raypak

Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347

$296⁹⁹

Select

Raypak

Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F

$251⁹⁹

Select

Raypak

Genuine OEM Propane and Natural Gas Pilot, 002003F

$81⁹⁹

Select

Raypak

Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345

$324⁹⁹

Select

Raypak

100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329

$102⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Raypak 010745 D-2 indoor power vent, 120V, for models 206A through 408

Raypak D-2 Indoor Power Vent 120V for Models 206A-408, 010745$769⁹⁹

Jandy R0719500 VersaFlo power interface board kit for Pro Series JXi heater

Jandy VersaFlo Power Interface Board Kit for Pro Series JXi Heater, R0719500$604⁹⁹

Raypak 009832 D-2 power vent kit in cool dark gray galvanized steel cabinet for 206 to 267 pool heaters

Raypak D-2 Indoor Power Vent 206-267 120/240V, 009832$741⁹⁹

Raypak 010744 D-2 indoor power vent kit in a cool dark gray galvanized steel cabinet

Raypak 120V 336A-408 D-2 Indoor Power Vent, 010744$789⁹⁹

Raypak 008156F D-2 power vent blower for 206 through 408 heaters

Raypak 206-408 D-2 Power Vent Blower, 008156F$377⁹⁹

Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit

Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$538⁹⁹

Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters

Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$418⁹⁹

Pentair 474059 tube sheet coil assembly kit for MasterTemp 250NA and 250LP heaters

Pentair Tube Sheet Coil Assembly Kit for 250NA 250LP MasterTemp Heater, 474059$934⁹⁹

Hayward FDXLICB1930 integrated control board for Universal H-Series FD heaters

Hayward Control Board Kit, FD, FDXLICB1930$407⁹⁹

Pentair 460748 heater manifold kit for the 250,000 BTU MasterTemp

Pentair Heater Manifold Kit 250,000 BTU, 460748$513⁹⁹

Pentair 474058 cupro nickel tube sheet coil assembly kit for MasterTemp 175 and 200 heaters

Pentair Tube Sheet Coil Assembly Kit Cupro Nickel, for MasterTemp 175NA-200LP, 474058$772⁹⁹

Pentair 460743 MasterTemp 250K natural gas combustion blower kit

Pentair Air Blower Kit 250K Natural Gas, 460743$639⁹⁹

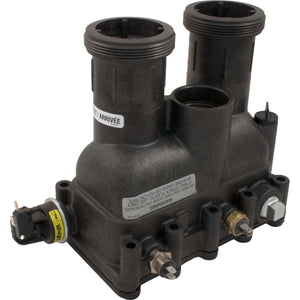

Sta-Rite 77707-0016 heater manifold kit for 400,000 BTU pool heaters

Sta-Rite Heater Manifold Kit 400,000 BTU, 77707-0016$619⁹⁹

Hayward UHXPOSHZ14008 8 in. positive pressure indoor vent adapter for Universal H-Series H400 heaters

Hayward Positive Pressure Indoor Vent Adapter for Universal H-Series H400 Heaters, 8 in., UHXPOSHZ14008$565⁹⁹

Pentair 474060 cupro nickel tube sheet coil assembly kit for MasterTemp 300NA and 300LP heaters

Pentair Tube Sheet Coil Assembly Kit, Cupro Nickel, for MasterTemp 300NA and 300LP, 474060$1,053⁹⁹

Hayward HDXFGSV001 gas valve kit for HDF pool heaters

Hayward HDXFGSV001 Gas Valve Kit$397⁹⁹

Pentair 474978 air blower kit for the MasterTemp 125 natural gas heater

Pentair Air Blower Kit for MasterTemp 125 Natural Gas Heater, 474978$642⁹⁹

Hayward IDXVAL1931 gas valve kit for H Series above ground pool heaters

Hayward H Series Gas Valve Kit, IDXVAL1931$450⁹⁹

Sta-Rite 77707-0232 MasterTemp and Max-E-Therm tube sheet coil assembly kit for 200NA and 200LP

Sta-Rite MasterTemp and Max-E-Therm Tube Sheet Coil Assembly Kit, Models 200NA and 200LP, 77707-0232$941⁹⁹

Raypak 002475F Unitherm governor kit 334-824 for P334, P404 and P514 pool heaters

Raypak Genuine OEM Unitherm Governor Kit 334-824, 002475F$391⁹⁹

Product details

Rheem 009833 is the D-2 power vent kit for 336-406 and 337-408 IID pool heaters, supplied with the PolyTuf powder coated galvanized steel cabinet in Cool Dark Gray. It is the genuine Raypak Rheem part.

What a power vent does

A standard pool heater relies on natural draft to carry combustion gases out. Where that is not possible, an indoor mechanical room or a vent run with restrictions, a power vent kit puts a powered blower in the path and moves those gases under pressure. It changes what the heater needs from the venting, and it is the difference between an installation that passes and one that will not.

Electrical

The vent runs on 240 VAC and draws 1 amp. Wiring and vent routing follow the heater manual and local code, and this is work for a licensed installer.

The cabinet

The kit is not a bare blower. It comes with the galvanized steel cabinet finished in PolyTuf powder coat, Cool Dark Gray, so the finished install matches the heater it sits on.

Specifications
Brand	Rheem
Manufacturer part number	009833
UPC	840891018254
Type	D-2 power vent kit
Cabinet material	Galvanized steel
Cabinet finish	PolyTuf powder coated, Cool Dark Gray
Fits	Model 336-406 and 337-408 IID pool heaters
Voltage	240 VAC
Current	1 A
Shipping weight	37.65 lb
Ships	Freight

Downloads

D-2 Power Vent Submittal Form Owners Manual

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219

Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217

Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08

Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784

Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F

Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345

Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F

Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F

Shop Raypak parts

Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board

Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$296⁹⁹

Raypak 017960F Protek Shield module assembly for Raypak pool heaters

Raypak Genuine OEM Protek Shield Module Assembly, 017960F$51⁹⁹

Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view

Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,800⁰⁰ Web Price

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784

Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,499⁰⁰ Web Price

Raypak 003900F IID natural gas electronic combination valve

Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$251⁹⁹

Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump

Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,398⁰⁰ Web Price

Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters

Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$324⁹⁹

Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,200⁰⁰ Web Price

Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view

Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,179⁰⁰ Web Price

Raypak 014779 106A analog natural gas above ground pool heater

Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,999⁰⁰ Web Price

Raypak 100-10000414 boiler burner 10-pack

Raypak Boiler Burner 10-Pack, 100-10000414$47⁹⁹

Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters

Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$407⁹⁹

Raypak 002003F genuine OEM propane and natural gas pilot

Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$81⁹⁹

Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$102⁹⁹

Raypak 010394F burner tray with burners for the 406A pool heater

Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$869⁹⁹

Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters

Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$815⁹⁹

Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater

Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,292⁹⁹

Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122

Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,154⁰⁰ Web Price

Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A

Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$374⁹⁹

Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater

Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,780⁰⁰ Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which heaters does this kit fit?

Models 336-406 and 337-408 with IID ignition.

What power does the vent need?

240 VAC at 1 amp.

Does the cabinet come with it?

Yes. The kit includes the PolyTuf powder coated galvanized steel cabinet in Cool Dark Gray.

Why would I need a power vent?

A power vent kit is used where the heater cannot draft naturally, such as an indoor room or a run with restrictions, and the blower moves the flue gases instead.

Ask your own question
