Pentair 460748 heater manifold kit for the 250,000 BTU MasterTempPentair Heater Manifold Kit 250,000 BTU, 460748 In stock$51099

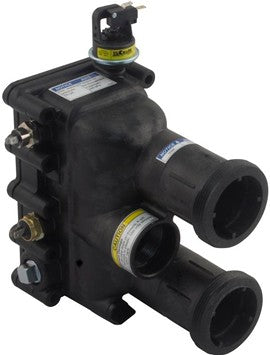

Pentair 460748 heater manifold kit for the 250,000 BTU MasterTemp
Shop all Pentair

Pentair Heater Manifold Kit 250,000 BTU, 460748

Ask a questionMPN 460748
$51099
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits MasterTemp 250NA and 250LP the manifold kit for the 250,000 BTU size.
  • Genuine Pentair OEM part 460748.
  • Water system part the manifold routes pool water through the heat exchanger.
  • Sold as a kit supplied as the manifold assembly rather than loose pieces.
  • Size specific MasterTemp manifolds differ by BTU rating, so match the heater size.
  • Lubricate the o-rings a silicone based o-ring lubricant makes reassembly easier.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Heater Manifold Kit 250,000 BTU, 460748, SKU PUR-151-0748. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Heater Manifold Kit 250,000 BTU, 460748
Pentair

Heater Manifold Kit 250,000 BTU, 460748

$51099
Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Pentair

Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z

$53999
Pentair MasterTemp 125 Manifold Kit, 474972
Pentair

MasterTemp 125 Manifold Kit, 474972

$28399
Pentair Tube Sheet Coil Assembly Kit for 250NA 250LP MasterTemp Heater, 474059
Pentair

Tube Sheet Coil Assembly Kit for 250NA 250LP MasterTemp Heater, 474059

$92999
Pentair Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994
Pentair

Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994

$15699
Pentair MasterTemp Water Pressure Switch, 42001-0060S
Sta-Rite

Pentair MasterTemp Water Pressure Switch, 42001-0060S

$9699
Pentair MasterTemp Max-E-Therm Ignition Control Module Replacement Kit, 476223Z
Pentair

MasterTemp Max-E-Therm Ignition Control Module Replacement Kit, 476223Z

$33599
Subtotal

Similar products

Other products people compare with this one.

Pentair 474978 air blower kit for the MasterTemp 125 natural gas heater Pentair Air Blower Kit for MasterTemp 125 Natural Gas Heater, 474978$64499 Pentair 474845 3 inch PVC direct air intake duct kit for MasterTemp 125 heater Pentair 3" PVC Direct Air Intake Duct Kit for 125 MasterTemp Heater, 474845$27699 Pentair 42002-0033Z manifold side panel for MasterTemp pool heaters Pentair Manifold Side Panel for MasterTemp Heater, 42002-0033Z$34599 Pentair 460743 MasterTemp 250K natural gas combustion blower kit Pentair Air Blower Kit 250K Natural Gas, 460743$64299 Pentair MasterTemp & Sta-Rite Max-E-Therm Natural Gas | 77707-0253 Pentair Quiet Blower Kit for MasterTemp and Max-E-Therm 400 Natural Gas Heaters, 77707-0253$70999 Pentair 474958 combustion chamber cover for MasterTemp and Max-E-Therm 125 heaters Pentair Combustion Chamber Cover for Max-E-Therm Heaters, 474958$43399 Pentair 461107 MasterTemp and Max-E-Therm wire harness replacement kit Pentair MasterTemp Max-E-Therm Wiring Harness, 461107$30099 42002-0034Z MasterTemp gas pool heater top cover Sta-Rite MasterTemp Heater Top, 42002-0034Z$31499 Sta-Rite 77707-0255 air blower kit for the 333 propane Max-E-Therm burner system Sta-Rite Air Blower Kit for 333 Propane Max-E-Therm Burner System, 77707-0255$70999 Pentair MasterTemp Gas Conversion Kit Natural Gas to Propane | 460741 Pentair MasterTemp 250 Natural Gas to Propane Conversion Kit for 250,000 BTU Heaters, 460741$5699
Pentair MasterTemp Gas Conversion Kit Propane to Natural Gas | 460742 Pentair MasterTemp 250 Propane to Natural Gas Conversion Kit for 250,000 BTU Heaters, 460742$5399 Pentair MasterTemp Gas Conversion Kit Natural Gas to Propane | 460755 Pentair MasterTemp 300 Natural Gas to Propane Conversion Kit for 300,000 BTU Heaters, 460755$5399 Pentair 77707-0120 manifold o-ring kit for Max-E-Therm and MasterTemp heaters Pentair Manifold O-Ring Kit for Max-E-Therm and MasterTemp Heater Burner System, 77707-0120$2999 Pentair 461031 MasterTemp direct air intake duct kit Pentair MasterTemp Heater Direct Air Intake Duct Kit, 461031$24599 Pentair 474200 MasterTemp basic manifold kit Pentair MasterTemp Basic Manifold Kit, 474200$19199 Pentair 461063 natural gas to propane conversion kit for MasterTemp 125 heater Pentair Natural Gas to Propane Conversion Kit for 125 MasterTemp Heater, 461063$6499 Pentair 42001-0105S voltage selector plug kit for Max-E-Therm heaters Pentair Voltage Selector Plug Kit for Max-E-Therm Heater Electrical System 120/240 V, 42001-0105S$5499 Pentair 474058 cupro nickel tube sheet coil assembly kit for MasterTemp 175 and 200 heaters Pentair Tube Sheet Coil Assembly Kit Cupro Nickel, for MasterTemp 175NA-200LP, 474058$77399 Pentair 474974 MasterTemp 1-1/2 inch heater union kit Pentair Union 1.5" Kit for MasterTemp 125, 474974$7399 Pentair 42001-0107S dual voltage transformer kit for Max-E-Therm and MasterTemp heaters Pentair Transformer Kit, Dual Voltage, 42001-0107S$7099

Product details

The Pentair 460748 is the manifold kit for the Pentair MasterTemp 250 pool and spa heater, models 250NA and 250LP at 250,000 BTU. It is the Brand OEM kit for the heater's water system, where the manifold directs pool water through the heat exchanger and back out to the return line.

What the kit includes

Pentair's MasterTemp water system parts sheet lists the manifold kit as including the numbered items 3 through 14 and 21 on that sheet, plus items 5 to 7 on the electrical system sheet. That covers the coil and tubesheet sealing O-ring kit, the manifold bypass valve kit, the water pressure switch, the connector tube kit and the zinc plug.

Fit

Pentair sells a different manifold kit for each MasterTemp size, so 460748 is for the 250 only. The 175 and 200 models use 77707-0014, the 300 uses 77707-0015 and the 400 uses 77707-0016. Check the BTU rating on the heater data plate before ordering.

Related parts

The 250 sealing O-ring kit (460749, eight O-rings) and the tube sheet coil assembly kit (460747) are listed separately. Pentair also lists a basic manifold kit, 474200, that includes items 3, 5 and 10 to 14 only.

Specifications
Brand Pentair
Manufacturer part number 460748
UPC 788379726713
Type Heater manifold kit
Heater size 250,000 BTU
Fits Pentair MasterTemp 250 heaters
Heater models MasterTemp 250NA (natural gas) and 250LP (propane)
Parts list position Item 2, Manifold Kit, on the Pentair MasterTemp water system replacement parts sheet
Shipping weight 6.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which heater does this manifold fit?
The Pentair MasterTemp 250 pool and spa heater, models 250NA (natural gas) and 250LP (propane), 250,000 BTU. Pentair lists a different manifold kit for each of the other MasterTemp sizes.
Will it fit a MasterTemp 300 or 400?
No. The manifold kit is specific to the 250,000 BTU size. Check the BTU rating on your heater before ordering.
Is this a genuine Pentair part?
Yes. 460748 is the OEM Pentair manifold kit.
What else should I have on hand?
A silicone based o-ring lubricant helps seat the o-rings when the manifold goes back on.
