Pentair 461031 MasterTemp direct air intake duct kitPentair MasterTemp Heater Direct Air Intake Duct Kit, 461031 In stock$24599
Pentair 461031 MasterTemp direct air intake duct kit
Shop all Pentair

Pentair MasterTemp Heater Direct Air Intake Duct Kit, 461031

Ask a questionMPN 461031
$24599
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Indoor installs brings outside combustion air to a MasterTemp heater installed inside an equipment room.
  • 3 in. intake the combustion air intake is a 3 in. pipe.
  • Vertical or horizontal route the intake whichever way the room and the wall allow.
  • PVC duct the direct air intake duct is PVC pipe, not metal flue.
  • Genuine Pentair part number 461031, from the MasterTemp burner system parts family.
  • Intake side only this kit handles combustion air in; the exhaust vent and appliance adapter are separate parts.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair MasterTemp Heater Direct Air Intake Duct Kit, 461031, SKU PUR-151-1031. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair MasterTemp Heater Direct Air Intake Duct Kit, 461031
Pentair

MasterTemp Heater Direct Air Intake Duct Kit, 461031

$24599
Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Pentair

Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z

$53999
Pentair MasterTemp 125 Manifold Kit, 474972
Pentair

MasterTemp 125 Manifold Kit, 474972

$28399
Pentair Tube Sheet Coil Assembly Kit for 250NA 250LP MasterTemp Heater, 474059
Pentair

Tube Sheet Coil Assembly Kit for 250NA 250LP MasterTemp Heater, 474059

$93499
Pentair Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994
Pentair

Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994

$15199
Pentair MasterTemp Water Pressure Switch, 42001-0060S
Sta-Rite

Pentair MasterTemp Water Pressure Switch, 42001-0060S

$9699
Pentair MasterTemp Max-E-Therm Ignition Control Module Replacement Kit, 476223Z
Pentair

MasterTemp Max-E-Therm Ignition Control Module Replacement Kit, 476223Z

$32099
Subtotal

Similar products

Other products people compare with this one.

Pentair 474845 3 inch PVC direct air intake duct kit for MasterTemp 125 heater Pentair 474845 3" PVC Direct Air Intake Duct Kit for 125 MasterTemp Heater$24799 Pentair 474200 MasterTemp basic manifold kit Pentair MasterTemp Basic Manifold Kit, 474200$19199 Pentair 42002-0033Z manifold side panel for MasterTemp pool heaters Pentair Manifold Side Panel for MasterTemp Heater, 42002-0033Z$32999 Pentair 461107 MasterTemp and Max-E-Therm wire harness replacement kit Pentair MasterTemp Max-E-Therm Wiring Harness, 461107$30099 Pentair 472610Z MasterTemp switch membrane pad for the heater electrical system Pentair MasterTemp Switch Membrane Pad, 472610Z$13499 42002-0034Z MasterTemp gas pool heater top cover Sta-Rite MasterTemp Heater Top, 42002-0034Z$31799 Pentair 473715Z 50 PSI pressure relief valve for MasterTemp and Max-E-Therm heaters Pentair MasterTemp Pressure Relief Valve 50 PSI, 473715Z$14899 Pentair 474978 air blower kit for the MasterTemp 125 natural gas heater Pentair Air Blower Kit for MasterTemp 125 Natural Gas Heater, 474978$64299 Pentair 461063 natural gas to propane conversion kit for MasterTemp 125 heater Pentair Natural Gas to Propane Conversion Kit for 125 MasterTemp Heater, 461063$6499 Pentair 77707-0120 manifold o-ring kit for Max-E-Therm and MasterTemp heaters Pentair Manifold O-Ring Kit for Max-E-Therm and MasterTemp Heater Burner System, 77707-0120$2999
Pentair 474974 MasterTemp 1-1/2 inch heater union kit Pentair Union 1.5" Kit for MasterTemp 125, 474974$7099 Pentair 474989 thermal regulator for MasterTemp Model 125 heater water system Pentair Thermal Regulator for MasterTemp 125 Heater Water System, 474989$5999 Pentair MasterTemp and Sta-Rite Max-E-Therm Gas Conversion Kit | 77707-1461 Pentair MasterTemp and Sta-Rite Max-E-Therm Gas Conversion Kit | 77707-1461$5799 Pentair MasterTemp Gas Conversion Kit Natural Gas to Propane | 460741 Pentair MasterTemp Gas Conversion Kit Natural Gas to Propane | 460741$5699 Pentair 42001-0105S voltage selector plug kit for Max-E-Therm heaters Pentair Voltage Selector Plug Kit for Max-E-Therm Heater Electrical System 120/240 V, 42001-0105S$5499 Pentair MasterTemp Gas Conversion Kit Propane to Natural Gas | 460742 Pentair MasterTemp Gas Conversion Kit Propane to Natural Gas | 460742$5399 Pentair MasterTemp Gas Conversion Kit Natural Gas to Propane | 460755 Pentair MasterTemp Gas Conversion Kit Natural Gas to Propane | 460755$5399 Pentair 474952 combustion chamber o-ring kit for MasterTemp 125 heater Pentair Combustion Chamber O-Ring Kit for MasterTemp 125, 474952$4999 Pentair 460748 heater manifold kit for the 250,000 BTU MasterTemp Pentair Heater Manifold Kit 250,000 BTU, 460748$51099 Pentair 460743 MasterTemp 250K natural gas combustion blower kit Pentair Air Blower Kit 250K Natural Gas, 460743$64299

Product details

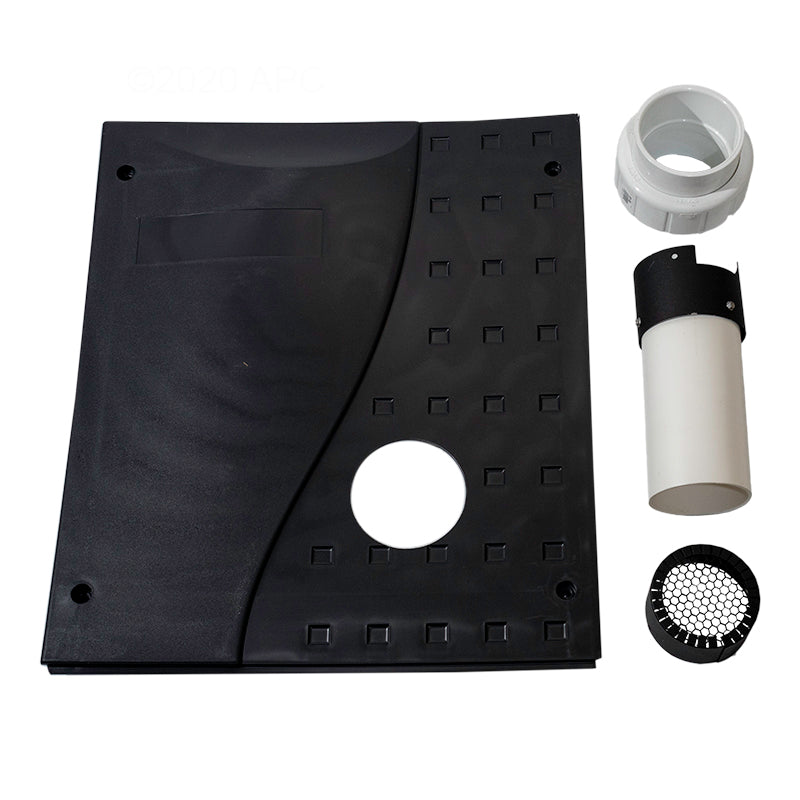

The Pentair 461031 Direct Air Intake Duct Kit is the combustion air intake for a MasterTemp heater installed indoors. Rather than letting the heater breathe the air in the equipment room, the kit ducts outside air straight to the burner through a 3 in. PVC pipe.

Vertical or horizontal

The 3 in. intake can be run vertically through a roof or horizontally through a wall, so it fits most equipment room layouts. It is PVC pipe on the intake side, not metal flue.

What it does not cover

This kit is for the air going in. The exhaust vent and the appliance adapter that connects the heater to its flue are separate parts, so plan the exhaust run alongside this kit when you lay out an indoor install.

Specifications
Brand Pentair
Manufacturer part number 461031
UPC 788379859879
Fits Pentair MasterTemp heaters, indoor installation
Intake pipe size 3 in.
Material PVC
Orientation Vertical or horizontal
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What is this kit for?
It supplies combustion air to a MasterTemp heater that is installed indoors. Instead of drawing air from the room, the heater pulls it through a 3 in. PVC duct from outside.
Can the intake run horizontally?
Yes. The 3 in. combustion air intake can be installed vertically or horizontally, whichever suits the equipment room.
Does it include the exhaust vent?
No. This is the intake side only. Exhaust venting and the appliance adapter for the flue are separate parts.
Do I need this on an outdoor heater?
No. Direct air intake is for indoor installations. A heater installed outdoors draws its combustion air from the open surroundings.
Ask your own question
