CaliMar CMAR15VS1.5 1.5 HP variable speed pool pump with 1.5 in. threaded ports, black housingCaliMar Variable Speed Pool Pump, 1.5 HP, 230V, 1.5 in. Ports, CMAR15VS1.5 In stock$59900

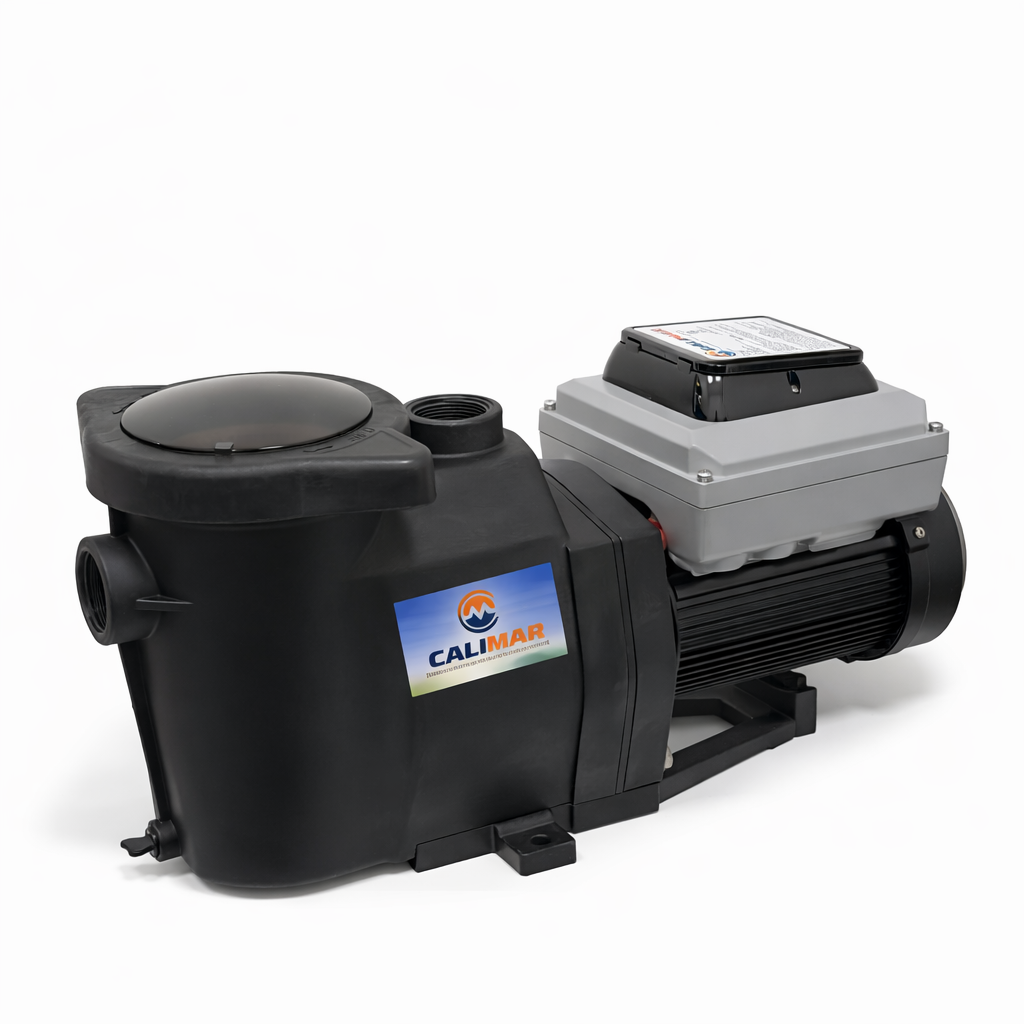

CaliMar CMAR15VS1.5 1.5 HP variable speed pool pump with 1.5 in. threaded ports, black housing
Shop all CaliMar

CaliMar Variable Speed Pool Pump, 1.5 HP, 230V, 1.5 in. Ports, CMAR15VS1.5

Ask a questionMPN CMAR15VS1.5
$59900 $699.00 14% OFF
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 1.5 in. ports CaliMar's variable speed pump in a housing with 1.5 in. suction and discharge.
  • 1.5 HP, 5.5 A CaliMar's continuous load and current ratings, on 230V single phase.
  • Shares the 1 HP's parts the same motor, drive and impeller as the CMARVSP1.0, by CaliMar's parts list.
  • TEFC motor totally enclosed and fan cooled, premium efficiency, 450 to 3,450 RPM.
  • Built in controls clock, four speed schedule, Quick Clean and adjustable priming speed.
  • See-through strainer lid check the basket without opening the pump.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CaliMar Variable Speed Pool Pump, 1.5 HP, 230V, 1.5 in. Ports, CMAR15VS1.5, SKU PSU-175834. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CaliMar Variable Speed Pool Pump, 1.5 HP, 230V, 1.5 in. Ports, CMAR15VS1.5
CaliMar

Variable Speed Pool Pump, 1.5 HP, 230V, 1.5 in. Ports, CMAR15VS1.5

$59900
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$55899
Pentair HydroBoost Booster Pump 115/230V 60Hz, 360526
Pentair

HydroBoost Booster Pump 115/230V 60Hz, 360526

$53199
Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S
Balboa

Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S

$33299
Balboa Dura-Jet Spa Pump, 1HP 2-Speed 48 Frame 115V, 4239110-S
Balboa

Dura-Jet Spa Pump, 1HP 2-Speed 48 Frame 115V, 4239110-S

$30399
Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price Hayward W3SP2605X7 Super Pump 3/4 HP up rated inground pool pump Hayward Super Pump .75 HP UR 115/230V, W3SP2605X7$79900 Web Price CMI REV-SS REV single speed primary pool pump, 2 HP CMI REV Single Speed Primary Pool Pump 2 HP, REV-SS$81799 Aqua-Flo Flo-Master XP2 2.5 hp 230v two speed spa pump, part 06125000-1040 Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$44299 Hayward Max-Flo XL 1.0 HP max-rated inground pool pump Hayward Max-Flo XL, 1.0 HP Max-Rated, W3SP2307X10$74900 Web Price Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$35399 CaliMar CaliFlow variable speed pool pump, 1 HP, 230V, CMARCFVSP2010 CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010$74900 Web Price Moov MP15VSP dual voltage variable speed inverter pool pump, 1.2 HP Moov VSP Dual Voltage Inverter Pump, 1.2 HP, 115/230V, MP15VSP$89900 Aqua-Flo Circ-Master CMHP 1/15 HP 115V side discharge circulation pump Aqua-Flo Circ-Master 1/15 HP 115V CMHP, 02093000-2010$28299
Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699 HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$24399 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900 Grundfos 12-18 GPM circulating pump, 230V, Hydroquip part 59896292 Hydroquip Grundfos 12-18 GPM Circulating Pump, 230V, 59896292$19199 Moov MP15AIDV Ai Inverter variable speed pool pump with Wi-Fi, 1.25 THP Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV$1,09900 Waterway 1-1/2" Center Discharge Wet End 2HP | 310-1141 Waterway 1-1/2" Center Discharge Wet End 2HP | 310-1141$8499 Waterway PD-165 Power Defender variable speed in ground pool pump, 1.65 HP 230V Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165$1,29399 Pentair SuperFlo VST 342002 variable speed pool pump, TradeGrade Pentair SuperFlo VST Pool Pump, TradeGrade, 342002$1,29424 Pentair 011642 WhisperFlo WFK-6 three phase 1.5HP pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 Phase, 208/230/460V, 1.5HP Full Rated, 011642$1,30599 Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001 Pentair Sta-Rite SuperMax VS 1-1/2 HP Variable Speed Pool Pump, 115/208-230V, 343001$1,43599

Product details

The CaliMar CMAR15VS1.5 is the 1.5 in. port version of CaliMar's variable speed inground pool pump, covered by the same installation and user guide as the CMARVSP models. It takes 230V single phase at 50 or 60 Hz, runs from 450 to 3,450 RPM, and has 1.5 in. suction and discharge ports.

Motor and pump

CaliMar rates it at 1.5 HP maximum continuous load and 5.5 A. Its parts list gives it the same motor, motor drive and impeller as the 1 HP CMARVSP1.0, in a pump housing with 1.5 in. ports in place of 2 in. The motor is TEFC (totally enclosed, fan cooled) and premium efficiency, the volute and strainer pot are one piece, the lid is see-through, the controller enclosure is rated IPX6, and the pump is ETL listed for the US and Canada.

Controls

The keypad holds a clock, a four speed daily schedule, a Quick Clean run and the priming speed, and the display steps through speed, time, time remaining and watts. CaliMar's guide describes no speed inputs for an automation panel, so a timer or relay can switch its power but not set its speed.

Before you buy

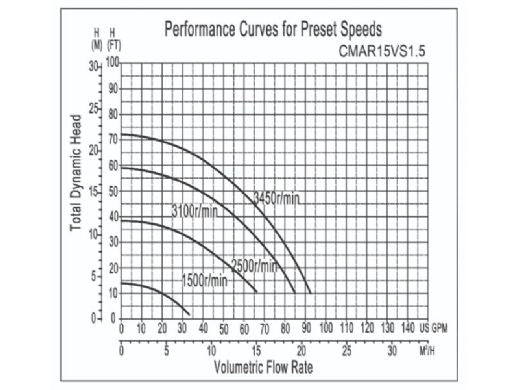

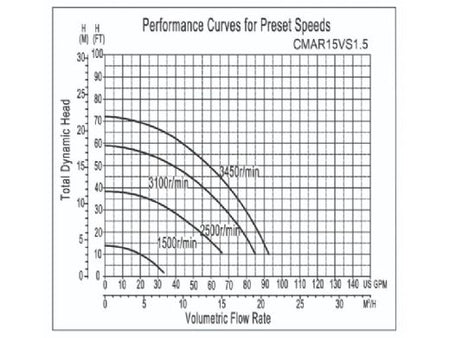

Read from CaliMar's curve, it moves about 60 GPM against 50 feet of head at 3,450 RPM. CaliMar recommends suction piping at least as large as the return line, and larger pipe where possible. It draws 5.5 A at 230V and is wired in permanently by a licensed electrician on a GFCI protected circuit. CaliMar's one year warranty covers materials and workmanship in residential use for the original buyer; commercial use voids it and labor is excluded.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand CaliMar
Manufacturer part number CMAR15VS1.5
UPC 9220017583490
Type Variable speed inground pool pump, self-priming
Horsepower 1.5 HP maximum continuous load
Voltage 230 V
Phase Single phase, 50 or 60 Hz
Amp draw 5.5 A input current
Speed Variable speed, 450 to 3,450 RPM
Flow at 50 ft of head About 60 GPM at 3,450 RPM, read from CaliMar's curve
Water connections 1.5 in suction, 1.5 in discharge
Strainer Built in strainer pot with a see-through lid
Motor Totally enclosed fan cooled (TEFC), premium efficiency variable speed; the same motor, drive and impeller as the CMARVSP1.0
Environmental rating NEMA Type 3; controller enclosure IPX6
Priming Self-priming; speed 1 is the priming speed, set by the installer
Controls Built in: clock, four speed schedule, Quick Clean and adjustable priming speed
Listing ETLus and cETL listed

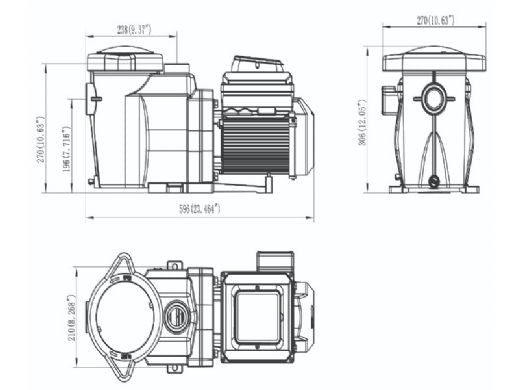

Dimensions 23.46 in long, 10.63 in wide, 12.05 in high
Warranty 1 year, by CaliMar, on materials and workmanship in residential use; labor not covered; commercial use voids it
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CaliMar

CaliMar CMARCHA40-2Y replacement salt cell for Hayward T-Cell-15, 40,000 gallons CaliMar Salt Cell Compatible with Hayward® T-Cell-15®, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y5.0 (1) $54900 CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price CaliMar CMARCFS40-1Y replacement salt cell for Zodiac Nature 2 Fusion R0503000 CaliMar Salt Cell Compatible with Zodiac Nature2 Fusion Soft R0503000, 40,000 Gallons, CMARCFS40-1Y$69900 Web Price CaliMar CMARSHA25-3Y complete salt chlorinator system for pools up to 25,000 gallons CaliMar Salt Chlorinator System Complete, for Up to 25,000 Gallon Pools, CMARSHA25-3Y$83900 Web Price CaliMar CMARCIC20-1Y replacement salt cell compatible with IntelliChlor IC20 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC20, 20K Gallons, CMARCIC20-1Y$79900 Web Price CaliMar CMARCPC40-2Y replacement salt cell for SGS Wave and Breeze 540 and CMP Powerclean 540 systems CaliMar Replacement Salt Cell for SGS Wave & Breeze 540 Systems and CMP Powerclean 540 Systems, 40K Gallons, CMARCPC40-2Y$52900 Web Price CaliMar CaliGlow Pro nicheless LED pool light with its 50 foot cord coiled beside it CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50P$39900 Web Price CaliMar FB2010-SF flat black supporting foot for CMAR15VS1.5 and CMARVSP3.0 variable speed pumps CaliMar Supporting Foot for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-SF$1786 CaliMar FB2010-MF black mounting foot bracket for CMAR15VS1.5 and CMARVSP3.0 variable speed pumps CaliMar Mounting Foot for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-MF$1712 CaliMar CaliGlow Pro H-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100H$49900
CaliMar CaliGlow Pro P-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100P$42900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 50 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50J$39900 CaliMar CaliGlow Pro H-Series nicheless LED pool light, 50 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50H$44900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150J$49900 CaliMar CaliGlow Pro H-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150H$59900 CaliMar CaliGlow Pro P-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150P$49900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100J$44900 CaliMar Cover O Ring FB2010CO | FB2010-CO CaliMar Cover O-Ring for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-CO$1499 CaliMar Strainer Cover Kit FB2010SCK | FB2010-SCK CaliMar Strainer Cover Kit for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-SCK$2099 CaliMar Repl Cell for CompuPool CPSC24 Up 26K Gal. CMARCCE30-3Y | CMARCCE30-1Y CaliMar Replacement Salt Cell Electrode for CompuPool CPSC24, 5-Blade, 26,000 Gallons, CMARCCE30-1Y$45900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is the CaliMar CMAR15VS1.5 the same pump as the CMARVSP1.0?
Largely. CaliMar's parts list gives the CMAR15VS1.5 and the CMARVSP1.0 the same motor (FB2010-M), motor drive (FB2010-MD) and impeller (FB2010-IA); the housings differ, FW1515-PH with 1.5 in. ports against FB2010-PH with 2 in. CaliMar's table rates this one at 1.5 HP maximum continuous load and 5.5 A, and its curve gives about 60 GPM at 50 feet of head.
Can the CaliMar CMAR15VS1.5 sit above or below the water level?
Either. Above the water, CaliMar's guide allows no more than 10 feet, and the strainer pot is filled before the first start. Below it, close the suction and return valves before opening the pot and reopen them before running; a flooded suction system should have gate valves on both pipes, the suction one at least five pipe diameters out, 7.5 inches on 1.5 in. pipe.
How often should I clean the CaliMar CMAR15VS1.5 strainer basket?
Look at it through the see-through lid at least weekly, whatever the filter schedule. To clean it, stop the pump, turn off its breaker and let the water cool, then tap the clamp counter-clockwise to lift the lid. Rinse the basket, replace it if cracked, set its notch on the rib in the volute, fill the pot to the inlet, and keep the lid O-ring clean and lubricated.
Does the CaliMar CMAR15VS1.5 show how much power it uses?
Yes. Pressing the Display button steps through the current speed, the time of day, the time left at that speed and the watts being drawn right now. Pressing a speed or Quick Clean button while it runs starts a temporary override at that button's programmed speed and time, after which the pump drops back into its schedule.
