Pentair Rainbow 300 off line chlorinator, part R171016Pentair Rainbow Off Line Chlorinator #300, R171016 In stock$14199
Pentair Rainbow 300 off line chlorinator, part R171016
Shop all Pentair

Pentair Rainbow Off Line Chlorinator #300, R171016

Ask a questionMPN R171016
$14199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Off line design The feeder mounts beside the equipment pad and plumbs into the line rather than sitting in it, so it can be serviced without opening the main plumbing.
  • Takes 3 inch tablets Loads the standard 3 inch trichlor tablet used by most pools.
  • Steady sanitizer A tablet feeder releases chlorine gradually instead of the peaks and dips that come with hand dosing.
  • Rainbow 300 series The long running Rainbow 300 body, now sold under Pentair, part R171016.
  • Less handling of chemicals Tablets go into the feeder chamber rather than being tossed into the skimmer or floated in the pool.
  • Serviceable parts The lid o-ring and the check valve are stocked separately, so a leak does not mean a new feeder.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Rainbow Off Line Chlorinator #300, R171016, SKU RAI-45-802. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Rainbow Off Line Chlorinator #300, R171016
Pentair

Rainbow Off Line Chlorinator #300, R171016

$14199
Pool Season 3 in. Jumbo Chlorinating Tablets, 47251270
Pool Season

3 in. Jumbo Chlorinating Tablets, 47251270

$5900
AquaFinesse Pool Water Care Tablets, 16 Tablets, 956330
AquaFinesse

Pool Water Care Tablets, 16 Tablets, 956330

$7399
Subtotal

Similar products

Other products people compare with this one.

Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$15099 Hayward CL220 off-line automatic chlorinator chemical feeder Hayward Off-line Automatic Chlorinator Chemical Feeder CL220$15399 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$15299 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$17199 King Technology Perform-Max Model 940 in ground in-line chemical feeder King Technology Perform-Max Model 940 In Ground In-Line Feeder, 01-05-0940$13799 Hayward CL110ABG automatic off-line chlorine feeder Hayward Automatic Off-Line Chlorine Feeder, CL110ABG$10199 Hayward CL220BR off-line brominator with 9 lb. bromine tablet capacity Hayward CL220BR Off-Line Brominator, 9 lb. Capacity$16499 Waterway CLC012-W in-line automatic chlorine tablet feeder, white Waterway In-Line Chlorinator, White, CLC012-W$10899
King Technology Perform-Max Model 960 in ground off-line chemical feeder King Technology Perform-Max Model #960 In Ground Off-Line Feeder, 01-05-0960$16499 King Technology New Water Model 400 in-line chlorine cycler for in ground pools King Technology New Water Model 400 In-Line Cycler for In Ground Pools, 01-01-0400$16299 Hayward CL2002S in-line chlorinator with 2 in. slip PVC connections Hayward In-line Chlorinator, 2" Slip PVC Connections, CL2002S$15899 CMP PowerClean Ultra off-line chlorinator with clear glass lid, part 25280-300-000 CMP PowerClean Ultra Off-Line Chlorinator, Clear Glass Lid, 25280-300-000$21299 Advantis Technologies Leisure Time Spa Mineral Purifier | 23434 Advantis Technologies Leisure Time Spa Mineral Purifier | 23434$5199 Poolmaster Inc. Clori-duck Mallard Chlorine Dispenser | 32130 Poolmaster Inc. Clori-duck Mallard Chlorine Dispenser | 32130$4399 King Technology Flippin Frog Sanitizer | 01-12-8406 King Technology Flippin Frog Sanitizer | 01-12-8406$4295 Web Price Pentair Rainbow 300-29X offline commercial chlorinator, part R171070 Pentair Rainbow Commercial Chlorinator #300-29X, Offline, R171070$24399 Poolstyle adjustable spa floater for 1 inch chlorine tablets Poolstyle Adjustable Spa Floater, 1" Tablets, 27051-029-000$2599 Pentair R171086 floating chlorine tablet dispenser, model #330 Pentair Floating Chlorine Tab Dispenser, R171086$2499

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

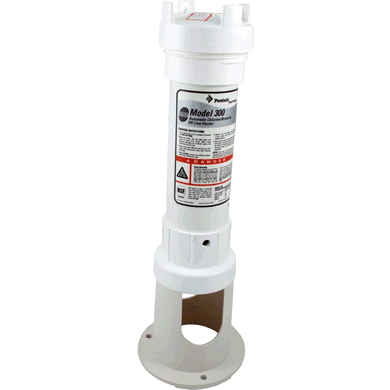

The Pentair Rainbow 300 is an off line chlorinator, part R171016. It holds 3 inch chlorine tablets and releases sanitizer into the circulation system at a controlled rate.

Why off line

An off line feeder is plumbed beside the return line rather than in the middle of it. A small amount of flow is diverted through the chamber, dissolves part of a tablet and carries the chlorine back into the pool. Because the feeder is not carrying full system flow, it can be shut off and opened for a refill without disturbing the rest of the pad.

Steadier chemistry

Hand dosing produces a spike after every treatment and a slow slide until the next one. A tablet feeder smooths that out, which keeps the residual closer to target and takes the daily chemical handling out of the routine.

Service

The lid o-ring and the tube check valve are stocked as separate parts, so the two items most likely to weep after a few seasons can be replaced on their own.

Specifications
Brand Pentair
Manufacturer part number R171016
UPC 788379004217
Series Rainbow 300
System type Off-Line
Chemical type Chlorine tablets
Tablet size 3 inch
Pool type In Ground, Residential
Shipping weight 4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Can I use it on an above ground pool?
The listed attributes call it in ground residential, while the product description also mentions above ground pools. Both readings come from the source, so check your plumbing and pad layout before ordering.
What tablets does it take?
Standard 3 inch chlorine tablets.
What does off line mean?
The feeder sits to the side of the return plumbing and is fed by a small tapped line, rather than having the full flow pass through it. That makes it easier to isolate and service.
Are replacement parts available?
Yes. The lid o-ring and the tube check valve are sold as separate service parts for this feeder.
