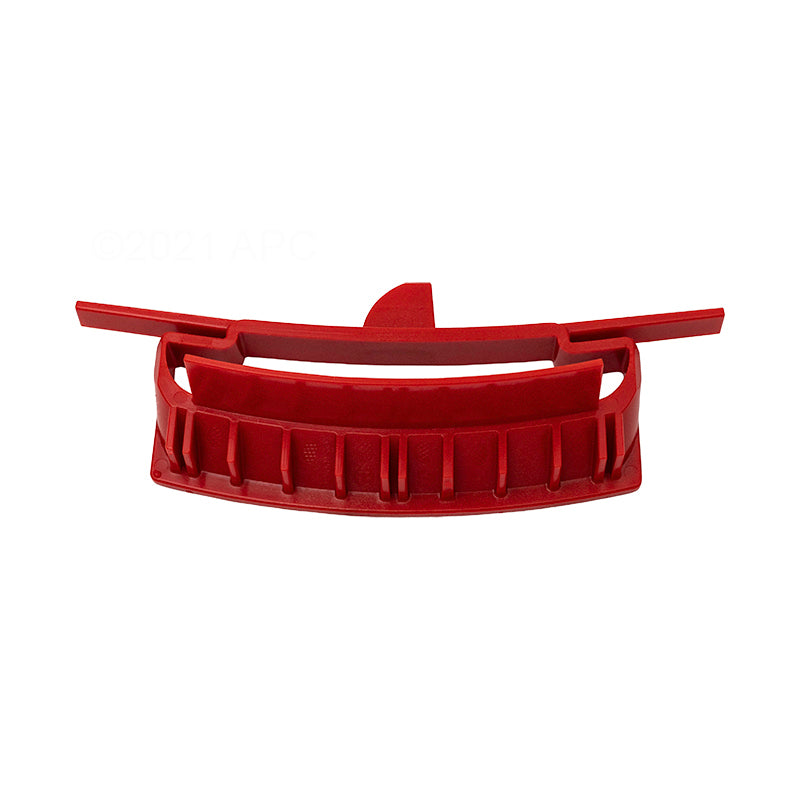

Hayward SwimClear Cartridge Filter Lid Lock Ring Latch, CXLRL1001

Ask a questionMPN CXLRL1001
$2199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Hayward part CXLRL1001 The factory latch for the SwimClear lid lock ring.
  • Closes the lock ring It is the over center latch that pulls the lock ring tight around the filter lid.
  • Listed for C100S, C150S and C200S Named for those SwimClear models in the product description.
  • Also cataloged with C200SC and C225SC The filing on this part also places it with those SwimClear models, so check yours.
  • Common failure point Latches take the whole clamping load at every cartridge clean and are the part that cracks or loses tension.
  • Do not run without it A lock ring that is not properly latched is what turns a filter lid into a pressure problem.
Full description and specifications ↓
