CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigotCMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000 In stock$3999

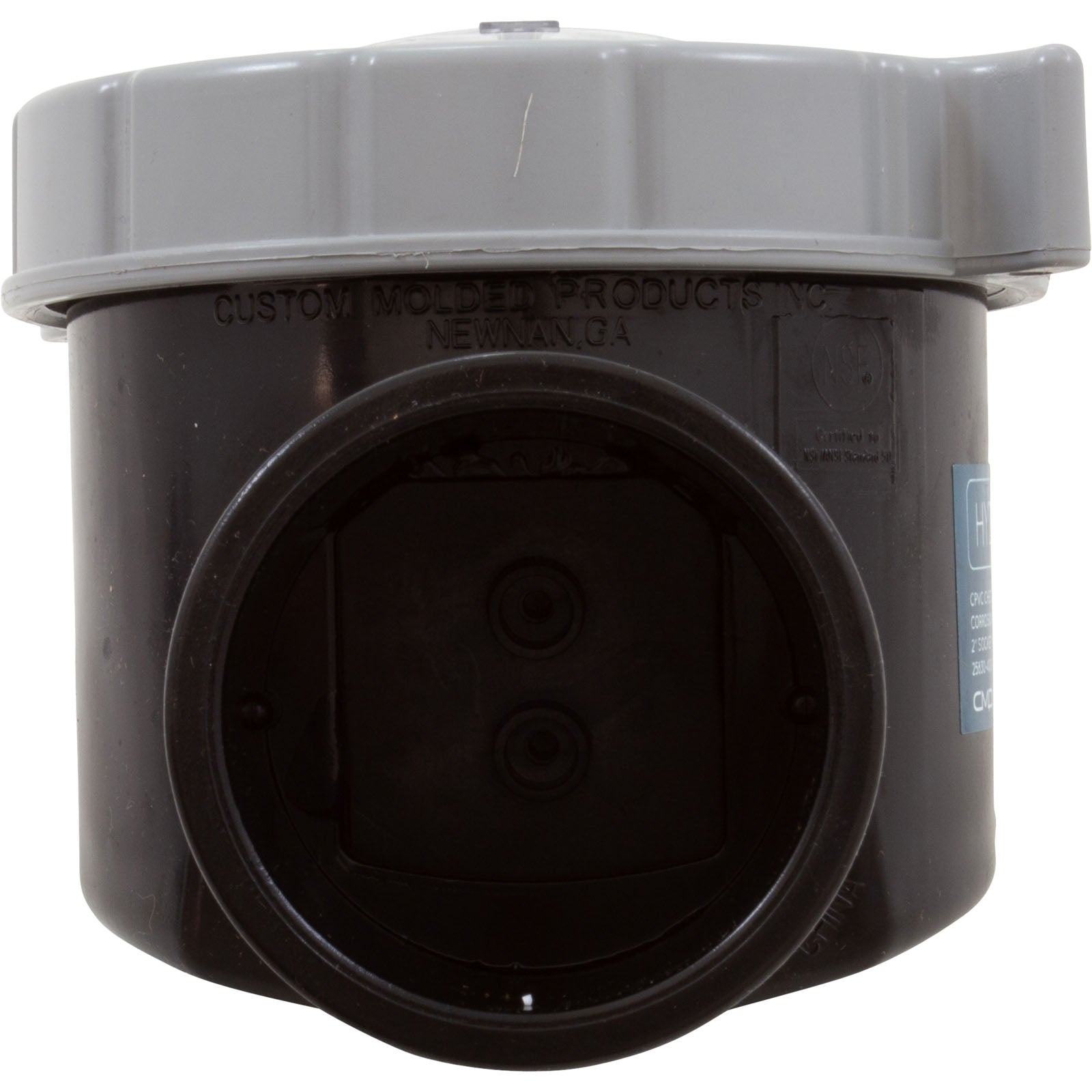

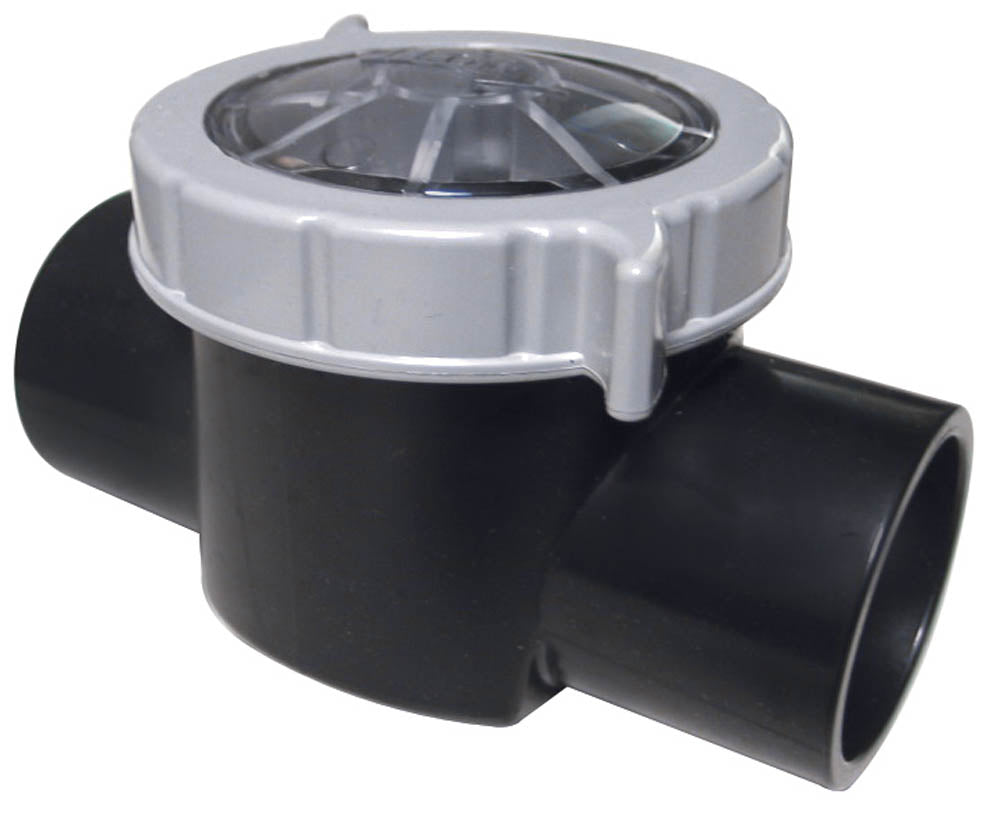

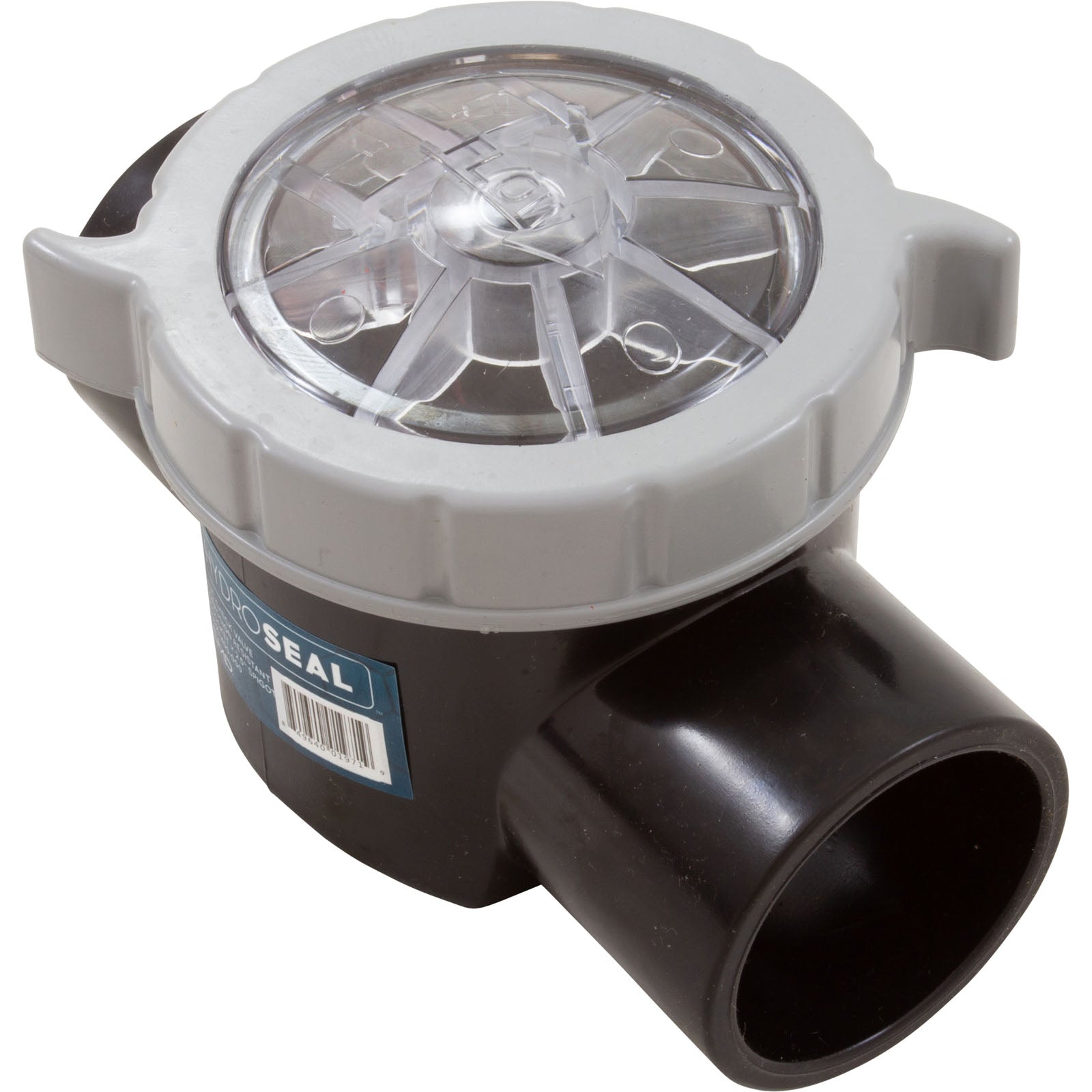

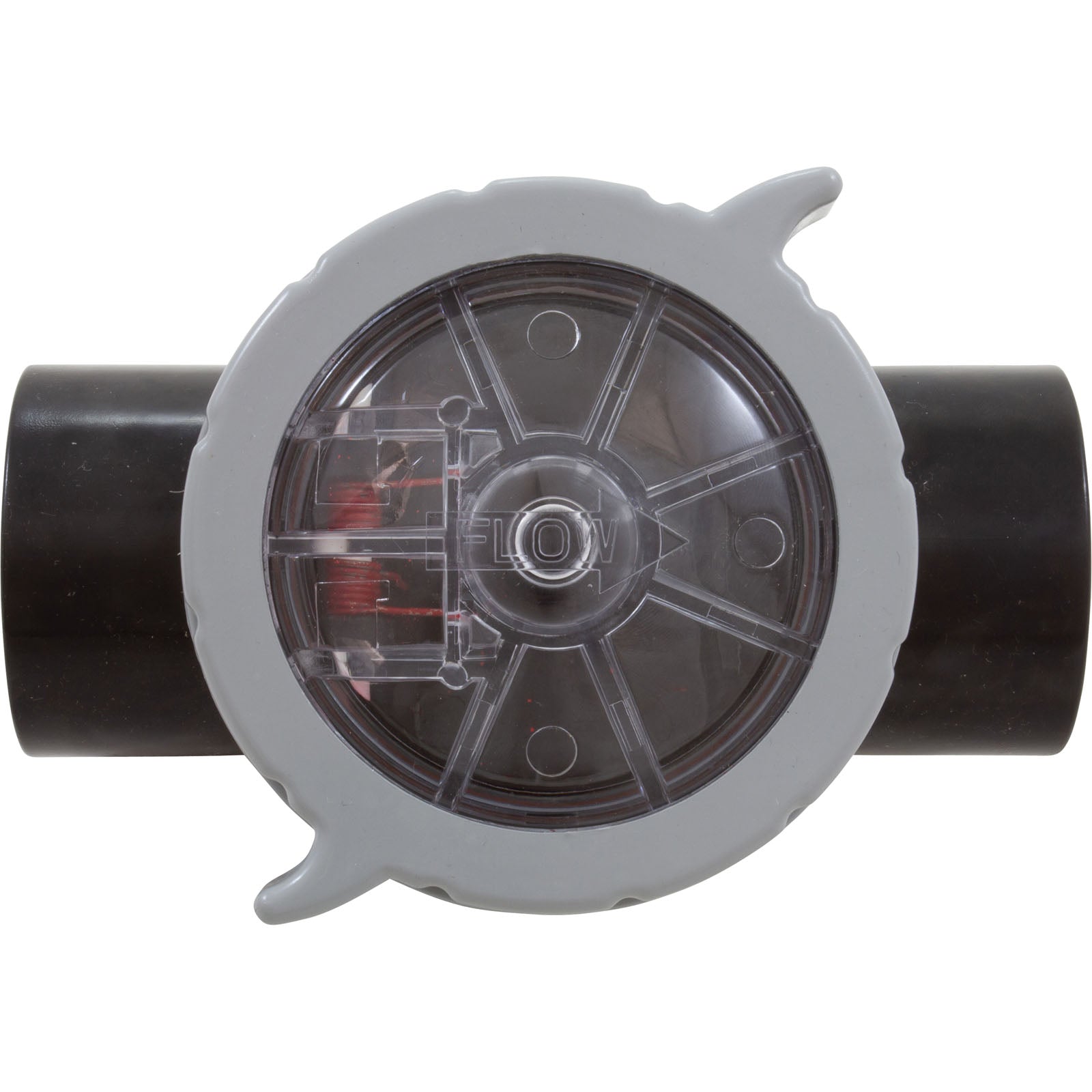

CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot
Shop all CMP

CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000

Ask a questionMPN 25830-400-000
$3999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two sizes in one body 2 in. socket on one end, 2.5 in. spigot on the other, so it drops into 2 in. pipe or a 2.5 in. fitting.
  • 2 lb spring a light spring that closes the valve without adding much head to the system.
  • Serviceable the valve opens up, so the internals can be inspected or replaced without cutting it out of the line.
  • CPVC and corrosion resistant black CPVC body built for chlorinated and salt pool water.
  • 50 psi rating rated for pool pad pressures.
  • NSF certified certified for potable and recreational water use.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000, SKU CTM-56-1029. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000
CMP

Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000

$3999
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1899
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$35699
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in. Pentair Three Port Diverter Valve 2" x 2.5", 263028$5799 Hayward SP0723 Trimline 2-way ball valve, 1-1/2 inch mpt by 1-1/2 inch fpt Hayward Trimline 2-Way Ball Valve, 1-1/2" mpt x 1-1/2" fpt, SP0723$3999 Pentair 263029 two port PVC diverter valve, 2 in. x 2-1/2 in. Pentair Two Port Diverter Valve, 2 in. x 2-1/2 in., 263029$5199 Hayward PSV3S2DGR 2 in by 2-1/2 in PSV Series 3-way diverter valve in PVC Hayward 2" x 2-1/2" PSV Series 3-Way Diverter Valve, PVC, PSV3S2DGR$5299 Hayward PSV3SDGR 1-1/2 in by 2 in PSV Series 3-way diverter valve in PVC Hayward 1-1/2" x 2" PSV Series 3-Way Diverter Valve, PVC, PSV3SDGR$5399 Pentair 263037 three port diverter valve, 1-1/2 inch by 2 inch Pentair Three Port Diverter Valve 1-1/2" x 2", 263037$4999 Hayward PSCV2S2DGR 2 in. x 2-1/2 in. straight PVC check valve, gray Hayward 2 in. x 2-1/2 in. Straight PVC PSV Check Valve, PSCV2S2DGR$5499 Hayward PSV2S2DGR PSV series 2-way diverter valve, 2 in. x 2-1/2 in. PVC Hayward PSV Series 2-Way Diverter Valve, 2 in. x 2-1/2 in. PVC, PSV2S2DGR$5099 Hayward PSV2SDGR 1-1/2 inch by 2 inch PSV Series 2-way PVC diverter valve Hayward 1-1/2" x 2" PSV Series 2-Way Diverter Valve, PVC, PSV2SDGR$4299 PoolMiser RP-402 replacement float valve PoolMiser Valve Only, RP-402$3199
Hayward SP0729 1-1/2 in. 2-way Econoline ABS ball valve Hayward 1-1/2" 2-Way Econoline ABS Ball Valve, SP0729$3799 Praher 200-010 2 inch single union ball valve, socket by socket Praher 2" Single Union Blocked Ball Valve Skt/Skt, 200-010$3699 Rola-Chem 521160 3/8 inch B PVC inline check valve assembly Rola-Chem 3/8" B PVC Inline Check Valve Assembly, 521160$4299 Hayward SP0722 2-way ball valve with 1-1/2 in FPT threaded connections Hayward 2-Way Ball Valve with 1-1/2 Inch FPT Threaded Connection, SP0722$3999 CMP 25800-210-000 PVC ball valve, 2 inch slip by slip CMP PVC Ball Valve 2" Slip x Slip, 25800-210-000$2099 Lasco V20491N 2 inch white PVC slip ball valve Lasco 2" PVC Slip Ball Valve SCH80, V20491N$3099 SuperPro 25802-150-000 1-1/2 inch slip x slip PVC ball valve with union SuperPro 1-1/2" Slip x Slip PVC Ball Valve with Union, 25802-150-000$2999 SuperPro SP0801-20H2 2 inch CPVC check valve, slip by slip SuperPro 2" CPVC Check Valve, SP0801-20H2 (CR)$4599 Hayward SP1091CV male combo adaptor check valve 1-1/2 inch by 1-1/4 inch Hayward Male Combo Adaptor Check Valve 1-1/2" x 1-1/4", SP1091CV$2699 CMP Hydro Seal black CPVC check valve, 1.5 inch by 2 inch CMP Hydro Seal Black CPVC Check Valve, 1.5" S x 2" SPGT, 25830-350-000$5199

Product details

The CMP 25830-400-000 is a Hydro Seal check valve in black CPVC with a 2 in. socket on one end and a 2.5 in. spigot on the other. It carries a 2 lb spring, is rated to 50 psi, and is NSF certified. It is a serviceable valve, so the internals can be reached without cutting it out of the line.

Where it goes

A check valve keeps water from running backward when the pump shuts off. On a pool pad that means holding prime on a suction line, keeping a heater or chlorinator from draining back, or isolating a solar loop. The dual size body fits directly into 2 in. pipe or a 2.5 in. fitting, which covers most residential equipment pads.

Built for pool water

The body is CPVC and corrosion resistant, in black. The 2 lb spring closes the valve as flow stops without adding much restriction while the pump is running. Because the valve is serviceable, a worn flapper or spring is a quick fix in place rather than a replumb.

Specifications
Brand CMP
Manufacturer part number 25830-400-000
UPC 849640023891
Type Hydro Seal check valve
Connections 2 in. socket x 2.5 in. spigot
Spring 2 lb
Material CPVC
Color Black
Pressure rating 50 psi
Serviceable Yes
Certification NSF
Shipping weight 0.95 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$14599 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1499 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$1199 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C CMP Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000$6799 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,46799 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$14799 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket Compatible with Hayward® SP1070-E, 27180-009-000$1399
CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699 CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$16699 CMP 25503-460-000 Brilliant Wonders 4 in. bubbler body assembly for gunite pools, white CMP Brilliant Wonders 4" Bubbler Body Assembly Gunite, 25503-460-000$12399 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$1999 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3199 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8399 CMP Spa Master 25580-090-000 white 2-1/2 inch gunite jet body with niche CMP Spa Master 2-1/2" White Gunite Jet Body with Niche, 25580-090-000$2699

Questions and answers

What people ask about this product, answered by our pool techs.

What do 2 in. S and 2.5 in. SPGT mean?
One end is a 2 in. socket, which 2 in. pipe glues into. The other end is a 2.5 in. spigot, which glues into a 2.5 in. socket fitting. Both ends can be used, so it fits either pipe size.
Is the valve serviceable?
Yes. It can be opened in place to inspect or replace the internals, so a stuck or worn flapper does not mean cutting the valve out of the plumbing.
How strong is the spring?
It is a 2 lb spring. That is light enough not to add noticeable restriction on a pool pump loop while still closing the valve when flow stops.
What is the pressure rating?
50 psi. It is CPVC, corrosion resistant and NSF certified.
