CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front viewCMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000 In stock$1,46799

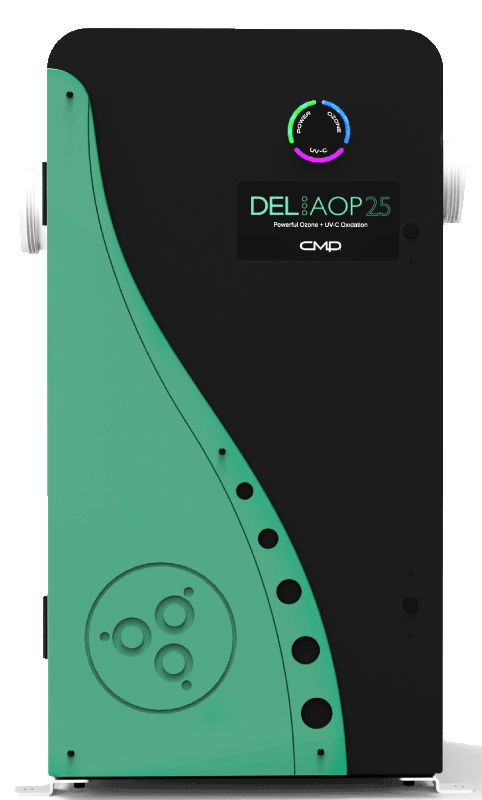

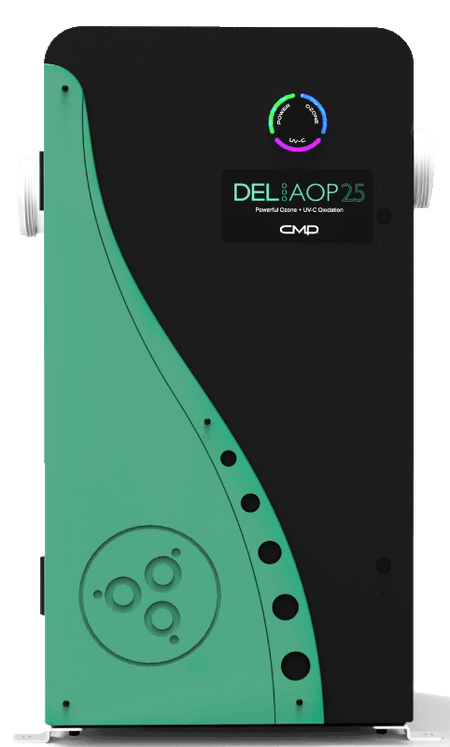

CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view
Shop all CMP

CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000

Ask a questionMPN 53000-025-000
$1,46799
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Advanced oxidation Ozone and UV-C combine in the main circulation line to form hydroxyls that destroy Giardia, E. coli and Cryptosporidium.
  • Fewer chemicals Strong oxidation lowers the chlorine needed to hold a safe residual and breaks apart chloramines, so less odor, itching and irritation.
  • Full flow, up to 25,000 gallons Plumbs inline with 2 in. PVC unions at an optimal 30 GPM, and works with variable speed pumps.
  • APG2 ozone cell One corona discharge cell rated at 215 mg/hr, with higher output and better heat handling than earlier cells.
  • Long life UV-C lamp Low pressure high output germicidal lamp at 254 nm, rated for 16,000 hours, in a high flow chamber.
  • Serviceable single cabinet CSA/NEMA 3 enclosure for indoor or outdoor use, floor or wall mount, built-in winterizing drain, and sensors that watch both the UV-C and ozone subsystems.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000, SKU CTM-45-4031. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000
CMP

Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000

$1,46799
Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator
Jandy

R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$24599
Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder
Hayward

CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

$12999
Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws
Jandy

R0984100 AquaPure Power Interface PCB, Large Backboard with Screws

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

Paramount Ultra UV2 120V two lamp UV-C pool water sanitizer, 004-422-2022-00 Paramount Ultra UV2 Water Sanitizer, 120V, 2 Lamp, 004-422-2022-00$1,00299 Paramount ClearO3 203V ozone oxidizer with 230V Ultra UV2 ultraviolet sanitizer Paramount ClearO3 203V Ozone Oxidizer and Ultra UV2 Ultraviolet Sanitizer, 1 UV-C Lamp, 230V, 006422003000$1,06899 UltraPure 1005500 BFO3-85 high output pool ozone generator UltraPure BFO3-85 High Output Pool UV Ozone Generator, 1005500$75299 DEL UV-C 50 UV sanitizer EUV-01-01 for pools up to 50,000 gallons CMP DEL UV-C 50 UV Sanitizer, up to 50k Gallon Pools, EUV-01-01$92699 CMP DEL Ozone 50 ozone generator, part EC-20 CMP DEL Ozone 50 Ozone Generator, up to 50k Gallon Pools, EC-20$88299 Jandy MDV-100J-01 MDV-XL mixing degas vessel for AOP 50 Jandy MDV-XL Mixing Degas Vessel for AOP 50, MDV-100J-01$1,00699 Paramount 006422001000 Ultra UV2 and Clear O3 system, 120V 2 lamp Paramount Ultra UV2 and Clear O3 System, 120V, 2 Lamp, 006422001000$1,49899 Hayward Paramount Ultra UV2 2 lamp 230V ultraviolet water sanitizer Hayward Ultra UV2 2 Lamp Water Sanitizer 230V, 004422202600$1,06199 Paramount Ultra UV2 single lamp ultraviolet water sanitizer, 120V, part 004422202100 Paramount Ultra UV2 Ultraviolet Water Sanitizer, 120V 52 GPM 1 Lamp, 004422202100$85899 Nature2 W25904 Professional G mineral sanitizer vessel for inground pools Nature2 2" Professional G Vessel, W25904$72599
Paramount 004402388100 Clear O3 ozone generator, 120/240V Paramount Clear O3 Ozone Generator 120/240V, 004402388100$67999 CMP DEL Ozone 25 EC-10 ozone generator for pools up to 25,000 gallons CMP DEL Ozone 25, Ozone Generator, up to 25k Gallon Pools, EC-10$63999 Delta Ultraviolet Corporation DEL MDV Mixing De-Gas Vessel for DEL OZONE Systems | MDV-10-04 Delta Ultraviolet Corporation DEL MDV Mixing De-Gas Vessel for DEL OZONE Systems | MDV-10-04$60299 Clear Blue Mineral Lion pool ionizer for pools up to 40,000 gallons Clear Blue 40,000 Gallon Mineral Lion Ionizer, CBI-350B-40-LLKIT$59900 Web Price Solaxx NUVO UV1500A ultraviolet water sterilizer for above ground pools Solaxx NUVO Ultraviolet Water Sterilizer for Above Ground Pools, UV1500A$49499 DEL Ozone 9-0210-11 standard ozone installation kit with universal injector manifold DEL Ozone Standard Ozone Installation Kit with Manifold, 9-0210-11$37399 Pulsafeeder Pump 110-120V | UD50-XA-LSAUXXX Pulsafeeder Pump 110-120V | UD50-XA-LSAUXXX$36999 King Technology Pool Frog XL Pro In Ground mineral and chlorine feeder system, 01-01-5450 King Technology Pool Frog XL Pro In Ground Mineral and Chlorine Feeder for Pools up to 40000 Gallons, 01-01-5450$32899 Nature2 W28002 DuoClear 45 mineral replacement cartridge for pools up to 45,000 gallons Nature2 DuoClear 45 Cartridge, 45,000 Gallon, W28002$32599 PoolRx 331067 black pool unit 4-pack for 20K to 30K gallon pools PoolRx 331067 Black Pool Unit 4-Pack for 20K to 30K Gallon Pools$31799

Product details

The CMP Next Gen DEL AOP 25 is a full flow advanced oxidation sanitizer for residential pools up to 25,000 gallons. It runs a corona discharge ozone cell and a high output UV-C lamp in a single cabinet, and the two together generate hydroxyls in the primary circulation line. That oxidation destroys viruses and bacteria including Giardia, E. coli and Cryptosporidium, and it breaks apart the chloramines that cause chlorine smell, itching and red eyes.

Less chlorine, clearer water

Because the AOP process does so much of the oxidizing, the chlorine required to hold a safe residual drops. Contaminants are destroyed rather than left for the filter, so filtration works better and the water polishes up. It is certified to NSF/ANSI Standard 50 as a supplemental sanitizer and is UL and cUL listed.

What is in the cabinet

One APG2 ozone cell rated at 215 mg/hr, a low pressure high output UV-C germicidal lamp at 254 nm rated for 16,000 hours, and a high flow UV-C chamber. Sensors monitor both the UV-C and ozone subsystems. The wiring path and terminal block are easy to reach, the cabinet is a CSA/NEMA 3 enclosure suitable for indoor or outdoor installation, and there is a built-in drain for winterization.

Installation

Inlet and outlet are 2 in. PVC unions and the optimal flow rate is 30 GPM. It mounts on the floor or a wall, measures 24 1/4 in. high by 12 1/2 in. wide by 13 3/8 in. deep, weighs 40 lb dry, and runs on 110/240 VAC at 50/60 Hz drawing 0.7 amps. It is compatible with variable speed pumps.

Specifications
Brand CMP
Manufacturer part number 53000-025-000
UPC 849640035566
Series DEL AOP 25 Next Gen
Pool size Up to 25,000 gallons
Voltage 110/240 VAC, 50/60 Hz, 0.7 Amps
Ozone cell One APG2 corona discharge cell
Ozone output 215 mg/hr
UV-C lamp Low pressure, high output germicidal, 16,000 hr
Ultraviolet output 254 nm
Plumbing Inlet and outlet 2 in. PVC unions
Optimal flow rate 30 GPM
Mounting Floor or wall mount
Enclosure CSA/NEMA 3, indoor or outdoor installation
Dimensions 24 1/4 in. H x 12 1/2 in. W x 13 3/8 in. D
Dry weight 40 lb
Certifications NSF/ANSI Standard 50 Supplemental Sanitizer, cUL Listed, UL Listed
Shipping weight 46 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$14599 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1499 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$1199 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C CMP Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000$6799 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$14799 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket Compatible with Hayward® SP1070-E, 27180-009-000$1399 CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699
CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$16699 CMP 25503-460-000 Brilliant Wonders 4 in. bubbler body assembly for gunite pools, white CMP Brilliant Wonders 4" Bubbler Body Assembly Gunite, 25503-460-000$12399 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$1999 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3199 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8399 CMP Spa Master 25580-090-000 white 2-1/2 inch gunite jet body with niche CMP Spa Master 2-1/2" White Gunite Jet Body with Niche, 25580-090-000$2699

Questions and answers

What people ask about this product, answered by our pool techs.

Does this replace chlorine?
No. It is certified as an NSF/ANSI 50 supplemental sanitizer. It oxidizes contaminants and breaks down chloramines so you need less chlorine to hold a safe residual, but a residual is still required.
What size pool does it cover?
Residential pools up to 25,000 gallons. For pools up to 40,000 gallons, CMP makes the DEL AOP 40 in the same Next Gen design.
What power does it need?
110/240 VAC at 50/60 Hz, drawing 0.7 amps, so it runs on either common pool pad supply.
How is it plumbed?
Inline in the main circulation with the 2 in. PVC unions on the inlet and outlet. Optimal flow is 30 GPM, it is compatible with variable speed pumps, and a built-in drain makes winterizing simple.
Ask your own question
