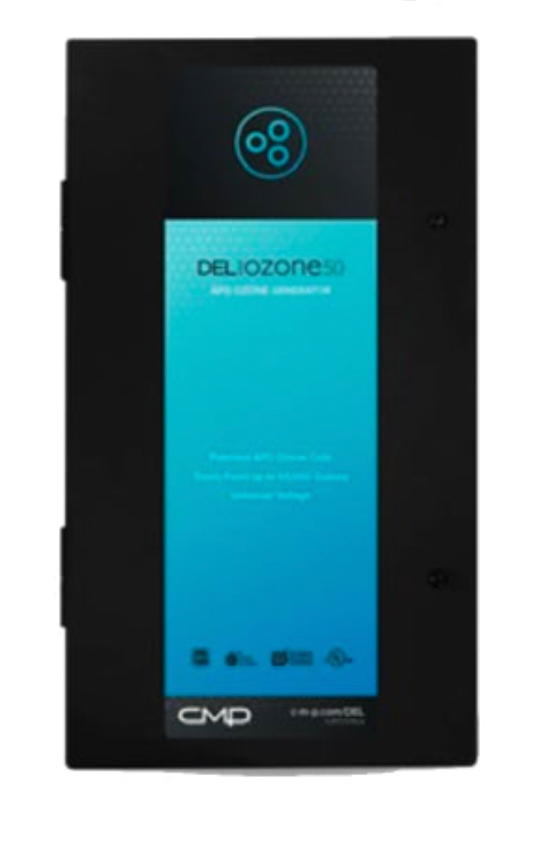

CMP DEL Ozone 50 ozone generator, part EC-20CMP DEL Ozone 50 Ozone Generator, up to 50k Gallon Pools, EC-20 In stock$88299
CMP DEL Ozone 50 ozone generator, part EC-20
Shop all CMP

CMP DEL Ozone 50 Ozone Generator, up to 50k Gallon Pools, EC-20

Ask a questionMPN EC-20
$88299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Sized to 50,000 gallons Rated for pools from 15,000 to 50,000 gallons.
  • Advanced Plasma Gap Uses the DEL APG ozone cell rather than a general purpose ozone module.
  • Manufacturer claims Rated to destroy 99.9 percent of viruses and bacteria and to reduce chemical requirements by 60 to 90 percent.
  • Steel enclosure A 14.1 by 7.8 by 3.2 inch powdercoated galvannealed steel housing, mounted on the wall at the pad.
  • Low power draw 24 watts at 0.2 amps, on 120 or 240 volts at 50 or 60Hz.
  • Works with a sanitizer, not instead of one Ozone oxidizes contaminants alongside a residual sanitizer in the water.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP DEL Ozone 50 Ozone Generator, up to 50k Gallon Pools, EC-20, SKU DEL-45-1020. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP DEL Ozone 50 Ozone Generator, up to 50k Gallon Pools, EC-20
CMP

DEL Ozone 50 Ozone Generator, up to 50k Gallon Pools, EC-20

$88299
Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator
Jandy

R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$24599
Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder
Hayward

CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

$12499
Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws
Jandy

R0984100 AquaPure Power Interface PCB, Large Backboard with Screws

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

Paramount Ultra UV2 120V two lamp UV-C pool water sanitizer, 004-422-2022-00 Paramount Ultra UV2 Water Sanitizer, 120V, 2 Lamp, 004-422-2022-00$98299 Paramount 004402388100 Clear O3 ozone generator, 120/240V Paramount Clear O3 Ozone Generator 120/240V, 004402388100$67999 Nature2 W25904 Professional G mineral sanitizer vessel for inground pools Nature2 2" Professional G Vessel, W25904$72599 Paramount ClearO3 203V ozone oxidizer with 230V Ultra UV2 ultraviolet sanitizer Paramount ClearO3 203V Ozone Oxidizer and Ultra UV2 Ultraviolet Sanitizer, 1 UV-C Lamp, 230V, 006422003000$1,06899 UltraPure 1005500 BFO3-85 high output pool ozone generator UltraPure BFO3-85 High Output Pool UV Ozone Generator, 1005500$75299 DEL UV-C 50 UV sanitizer EUV-01-01 for pools up to 50,000 gallons CMP DEL UV-C 50 UV Sanitizer, up to 50k Gallon Pools, EUV-01-01$92699 CMP DEL Ozone 25 EC-10 ozone generator for pools up to 25,000 gallons CMP DEL Ozone 25, Ozone Generator, up to 25k Gallon Pools, EC-10$61999 Jandy MDV-100J-01 MDV-XL mixing degas vessel for AOP 50 Jandy MDV-XL Mixing Degas Vessel for AOP 50, MDV-100J-01$1,00699 Hayward Paramount Ultra UV2 2 lamp 230V ultraviolet water sanitizer Hayward Ultra UV2 2 Lamp Water Sanitizer 230V, 004422202600$1,01599 Solaxx NUVO UV1500A ultraviolet water sterilizer for above ground pools Solaxx NUVO Ultraviolet Water Sterilizer for Above Ground Pools, UV1500A$49499
Delta Ultraviolet Corporation DEL MDV Mixing De-Gas Vessel for DEL OZONE Systems | MDV-10-04 Delta Ultraviolet Corporation DEL MDV Mixing De-Gas Vessel for DEL OZONE Systems | MDV-10-04$59299 Paramount Ultra UV2 single lamp ultraviolet water sanitizer, 120V, part 004422202100 Paramount Ultra UV2 Ultraviolet Water Sanitizer, 120V 52 GPM 1 Lamp, 004422202100$87699 DEL Ozone 9-0210-11 standard ozone installation kit with universal injector manifold DEL Ozone Standard Ozone Installation Kit with Manifold, 9-0210-11$37299 King Technology Pool Frog XL Pro In Ground mineral and chlorine feeder system, 01-01-5450 King Technology Pool Frog XL Pro In Ground Mineral and Chlorine Feeder for Pools up to 40000 Gallons, 01-01-5450$32899 Hayward GLX-HYD-LAMPUVO Hydrorite UV and ozone replacement lamp Hayward Hydrorite UV/Ozone Lamp Replacement, GLX-HYD-LAMPUVO$31899 PoolRx 331067 black pool unit 4-pack for 20K to 30K gallon pools PoolRx 331067 Black Pool Unit 4-Pack for 20K to 30K Gallon Pools$31799 Nature2 W28002 DuoClear 45 mineral replacement cartridge for pools up to 45,000 gallons Nature2 DuoClear 45 Cartridge, 45,000 Gallon, W28002$31599 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,46799 Zodiac Power Center PC Board Assembly LM2 & LM3 Series | W222091 Zodiac Power Center PC Board Assembly LM2 & LM3 Series | W222091$28399 CMP Del Ozone MDV-10-08 standard size mixing de-gas vessel for AOP 25 CMP Del Ozone Standard Size Mixing De-Gas Vessel for AOP-S 25, MDV-10-08$28899

Product details

The DEL Ozone 50, CMP part EC-20, is an ozone generator for pools from 15,000 to 50,000 gallons. It uses DEL Advanced Plasma Gap technology, and it was previously sold as the Eclipse 20 before CMP brought the DEL Ozone range into its own line.

What ozone does

Ozone is three oxygen atoms rather than the two we breathe, and the third is weakly bound. That loose atom breaks away and oxidizes what it meets, which is how ozone deals with pathogens, microorganisms and both organic and inorganic contaminants in the water. CMP rates the system to destroy 99.9 percent of viruses and bacteria, to reduce chemical requirements by 60 to 90 percent, and to remove eye and skin irritants from the water.

How it fits into the system

The generator is wall mounted at the equipment pad and connects to the pool timer. Ozone is injected into the return line after the filter and heater through an injector manifold, which is a separate item. An MDV mixing degas vessel kit is also available separately for installations where you want to be certain no ozone bubbles reach the pool.

Specifications worth checking

The unit runs on 120 or 240 volts at 50 or 60Hz, drawing 0.2 amps and 24 watts. Ozone output is 0.5 grams per hour with an air flow of 15 scfh. The powdercoated galvannealed steel enclosure measures 14.1 inches high by 7.8 inches wide by 3.2 inches deep, and the operating temperature range is 30 to 120 degrees F.

Specifications
Brand CMP
Manufacturer part number EC-20
UPC 793573057020
Type Ozone generator
Technology Advanced Plasma Gap (APG)
Capacity 15000 to 50000 gal
Voltage rating 120/240 V
Frequency rating 50/60 Hz
Current 0.2 A
Wattage 24 W
Ozone output 0.5 gm/hr
Air flow 15 scfh
Dimensions 14.1 Inch Height x 7.8 Inch Width x 3.2 Inch Depth
Housing Powdercoated Galvannealed Steel
Operating temperature 30 to 120 deg F
Formerly known as Eclipse 20
Shipping weight 8.89 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$14599 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1799 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$1199 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C CMP Generic Bottom Collector Manifold for Hayward® CX3000C, 25357-750-000$6799 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,46799 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$14799 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket, Replaces Hayward® SP1070-E, 27180-009-000$1399
CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699 CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$16699 CMP 25503-460-000 Brilliant Wonders 4 in. bubbler body assembly for gunite pools, white CMP Brilliant Wonders 4" Bubbler Body Assembly Gunite, 25503-460-000$11999 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$1999 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3199 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8399

Questions and answers

What people ask about this product, answered by our pool techs.

Is this the same as the Eclipse 20?
Yes. CMP acquired DEL Ozone and brought the range into the CMP line, and this system was previously sold as the Eclipse 20. The labelling may look different to what you remember.
Does it replace chlorine?
No. Ozone works with a residual sanitizer rather than instead of one. CMP rates the system to reduce chemical requirements by 60 to 90 percent, not to eliminate them.
What else do I need to install it?
The generator is wall mounted and connects to the pool timer, and ozone is injected through a manifold that is a separate item. An MDV mixing degas vessel kit is also available separately if you want to make sure no ozone bubbles reach the pool.
What size pool is it for?
15,000 to 50,000 gallons. Larger and smaller DEL systems cover other volumes.
Ask your own question
