Hayward CX1200B Star Clear Plus C1200 filter head with vent valveHayward Star Clear Plus Filter Head with Vent Valve C1200, CX1200B In stock$24299

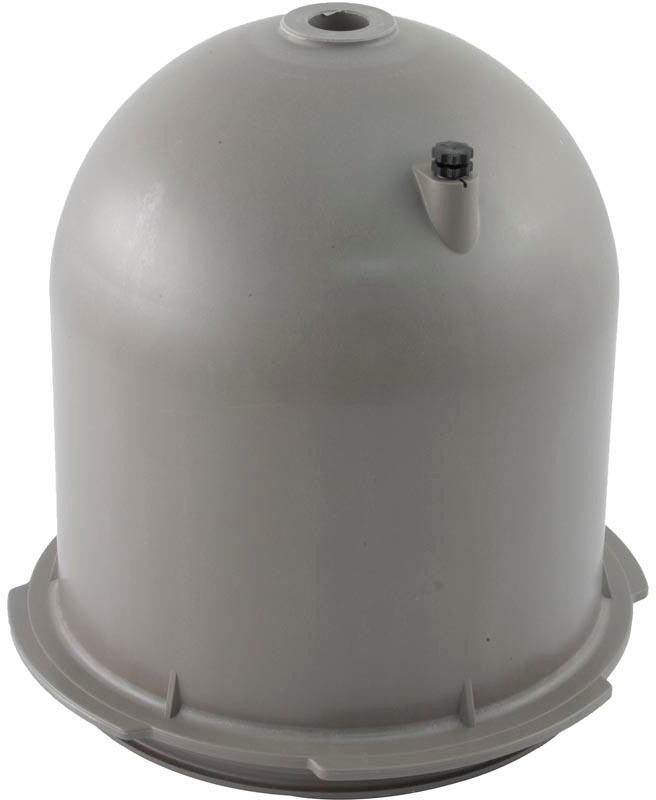

Hayward CX1200B Star Clear Plus C1200 filter head with vent valve
Shop all Hayward

Hayward Star Clear Plus Filter Head with Vent Valve C1200, CX1200B

Ask a questionMPN CX1200B
$24299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward OEM part CX1200B, with C-1200B molded inside the top.
  • Fits the Star Clear Plus C1200 the 120 sq ft model.
  • Vent valve included the air relief valve bleeds trapped air from the top of the tank.
  • Gauge port a threaded hole on top takes a standard pressure gauge.
  • Dimensions 12-3/4 in. tall with a 1 in. inside diameter hole at the top.
  • Now black Hayward has switched production from tan to black, so the head may not match an older tan tank.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Star Clear Plus Filter Head with Vent Valve C1200, CX1200B, SKU HAY-151-1506. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Star Clear Plus Filter Head with Vent Valve C1200, CX1200B
Hayward

Star Clear Plus Filter Head with Vent Valve C1200, CX1200B

$24299
Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE
Hayward

Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE

$20899
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2
Hayward

Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2

$10599
Hayward SwimClear Lower Piping Assembly, CX3030H
Hayward

SwimClear Lower Piping Assembly, CX3030H

$14599
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$899
Hayward 1-1/2" Plug with O-Ring, SP1022C
Hayward

1-1/2" Plug with O-Ring, SP1022C

$599
Subtotal

Similar products

Other products people compare with this one.

Hayward CX900B Star Clear Plus filter head with vent valve Hayward Filter Head with Vent Valve for Star Clear Plus, CX900B$17299 Hayward CX800C filter head for Star-Clear II C800, C1100 and C1500 cartridge filters Hayward Filter Head Replacement for Star-Clear II C800, C1100, C1500 Cartridge Filter Models, CX800C$14199 Hayward CX400BA Easy-Clear filter head cover with valve and locking ring Hayward Filter Head (Cover) with Check Valve and Locking Ring, CX400BA$15999 Hayward CX150B filter head assembly for the SwimClear C150S, front view Hayward CX150B Filter Head Assembly for C150S$36299 Hayward CX100B filter head assembly for SwimClear C100S cartridge filter, front view Hayward Filter Head Assembly for C100S, CX100B$31399 Hayward CX3030C top manifold for SwimClear C2030, C3030 and C4030 cartridge filters Hayward Top Manifold for C2030, C3030 and C4030, CX3030C$12699 Hayward DEX2420MAR2 manual air relief assembly for SwimClear and Pro-Grid filters Hayward Manual Air Relief Assembly, DEX2420MAR2$19499 Hayward CX5030C top manifold for SwimClear C5030 and C7030 cartridge filters Hayward Top Manifold for C5030, C7030, CX5030C$13299 Hayward CX800Z2 tie rod for the C800 cartridge filter Hayward Tie Rod, C800, CX800Z2$18199 Hayward CX900DBA D.E. collector bag assembly for the D.E. separation tank Hayward D.E. Collector Bag Assembly for D.E. Separation Tank, CX900DBA$27999

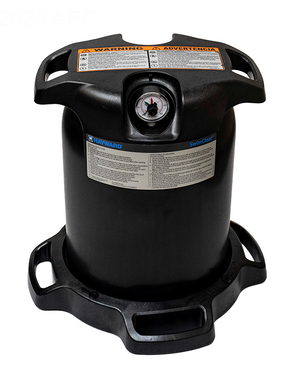

Hayward CX900DB replacement DE collector bag assembly for the DE separation tank Hayward CX900DB Replacement Bag for DE Separation Tank$29399 Hayward CX250C Star-Clear filter head dome with air relief valve Hayward Star-Clear Filter Head (Dome) with Air Relief Valve, CX250C$11099 Hayward CX250F Star-Clear filter head gasket Hayward OEM Star-Clear Filter Head Gasket, CX250F$4199 Hayward ECX4077B1 filter check valve for Star-Clear, Perflex, ASL and ReGenX filters Hayward Filter Check Valve, Star-Clear/Perflex/ASL/RegenX, ECX4077B1$3099 Hayward CX900J E-ring for Star-Clear Plus cartridge filters Hayward E-Ring, Star-Clear Plus Filter, CX900J$2099 Hayward CX250G Star-Clear filter lock knob Hayward Star-Clear Filter Lock Knob, CX250G$3499 Hayward CX120D filter lid o-ring for the Micro-Star cartridge filter Hayward O-Ring for Micro Star-Clear Filter Lid, CX120D$2399 Hayward CX250Z14A Star Clear 1/2 inch drain plug with O-ring Hayward Star Clear 1/2 in. Drain Plug with O-Ring, CX250Z14A$1899 Hayward CX900W Star-Clear Plus filter knob washer Hayward Star-Clear Plus Knob Washer, CX900W$1799 Hayward CX200B filter head assembly for the SwimClear C200S cartridge filter Hayward C200S SwimClear Filter Head Assembly, CX200B$42399

Product details

The Hayward CX1200B is the filter head for the Star Clear Plus C1200 cartridge filter. It is the genuine OEM part, and most units have C-1200B molded on the inside of the top.

What is on it

An air relief vent valve for bleeding trapped air from the tank, and a threaded hole for a pressure gauge so you can watch filter pressure and know when to clean the cartridge. The head is 12-3/4 in. tall with a 1 in. inside diameter hole at the top.

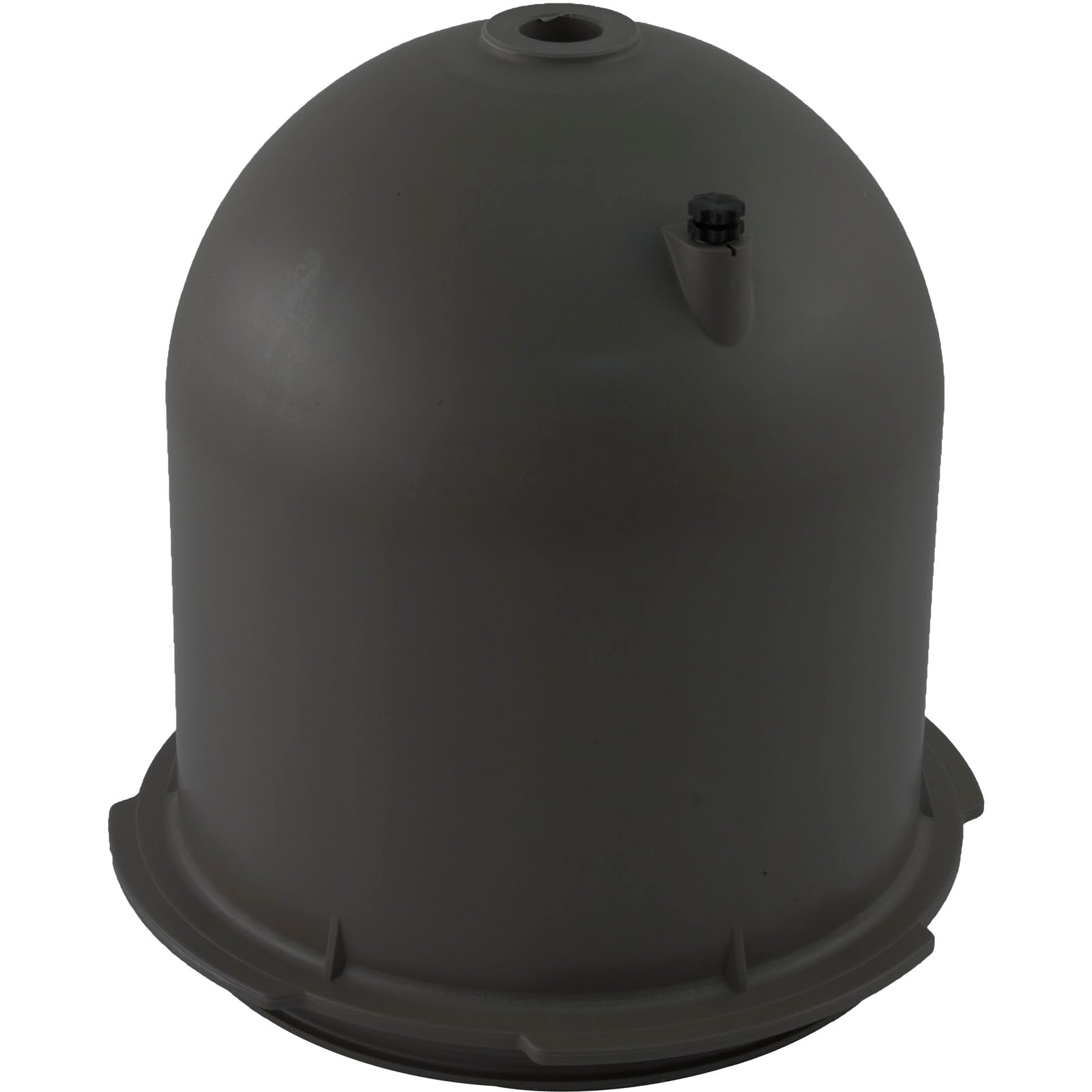

Color

Hayward has moved production of this head from tan to black. The part you receive may be black even if your existing tank is tan; the fit and function are unchanged.

Not included

The pressure gauge, the head o-ring and the locking knob are separate parts.

Specifications
Brand Hayward
Manufacturer part number CX1200B
UPC 610377209434
Fits Hayward Star Clear Plus C1200
Height 12-3/4"
Top opening 1" inside diameter
Air relief Vent valve included
Pressure gauge Threaded port on top
Molded marking C-1200B
Color Black (previously tan)
Shipping weight 6.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Will it fit my C900 or C1750?
No. This head is for the C1200. The other Star Clear Plus sizes use their own filter heads.
Is the pressure gauge included?
No. The head has the threaded port for a gauge, but the gauge itself is a separate part. Your existing gauge will screw into the new head.
Does it come with the lid o-ring and locking knob?
No. The o-ring and knob are separate parts. Inspect the o-ring when you swap the head and replace it if it is worn.
Will it match my tan filter?
Probably not. Hayward now produces this head in black, and what you receive may be black even if your tank is tan. It fits and seals the same.
Ask your own question
