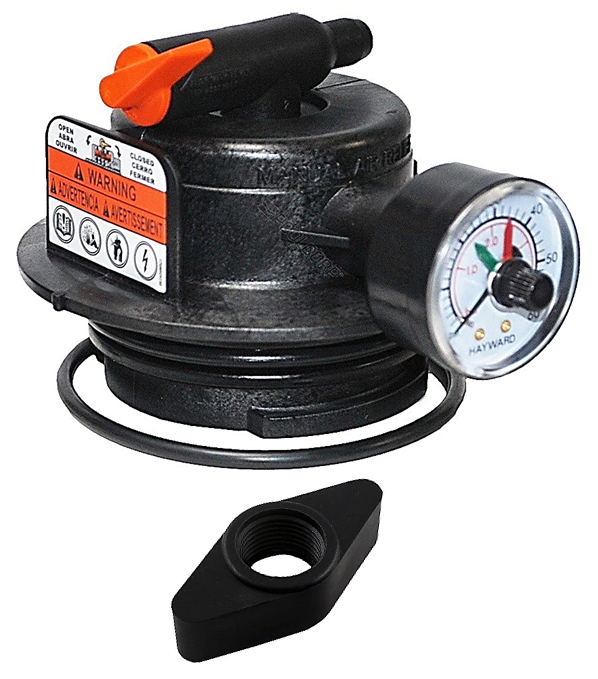

Hayward DEX2420MAR2 manual air relief assembly for SwimClear and Pro-Grid filtersHayward Manual Air Relief Assembly, DEX2420MAR2 In stock$16199
Hayward DEX2420MAR2 manual air relief assembly for SwimClear and Pro-Grid filters
Shop all Hayward

Hayward Manual Air Relief Assembly, DEX2420MAR2

Ask a questionMPN DEX2420MAR2
$16199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Twist lock fit locks onto the top of the filter head.
  • Two filter lines SwimClear C2020 through C7000 cartridge filters and Pro-Grid DE2420 through DE7220 DE filters.
  • Replaces DEX2420MAR the revised part fits older filters that shipped with the original.
  • Also listed as DE2420MAR2 the same assembly under the earlier Hayward number, plus distributor numbers 4811-22 and 17-150-1308.
  • Instructions in the box removal and replacement instructions are included.
  • Bleeds trapped air open it after every cleaning to purge air from the tank before the system comes back up to pressure.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Manual Air Relief Assembly, DEX2420MAR2, SKU HAY-051-2420. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Manual Air Relief Assembly, DEX2420MAR2
Hayward

Manual Air Relief Assembly, DEX2420MAR2

$16199
Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE
Hayward

Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE

$20299
CMP Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000
CMP

Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000

$6799
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2
Hayward

Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2

$10299
Hayward SwimClear Lower Piping Assembly, CX3030H
Hayward

SwimClear Lower Piping Assembly, CX3030H

$14199
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$799
Subtotal

Similar products

Other products people compare with this one.

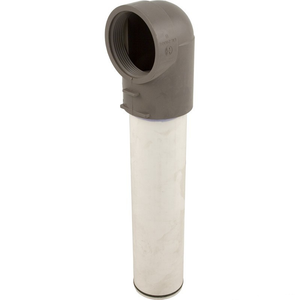

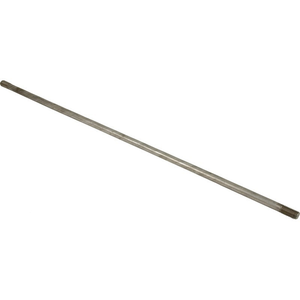

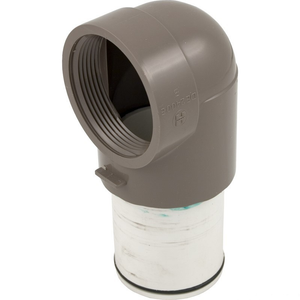

Hayward CX250C Star-Clear filter head dome with air relief valve Hayward Star-Clear Filter Head (Dome) with Air Relief Valve, CX250C$10399 Hayward Outlet Elbow Assembly with O-Ring | DEX4820EA Hayward Outlet Elbow Assembly with O-Ring | DEX4820EA$9799 Hayward Outlet Elbow Assembly with O-Ring | DEX2420EA Hayward Outlet Elbow Assembly with O-Ring | DEX2420EA$10299 Hayward CX3030C top manifold for SwimClear C2030, C3030 and C4030 cartridge filters Hayward Top Manifold for C2030, C3030 and C4030, CX3030C$11899 Hayward CX800C filter head for Star-Clear II C800, C1100 and C1500 cartridge filters Hayward Filter Head Replacement for Star-Clear II C800, C1100, C1500 Cartridge Filter Models, CX800C$13799 Hayward CX900B Star Clear Plus filter head with vent valve Hayward Filter Head with Vent Valve for Star Clear Plus, CX900B$17399 Hayward CX400BA Easy-Clear filter head cover with valve and locking ring Hayward Filter Head (Cover) with Check Valve and Locking Ring, CX400BA$15899 Hayward CX5030C top manifold for SwimClear C5030 and C7030 cartridge filters Hayward Top Manifold for C5030, C7030, CX5030C$12499 Hayward CX800Z2 tie rod for the C800 cartridge filter Hayward Tie Rod, C800, CX800Z2$17699 Hayward CX1100Z2 stainless steel center tie rod for Star-Clear cartridge filters Hayward Center Tie Rod C1200/C1100, CX1100Z2$20999
Hayward CX3030D SwimClear bottom cartridge mounting plate Hayward SwimClear Bottom Cartridge Mounting Plate, CX3030D$9199 Hayward CX3020DA top closure plate for C3020 and C4020 cartridge filters Hayward Top Closure Plate, C3020/4020 Cartridge Filter, CX3020DA$8599 Hayward CX500Z2S tie rod for the Star Clear C500 cartridge filter Hayward C500 Tie Rod, CX500Z2S$9699 Hayward DEX2400S air relief and gauge adapter assembly for pool filters Hayward Air Relief and Gauge Adapter Assembly, DEX2400S$4599 Hayward CCX1000V manual air relief assembly with o-ring Hayward Air Relief Assembly with O-Ring, CCX1000V$2599 Hayward CXRLV1001 SwimClear air relief assembly with O-ring Hayward SwimClear Air Relief Assembly with O-Ring, CXRLV1001$2599 Hayward DEX2420Z8A air relief o-ring kit, set of 2, for SwimClear and Pro-Grid filters Hayward SwimClear/Pro-Grid Air Relief O-Ring Kit, Set of 2, DEX2420Z8A$4299 Hayward CX3000J1 air relief filter with stainless steel screen Hayward Air Relief Filter, CX3000J1$2999 Hayward CX2030Z3 air relief tube for SwimClear cartridge filters Hayward Air Relief Tube CX2030Z3$2799 Hayward CX5000Z3 air relief tube for C5020 and C5025 cartridge filters Hayward CX5000Z3 Air Relief Tube for C5020/C5025 Filters$2599

Product details

The Hayward DEX2420MAR2 is the manual air relief assembly for SwimClear cartridge filters and Pro-Grid DE filters. It twist locks onto the top of the filter and is the current revision of the DEX2420MAR, so it fits older filters that originally shipped with that part as well as current ones.

Fits

SwimClear C2020/C2025, C3020/C3025, C4020/C4025, C5020/C5025 and C7000 cartridge filters, and Pro-Grid DE2420, DE3620, DE4820, DE6020 and DE7220 DE filters. The same assembly is also listed under DE2420MAR2 and distributor numbers 4811-22 and 17-150-1308.

What it does

The air relief lets you purge trapped air from the tank after cleaning the cartridges or recharging DE. Open it while the pump starts, close it once a steady stream of water appears. A relief that will not seal, is cracked or has a stripped lock is the reason to replace it. Removal and replacement instructions are included.

Specifications
Brand Hayward
Manufacturer part number DEX2420MAR2
UPC 610377011105
Type Manual air relief assembly
Mounting Twist locks onto the top of the filter
Fits Hayward SwimClear C2020/C2025, C3020/C3025, C4020/C4025, C5020/C5025, C7000 cartridge filters; Pro-Grid DE2420, DE3620, DE4820, DE6020, DE7220 DE filters
Replaces DEX2420MAR
Substitute part numbers DE2420MAR2, 4811-22, 17-150-1308
Included Removal and replacement instructions
Shipping weight 1.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,10299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does this fit?
Hayward SwimClear cartridge filters (C2020/C2025, C3020/C3025, C4020/C4025, C5020/C5025 and C7000) and Pro-Grid DE filters (DE2420, DE3620, DE4820, DE6020 and DE7220).
My filter came with a DEX2420MAR. Will this fit?
Yes. DEX2420MAR2 is Hayward's revision of the DEX2420MAR and works on the older filters that originally used it.
Is DE2420MAR2 the same part?
Yes. DE2420MAR2 is an earlier number for the same assembly. Distributor numbers 4811-22 and 17-150-1308 also refer to this part.
How does it install?
It twist locks onto the top of the filter. Removal and replacement instructions are included in the package.
