Hayward CX100XRE SwimClear C100S 100 sq ft filter cartridge elementHayward 100 Sq. Ft. SwimClear Filter Cartridge Element, C100S, CX100XRE In stock$14899
Hayward CX100XRE SwimClear C100S 100 sq ft filter cartridge element
Shop all Hayward

Hayward 100 Sq. Ft. SwimClear Filter Cartridge Element, C100S, CX100XRE

Ask a questionMPN CX100XRE
$14899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Original Hayward The factory cartridge element, not a generic replacement.
  • 100 square feet The full rated area for the SwimClear C100S.
  • Measured to fit 10-5/16 in. diameter by 19-5/8 in. long.
  • 4 in. open ends A 4 in. open hole at the top and a 4 in. open hole at the bottom.
  • Two part numbers Hayward lists it as CX100XRE and as CX100-RE.
  • Restores flow A fresh element brings pressure and run time back where they belong.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward 100 Sq. Ft. SwimClear Filter Cartridge Element, C100S, CX100XRE, SKU HAY-051-635. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward 100 Sq. Ft. SwimClear Filter Cartridge Element, C100S, CX100XRE
Hayward

100 Sq. Ft. SwimClear Filter Cartridge Element, C100S, CX100XRE

$14899
Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE
Hayward

Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE

$20899
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2
Hayward

Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2

$10599
Hayward SwimClear Lower Piping Assembly, CX3030H
Hayward

SwimClear Lower Piping Assembly, CX3030H

$14599
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$899
Hayward Star Clear Plus Filter Head with Vent Valve C1200, CX1200B
Hayward

Star Clear Plus Filter Head with Vent Valve C1200, CX1200B

$24299
Subtotal

Similar products

Other products people compare with this one.

Hayward CX900RE 90 sq ft filter cartridge element, front view Hayward C900 Filter Cartridge Element, 90 sq ft, CX900RE$12599 Hayward CX150XRE 150 sq. ft. SwimClear cartridge filter element Hayward 150 Sq. Ft. SwimClear Cartridge Element, CX150XRE$14999 Hayward CX580XRE cartridge element for SwimClear C3030 pool filters Hayward Filter Cartridge for SwimClear C3030 Pool Filter, CX580XRE$7599 Hayward CX875REM Advantage cartridge element, 450 sq ft Hayward Advantage Cartridge Element for Cartridge Filter, 450 sq ft, CX875REM$15799 Hayward CX2020RE cartridge element for C2002 Star-Clear filter Hayward 200 sq ft Cartridge Element for C2002 Star-Clear Filter, CX2020RE$20099 Hayward CX1200RE genuine 120 sq ft filter cartridge for Star-Clear Plus C-1200 Hayward Genuine Filter Cartridge, 120 sq ft, Star-Clear Plus C-1200, CX1200RE$14699 Hayward CX1390REM C6060 Microban replacement filter cartridge Hayward C6060 Microban Filter Cartridge, CX1390REM$20099 Hayward CX760RE 75 square foot replacement filter cartridge for StarClear Plus Hayward CX760RE Filter Cartridge, 75 Sq Ft$11299 Hayward CX800RE 75 square foot OEM filter cartridge for Star-Clear II C800 Hayward CX800RE OEM Filter Cartridge, 75 Sq Ft$12399 Hayward CX580XREPAK4 set of four replacement cartridge elements for the SwimClear C3030 Hayward OEM Cartridge Filter Element for SwimClear C3030 (4-Pack), CX580XREPAK4$31599
Hayward CX1280XREPAK4 replacement cartridge element set for the SwimClear C5030 filter Hayward Replacement Cartridge Element for SwimClear C5030 Filter, 4 Pack, CX1280XREPAK4$49499 Hayward CX481XREPAK4 replacement filter cartridge element for SwimClear C2030 filters Hayward Replacement Filter Cartridge for C2030 SwimClear Filters, 4 Pack, CX481XREPAK4$25299 Hayward CX225XREM 225 sq ft replacement cartridge element for the SwimClear C225SC Hayward SwimClear C225SC 225 Sq Ft Filter Cartridge CX225XREM$27899 Hayward CX591XREPAK4 replacement cartridge set for the SwimClear C7030 filter Hayward Replacement Filter Cartridge Set for SwimClear C7030, 4 Pack, CX591XREPAK4$33199 Hayward CX880XREPAK4 SwimClear replacement filter cartridge elements, 4 pack Hayward Replacement Filter Cartridge Elements for SwimClear, 4 Pack, CX880XREPAK4$40899 Hayward CX225RE 25 sq ft replacement cartridge element for StarClear C225 filter Hayward OEM C225-Blue StarClear Plus Replacement Cartridge Element, 25 SqFt, CX225RE$5699

Product details

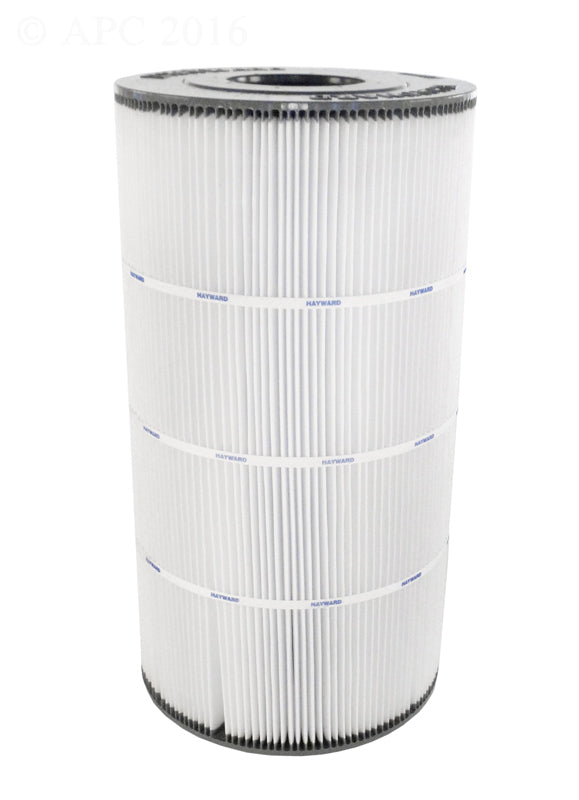

The Hayward CX100XRE is the original filter cartridge element for the SwimClear C100S, carrying the full 100 square feet of media the filter is rated for. Hayward also lists it as CX100-RE.

Dimensions

The element measures 10-5/16 in. in diameter and 19-5/8 in. long, with a 4 in. open hole at the top and a 4 in. open hole at the bottom. Measure the cartridge you are pulling out against those numbers if you are unsure which SwimClear you have.

When a cartridge is done

Cartridge media does not last forever. Once the pleats will not come clean, the filter runs at a higher pressure and shorter cycles no matter how often it is washed, and oils and fine debris have worked into the fabric for good. A new element puts the flow and the filtration back where the C100S was designed to sit.

Specifications
Brand Hayward
Manufacturer part number CX100XRE
Also listed as CX100-RE
UPC 610377279352
Type Filter cartridge element
Filter area 100 sq ft
Diameter 10-5/16 in.
Length 19-5/8 in.
Top open hole 4 in.
Bottom open hole 4 in.
Fits Hayward SwimClear C100S
Shipping weight 6.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which filter does this fit?
The Hayward SwimClear C100S, the 100 square foot model in the SwimClear cartridge range.
What are the dimensions?
10-5/16 in. in diameter by 19-5/8 in. long, with a 4 in. open hole at each end.
Is CX100-RE the same cartridge?
Yes. Hayward lists this element under both CX100XRE and CX100-RE.
When should I replace the cartridge instead of cleaning it?
When washing no longer brings the pressure back down, or the pleats stay grey and stiff after a soak. At that point the media is spent and cleaning it again just buys a few days.
