Hayward Key Seal Diverter Assembly, SPX0714CA

Ask a questionMPN SPX0714CA
$5999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

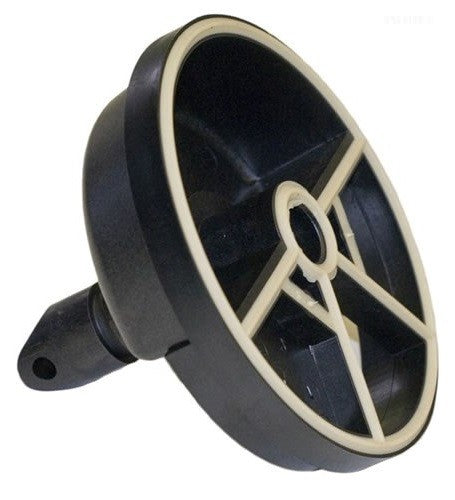

  • Spider gasket built in the gasket is molded into the diverter, and Hayward does not sell it on its own.
  • Fits the SP0714T the 1-1/2 in. Vari-Flo XL top mount valve on Pro Series and SandMaster sand filters.
  • Check the stamp SP0714C is molded into the bottom of the diverter, so you can confirm a match before ordering.
  • Genuine Hayward OEM part SPX0714CA, a plastic diverter with the seal in place.
  • Cures a bypassing valve water leaking to waste or back to the pool in Filter usually traces to a worn spider gasket.
  • Drop in swap remove the key cover handle assembly, lift the old diverter out and set this one in.
Full description and specifications ↓
