Hayward SPX0715BA3 2 in. key, cover and handle assembly in black for Vari-Flo SP715 and SP716 valvesHayward 2 in. Key, Cover and Handle Assembly, Black, SPX0715BA3 In stock$20899
Hayward SPX0715BA3 2 in. key, cover and handle assembly in black for Vari-Flo SP715 and SP716 valves
Shop all Hayward

Hayward 2 in. Key, Cover and Handle Assembly, Black, SPX0715BA3

Ask a questionMPN SPX0715BA3
$20899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits 2 in. Vari-Flo valves For Hayward SP0715, SP0715X, SP0716 and SP0176X backwash valves.
  • Complete top end Key, cover and handle come as one assembled part.
  • Black finish This is the black version, SPX0715BA3. A white version is sold separately.
  • Genuine Hayward OEM replacement part made to fit the valve body.
  • O-ring sold separately The cover o-ring, SPX0715Z1, is not included.
  • Gasket sold separately The valve seat gasket, SPX0715D, is not included.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward 2 in. Key, Cover and Handle Assembly, Black, SPX0715BA3, SKU HAY-061-2137. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward 2 in. Key, Cover and Handle Assembly, Black, SPX0715BA3
Hayward

2 in. Key, Cover and Handle Assembly, Black, SPX0715BA3

$20899
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$14799
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$599
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$18899
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2599
Hayward Nylon Washer, SPX0710Z16
Hayward

Nylon Washer, SPX0710Z16

$499
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX0710XBA17 black Vari-Flo key cover and handle assembly Hayward Vari-Flo Key Cover and Handle Assembly, Black, SPX0710XBA17$13699 Hayward SPX0710XBA white key, cover and handle assembly for Vari-Flo multiport valves Hayward Key, Cover and Handle Assembly, White, SPX0710XBA$13599 Hayward SPX0715C key and stem assembly for Vari-Flo SP0715 and SP0716 valves Hayward Key and Stem Assembly for Vari-Flo SP0715 and SP0716 Valves, SPX0715C$7999 Hayward SPX0710XC Noryl key and stem assembly for Vari-Flo multiport valves Hayward Noryl Key and Stem Assembly for 1-1/2 in. Vari-Flo Valves, SPX0710XC$4399 Hayward SPX0714CA key seal diverter assembly with molded spider gasket for the SP0714T Vari-Flo XL valve Hayward Key Seal Diverter Assembly, SPX0714CA$5799 Hayward SPX0704D valve key gasket for Vari-Flo SP0704 multiport valve Hayward Valve Key Gasket for Vari-Flo SP0704 1-1/2 in. 4-Position Multiport Valve, SPX0704D$3199 Hayward SPX0710Z1A valve cover screw with nut, set of 6 Hayward Cover Screw with Nut, Set of 6, SPX0710Z1A$2999 Hayward SPX0714Z1 valve cover screw set of 6 for the SP0714T Vari-Flo XL valve Hayward Cover Screw Set of 6 for SP0714T Valve, SPX0714Z1$2699 Hayward SPX0710XF Vari-Flo multiport valve replacement handle Hayward SPX0710XF Vari-Flo Valve Handle$2599 Hayward SPX0710XZ7 valve handle pin Hayward Valve Handle Pin, SPX0710XZ7$1499
Hayward SPX0735GA shaft seal o-ring set for Vari-Flo valves Hayward O-Ring Shaft Seal Assembly, SPX0735GA$399 Hayward SPX0714D replacement diffuser for the SP0714T Vari-Flo XL valve Hayward Diffuser for SP0714T Valve, SPX0714D$6099 Hayward SP1072S 1-1/2 inch in-line backwash sight glass Hayward Sight Glass In-Line 1-1/2", SP1072S$4399 Aladdin GO-KIT39-9 seal valve kit for Hayward SP715 multiport valve Aladdin Seal Valve Kit for Hayward® SP715 Multiport, GO-KIT39-9$2799 Hayward SPX0710MA threaded plastic sight glass with O-ring for Vari-Flo valves Hayward Plastic Sight Glass Threaded, with O-Ring, SPX0710MA$1899 Hayward SPX0704HA Vari-Flo o-ring with Teflon shaft seal Hayward Vari-Flo O-Ring/Teflon Shaft Seal, SPX0704HA$1899 Hayward SPX0710Z62 nylon spring washer set, pack of two Hayward Nylon Spring Washer Set SPX0710Z62$1699 Hayward SPX0714G valve position decal for the SP0714T Vari-Flo XL multiport valve Hayward SP0714T MPV Valve Position Label, SPX0714G$1699 Hayward SPX0710G Vari-Flo valve label plate for 1-1/2 inch valves Hayward Vari-Flo Label Plate 1-1/2", SPX0710G$1699 Hayward SPX0715G 2 in Vari-Flo valve label plate Hayward 2 In Vari-Flo Label Plate, SPX0715G$1599

Product details

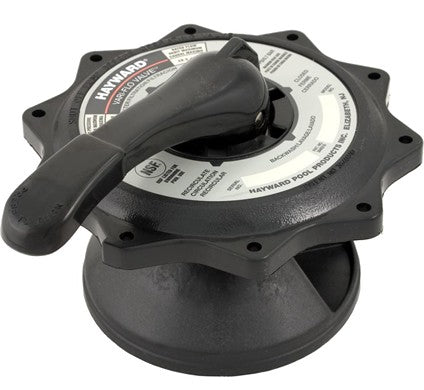

The Hayward SPX0715BA3 is the black key, cover and handle assembly for the 2 in. Vari-Flo side mount backwash valves, the SP0715, SP0715X, SP0716 and SP0176X. It is the genuine Hayward part.

One assembled piece

Key, cover and handle arrive already put together, so the job is to remove the old top end from the valve body and fit the new one. No special tools are needed.

Order the soft parts with it

The cover o-ring, SPX0715Z1, and the valve seat gasket, SPX0715D, are not included. If the valve is old enough to need a new cover, the o-ring and gasket underneath it are usually worth replacing at the same time.

Specifications
Brand Hayward
Manufacturer part number SPX0715BA3
UPC 610377035187
Color Black
Valve size 2 in.
Fits Hayward Vari-Flo SP0715, SP0715X, SP0716, SP0176X
Part type Filter valve part
Sold separately Cover o-ring SPX0715Z1, valve seat gasket SPX0715D
Shipping weight 2.35 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,10299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which valves does this fit?
The 2 in. Hayward Vari-Flo side mount valves: SP0715, SP0715X, SP0716 and SP0176X.
Does it include the o-ring and gasket?
No. The cover o-ring is SPX0715Z1 and the valve seat gasket is SPX0715D. Order both if yours are worn; a new cover on an old gasket will still leak.
Is this the black or the white cover?
Black. Hayward also makes the same assembly in white under a different part number.
Do I need special tools to install it?
No. Remove the old cover and handle assembly and fit the new one in its place.
Ask your own question
