Hayward SPX0710Z1A valve cover screw with nut, set of 6Hayward Cover Screw with Nut, Set of 6, SPX0710Z1A In stock$2999

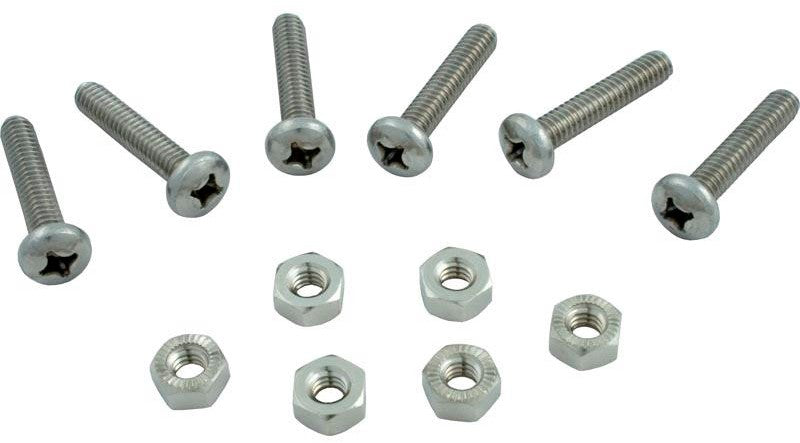

Hayward SPX0710Z1A valve cover screw with nut, set of 6
Shop all Hayward

Hayward Cover Screw with Nut, Set of 6, SPX0710Z1A

Ask a questionMPN SPX0710Z1A
$2999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Factory part SPX0710Z1A, the cover screw and nut Hayward supplies for these valves.
  • Set of 6 A full set for the valve cover, so all the fasteners go back matched.
  • Screw and nut together Each screw comes with its nut rather than as a bare fastener.
  • Vari-Flo valves Listed for the Hayward Vari-Flo top mount and side mount multiport valve families.
  • Also the DE Selecta-Flo Covers the SP0740 DE 2 inch Selecta-Flo valve as well.
  • The reason covers leak Corroded or stripped cover screws stop the cover clamping evenly, and the valve weeps.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Cover Screw with Nut, Set of 6, SPX0710Z1A, SKU HAY-061-2120. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Cover Screw with Nut, Set of 6, SPX0710Z1A
Hayward

Cover Screw with Nut, Set of 6, SPX0710Z1A

$2999
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$14799
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$599
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$18899
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2599
Hayward Nylon Washer, SPX0710Z16
Hayward

Nylon Washer, SPX0710Z16

$499
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX0714Z1 valve cover screw set of 6 for the SP0714T Vari-Flo XL valve Hayward Cover Screw Set of 6 for SP0714T Valve, SPX0714Z1$2699 Hayward SPX0710Z62 nylon spring washer set, pack of two Hayward Nylon Spring Washer Set SPX0710Z62$1699 Hayward SPX0710MA threaded plastic sight glass with O-ring for Vari-Flo valves Hayward Plastic Sight Glass Threaded, with O-Ring, SPX0710MA$1699 Hayward SPX0715G 2 in Vari-Flo valve label plate Hayward 2 In Vari-Flo Label Plate, SPX0715G$1599 Hayward SP1072S 1-1/2 inch in-line backwash sight glass Hayward Sight Glass In-Line 1-1/2", SP1072S$4199 Hayward SPX0704D valve key gasket for Vari-Flo SP0704 multiport valve Hayward Valve Key Gasket for Vari-Flo SP0704 1-1/2 in. 4-Position Multiport Valve, SPX0704D$2999 Hayward SPX0710XC Noryl key and stem assembly for Vari-Flo multiport valves Hayward Noryl Key and Stem Assembly for 1-1/2 in. Vari-Flo Valves, SPX0710XC$4399 Hayward SPX0710XBA white key, cover and handle assembly for Vari-Flo multiport valves Hayward Key, Cover and Handle Assembly, White, SPX0710XBA$13599 Hayward SPX0710XBA17 black Vari-Flo key cover and handle assembly Hayward Vari-Flo Key Cover and Handle Assembly, Black, SPX0710XBA17$13699 Hayward SPX0715BA3 2 in. key, cover and handle assembly in black for Vari-Flo SP715 and SP716 valves Hayward 2 in. Key, Cover and Handle Assembly, Black, SPX0715BA3$20899
Hayward SPX0710XZ7 valve handle pin Hayward Valve Handle Pin, SPX0710XZ7$1499 Hayward SPX0704HA Vari-Flo o-ring with Teflon shaft seal Hayward Vari-Flo O-Ring/Teflon Shaft Seal, SPX0704HA$1399 Hayward SPX0710G Vari-Flo valve label plate for 1-1/2 inch valves Hayward Vari-Flo Label Plate 1-1/2", SPX0710G$1199 Hayward SPX0710K 1/4 in. plastic pipe plug for Vari-Flo multiport valves Hayward 1/4 in. Plastic Pipe Plug for Vari-Flo Multiport Valves, SPX0710K$799 Hayward SPX0735GA shaft seal o-ring set for Vari-Flo valves Hayward O-Ring Shaft Seal Assembly, SPX0735GA$399 Hayward SPX0714D replacement diffuser for the SP0714T Vari-Flo XL valve Hayward Diffuser for SP0714T Valve, SPX0714D$6099 Hayward SPX0715C key and stem assembly for Vari-Flo SP0715 and SP0716 valves Hayward Key and Stem Assembly for Vari-Flo SP0715 and SP0716 Valves, SPX0715C$8599

Product details

Hayward SPX0710Z1A is the cover screw with nut for Hayward multiport valves, supplied as a set of six. It is the genuine Hayward fastener.

Why they matter

The cover screws are what hold the valve cover down against its gasket. They live outdoors in wet, chlorinated conditions, so they corrode, seize and eventually strip. Once one or two will no longer pull up, the cover stops clamping evenly and the valve weeps from the top, which is often mistaken for a failed valve body.

Fitment

Hayward lists this set for the Vari-Flo top mount 1-1/2 inch valves in the SP0710X, SP0711 and SP0712 series, the 2 inch side mount SP0715 and SP0716, and the SP0740 DE Selecta-Flo valve.

While you are in there

If the screws have been leaking for a while, look at the cover gasket before closing the valve back up. New fasteners on a flattened gasket will not stop the drip.

Specifications
Brand Hayward
Manufacturer part number SPX0710Z1A
UPC 610377035019
Type Cover screw with nut
Quantity Set of 6
Part type Filter valve part
Fits Hayward Vari-Flo top mount 1-1/2 inch valves SP0710X, SP0711, SP0712, SP0711-13 and SP0711-20; Hayward Vari-Flo side mount 2 inch valves SP0715 and SP0716; Hayward SP0740 DE 2 inch Selecta-Flo valve
Shipping weight 0.17 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

How many screws are in the set?
Six, each with its nut.
Which valves do these fit?
The Hayward Vari-Flo top mount valves SP0710X, SP0711 and SP0712, the 2 inch side mount SP0715 and SP0716, and the SP0740 DE Selecta-Flo valve.
Do the nuts come with them?
Yes. SPX0710Z1A is the screw with nut, sold as a set of six.
My valve cover is leaking. Will new screws fix it?
If the screws are corroded, stretched or stripped they cannot clamp the cover evenly and the valve will weep. Replace the set, and check the cover gasket at the same time.
