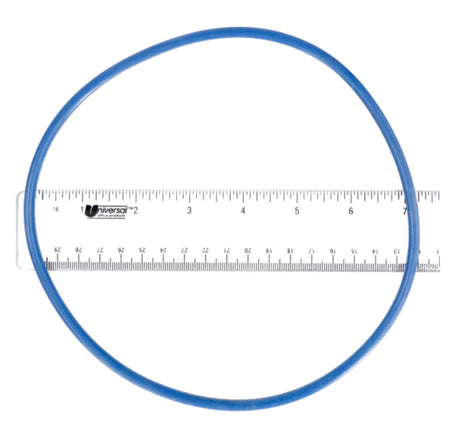

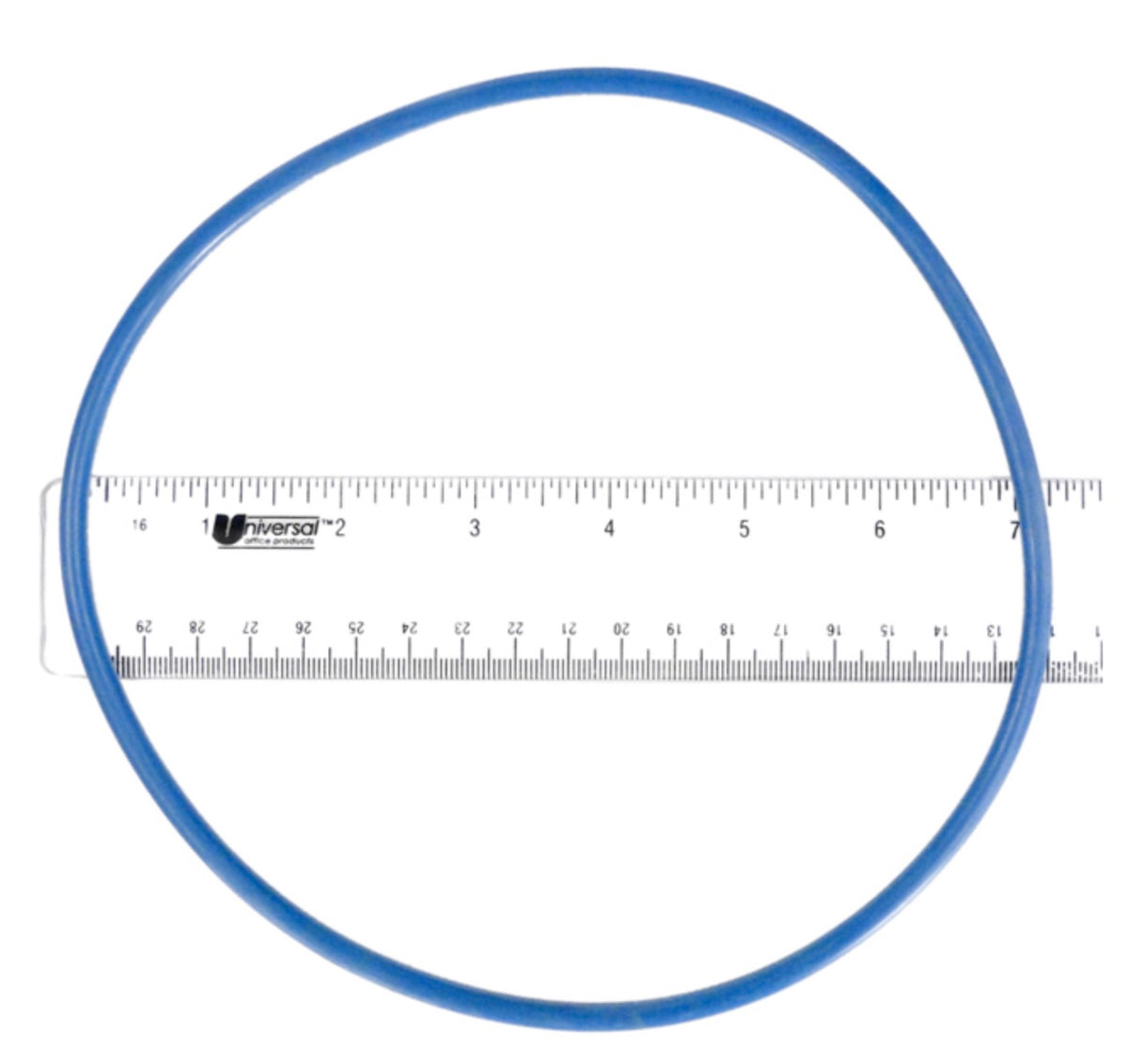

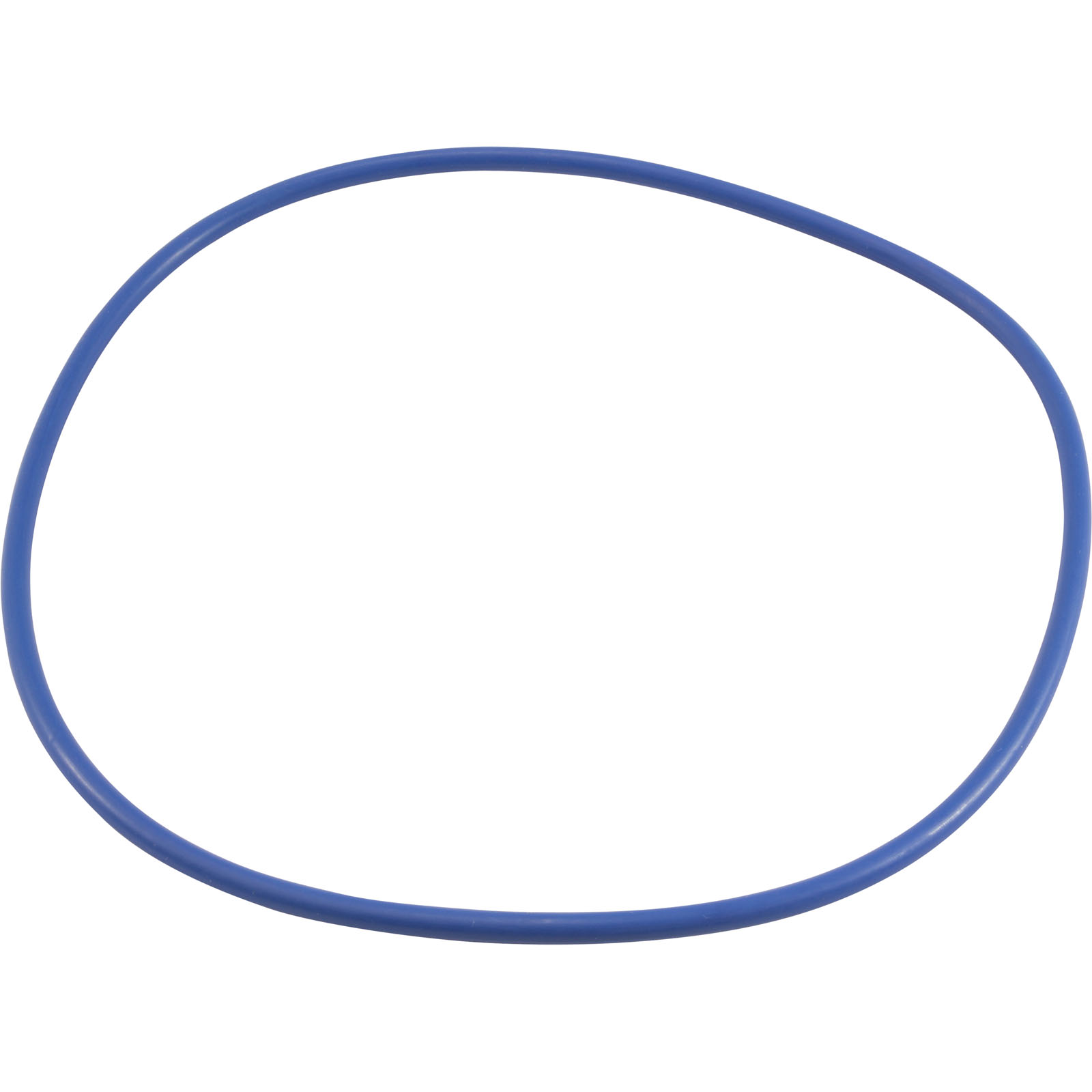

Hayward GMX600F genuine OEM o-ring, 6-3/4 in. inside diameterHayward OEM O-Ring, 6-3/4" ID, GMX600F In stock$2699
Hayward GMX600F genuine OEM o-ring, 6-3/4 in. inside diameter
Shop all Hayward

Hayward OEM O-Ring, 6-3/4" ID, GMX600F

Ask a questionMPN GMX600F
$2699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward The OEM GMX600F rather than an aftermarket ring, so size and material match the original.
  • 6-3/4 in. by 3/16 in. Inside diameter 6-3/4 in. with a 3/16 in. cross section.
  • Fits the Pro Series S140T, S144T, S164T, S166T, S180T, S210T, S220T, S220T2, S230T, S244T, S244T2 and S270T top mount sand filters, plus the ProSeries Plus.
  • Other Hayward filters Also fits the S190T, S245T, GM195, GM225, GM245, VL210 and Swim Pro sand filters.
  • Pump use too Hayward lists the same ring for the Max-Flo II SP2700X, Max-Flo XL SP2300X, Max-Flo XE, Max-Flo VS, Max-Flo VS500 Omni and 2007 and earlier NorthStar SP4000 and SP4000X pumps.
  • Lube before fitting A film of silicone o-ring lubricant helps the ring seat and keeps it from pinching under the clamp.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward OEM O-Ring, 6-3/4" ID, GMX600F, SKU HAY-051-1867. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$15299
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$19399
Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T
Hayward

2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T

$26199
Hayward Lateral Hub Assembly (S244S, S220S), SX242MA1S
Hayward

Lateral Hub Assembly (S244S, S220S), SX242MA1S

$13499
Hayward Key Seal Diverter Assembly, SPX0714CA
Hayward

Key Seal Diverter Assembly, SPX0714CA

$5999
Subtotal

Similar products

Other products people compare with this one.

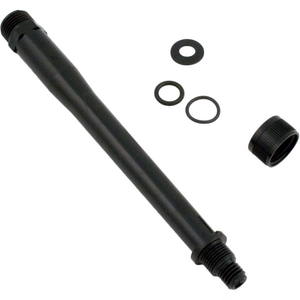

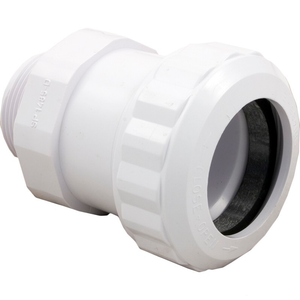

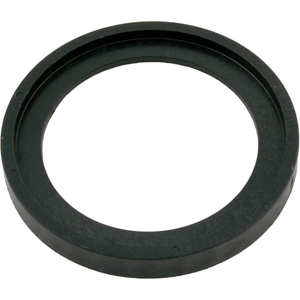

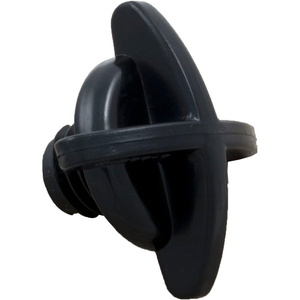

Hayward SX200Z6 o-ring for S160T, S-200 and S-240 sand filters Hayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6$1699 Hayward SX180LA drain cap assembly for Pro-Series sand filters Hayward Drain Cap Assembly for Pro-Series Sand Filters, 2006 to Current, SX180LA$1599 Hayward SX200G manual air relief cap for side mount sand filters Hayward Manual Air Relief Cap, SX200G$1799 Hayward SX180HG drain cap and gasket for sand filters 2005 and prior Hayward Drain Cap and Gasket, 2005 and Prior, SX180HG$1399 Hayward SX360E bulkhead spacer for Pro Series sand filters Hayward Bulkhead Spacer, SX360E$2099 Hayward SX200H bottom drain screen for S-200 and S-240 sand filters Hayward Bottom Drain Screen, SX200H$1399 Hayward SPX1091Z2PAK2 insert adapter, 1-1/2 inch MIP to 1-1/2 inch hose barb Hayward 1-1/2" MIP x 1-1/2" Barb Hose Adapter, SPX1091Z2PAK2$1699 Hayward SX200EB sand filter drain pipe assembly with cap and gasket Hayward Drain Pipe Assembly w/ Cap & Gasket, S160T/S220/S245T, SX200EB$3799 Hayward SX202S corrugated cardboard sand shield for sand filters Hayward Sand Shield, Corrugated Cardboard Design, SX202S$1399 Hayward SPX1485DA compression fitting assembly with gasket for sand filters Hayward Compression Fitting Assembly, SPX1485DA$3799

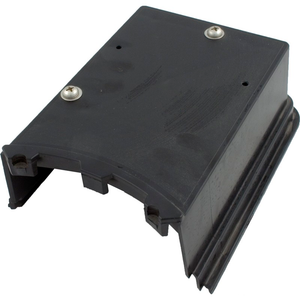

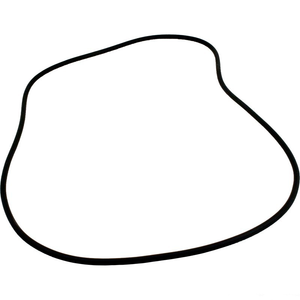

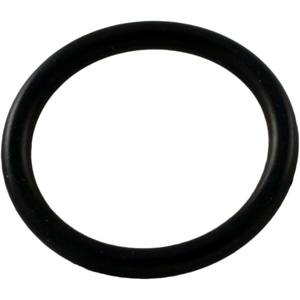

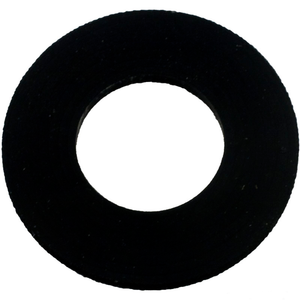

Hayward SX144Z1 1-1/2 in. ribbed hose for Pro Series S144T sand filter Hayward 1-1/2 in. Ribbed Hose for Pro Series S144T Sand Filter, SX144Z1$1899 Hayward SX160Z1 tank o-ring for Pro Series S160T sand filter Hayward O-Ring for Pro Series S160T Sand Filter, SX160Z1$1099 Hayward SX200Z14 1 inch o-ring for S200, S240 and S160T sand filters Hayward O-Ring, 1 in. O.D., After 1980, SX200Z14$342 Hayward SX200Z5 air relief o-ring, 13/16 in. O.D., for S200, ProSeries and ProSeries Plus sand filters Hayward Air Relief O-Ring, 13/16 in. O.D., for S200, ProSeries and ProSeries Plus Sand Filters, SX200Z5$342 Hayward SX200Z7 tank O-ring for S200 sand filters Hayward Tank O-Ring, S200 Series, SX200Z7$5399 Hayward Sand Filter Tank O-Ring S240 | SX240Z1 Hayward Sand Filter Tank O-Ring S240 | SX240Z1$7899 Hayward SX200Z9 drain cap gasket for S200, S240 and EasyClear filters Hayward Drain Cap Gasket, SX200Z9$599 Hayward SX164C pump base Hayward SX164C Pump Base$5499 Hayward SX244PX bulkhead fitting for Pro Series sand filters S210S, S244S, S310S and S311S Hayward Bulkhead Fitting for S210S/S244S/S310S/S311S, SX244PX$6099 Hayward GMX600NM two piece Vari-Flo valve clamp for Pro Series sand filters Hayward Valve Clamp for Pro-Series, GMX600NM$6299

Product details

The Hayward GMX600F is the genuine 6-3/4 in. inside diameter o-ring used across most of the Hayward Pro Series sand filter range and on several Hayward pumps. It is 3/16 in. thick. On the sand filters it is the tank o-ring, the seal between the top mount multiport valve and the tank flange that the two piece clamp compresses.

Where it fits

Hayward lists it for the ProSeries and ProSeries Plus sand filters, including the S140T, S144T, S164T, S166T, S180T, S210T, S220T, S220T2, S230T, S244T, S244T2 and S270T top mount models, plus the S190T, S245T, GM195, GM225 and GM245, the VL210 series and the Swim Pro filters. The same ring is specified for the Max-Flo II SP2700X, Max-Flo XL SP2300X, Max-Flo XE, Max-Flo VS and Max-Flo VS500 Omni pumps and for NorthStar SP4000 and SP4000X pumps built in 2007 or earlier.

When to replace it

Any time the valve is lifted off the tank, and whenever water weeps at the clamp. A ring that has taken a set will not reseal reliably. Clean both mating faces, apply a light film of silicone o-ring lubricant and tighten the clamp evenly.

Specifications
Brand Hayward
Manufacturer part number GMX600F
Also listed as GM-600-F
UPC 610377027151
Inside diameter 6-3/4 in.
Thickness 3/16 in.
Fits filters Hayward ProSeries and ProSeries Plus sand filters: S140T, S144T, S164T, S166T, S180T, S210T, S220T, S220T2, S230T, S244T, S244T2, S270T; S190T, S245T, GM195, GM225, GM245; VL210 series; Swim Pro
Fits pumps Hayward NorthStar SP4000 and SP4000X (2007 and earlier), Max-Flo VS, Max-Flo VS500 Omni, Max-Flo XL SP2300X, Max-Flo XE, Max-Flo II SP2700X
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which o-ring is this on a Pro Series sand filter?
It is the tank o-ring that seals the top mount valve to the filter tank. Replace it whenever the valve comes off, since a flattened ring is the usual cause of a leak at the clamp.
Will it fit my S210T or S244T?
Yes. The GMX600F is listed for the S140T, S144T, S164T, S166T, S180T, S210T, S220T, S220T2, S230T, S244T, S244T2 and S270T, as well as the ProSeries Plus, S190T, S245T, GM195, GM225, GM245, VL210 and Swim Pro filters.
Is GM-600-F the same part?
Yes. GM-600-F is the older way of writing GMX600F.
Do I need lubricant?
It helps. A thin coat of silicone based o-ring lubricant lets the ring seat evenly and stops it rolling or pinching as the clamp is tightened. Do not use petroleum grease.
Ask your own question
