Hayward SPX1091Z2PAK2 insert adapter, 1-1/2 inch MIP to 1-1/2 inch hose barbHayward 1-1/2" MIP x 1-1/2" Barb Hose Adapter, SPX1091Z2PAK2 In stock$1599

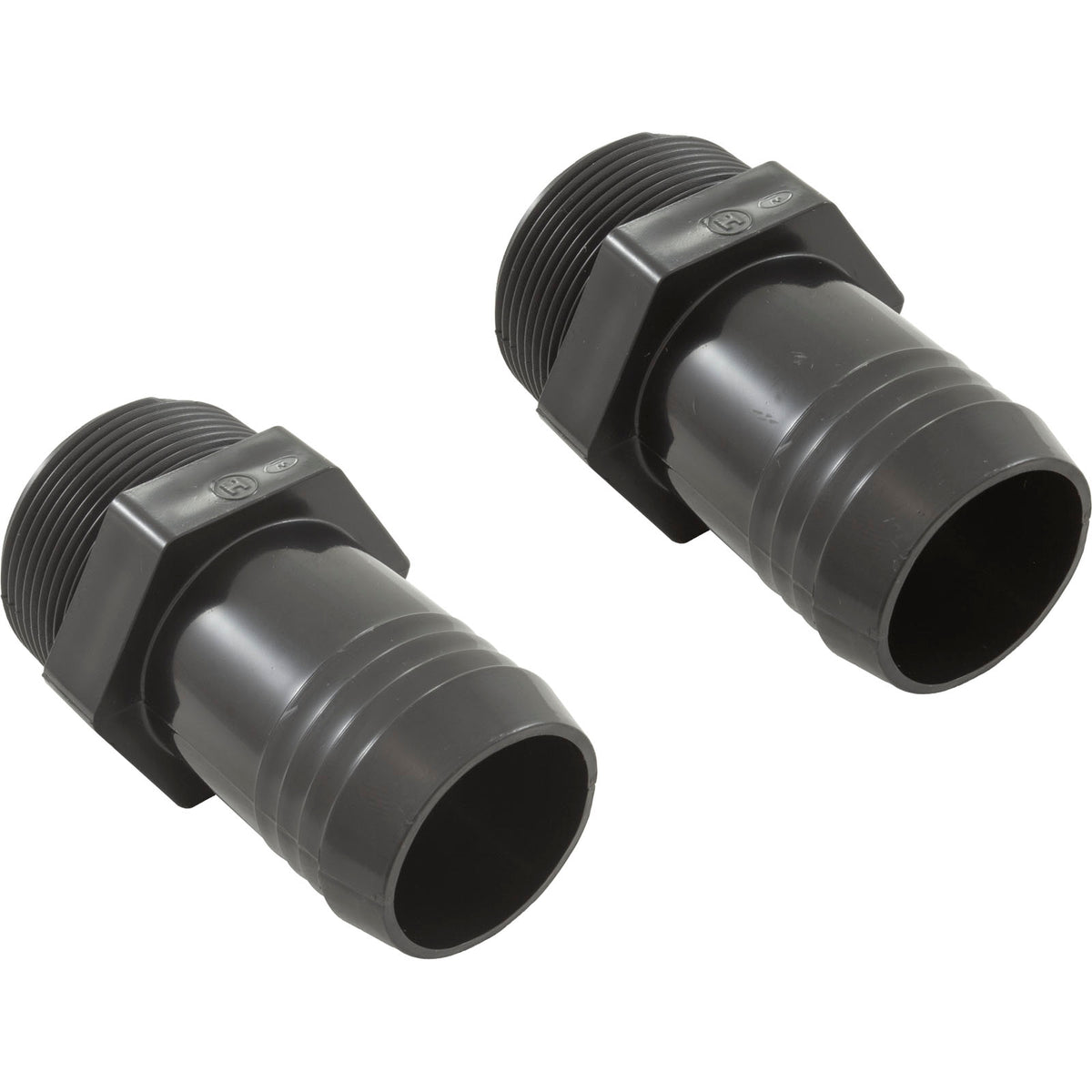

Hayward SPX1091Z2PAK2 insert adapter, 1-1/2 inch MIP to 1-1/2 inch hose barb
Shop all Hayward

Hayward 1-1/2" MIP x 1-1/2" Barb Hose Adapter, SPX1091Z2PAK2

Ask a questionMPN SPX1091Z2PAK2
$1599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward part Factory SPX1091Z2PAK2, the adapter Hayward specifies for these filter systems.
  • Threaded to barbed One end is 1-1/2 inch MIP, the other is a 1-1/2 inch hose barb for flexible hose.
  • Wide filter fitment Listed for the S240PAK1, S200PAK1, S160TPAK1/PAK3, S160T, S190T, S164T and S166T filters.
  • The common leak point Hose barbs get brittle and crack at the shoulder, and a fresh adapter is the cheap fix.
  • Use a clamp Slide the hose fully onto the barb and secure it with a stainless hose clamp, not tape.
  • Thread sealant only Wrap the MIP thread with PTFE tape and hand tighten plus a turn, since overtightening splits plastic ports.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward 1-1/2" MIP x 1-1/2" Barb Hose Adapter, SPX1091Z2PAK2, SKU HAY-251-1530. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward 1-1/2" MIP x 1-1/2" Barb Hose Adapter, SPX1091Z2PAK2
Hayward

1-1/2" MIP x 1-1/2" Barb Hose Adapter, SPX1091Z2PAK2

$1599
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$14799
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$18899
Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T
Hayward

2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T

$25399
Hayward Lateral Hub Assembly (S244S, S220S), SX242MA1S
Hayward

Lateral Hub Assembly (S244S, S220S), SX242MA1S

$13099
Subtotal

Similar products

Other products people compare with this one.

Hayward SX144Z1 1-1/2 in. ribbed hose for Pro Series S144T sand filter Hayward 1-1/2 in. Ribbed Hose for Pro Series S144T Sand Filter, SX144Z1$1899 Hayward SX180LA drain cap assembly for Pro-Series sand filters Hayward Drain Cap Assembly for Pro-Series Sand Filters, 2006 to Current, SX180LA$1499 Hayward SX200Z6 o-ring for S160T, S-200 and S-240 sand filters Hayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6$1599 Hayward SX200G manual air relief cap for side mount sand filters Hayward Manual Air Relief Cap, SX200G$1799 Hayward SX180HG drain cap and gasket for sand filters 2005 and prior Hayward Drain Cap and Gasket, 2005 and Prior, SX180HG$1399 Hayward SX360E bulkhead spacer for Pro Series sand filters Hayward Bulkhead Spacer, SX360E$1999 Hayward SX200H bottom drain screen for S-200 and S-240 sand filters Hayward Bottom Drain Screen, SX200H$1399 Hayward SX160Z1 tank o-ring for Pro Series S160T sand filter Hayward O-Ring for Pro Series S160T Sand Filter, SX160Z1$1099 Hayward SX202S corrugated cardboard sand shield for sand filters Hayward Sand Shield, Corrugated Cardboard Design, SX202S$1399 Hayward SX160Z5 22 inch hose for Pro Series filters Hayward Hose, 22 Inch Long for Pro Series Filters, SX160Z5$6199
Hayward SX160Z3 clear 31 inch filter to pump hose for S160T and S190T sand filters Hayward 31" Clear Filter to Pump Hose S160T/S190T, SX160Z3$7699 Hayward SX201Z1 33 inch clear hose for S160T sand filter systems Hayward 33" Hose, SX201Z1$9499 Hayward SX200Z9 drain cap gasket for S200, S240 and EasyClear filters Hayward Drain Cap Gasket, SX200Z9$499 Hayward SX200Z14 1 inch o-ring for S200, S240 and S160T sand filters Hayward O-Ring, 1 in. O.D., After 1980, SX200Z14$399 Hayward SX200Z5 air relief o-ring, 13/16 in. O.D., for S200, ProSeries and ProSeries Plus sand filters Hayward Air Relief O-Ring, 13/16 in. O.D., for S200, ProSeries and ProSeries Plus Sand Filters, SX200Z5$399 Hayward SX200EB sand filter drain pipe assembly with cap and gasket Hayward Drain Pipe Assembly w/ Cap & Gasket, S160T/S220/S245T, SX200EB$3599 Hayward SPX1485DA compression fitting assembly with gasket for sand filters Hayward Compression Fitting Assembly, SPX1485DA$3699 Hayward SX200Z7 tank O-ring for S200 sand filters Hayward Tank O-Ring, S200 Series, SX200Z7$5199 Hayward SX164C pump base Hayward SX164C Pump Base$5299 Hayward SX244PX bulkhead fitting for Pro Series sand filters S210S, S244S, S310S and S311S Hayward Bulkhead Fitting for S210S/S244S/S310S/S311S, SX244PX$5899

Product details

The Hayward SPX1091Z2PAK2 is an insert adapter that puts a 1-1/2 inch hose barb on a 1-1/2 inch male pipe thread. It is the genuine Hayward part, used where a flexible hose has to meet a threaded port on a filter or valve.

Where it goes

Hayward lists this adapter for the S240PAK1, S200PAK1, S160TPAK1 and PAK3, S160T, S190T, S164T and S166T filters. It threads into the port, and the hose slides over the barbed end.

Why they get replaced

Barbed plastic fittings live a hard life. Sun, chlorine and the pull of a stiff hose work on the shoulder of the barb until it cracks, and the first sign is usually a slow drip or a loss of prime rather than an obvious break. Swapping the adapter is far quicker than chasing the leak anywhere else.

Fitting notes

Wrap the male thread with PTFE tape, thread it in by hand and add about one more turn. Then push the hose fully onto the barb and lock it with a stainless hose clamp. Plastic ports split if they are torqued with a wrench, so stop while it is still snug.

Specifications
Brand Hayward
Manufacturer part number SPX1091Z2PAK2
UPC 610377243179
Type Insert adapter, hose barb
Thread end 1-1/2 inch MIP
Hose end 1-1/2 inch hose barb
Fits S240PAK1, S200PAK1, S160TPAK1/PAK3, S160T, S190T, S164T, S166T filters
Shipping weight 0.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What does this adapter connect?
It converts a 1-1/2 inch female pipe port into a 1-1/2 inch hose barb, so flexible hose can be run to or from the filter.
Which Hayward filters is it listed for?
S240PAK1, S200PAK1, S160TPAK1 and PAK3, S160T, S190T, S164T and S166T.
Do I need a hose clamp?
Yes. Push the hose all the way onto the barb and clamp it with a stainless worm gear clamp so it cannot creep off under pressure.
How do I seal the threaded end?
PTFE thread tape on the male thread is enough. Tighten by hand and give it about one more turn, because plastic ports crack if you wrench them down.
Ask your own question
