SuperPro G-382-9 drain cap gasket for Hayward sand filters, replaces SX180GSuperPro Drain Cap Gasket for Hayward Pro Series Sand Filters, G-382-9 In stock$1199
SuperPro G-382-9 drain cap gasket for Hayward sand filters, replaces SX180G
Shop all Aladdin

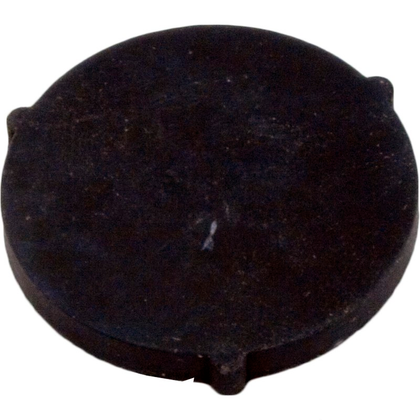

SuperPro Drain Cap Gasket for Hayward Pro Series Sand Filters, G-382-9

Ask a questionMPN G-382-9
$1199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Replaces Hayward SX180G SuperPro G-382-9 is the aftermarket equivalent of the Hayward drain cap gasket.
  • Wide Hayward coverage Fits Pro Series top mount and side mount, SandMaster, SwimPro and E-Series sand filters.
  • Stops a drain cap drip The gasket is what seals the drain cap, so a filter that weeps at the bottom cap usually needs this.
  • Cheap part, common failure Gaskets harden and flatten with age and heat, and they are the first thing to check on a leak at the cap.
  • Worth changing at winterizing The drain cap comes off every close down, which is the moment a tired gasket gives up.
  • Keep a spare Low cost enough to keep one on the shelf so a leak does not cost you a weekend.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About SuperPro Drain Cap Gasket for Hayward Pro Series Sand Filters, G-382-9, SKU SPG-601-1035. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item SuperPro Drain Cap Gasket for Hayward Pro Series Sand Filters, G-382-9
Aladdin

SuperPro Drain Cap Gasket for Hayward Pro Series Sand Filters, G-382-9

$1199
SuperPro Valve Seat Gasket 5 Spoke (5-5/16"), O-176A-9
Aladdin

SuperPro Valve Seat Gasket 5 Spoke (5-5/16"), O-176A-9

$899
SuperPro Tank O-Ring (Generic) for Select Hayward Filters, O-429-9
Aladdin

SuperPro Tank O-Ring (Generic) for Select Hayward Filters, O-429-9

$1499
SuperPro Generic 2" Diverter Gasket, G-417-9
Aladdin

SuperPro Generic 2" Diverter Gasket, G-417-9

$1299
SuperPro Generic Tank O-Ring 20-7/8" ID (7/16" Thick), O-497-9
Aladdin

SuperPro Generic Tank O-Ring 20-7/8" ID (7/16" Thick), O-497-9

$2199
SuperPro 18" Tank O-Ring, O-184-9
Aladdin

SuperPro 18" Tank O-Ring, O-184-9

$1599
Super-Pro O-Ring, U9-228A/CX900F, O-240-9
Aladdin

Super-Pro O-Ring, U9-228A/CX900F, O-240-9

$1199
Subtotal

Similar products

Other products people compare with this one.

Hayward SX180LA drain cap assembly for Pro-Series sand filters Hayward Drain Cap Assembly for Pro-Series Sand Filters, 2006 to Current, SX180LA$1599 Hayward SX160Z1 tank o-ring for Pro Series S160T sand filter Hayward O-Ring for Pro Series S160T Sand Filter, SX160Z1$1099 Hayward SX180HG drain cap and gasket for sand filters 2005 and prior Hayward Drain Cap and Gasket, 2005 and Prior, SX180HG$1399 SuperPro O-342-9 lid o-ring for Commander Series filters SuperPro Lid O-Ring for Commander Series Filters, O-342-9$1099 Pentair Gasket for Sand Drain | 154713 Pentair Gasket for Sand Drain | 154713$1099 Pentair 272541 valve body o-ring for Sand Dollar, Tagelus and Cristal-Flo II filters Pentair Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541$1199 Hayward SX200Z6 o-ring for S160T, S-200 and S-240 sand filters Hayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6$1699 Pentair 154715 sand drain gasket for Meteor top mount sand filters Pentair Genuine OEM Sand Drain Gasket, Meteor, 154715$999 Sta-Rite U9-371 drain cap o-ring for Cristal-Flo filters Sta-Rite Drain Cap O-Ring for Cristal-Flo Filter, U9-371$1099 Jacuzzi 22552202R000 fill spout for Laser sand filters Jacuzzi Fill Spout for Laser Sand Filters, 22552202R000$1399
Hayward .75" Drain Plug with O-Ring GM Series | GMX152Z4A Hayward .75" Drain Plug with O-Ring GM Series | GMX152Z4A$1499 Waterway 505-1950 twist-lock lateral for ClearWater and TWM sand filters Waterway Twist Lock Lateral for ClearWater and TWM Sand Filters, 505-1950$1199 Baker Hydro 15B0074 air relief screen for HRV series sand filters Baker Hydro Air Relief Screen for HRV Sand Filters, 15B0074$899 Astral 00555-0401 tee adapter for Millenium and Astramax sand filters Astral Tee Adapter for Millenium and Astramax Sand Filters, 00555-0401$1599 Hayward SX200H bottom drain screen for S-200 and S-240 sand filters Hayward Bottom Drain Screen, SX200H$1399 SuperPro O-231V-9 lid o-ring listed for CLX200K SuperPro Lid O-Ring for CLX200K, O-231V-9$1299 SuperPro O-484-9 generic filter tank o-ring for Sta-Rite PLM filters SuperPro Generic Filter Tank O-Ring for Sta-Rite PLM, After 2/97, O-484-9$1599 Waterway 602-5321 drain screen cap, coarse thread with hex head Waterway Drain Screen Cap, Coarse Thread, Hex Head, 602-5321$1199 Hayward SX202S corrugated cardboard sand shield for sand filters Hayward Sand Shield, Corrugated Cardboard Design, SX202S$1399 Pentair 150084 quarter turn sand filter lateral for 18 in and 20 in filters Pentair Genuine OEM Lateral for 18 in and 20 in Filters, 1/4 Turn, After 10/04, 150084$1299

Product details

The SuperPro G-382-9 is the drain cap gasket for Hayward sand filters, sold as the replacement for Hayward part SX180G.

Which filters it covers

It fits a wide run of Hayward tanks: Pro Series top mount models including the S-140T, S-144T, S-164T, S-166T, S-270T2, S-310T and S-310T2; Pro Series side mount models including the S-210S, S-220S, S-244S, S-310S, S-360S, S-311SX, S-311SXV and S-360SX; the SandMaster SM1700T, SM1900T and SM2300T; the SwimPro SW-196T, SW-236T and SW-256T; and the E-Series Sand E-100, E-200 and E-250.

The leak it fixes

The drain cap sits at the base of the tank and comes off every time the filter is drained, which is usually once a season at closing. The gasket takes that abuse plus a summer of heat, and eventually it hardens and flattens. When water weeps from the bottom cap and tightening does not stop it, the gasket is the part to change.

Specifications
Brand SuperPro
Manufacturer part number G-382-9
UPC 601402111471
Replaces Hayward SX180G
Type Drain cap gasket
Part type Pool filter part
Fits Pro Series top mount S-140T, S-144T, S-164T, S-166T, S-270T2, S-310T, S-310T2
Fits Pro Series side mount S-210S, S-220S, S-244S, S-310S, S-360S, S-311SX, S-311SXV, S-360SX
Fits SandMaster SM1700T, SM1900T, SM2300T
Fits SwimPro SW-196T, SW-236T, SW-256T
Fits E-Series Sand E-100, E-200, E-250
Shipping weight 0.19 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Aladdin

Aladdin Magic Lube 630 PTFE o-ring lubricant, 1 oz. tube Aladdin Magic Lube 1 oz. O-Ring Lubricant$699 Aladdin GO-KIT32-9 seal and gasket kit for Pentair WhisperFlo and IntelliFlo pumps Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9$3599 Aladdin GO-KIT 71 seal kit for the old style Polaris PB4-60 booster pump Aladdin GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump$1699 Aladdin Magic Lube 631 PTFE o-ring lubricant, 5 oz. tube Aladdin Magic Lube 5 oz. O-Ring Lubricant$1499 SuperPro O-176A-9 five spoke valve seat gasket, 5-5/16 in., for Hayward Vari-Flo valves SuperPro Valve Seat Gasket 5 Spoke (5-5/16"), O-176A-9$899 Aladdin Equipment Co. GO-KIT3-9 rebuild kit for the Hayward Super Pump: housing gasket, diffuser gasket, lid gasket and shaft seal Aladdin Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9$2099 SuperPro GO-KIT2-9 rebuild kit for Hayward Super II pump: seals and gaskets SuperPro Super II Pump Rebuild Kit GO-KIT2-9$4599 SuperPro O-429-9 generic tank o-ring for Hayward filters, replaces DEX2400K SuperPro Tank O-Ring (Generic) for Select Hayward Filters, O-429-9$1499 Aladdin GO-KIT5-9 pump rebuild kit for Pentair PacFab Challenger pumps, shaft seal and o-rings Aladdin Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9$2599 SuperPro GO-KIT70 2 in. valve rebuild kit for Pentair PacFab multiport valves SuperPro 2 in. Valve Rebuild Kit, GO-KIT70$1999
SuperPro B-37 generic replacement skimmer basket for the S-10 Admiral skimmer SuperPro S-10 Admiral Skimmer Basket (Generic)$1999 SuperPro 271148 diverter spider gasket for 2 in. Pentair PacFab multiport valve SuperPro Generic 2" Diverter Gasket, G-417-9$1299 Aladdin APCKIT39 SP715 multiport valve repair kit, 2 inch, with spring Aladdin SP715 Multiport Valve Repair Kit 2" with Spring, APCKIT39$4899 Aladdin O-411-9 replacement o-ring, 5-1/4 in. inside diameter Aladdin O-Ring, 5-1/4" ID, O-411-9$399 Super-Pro GO-KIT3V-9 Viton gasket and o-ring seal kit for the Hayward Super Pump SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9$3899 SuperPro O-497-9 generic tank o-ring, 20-7/8 inch ID by 7/16 inch thick SuperPro Generic Tank O-Ring 20-7/8" ID (7/16" Thick), O-497-9$2199 Aladdin Magic Lube II 5 oz tube of silicone lubricant and sealer, part 651 Aladdin Magic Lube II 5 oz$2399 SuperPro GO-KIT14-9 seal kit for Jacuzzi Magnum pumps SuperPro Jacuzzi Magnum Pump Seal Kit, GO-KIT14-9$3099 SuperPro O-184-9 18 inch tank o-ring for Pentair PacFab Nautilus DE filters SuperPro 18" Tank O-Ring, O-184-9$1599 SuperPro GO-KIT6-9 rebuild kit for Sta-Rite Max-E-Glas and Dura-Glas pumps SuperPro Max-E-Glas/Dura-Glas Pump Rebuild Kit, GO-KIT6-9$2399

Questions and answers

What people ask about this product, answered by our pool techs.

Is this the same as Hayward SX180G?
It is the SuperPro replacement for it. SuperPro carries the gasket as G-382-9 and it goes where the Hayward SX180G went.
Which Hayward filters does it fit?
Pro Series top mount and side mount models, SandMaster, SwimPro and E-Series sand filters. The full model list is in the specifications.
Where does the gasket sit?
On the drain cap at the base of the filter tank, which is the cap you remove to drain the filter.
My filter drips at the bottom cap, is this the fix?
That is the usual cause. If the gasket is flattened, hard or cracked, replacing it seals the cap again.
Ask your own question
