Hayward GMX600NM two piece Vari-Flo valve clamp for Pro Series sand filtersHayward Valve Clamp for Pro-Series, GMX600NM In stock$6299
Hayward GMX600NM two piece Vari-Flo valve clamp for Pro Series sand filters
Shop all Hayward

Hayward Valve Clamp for Pro-Series, GMX600NM

Ask a questionMPN GMX600NM
$6299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

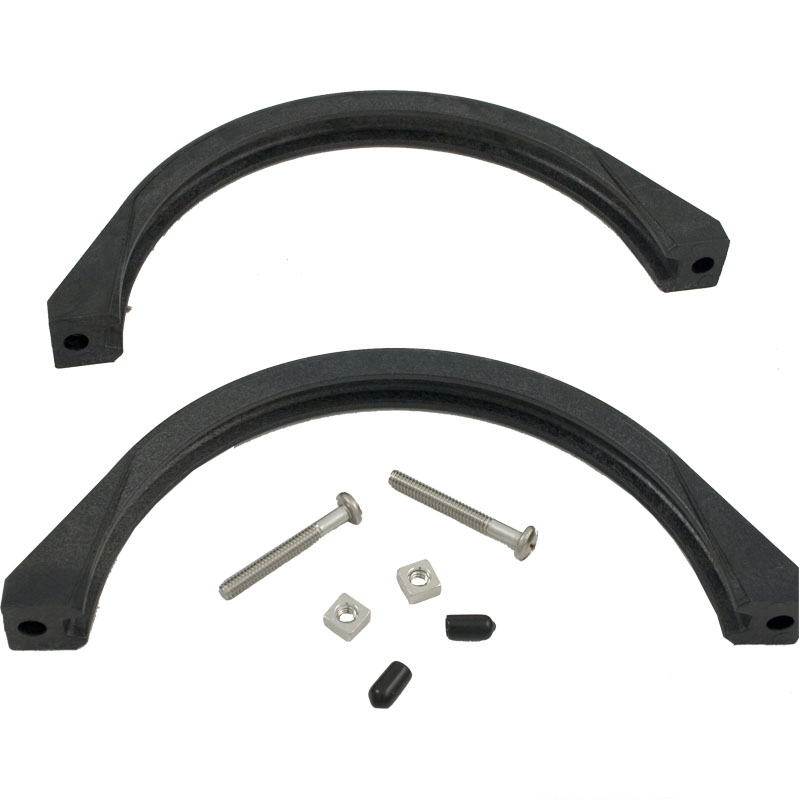

  • Complete clamp two C-shaped halves, two 2-1/8 in. bolts and two nuts in the pack.
  • Holds the valve on it is the flange that clamps the Vari-Flo valve to the tank neck.
  • Fits a long list Pro Series top and side mount, SwimPro, SandMaster, GM and E-Series sand filters.
  • Easy to identify GM600-NM is molded into each side of the original.
  • Genuine Hayward part GMX600NM, UPC 610377027205.
  • Same clamp as the valve kit it is the clamp supplied with the SP0714T Vari-Flo XL valve kit.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Valve Clamp for Pro-Series, GMX600NM, SKU HAY-051-2344. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Valve Clamp for Pro-Series, GMX600NM
Hayward

Valve Clamp for Pro-Series, GMX600NM

$6299
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$15299
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$19399
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2699
Subtotal

Similar products

Other products people compare with this one.

Hayward SX160Z5 22 inch hose for Pro Series filters Hayward Hose, 22 Inch Long for Pro Series Filters, SX160Z5$6399 Hayward SX244K Pro Series sand filter top closure dome Hayward Top Closure Dome, Pro Series, SX244K$8999 Hayward SX244PX bulkhead fitting for Pro Series sand filters S210S, S244S, S310S and S311S Hayward Bulkhead Fitting for S210S/S244S/S310S/S311S, SX244PX$6099 Hayward SX200Z7 tank O-ring for S200 sand filters Hayward Tank O-Ring, S200 Series, SX200Z7$5399 Hayward SX310N heavy duty ring flange clamp for sand filters Hayward Heavy Duty Clamp, SX310N$8099 Hayward SX200K access cover, dome lid for S200 and S240 sand filters Hayward S200/S240 Sand Filter Access Cover, SX200K$7999 Hayward SX210CD2FW bottom elbow assembly for the S210S sand filter Hayward Bottom Elbow Assembly S210S, SX210CD2FW$7699 Hayward SX160Z3 clear 31 inch filter to pump hose for S160T and S190T sand filters Hayward 31" Clear Filter to Pump Hose S160T/S190T, SX160Z3$7999 Hayward SX200EB sand filter drain pipe assembly with cap and gasket Hayward Drain Pipe Assembly w/ Cap & Gasket, S160T/S220/S245T, SX200EB$3799 Hayward SPX1485DA compression fitting assembly with gasket for sand filters Hayward Compression Fitting Assembly, SPX1485DA$3799
Hayward SX164C pump base Hayward SX164C Pump Base$5499 Hayward SX240DNPAK10 ball style pivot lateral 10 pack for Pro Series sand filters Hayward 10-Pack Ball Style Pivot/Ball Lateral, SX240DNPAK10$7699 Hayward SX311F replacement bulkhead fitting for Pro Series sand filters Hayward Replacement Bulkhead Fitting, SX311F$6899 Hayward SX210CD1FW top elbow assembly for the S210S sand filter Hayward Top Elbow Assembly S210S, SX210CD1FW$7199 Hayward Sand Filter Tank O-Ring S240 | SX240Z1 Hayward Sand Filter Tank O-Ring S240 | SX240Z1$7899 Hayward SX144Z1 1-1/2 in. ribbed hose for Pro Series S144T sand filter Hayward 1-1/2 in. Ribbed Hose for Pro Series S144T Sand Filter, SX144Z1$1899 Hayward SX180LA drain cap assembly for Pro-Series sand filters Hayward Drain Cap Assembly for Pro-Series Sand Filters, 2006 to Current, SX180LA$1599 Hayward SX160Z1 tank o-ring for Pro Series S160T sand filter Hayward O-Ring for Pro Series S160T Sand Filter, SX160Z1$1099 Hayward SX200J Pro Series sand filter support stand skirt Hayward Pro Series Sand Filter Support Stand, SX200J$15399 Hayward SPX1022CZ2 o-ring for the SP1022C plug Hayward O-Ring for SP1022C Plug, SPX1022CZ2$499

Product details

The Hayward GMX600NM is the two piece clamp flange that holds the Vari-Flo valve onto the tank of Hayward sand filters. The pack has both C-shaped halves, two 2-1/8 in. bolts and two nuts, so a cracked or stripped clamp is a complete fix rather than a hunt for hardware.

Which filters

It is the clamp on the Pro Series top mount filters (S140T, S144T, S164T, S166T, S180T, S210T, S220T, S244T, S270T, S310T), the Pro Series side mount filters (S210S, S220S, S244S, S310S, S360S), the SwimPro SW196T, SW236T and SW256T, the SandMaster SM1700T, SM1900T and SM2300T, the GM 140 and 142 series, and the E-Series E-100, E-200 and E-250. The original has GM600-NM molded into each side, which is the quickest way to confirm a match.

Good to know

This is the same clamp Hayward supplies in the SP0714T Vari-Flo XL valve kit. The tank o-ring is a separate part, so if the valve has been leaking at the neck, replace the o-ring at the same time.

Specifications
Brand Hayward
Manufacturer part number GMX600NM
UPC 610377027205
Type Valve to tank clamp flange
Marking GM600-NM molded into each side
Included 2 C-shaped clamp halves, 2 x 2-1/8 in. bolts, 2 nuts
Fits Hayward Pro Series S140T, S144T, S164T, S166T, S180T, S210T, S220T, S244T, S270T, S310T; Pro Series side mount S210S, S220S, S244S, S310S, S360S; SwimPro SW196T, SW236T, SW256T; SandMaster SM1700T, SM1900T, SM2300T; GM 140, 142, 142-6; E-Series E-100, E-200, E-250
Shipping weight 0.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What is included?
Two C-shaped clamp halves, two 2-1/8 in. bolts and two nuts.
How do I know this is the right clamp?
The original has GM600-NM molded into each side. It is the clamp used on the Pro Series S140T, S144T, S164T, S166T, S180T, S210T, S220T, S244T, S270T and S310T top mount filters, the S210S through S360S side mount filters, and the SwimPro, SandMaster, GM and E-Series sand filters.
Does it include the tank o-ring?
No. The clamp is the halves and hardware only. The tank o-ring is a separate part.
Is it the same clamp that comes in the SP0714T valve kit?
Yes. The GMX600NM is the clamp supplied with the Vari-Flo XL valve kit.
