Aladdin Equipment Co. GO-KIT3-9 rebuild kit for the Hayward Super Pump: housing gasket, diffuser gasket, lid gasket and shaft sealAladdin Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9 In stock$1999
Aladdin Equipment Co. GO-KIT3-9 rebuild kit for the Hayward Super Pump: housing gasket, diffuser gasket, lid gasket and shaft seal
Shop all Aladdin

Aladdin Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9

Ask a questionMPN GO-KIT3-9
$1999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Four parts, one order Housing gasket SPX1600T, diffuser gasket SPX1600R, lid gasket SPX1600S and PS201 shaft seal.
  • Fixes the usual leaks Covers every static seal on the wet end plus the rotating shaft seal, so a dripping pump is resealed in one job.
  • Made for the Super Pump Sized for the Hayward® Super Pump and Super-Pro wet end.
  • Aftermarket replacement Aladdin Equipment Co. equivalents to the four Hayward® part numbers, bought as a set instead of one at a time.
  • Pairs with Magic Lube A light coat of silicone lubricant on each gasket eases seating and helps the rubber last.
  • Do it while the pump is apart Replace all four at once rather than chasing leaks one seal at a time.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Aladdin Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9, SKU SPG-601-5003. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Aladdin Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9
Aladdin

Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9

$1999
Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9
Aladdin

Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9

$3499
Aladdin GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump
Aladdin

GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump

$1699
SuperPro Super II Pump Rebuild Kit GO-KIT2-9
Aladdin

SuperPro Super II Pump Rebuild Kit GO-KIT2-9

$4499
Aladdin Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9
Aladdin

Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9

$2499
SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9
Aladdin

SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9

$3799
SuperPro Jacuzzi Magnum Pump Seal Kit, GO-KIT14-9
Aladdin

SuperPro Jacuzzi Magnum Pump Seal Kit, GO-KIT14-9

$2999
Subtotal

Similar products

Other products people compare with this one.

Aladdin GO-KIT25-9 rebuild kit for Sta-Rite PE, P2RA and AJ series pumps Aladdin Sta-Rite PE, P2RA and AJ Series Pump Rebuild Kit, GO-KIT25-9$1999 SuperPro GO-KIT6-9 rebuild kit for Sta-Rite Max-E-Glas and Dura-Glas pumps SuperPro Max-E-Glas/Dura-Glas Pump Rebuild Kit, GO-KIT6-9$2299 SuperPro GO-KIT1-9 rebuild kit for Hayward Max-Flo pumps SuperPro Rebuild Kit for Hayward® Max-Flo® Pump, GO-KIT1-9$2199 SuperPro GO-KIT20-9 rebuild kit for Purex Triton Ultra Flow pumps SuperPro Purex Triton Ultra Flow Pump Rebuild Kit, GO-KIT20-9$2799 Aladdin PacFab Pinnicle Pump Kit GO-KIT24-9T | GO-KIT24-9 Aladdin PacFab Pinnicle Pump Kit GO-KIT24-9T | GO-KIT24-9$2499 Aladdin GO-KIT52V-9 Viton rebuild kit for Leisure Bay Cyclone pump Aladdin Viton Rebuild Kit for Leisure Bay Cyclone 75, 125 and 200 Pumps, GO-KIT52V-9$1799 SuperPro GO-KIT78 pump repair kit with AS-200 shaft seal and o-rings for Pentair SuperFlo and Sta-Rite SuperMax SuperPro Superflo / Supermax Pump Repair Kit, GO-KIT78$2299 Hayward SPX1600S Super Pump strainer cover gasket Hayward Super Pump Strainer Cover Gasket, SPX1600S$2399 Hayward SPX1600T rubber housing gasket for Super Pump and Max-Flo pumps Hayward Housing Gasket for Super Pump and Max-Flo Pumps, SPX1600T$1199 SuperPro GO-KIT74 seal and gasket kit for Hayward Matrix pumps SuperPro Pump Seal Kit Compatible with Hayward® Matrix, GO-KIT74$2199

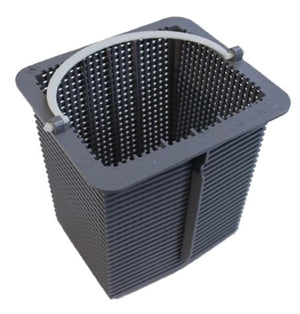

Hayward SPX1600R Super Pump and Super II diffuser gasket o-ring Hayward Super Pump/Super II Diffuser Gasket, SPX1600R$1099 Aladdin G-345-9 generic housing gasket for Hayward Super II pumps Aladdin Generic Super II Housing Gasket, G-345-9$1299 SuperPro B-167 generic strainer basket for the Hayward Super Pump, replaces SPX1600M SuperPro Super Pump Strainer Basket, Generic, B-167$1299 CMP 27182-207-000 heavy duty pump basket for Hayward Super II pumps CMP Heavy Duty Pump Basket Compatible with Hayward® Super II™, 27182-207-000$2099 Waterway 319-3010B PS200 pump seal kit Waterway Pump Seal Kit 319-3010B (PS200)$2799 Aladdin Basket for Hayward SP1250R Pump | B-169 Aladdin Basket for Hayward® SP1250R Pump | B-169$1299 Super-Pro 27180-215-000 Sta-Rite pump strainer basket C8-58P Super-Pro Sta-Rite Pump Basket C8-58P, 27180-215-000$1599 Aladdin 6203 stainless steel #203 precision ball bearing, 17 x 40 x 11 mm Aladdin Stainless Steel Pump Motor Ball Bearing #203, 17 x 40 x 11 mm, 6203$1138 Aladdin B-33 5 inch pump strainer basket Aladdin Replacement Pump Strainer Basket for Sta-Rite, Premier and Aqua-Flo Pumps, 5 in., B-33$1108 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1499

Product details

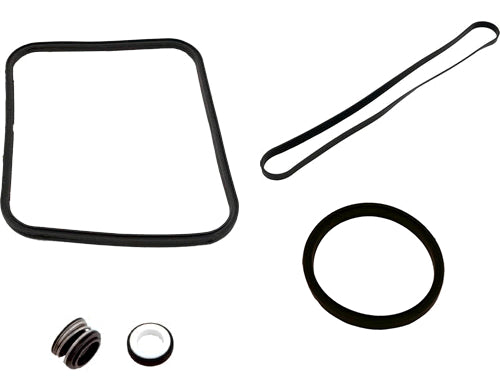

The Aladdin Equipment Co. GO-KIT3-9 is a complete set of the four seals on a Hayward® Super Pump wet end: the housing gasket, the diffuser gasket, the strainer lid gasket and the PS201 shaft seal. When a Super Pump drips from the housing seam, sucks air at the lid or weeps under the motor, this kit covers all of it in a single teardown.

What is in the box

One housing gasket sized to Hayward® SPX1600T, one diffuser gasket sized to SPX1600R, one lid gasket sized to SPX1600S and one PS201 shaft seal. Each is an Aladdin aftermarket equivalent to the Hayward® part number.

Doing the job once

The shaft seal is the part that fails most often, but reaching it means separating the motor and seal plate from the housing, which disturbs the housing and diffuser gaskets. Replacing all four while the pump is open avoids a second teardown a few weeks later. A thin coat of silicone lubricant on the rubber helps everything seat without pinching.

Fit

Sized for the Hayward® Super Pump and Super-Pro. Check that your pump uses the SPX1600 series gaskets before ordering.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

4 Key 4 on the Hayward Super PumpFits every model in the drawing.See it on the diagramAll Hayward Super Pump Parts 38 parts and the drawing8 Key 8 on the Hayward Super PumpFits every model in the drawing.See it on the diagram11 Key 11 on the Hayward Super PumpFits every model in the drawing.See it on the diagram12 Key 12 on the Hayward Super PumpFits every model in the drawing.See it on the diagram
Specifications
Brand Aladdin Equipment Co.
Manufacturer part number GO-KIT3-9
UPC 601402111495
Fits Hayward® Super Pump, Super-Pro
Included (1) housing gasket SPX1600T, (1) diffuser gasket SPX1600R, (1) lid gasket SPX1600S, (1) shaft seal PS201
Replaces Hayward® SPX1600T, SPX1600R, SPX1600S, PS201
Quantity 1 kit
Shipping weight 0.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Aladdin

Aladdin Magic Lube 630 PTFE o-ring lubricant, 1 oz. tube Aladdin Magic Lube 1 oz. O-Ring Lubricant$699 Aladdin GO-KIT32-9 seal and gasket kit for Pentair WhisperFlo and IntelliFlo pumps Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9$3499 Aladdin GO-KIT 71 seal kit for the old style Polaris PB4-60 booster pump Aladdin GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump$1699 Aladdin Magic Lube 631 PTFE o-ring lubricant, 5 oz. tube Aladdin Magic Lube 5 oz. O-Ring Lubricant$1499 SuperPro O-176A-9 five spoke valve seat gasket, 5-5/16 in., for Hayward Vari-Flo valves SuperPro Valve Seat Gasket 5 Spoke (5-5/16"), O-176A-9$799 SuperPro GO-KIT2-9 rebuild kit for Hayward Super II pump: seals and gaskets SuperPro Super II Pump Rebuild Kit GO-KIT2-9$4499 SuperPro O-429-9 generic tank o-ring for Hayward filters, replaces DEX2400K SuperPro Tank O-Ring Compatible with Select Hayward® Filters, O-429-9$1499 Aladdin GO-KIT5-9 pump rebuild kit for Pentair PacFab Challenger pumps, shaft seal and o-rings Aladdin Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9$2499 SuperPro GO-KIT70 2 in. valve rebuild kit for Pentair PacFab multiport valves SuperPro 2 in. Valve Rebuild Kit, GO-KIT70$1999 SuperPro B-37 generic replacement skimmer basket for the S-10 Admiral skimmer SuperPro S-10 Admiral Skimmer Basket (Generic)$1999
SuperPro 271148 diverter spider gasket for 2 in. Pentair PacFab multiport valve SuperPro Generic 2" Diverter Gasket, G-417-9$1299 Aladdin APCKIT39 SP715 multiport valve repair kit, 2 inch, with spring Aladdin SP715 Multiport Valve Repair Kit 2" with Spring, APCKIT39$4699 Aladdin O-411-9 replacement o-ring, 5-1/4 in. inside diameter Aladdin O-Ring, 5-1/4" ID, O-411-9$399 Super-Pro GO-KIT3V-9 Viton gasket and o-ring seal kit for the Hayward Super Pump SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9$3799 SuperPro O-497-9 generic tank o-ring, 20-7/8 inch ID by 7/16 inch thick SuperPro Generic Tank O-Ring 20-7/8" ID (7/16" Thick), O-497-9$2199 Aladdin Magic Lube II 5 oz tube of silicone lubricant and sealer, part 651 Aladdin Magic Lube II 5 oz$2299 SuperPro GO-KIT14-9 seal kit for Jacuzzi Magnum pumps SuperPro Jacuzzi Magnum Pump Seal Kit, GO-KIT14-9$2999 SuperPro O-184-9 18 inch tank o-ring for Pentair PacFab Nautilus DE filters SuperPro 18" Tank O-Ring, O-184-9$1499 SuperPro GO-KIT6-9 rebuild kit for Sta-Rite Max-E-Glas and Dura-Glas pumps SuperPro Max-E-Glas/Dura-Glas Pump Rebuild Kit, GO-KIT6-9$2299 Polaris O-299-9 bracket O-ring for the PB4-60 booster pump, also listed as P-95 Polaris Bracket O-Ring for PB4-60 Booster Pump, O-299-9$399

Questions and answers

What people ask about this product, answered by our pool techs.

Which Hayward® parts does this kit replace?
The housing gasket SPX1600T, the diffuser gasket SPX1600R, the lid gasket SPX1600S and the PS201 shaft seal. Those are the four seals on a Super Pump wet end.
Is this a genuine Hayward® kit?
No. It is an Aladdin Equipment Co. kit made to the same sizes as the Hayward® part numbers listed above.
My Super Pump leaks from under the motor. Is this the fix?
A drip from the gap between the motor and the housing is normally the shaft seal, which is in this kit. Replace the housing gasket at the same time since the pump has to come apart to reach the seal.
Do I need anything else for the job?
A tube of silicone lubricant such as Magic Lube makes the gaskets seat cleanly. Inspect the strainer basket and housing while the pump is open and replace them if they are cracked.
