Aladdin PacFab Pinnicle Pump Kit GO-KIT24-9T | GO-KIT24-9Aladdin Go Kit 24 Gasket and O-Ring Seal Kit for Pentair PacFab Pinnacle Pumps, GO-KIT24-9 In stock$2599
Aladdin PacFab Pinnicle Pump Kit GO-KIT24-9T | GO-KIT24-9
Shop all Aladdin

Aladdin Go Kit 24 Gasket and O-Ring Seal Kit for Pentair PacFab Pinnacle Pumps, GO-KIT24-9

Ask a questionMPN GO-KIT24-9
$2599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pinnacle pump kit Made for Pentair PacFab Pinnacle pumps.
  • Motor replacement kit Covers the gaskets and shaft seal needed when replacing the pump motor.
  • Shaft seal included Includes one AS-200 seal.
  • O-rings and gasket Includes O-465, O-395 diffuser gasket and O-318 lid o-ring, one of each.
  • Sealant included Each kit has one package of PTFE-based sealant and lubricant.
  • Manufacturer number Aladdin part number GO-KIT24-9.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Aladdin Go Kit 24 Gasket and O-Ring Seal Kit for Pentair PacFab Pinnacle Pumps, GO-KIT24-9, SKU ALA-601-1402. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Aladdin Go Kit 24 Gasket and O-Ring Seal Kit for Pentair PacFab Pinnacle Pumps, GO-KIT24-9
Aladdin

Go Kit 24 Gasket and O-Ring Seal Kit for Pentair PacFab Pinnacle Pumps, GO-KIT24-9

$2599
Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9
Aladdin

Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9

$3499
Aladdin Seal Kit for Polaris PB4-60 Booster Pump, GO-KIT 71
Aladdin

Seal Kit for Polaris PB4-60 Booster Pump, GO-KIT 71

$1699
Aladdin Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9
Aladdin

Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9

$1999
SuperPro Super II Pump Rebuild Kit GO-KIT2-9
Aladdin

SuperPro Super II Pump Rebuild Kit GO-KIT2-9

$4499
Aladdin Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9
Aladdin

Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9

$2499
SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9
Aladdin

SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9

$3799
Subtotal

Similar products

Other products people compare with this one.

Pentair 356198 seal kit for WhisperFlo and IntelliFlo pool pumps Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198$3799 Pentair 071734S seal kit for WFE and IntelliFlo pool pumps Pentair Seal Kit for WFE and IntelliFlo Pumps, 071734S$3599 Aladdin GO-KIT79 seal and gasket kit for Sta-Rite Max-E-Pro pumps Aladdin Seal & Gasket Kit for Sta-Rite Max-E-Pro Series Pool Pumps, GO-KIT79$3099 Pentair PacFab Challenger Front Housing O-Ring 355329Z | 355329 Pentair PacFab Challenger Front Housing O-Ring for Challenger and Waterfall Pumps, 355329Z$3099 Pentair Sta-Rite OEM Shaft Seal Without Copper Insert | 17304-0100S Pentair Sta-Rite OEM Shaft Seal without Copper Insert for Max-E-Glas and Dura-Glas Pumps, 17304-0100S$2199 Pentair OEM Pump Basket SuperFlo Pinnacle SuperMax | 355667 Pentair Large Strainer Basket for SuperFlo, SuperMax, OptiFlo and Pinnacle Pumps, 355667$3099 Pentair Gasket for Impeller Shaft Sleeve | 33455-8044 Pentair Impeller to Shaft Sleeve Gasket for Sta-Rite CSPH and CCSPH Commercial Pumps, 33455-8044$1799 Aladdin O-304-9 cartridge and seal plate o-ring, replaces 07-1445 and P-24263 Aladdin Cartridge and Seal Plate O-Ring for WhisperFlo and Purex, Replaces 07-1445 and P-24263, O-304-9$1499 Aladdin GO-KIT52V-9 Viton rebuild kit for Leisure Bay Cyclone pump Aladdin Viton Rebuild Kit for Leisure Bay Cyclone 75, 125 and 200 Pumps, GO-KIT52V-9$1799 Jandy R0480300 backplate o-ring for FloPro FHPM and VS-FHP series pumps Jandy Backplate O-Ring for FHPM and VS-FHP Series Pumps, R0480300$2299
Hayward SPX1600T rubber housing gasket for Super Pump and Max-Flo pumps Hayward Housing Gasket for Super Pump and Max-Flo Pumps, SPX1600T$1374 Pentair 356173Z seal plate o-ring for the 3HP IntelliFlo3 pool pump Pentair Seal Plate O-Ring for 3HP IntelliFlo3 Pool Pump, 356173Z$1399 Waterway 319-3100B OEM pump seal set for SVL56 and Workman pumps Waterway OEM Pump Seal Set for SVL56 and Workman Pumps, 319-3100B$2599 Pentair 16920-0012 pump lid O-ring for Sta-Rite Dura-Glas and Max-E-Glas pumps Pentair Pump Lid O-Ring for Dura-Glas and Max-E-Glas, 16920-0012$3099 Sta-Rite U9-228A seal plate o-ring for Pinnacle pumps Sta-Rite Seal Plate O-Ring for Pinnacle, U9-228A$1499 Sta-Rite S11207 retaining ring for CSPH and CCSPH commercial pool pumps Sta-Rite Retaining Ring for CSPH and CCSPH Pumps, S11207$3499 Val-pak Heavy Duty Whisperflo and Intelliflo Pump Basket | V20-200 Val-Pak Heavy Duty Replacement Pump Basket for Pentair WhisperFlo and IntelliFlo Pumps, V20-200$3299 CaliMar Strainer Cover Kit FB2010SCK | FB2010-SCK CaliMar Strainer Cover Kit for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-SCK$2099 CaliMar Cover O Ring FB2010CO | FB2010-CO CaliMar Cover O-Ring for CMAR15VS1.5 and CMARVSP3.0 Variable Speed Pumps, FB2010-CO$1499 Pentair PLATE MOUNTING 5F | 355495 Pentair Challenger Mounting Plate for 5 HP 60 Hz and 3 HP 50 Hz High Flow Pumps, 355495$2399

Product details

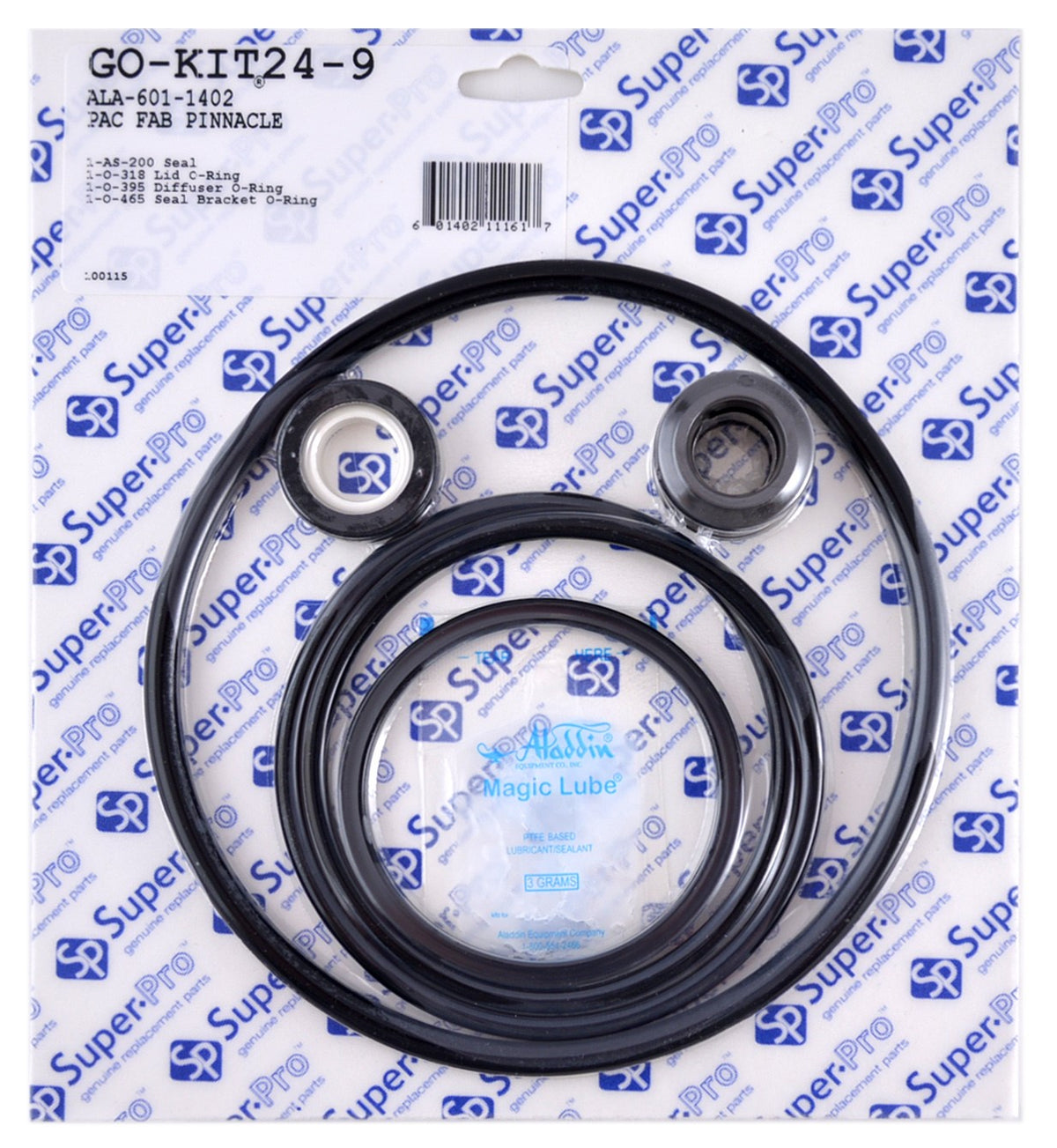

The Aladdin GO-KIT24-9, called the Go Kit 24, is the gasket, o-ring and shaft seal kit for Pentair PacFab Pinnacle pumps.

What it does

The kit holds the seals needed when the motor is replaced on a PacFab Pinnacle pump. A pump motor swap opens the seal plate and the wet end, and the old o-rings, gasket and shaft seal should be replaced at the same time so the pump does not leak or draw air.

What is in the kit

One O-465, one AS-200 shaft seal, one O-395 diffuser gasket and one O-318 lid o-ring. Each kit also contains one package of PTFE-based sealant and lubricant for a proper gasket seal.

Before you order

This kit is for Pentair PacFab Pinnacle pumps and is sold as the Go Kit 24 under Aladdin part number GO-KIT24-9. Replace all of the seals together rather than reusing any of the old ones. It does not include the motor or any other pump parts.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read
Specifications
Brand Aladdin
Manufacturer part number GO-KIT24-9
Type Pump gasket, o-ring and shaft seal kit
Fits Pentair PacFab Pinnacle pumps
Includes O-465 (1), AS-200 (1), O-395 diffuser gasket (1), O-318 lid o-ring (1), one package of PTFE-based sealant and lubricant
Shipping weight 0.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Aladdin

Aladdin Magic Lube 630 PTFE o-ring lubricant, 1 oz. tube Aladdin Magic Lube 1 oz. O-Ring Lubricant, 630$699 Aladdin GO-KIT32-9 seal and gasket kit for Pentair WhisperFlo and IntelliFlo pumps Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9$3499 Aladdin GO-KIT 71 seal kit for the old style Polaris PB4-60 booster pump Aladdin Seal Kit for Polaris PB4-60 Booster Pump, GO-KIT 71$1699 Aladdin Magic Lube 631 PTFE o-ring lubricant, 5 oz. tube Aladdin Magic Lube 5 oz. O-Ring Lubricant, 631$1499 SuperPro O-176A-9 five spoke valve seat gasket, 5-5/16 in., for Hayward Vari-Flo valves SuperPro Valve Seat Gasket 5 Spoke (5-5/16"), O-176A-9$799 Aladdin Equipment Co. GO-KIT3-9 rebuild kit for the Hayward Super Pump: housing gasket, diffuser gasket, lid gasket and shaft seal Aladdin Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9$1999 SuperPro GO-KIT2-9 rebuild kit for Hayward Super II pump: seals and gaskets SuperPro Super II Pump Rebuild Kit GO-KIT2-9$4499 SuperPro O-429-9 generic tank o-ring for Hayward filters, replaces DEX2400K SuperPro Tank O-Ring Compatible with Select Hayward® Filters, O-429-9$1499 Aladdin GO-KIT5-9 pump rebuild kit for Pentair PacFab Challenger pumps, shaft seal and o-rings Aladdin Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9$2499 SuperPro GO-KIT70 2 in. valve rebuild kit for Pentair PacFab multiport valves SuperPro 2 in. Valve Rebuild Kit, GO-KIT70$1999
SuperPro B-37 generic replacement skimmer basket for the S-10 Admiral skimmer SuperPro S-10 Admiral Skimmer Basket (Generic), B-37$1999 SuperPro 271148 diverter spider gasket for 2 in. Pentair PacFab multiport valve SuperPro Generic 2" Diverter Gasket, G-417-9$1299 Aladdin APCKIT39 SP715 multiport valve repair kit, 2 inch, with spring Aladdin SP715 Multiport Valve Repair Kit 2" with Spring, APCKIT39$5099 Aladdin O-411-9 replacement o-ring, 5-1/4 in. inside diameter Aladdin O-Ring, 5-1/4" ID, O-411-9$399 Super-Pro GO-KIT3V-9 Viton gasket and o-ring seal kit for the Hayward Super Pump SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9$3799 SuperPro O-497-9 generic tank o-ring, 20-7/8 inch ID by 7/16 inch thick SuperPro Generic Tank O-Ring 20-7/8" ID (7/16" Thick), O-497-9$2199 Aladdin Magic Lube II 5 oz tube of silicone lubricant and sealer, part 651 Aladdin Magic Lube II 5 oz, 651$2299 SuperPro GO-KIT14-9 seal kit for Jacuzzi Magnum pumps SuperPro Jacuzzi Magnum Pump Seal Kit, GO-KIT14-9$2999 SuperPro O-184-9 18 inch tank o-ring for Pentair PacFab Nautilus DE filters SuperPro 18" Tank O-Ring, O-184-9$1499 SuperPro GO-KIT6-9 rebuild kit for Sta-Rite Max-E-Glas and Dura-Glas pumps SuperPro Max-E-Glas/Dura-Glas Pump Rebuild Kit, GO-KIT6-9$2299

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does the Aladdin GO-KIT24-9 fit?
The Aladdin Go Kit 24, part number GO-KIT24-9, is made for Pentair PacFab Pinnacle pumps.
What is in the Go Kit 24?
It holds one O-465, one AS-200 shaft seal, one O-395 diffuser gasket and one O-318 lid o-ring, plus one package of PTFE-based sealant and lubricant.
When do I need this kit?
It is the gasket and shaft seal set used when replacing the motor on a PacFab Pinnacle pump.
Is the pump motor included?
No. The GO-KIT24-9 is only the gaskets, o-rings, shaft seal and sealant.
