Hayward SX200Z6 o-ring for S160T, S-200 and S-240 sand filtersHayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6 In stock$1699

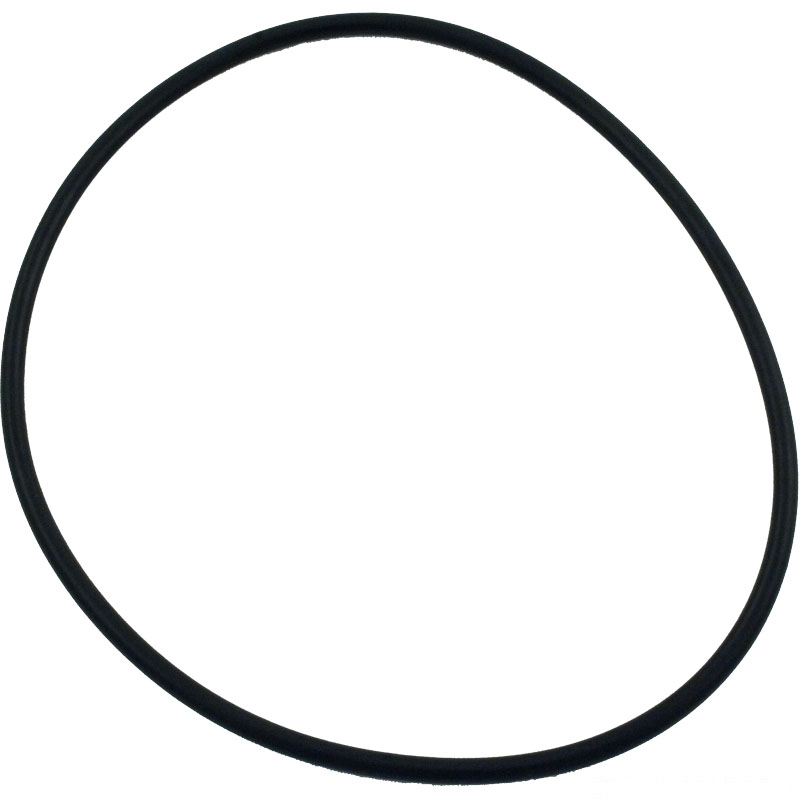

Hayward SX200Z6 o-ring for S160T, S-200 and S-240 sand filters
Shop all Hayward

Hayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6

Ask a questionMPN SX200Z6
$1699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Exact size 6-1/2 in. inside diameter, 3/16 in. thick.
  • Three filter models Listed for the Hayward S-200 and S-240 side mount sand filters and the two piece top mount S160T.
  • Genuine Hayward Factory part SX200Z6, cut to the original section.
  • Stops a tank seam leak This is the seal at the filter tank joint, and a hardened ring is the usual reason water weeps from it.
  • Cheap insurance during a sand change The tank has to be opened to change media, so fit a fresh ring while it is apart.
  • Lubricate, do not stretch Seat it dry and square, then use a silicone based o-ring lubricant, never petroleum grease.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6, SKU HAY-051-2205. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6
Hayward

S160T/S200 and S240 Sand Filters O-Ring, SX200Z6

$1699
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$15299
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$19399
Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T
Hayward

2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T

$26199
Hayward Lateral Hub Assembly (S244S, S220S), SX242MA1S
Hayward

Lateral Hub Assembly (S244S, S220S), SX242MA1S

$13499
Subtotal

Similar products

Other products people compare with this one.

Hayward SX180LA drain cap assembly for Pro-Series sand filters Hayward Drain Cap Assembly for Pro-Series Sand Filters, 2006 to Current, SX180LA$1599 Hayward SX180HG drain cap and gasket for sand filters 2005 and prior Hayward Drain Cap and Gasket, 2005 and Prior, SX180HG$1399 Hayward SX202S corrugated cardboard sand shield for sand filters Hayward Sand Shield, Corrugated Cardboard Design, SX202S$1399 Hayward SX144Z1 1-1/2 in. ribbed hose for Pro Series S144T sand filter Hayward 1-1/2 in. Ribbed Hose for Pro Series S144T Sand Filter, SX144Z1$1899 Hayward SX200G manual air relief cap for side mount sand filters Hayward Manual Air Relief Cap, SX200G$1799 Hayward SX360E bulkhead spacer for Pro Series sand filters Hayward Bulkhead Spacer, SX360E$2099 Hayward SX200H bottom drain screen for S-200 and S-240 sand filters Hayward Bottom Drain Screen, SX200H$1399 Hayward SPX1091Z2PAK2 insert adapter, 1-1/2 inch MIP to 1-1/2 inch hose barb Hayward 1-1/2" MIP x 1-1/2" Barb Hose Adapter, SPX1091Z2PAK2$1699 Hayward SX200Z14 1 inch o-ring for S200, S240 and S160T sand filters Hayward O-Ring, 1 in. O.D., After 1980, SX200Z14$342 Hayward SX160Z5 22 inch hose for Pro Series filters Hayward Hose, 22 Inch Long for Pro Series Filters, SX160Z5$6399
Hayward SX200J Pro Series sand filter support stand skirt Hayward Pro Series Sand Filter Support Stand, SX200J$15399 Hayward SX180K filter base with screws and washers for S180T and S166T sand filters Hayward Filter Base with Screws and Washers, S180T/S166T, SX180K$15499 Hayward SX200Z9 drain cap gasket for S200, S240 and EasyClear filters Hayward Drain Cap Gasket, SX200Z9$599 Hayward SPX1485DA compression fitting assembly with gasket for sand filters Hayward Compression Fitting Assembly, SPX1485DA$3799 Hayward SX164C pump base Hayward SX164C Pump Base$5499 Hayward SX244PX bulkhead fitting for Pro Series sand filters S210S, S244S, S310S and S311S Hayward Bulkhead Fitting for S210S/S244S/S310S/S311S, SX244PX$6099 Hayward GMX600NM two piece Vari-Flo valve clamp for Pro Series sand filters Hayward Valve Clamp for Pro-Series, GMX600NM$6299 Hayward SX311F replacement bulkhead fitting for Pro Series sand filters Hayward Replacement Bulkhead Fitting, SX311F$6899 Hayward SX210CD1FW top elbow assembly for the S210S sand filter Hayward Top Elbow Assembly S210S, SX210CD1FW$7199 Hayward SX210CD2FW bottom elbow assembly for the S210S sand filter Hayward Bottom Elbow Assembly S210S, SX210CD2FW$7699

Product details

The Hayward SX200Z6 is the tank o-ring for the S-200 and S-240 side mount sand filters and the two piece top mount S160T. It is the genuine Hayward part.

Size

Inside diameter 6-1/2 in., thickness 3/16 in. If you are measuring an old ring to confirm, allow for the fact that a ring which has taken a set reads slightly larger and thinner than the figures above.

When to replace it

An o-ring is a simple round gasket that seals two machined faces against each other. Here it seals the filter tank joint. Over the seasons the rubber hardens, flattens and loses its spring, and the joint begins to weep under pressure. A new ring is the fix, and because the tank has to be opened to change sand anyway, most techs replace it as part of a media change.

Fitting

Clean both sealing faces, seat the ring square in its groove without stretching it, and use a silicone based o-ring lubricant. Petroleum grease attacks the rubber and shortens the life of the seal.

Specifications
Brand Hayward
Manufacturer part number SX200Z6
UPC 610377054874
Type Filter o-ring
Part type Pool filter part
Inside diameter 6-1/2 in.
Thickness 3/16 in.
Fits Hayward S-200, S-240 side mount sand filters; Hayward S160T two piece top mount sand filter
Shipping weight 0.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What size is this o-ring?
Inside diameter 6-1/2 in. and 3/16 in. thick.
Which filters use it?
The Hayward S-200 and S-240 side mount sand filters and the two piece top mount S160T.
My filter is weeping at the seam. Is this the part?
It is the first thing to change. The ring hardens and flattens over the seasons and stops sealing the tank joint. If the leak persists, look at the clamp and the sealing faces.
What lubricant should I use?
A silicone based o-ring lubricant. Petroleum grease swells and degrades the rubber.
Ask your own question
