Hayward SX310DA2 folding lateral assembly with center pipe for the S310T sand filterHayward Folding Lateral Assembly With Center Pipe for S310T Sand Filters, SX310DA2 In stock$16699

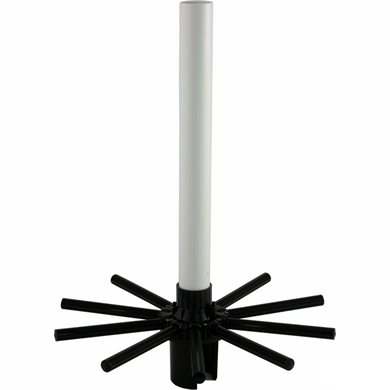

Hayward SX310DA2 folding lateral assembly with center pipe for the S310T sand filter
Shop all Hayward

Hayward Folding Lateral Assembly With Center Pipe for S310T Sand Filters, SX310DA2

Ask a questionMPN SX310DA2
$16699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits the S310T The OEM lateral assembly for the Hayward Pro Series S310T sand filter.
  • Ten swivel laterals Fold up to pass through the tank opening, then swing out to spread flow across the sand bed.
  • Center pipe included 29-1/4 in. tall, the standpipe the valve sits on.
  • Even flow Laterals distribute water across the whole bed so debris is captured evenly.
  • Genuine Hayward Part number SX310DA2.
  • Long service life Built from durable materials for years under sand and water.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Folding Lateral Assembly With Center Pipe for S310T Sand Filters, SX310DA2, SKU HAY-051-8262. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Folding Lateral Assembly With Center Pipe for S310T Sand Filters, SX310DA2
Hayward

Folding Lateral Assembly With Center Pipe for S310T Sand Filters, SX310DA2

$16699
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$14799
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$18899
Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T
Hayward

2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T

$26299
Hayward Lateral Hub Assembly (S244S, S220S), SX242MA1S
Hayward

Lateral Hub Assembly (S244S, S220S), SX242MA1S

$13099
Subtotal

Similar products

Other products people compare with this one.

Hayward SX210DA lateral assembly with center pipe for the S210T sand filter Hayward Lateral Assembly with Center Pipe (S210T), SX210DA$12699 Hayward SX160QA folding umbrella lateral assembly with center pipe for S160T sand filters Hayward S160T Filter Lateral Assembly with Center Pipe, SX160QA$13399 Hayward SX164DAS 16 inch folding lateral assembly for sand filters Hayward 16" Folding Lateral Assembly, SX164DAS$12599 Hayward SX244DAS 24 inch folding lateral assembly for Pro Series sand filters Hayward 24" Folding Lateral Assembly, SX244DAS$15899 Hayward SX180DAS 18 inch folding lateral assembly for a sand filter Hayward 18" Folding Lateral Assembly, SX180DAS$11799 Hayward SX202QA folding umbrella lateral assembly for the S200 sand filter Hayward Lateral Assembly Replacement S200, SX202QA$13899 Hayward SX242MA lateral assembly for Pro Series S210S sand filter Hayward Lateral Assembly Replacement S210S, SX242MA$12399 Hayward SX244CD2FWS lower elbow assembly with air tube for S244S sand filter Hayward Lower Elbow Assembly with Air Tube, S244S, SX244CD2FWS$9399 Hayward SX310CD2FWS lower elbow assembly with air tube for S310S filter Hayward Lower Elbow Assembly with Air Tube S310S, SX310CD2FWS$9799 Hayward bottom elbow assembly for the S310S Hayward Bottom Elbow Assembly S310S, SX310CD2FW$9799
Hayward SX200J Pro Series sand filter support stand skirt Hayward Pro Series Sand Filter Support Stand, SX200J$15899 Hayward SX180K filter base with screws and washers for S180T and S166T sand filters Hayward Filter Base with Screws and Washers, S180T/S166T, SX180K$14999 Hayward SX201Z1 33 inch clear hose for S160T sand filter systems Hayward 33" Hose, SX201Z1$9399 Hayward SX244K Pro Series sand filter top closure dome Hayward Top Closure Dome, Pro Series, SX244K$8499 Hayward FILTER SUPPORT STAND | SX164B Hayward FILTER SUPPORT STAND | SX164B$9299 Hayward SX180LA drain cap assembly for Pro-Series sand filters Hayward Drain Cap Assembly for Pro-Series Sand Filters, 2006 to Current, SX180LA$1799 SuperPro G-382-9 drain cap gasket for Hayward sand filters, replaces SX180G SuperPro Drain Cap Gasket for Hayward® Pro Series™ Sand Filters, G-382-9$1199 Hayward SX200Z5 air relief o-ring, 13/16 in. O.D., for S200, ProSeries and ProSeries Plus sand filters Hayward Air Relief O-Ring, 13/16 in. O.D., for S200, ProSeries and ProSeries Plus Sand Filters, SX200Z5$399 Hayward SX160Z5 22 inch hose for Pro Series filters Hayward Hose, 22 Inch Long for Pro Series Filters, SX160Z5$6199 Hayward SX200EB sand filter drain pipe assembly with cap and gasket Hayward Drain Pipe Assembly w/ Cap & Gasket, S160T/S220/S245T, SX200EB$3799

Product details

The Hayward SX310DA2 is the folding lateral assembly with center pipe for the Pro Series S310T sand filter. It is the genuine Hayward part: ten swivel style laterals on a 29-1/4 in. center pipe.

What it does

The laterals sit at the bottom of the sand bed and collect filtered water evenly from across the tank, then carry it up the center pipe to the valve. Even distribution is what lets the whole bed do its share of the work. When a lateral cracks, sand ends up back in the pool, and the assembly is the fix.

Installing it

The swivel laterals fold up against the pipe so the assembly fits through the tank opening, then swing out flat once it is inside. Set it in an empty tank, fill around it with sand and refit the valve. It is built from durable materials to last for years under sand and water.

Specifications
Brand Hayward
Manufacturer part number SX310DA2
UPC 610377799843
Fits Hayward Pro Series S310T sand filter
Laterals 10, swivel (folding) style
Center pipe height 29-1/4 in.
Shipping weight 3.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,10299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which filter does this fit?
The Hayward Pro Series S310T sand filter. If you have another Pro Series size, check the lateral assembly part number for that model before ordering.
How many laterals are on it?
Ten swivel style laterals.
Why do the laterals fold?
So the whole assembly can pass through the top opening of the tank. Once inside, the laterals swing out flat at the bottom of the tank.
How tall is the center pipe?
29-1/4 in.
