Hayward SX210DA lateral assembly with center pipe for the S210T sand filterHayward Lateral Assembly with Center Pipe (S210T), SX210DA In stock$11099

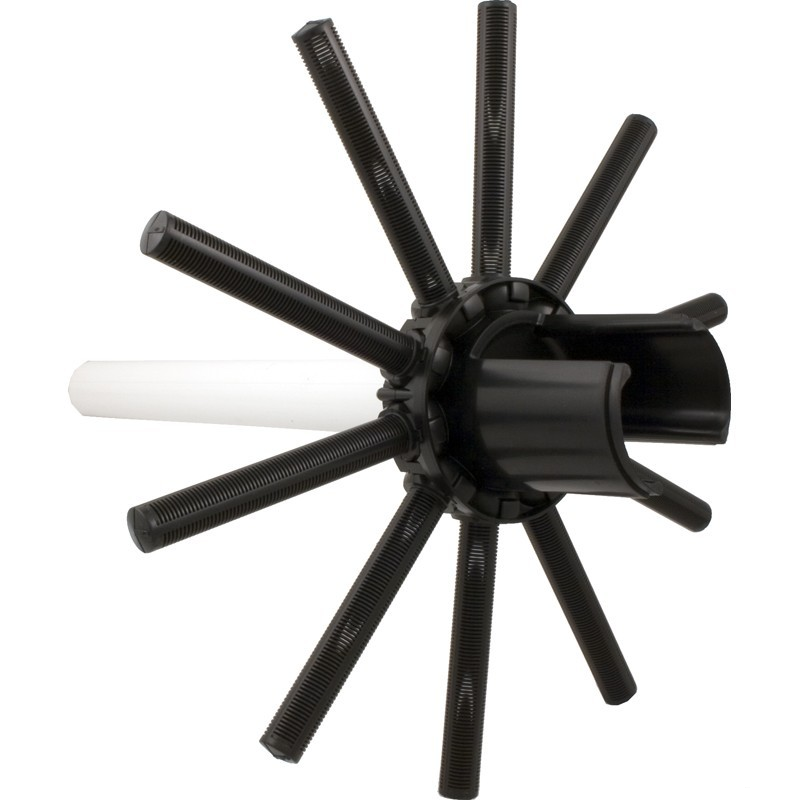

Hayward SX210DA lateral assembly with center pipe for the S210T sand filter
Shop all Hayward

Hayward Lateral Assembly with Center Pipe (S210T), SX210DA

Ask a questionMPN SX210DA
$11099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete internal assembly Standpipe, manifold and laterals in one part, not a single lateral.
  • Ten laterals included Ships with 10 SC240DN laterals, each 6-1/4 inches long without the swivel end.
  • Fits the S210T The lateral assembly used in the Hayward S210T sand filter.
  • Measured to check yours Total length 23-3/4 inches, with the top pipe alone at 16-1/2 inches.
  • Standard pipe sizing The top is 1-1/2 inch thinwall PVC, 1-7/8 inches on the outside diameter.
  • Identify it by the hub The bottom hub assembly is stamped S202-EN, which is the quickest way to confirm a match.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Lateral Assembly with Center Pipe (S210T), SX210DA, SKU HAY-101-2078. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Lateral Assembly with Center Pipe (S210T), SX210DA
Hayward

Lateral Assembly with Center Pipe (S210T), SX210DA

$11099
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$14799
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$18899
Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T
Hayward

2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T

$25399
Hayward Lateral Hub Assembly (S244S, S220S), SX242MA1S
Hayward

Lateral Hub Assembly (S244S, S220S), SX242MA1S

$13099
Subtotal

Similar products

Other products people compare with this one.

Hayward SX160QA folding umbrella lateral assembly with center pipe for S160T sand filters Hayward S160T Filter Lateral Assembly with Center Pipe, SX160QA$13399 Hayward SX202QA folding umbrella lateral assembly for the S200 sand filter Hayward Lateral Assembly Replacement S200, SX202QA$13899 Hayward SX242MA lateral assembly for Pro Series S210S sand filter Hayward Lateral Assembly Replacement S210S, SX242MA$13099 Hayward SX244CD2FWS lower elbow assembly with air tube for S244S sand filter Hayward Lower Elbow Assembly with Air Tube, S244S, SX244CD2FWS$9399 Hayward SX310CD2FWS lower elbow assembly with air tube for S310S filter Hayward Lower Elbow Assembly with Air Tube S310S, SX310CD2FWS$9799 Hayward SX164DAS 16 inch folding lateral assembly for sand filters Hayward 16" Folding Lateral Assembly, SX164DAS$12099 Hayward SX244DAS 24 inch folding lateral assembly for Pro Series sand filters Hayward 24" Folding Lateral Assembly, SX244DAS$15399 Hayward SX180DAS 18 inch folding lateral assembly for a sand filter Hayward 18" Folding Lateral Assembly, SX180DAS$11799 Hayward SX210CD2FW bottom elbow assembly for the S210S sand filter Hayward Bottom Elbow Assembly S210S, SX210CD2FW$7499 Hayward bottom elbow assembly for the S310S Hayward Bottom Elbow Assembly S310S, SX310CD2FW$9799
Hayward SX180K filter base with screws and washers for S180T and S166T sand filters Hayward Filter Base with Screws and Washers, S180T/S166T, SX180K$14999 Hayward SX210CD1FW top elbow assembly for the S210S sand filter Hayward Top Elbow Assembly S210S, SX210CD1FW$6999 Hayward SX240DNPAK10 ball style pivot lateral 10 pack for Pro Series sand filters Hayward 10-Pack Ball Style Pivot/Ball Lateral, SX240DNPAK10$7399 Hayward GMX600NM two piece Vari-Flo valve clamp for Pro Series sand filters Hayward Valve Clamp for Pro-Series, GMX600NM$6099 Hayward SX244PX bulkhead fitting for Pro Series sand filters S210S, S244S, S310S and S311S Hayward Bulkhead Fitting for S210S/S244S/S310S/S311S, SX244PX$5899 Hayward SX200K access cover, dome lid for S200 and S240 sand filters Hayward S200/S240 Sand Filter Access Cover, SX200K$7799 Hayward SX201Z1 33 inch clear hose for S160T sand filter systems Hayward 33" Hose, SX201Z1$9499 Hayward SX244K Pro Series sand filter top closure dome Hayward Top Closure Dome, Pro Series, SX244K$8699 Hayward SX160Z3 clear 31 inch filter to pump hose for S160T and S190T sand filters Hayward 31" Clear Filter to Pump Hose S160T/S190T, SX160Z3$7699 Hayward SX310N heavy duty ring flange clamp for sand filters Hayward Heavy Duty Clamp, SX310N$7899

Product details

The Hayward SX210DA is the complete internal assembly for the S210T sand filter: the standpipe, the manifold and the laterals in one piece. Ten SC240DN laterals are included.

The measurements that confirm a match

Each lateral is 6-1/4 inches long, not counting the swivel end. The whole assembly measures 23-3/4 inches, and the top pipe on its own is 16-1/2 inches. That top pipe is 1-1/2 inch thinwall PVC, 1-7/8 inches on the outside diameter. The bottom hub assembly is stamped S202-EN, which is the fastest way to check what you have against what you are ordering.

Why it gets replaced

Laterals are slotted so water passes through and sand does not. When one cracks or a slot opens up, sand starts coming back to the pool, usually noticed right after a backwash. Because the laterals sit at the bottom of a filter full of sand, most people replace the whole assembly once the tank is empty rather than doing it twice.

Specifications
Brand Hayward
Manufacturer part number SX210DA
UPC 610377054966
Type Standpipe, manifold and lateral assembly
Fits Hayward S210T sand filter
Laterals included 10 x SC240DN
Lateral length 6-1/4 inches, not including the swivel end
Total length 23-3/4 inches
Top pipe length 16-1/2 inches
Top pipe material 1-1/2 inch thinwall PVC
Top pipe outside diameter 1-7/8 inches
Marking S202-EN stamped into the bottom hub assembly
Shipping weight 2.55 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

How many laterals come with it?
Ten SC240DN laterals, already on the hub. Each one measures 6-1/4 inches, not counting the swivel end.
How do I confirm this is the right assembly for my filter?
Measure and check the stamp. The complete assembly is 23-3/4 inches, the top pipe alone is 16-1/2 inches, and the bottom hub assembly is stamped S202-EN.
What pipe size is the standpipe?
The top is 1-1/2 inch thinwall PVC, which measures 1-7/8 inches on the outside.
Why would the laterals need replacing?
Cracked or split laterals let sand through into the pool. If sand is coming back through the returns after a backwash, the lateral assembly is where to look.
