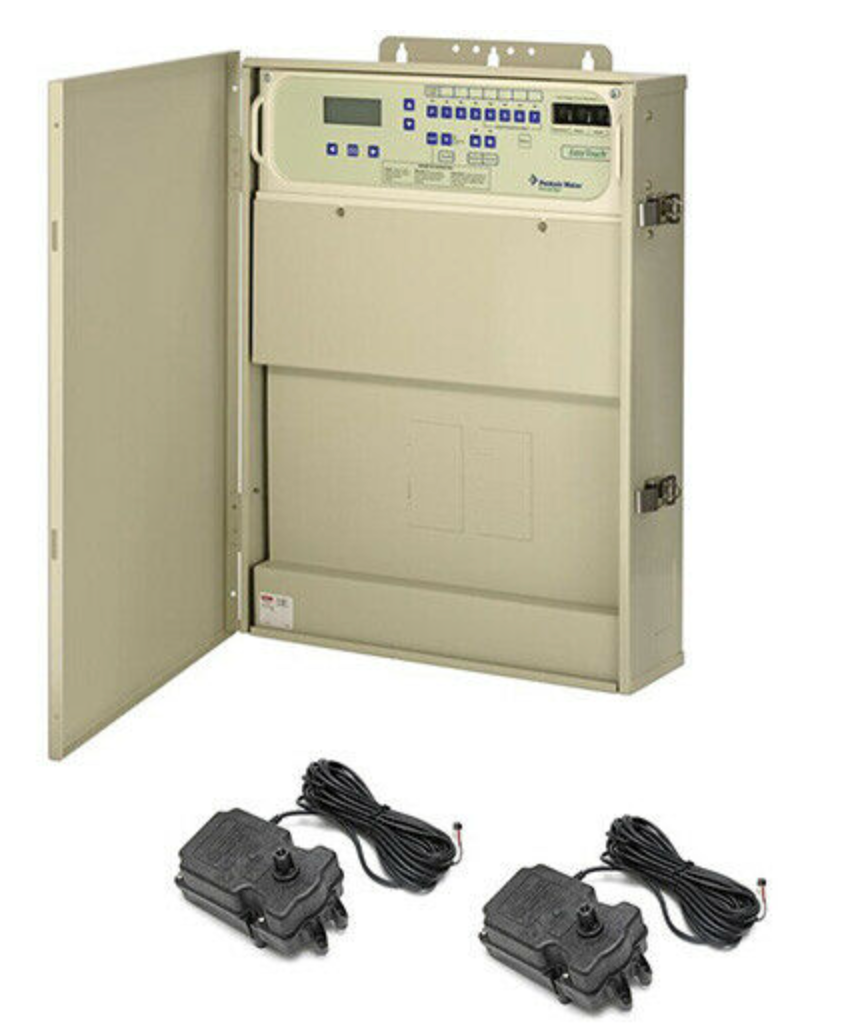

Pentair EasyTouch 8 EC-520540 pool and spa combo control system with 2 actuatorsPentair EasyTouch 8 Pool/Spa Combo with 2 Actuators, EC-520540 In stock$2,19699
Pentair EasyTouch 8 EC-520540 pool and spa combo control system with 2 actuators
Shop all Pentair

Pentair EasyTouch 8 Pool/Spa Combo with 2 Actuators, EC-520540

Ask a questionMPN EC-520540
$2,19699
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pool and spa on one system the combo version handles shared equipment between a pool and a spa.
  • Eight functions 8 feature relays for pumps, lights, heaters and other equipment.
  • Valves handled 4 valve outputs and 2 actuators included for the intake and return.
  • Self contained load center one button control from the load center, with an 8 position breaker panel built in.
  • Programmable schedules set everyday operation and adjust it as usage patterns or equipment change.
  • Onboard diagnostics built in self tests verify each function and a diagnostic screen reports faults.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair EasyTouch 8 Pool/Spa Combo with 2 Actuators, EC-520540, SKU COM-30-1540. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair EasyTouch 8 Pool/Spa Combo with 2 Actuators, EC-520540
Pentair

EasyTouch 8 Pool/Spa Combo with 2 Actuators, EC-520540

$2,19699
Pentair Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218
Pentair

Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218

$32299
Pentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045
Pentair

OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045

$24299
Pentair Air, Water, Solar Sensor with 20 ft Cable, 520272
Pentair

Air, Water, Solar Sensor with 20 ft Cable, 520272

$8699
Subtotal

Similar products

Other products people compare with this one.

Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Pentair 522048 IntelliTouch and EasyTouch to IntelliCenter upgrade kit, i10PS for CLC/CPC Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048$1,27199 Jandy R0468501 AquaLink RS8 upgrade kit, Pool/Spa Combo, Rev.QQ Jandy AquaLink RS8 Upgrade Kit, Pool/Spa Combo, Rev.QQ, R0468501$1,19099 Jandy IQ30-RS AquaLink 3.0 upgrade kit with RS-PS8 PCB, bezel and CPU Jandy AquaLink IQ30-RS 3.0 Upgrade Kit with RS-PS8 PCB, Bezel, CPU$1,32499 Pentair 523448 IntelliCenter load center system with i5P personality kit Pentair IntelliCenter Load Center System with i5P Personality Kit, 523448$2,21333 Pentair 521907 IntelliCenter Load Center System with i5PS personality kit Pentair IntelliCenter Load Center System with i5PS Personality Kit, without SCG, 521907$2,60099 Pentair EasyTouch 8SC EC-520545 pool/spa combo load center with IC40 salt cell and two actuators Pentair EasyTouch 8SC Pool/Spa Combo with IC40 Salt Cell, Transformer, and 2 Actuators, EC-520545$2,84900 Hayward OmniHub smart pool and spa control, part HLOMNIHUB Hayward OmniHub Smart Pool and Spa Control with One Smart Relay, HLOMNIHUB$1,10599 Pentair IntelliCenter 521904 Load Center System with i8PS Personality Kit Pentair IntelliCenter Load Center System with i8PS Personality Kit, 521904$3,03999 Pentair 521909 IntelliCenter i5P single body personality kit Pentair IntelliCenter i5P Single Body Personality Kit, 521909$1,40699
Pentair 520547 EasyTouch wireless controller for 8 circuit systems Pentair Genuine OEM EasyTouch Wireless Controller for 8 Circuit System, 520547$1,40599 Jandy AQWHR18 AquaLink wireless handheld remote with transceiver Jandy AquaLink AQWHR18 Wireless Handheld Remote with Transceiver$1,17999 Hayward Goldline Hayward Pro Logic Pool & Spa 8 Relays | PL-PS-8 Hayward Goldline Hayward Pro Logic Pool & Spa 8 Relays | PL-PS-8$2,68899 Jandy AquaLink RS-PS6 pool and spa combo 6 function automation control system Jandy AquaLink RS Pool and Spa Combo 6 Automation System, RS-PS6$1,27199 Hayward HLWIRELESS OmniLogic waterproof wireless remote Hayward OmniLogic Waterproof Wireless Remote, HLWIRELESS$1,06999 Pentair 523529 IntelliCenter next generation upgrade kit for IntelliTouch and EasyTouch Pentair IntelliTouch/EasyTouch to IntelliCenter Next Generation Upgrade Kit CLC/CPC, 523529$99599 S.R. Smith PT-6001 poolLUX Plus2 60W single zone LED light control power tower S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001$90099 Pentair EasyTouch PL4-PSL4 Wireless Remote | 522464 Pentair EasyTouch PL4-PSL4 Wireless Remote | 522464$88299 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN$81899 Hayward HLXPLCONTROL replacement OmniPL controller Hayward HLXPLCONTROL Replacement OmniPL Controller$81099

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

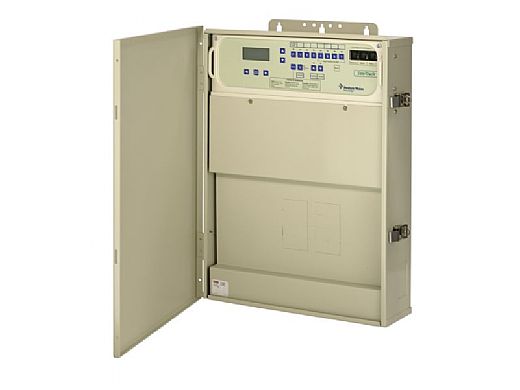

The Pentair EasyTouch 8 EC-520540 is a complete automation load center for a pool and spa that share equipment. It controls up to 8 accessory functions and includes 4 valve outputs with 2 actuators, an 8 position breaker panel, a local control panel at the load center and 2 temperature sensors.

One button control, full programmability

Every function is a single button on the self contained load center. Everyday operation can be programmed for efficient running and reprogrammed when usage changes or equipment is added. A range of optional wired and wireless remotes and an indoor control panel are available if you want control away from the pad.

Diagnostics built in

Self test diagnostics verify that each function is operating correctly, and a diagnostic screen reports failures so a technician can go straight to the fault.

What is not included

This is the version without a salt chlorine generator. The IntelliChlor cell, its transformer and the indoor control panel are all purchased separately.

Specifications
Brand Pentair
Manufacturer part number EC-520540
UPC 788379887612
System EasyTouch 8
Configuration Pool/spa combo, shared equipment
Feature relays 8
Valve outputs 4
Actuators included 2
Breaker panel 8 position
Temperature sensors 2
Local control Control panel at the load center
Not included Salt chlorine generator, transformer, indoor control panel
Shipping weight 53.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Does this include a salt chlorinator?
No. This is the version without a chlorine generator or its transformer. An IntelliChlor cell and its power center are purchased separately.
Is an indoor control panel included?
No. Control is at the load center. The indoor control panel and the wired or wireless remotes are optional add ons.
What comes in the box?
The EasyTouch 8 load center with 8 feature relays, 4 valve outputs, 2 valve actuators, an 8 position breaker panel, the local control panel and 2 temperature sensors.
Pool only, or pool and spa?
This is the pool/spa combo version, for a pool and spa that share equipment. Pentair makes separate EasyTouch systems for a single body of water.
