Pentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves

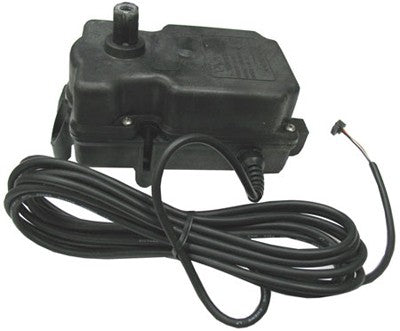

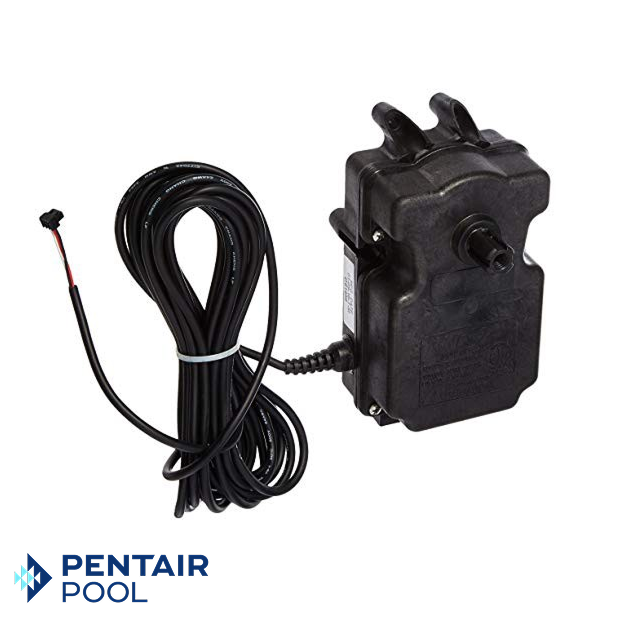

The Pentair CVA-24, part 263045, is a 24 VAC valve actuator for 2-way and 3-way diverter valves from Compool, Jandy and Ortega. It rotates 180 degrees in either direction to move the valve to the position an IntelliTouch, EasyTouch or Compool automation system calls for, and it comes with a 25 ft. 3-wire cable already attached.

Runs on automation, or by hand

The actuator is fully bi-directional and offers multiple valve positions. If the control system goes down, it can be adjusted manually, so a failed panel does not strand the valve in the wrong place.

Made for the pad

The enclosure is corrosion-proof for poolside and weather exposed installs, and the unit is UL listed and ETL recognized. Rated 24 VAC, 50/60 Hz, 0.65 amp.
