Pentair 520946Z MobileTouch transceiver circuit board with attached antennaPentair Genuine OEM MobileTouch Transceiver, 520946Z In stock$45899

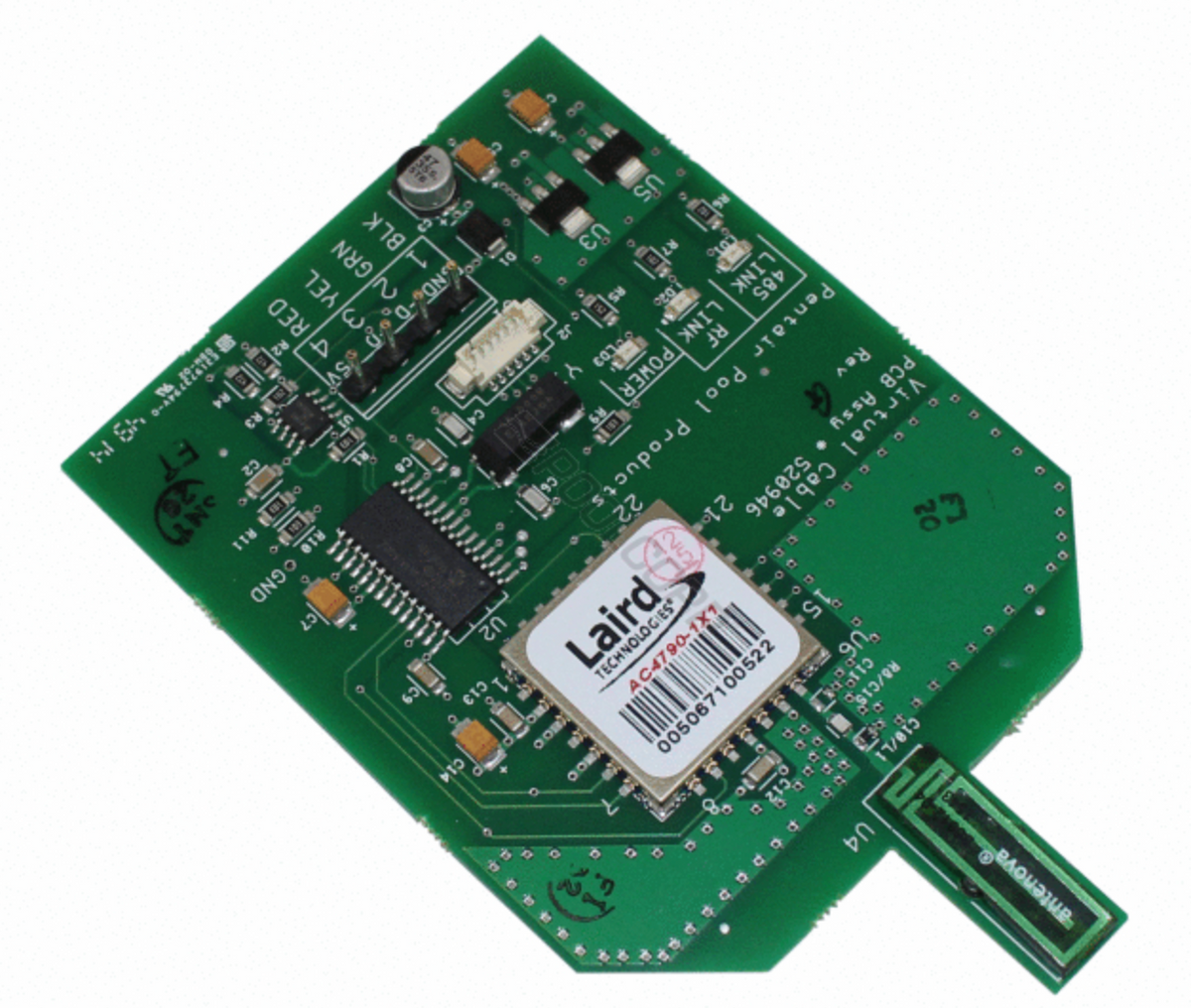

Pentair 520946Z MobileTouch transceiver circuit board with attached antenna
Shop all Pentair

Pentair Genuine OEM MobileTouch Transceiver, 520946Z

Ask a questionMPN 520946Z
$45899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory part 520946Z.
  • Board and antenna together The transceiver circuit board is supplied with the antenna already attached.
  • EasyTouch and IntelliTouch Works with Pentair EasyTouch and IntelliTouch pool and spa automatic control systems.
  • The radio half of MobileTouch This is the transceiver that the handheld MobileTouch controller talks to.
  • Restores wireless control A dead transceiver leaves a perfectly good handheld with nothing to reach.
  • Check the cheap parts first If the handheld is dark, the battery kit and the charging cradle are separate Pentair items worth ruling out.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Genuine OEM MobileTouch Transceiver, 520946Z, SKU COM-301-0946. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Genuine OEM MobileTouch Transceiver, 520946Z
Pentair

Genuine OEM MobileTouch Transceiver, 520946Z

$45899
Pentair Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218
Pentair

Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218

$32299
Pentair Genuine OEM Replacement UOC Motherboard, 4 Aux, EasyTouch, 520659
Pentair

Genuine OEM Replacement UOC Motherboard, 4 Aux, EasyTouch, 520659

$60199
Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048
Pentair

IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048

$1,27199
Pentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045
Pentair

OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045

$24299
Pentair Genuine OEM Power Cable for IntelliTouch and EasyTouch PL4/PSL4 Control Systems, 2 ft, 520724
Pentair

Genuine OEM Power Cable for IntelliTouch and EasyTouch PL4/PSL4 Control Systems, 2 ft, 520724

$11699
Pentair Genuine OEM iS4 Spa-Side Remote, White, 100 ft., 521885
Pentair

Genuine OEM iS4 Spa-Side Remote, White, 100 ft., 521885

$31999
Subtotal

Similar products

Other products people compare with this one.

Pentair 520815Z battery kit for IntelliTouch and MobileTouch II Pentair Battery Kit for IntelliTouch Control System and MobileTouch II Wireless Controller, 520815Z$34199 Pentair 520722 transformer for EasyTouch control system Pentair Transformer for EasyTouch Control System, Input 115/230 V, Output 22/39 V, 520722$27799 Pentair 521233 genuine OEM IntelliTouch transformer assembly Pentair Genuine OEM IntelliTouch Transformer, 521233$20799 Pentair 520198 genuine OEM two-speed 3HP relay for IntelliTouch and EasyTouch Pentair Genuine OEM Two-Speed 3HP Relay, 520198$18699 Pentair 520106 3 HP relay for IntelliTouch and EasyTouch control systems Pentair Genuine OEM 3 HP Relay for IntelliTouch and EasyTouch, 520106$11799 Pentair EasyTouch UOC Motherboard with 8 Auxiliaries | Single Body System | 520711 Pentair EasyTouch UOC Motherboard with 8 Auxiliaries | Single Body System | 520711$81399 Pentair 520818 serial COM port expansion board for IntelliTouch and EasyTouch Pentair Serial COM Port Expansion Board, 520818$10199 Pentair 522082 new style iS4 label kit for IntelliTouch automation systems Pentair New Style iS4 Label Kit for IntelliTouch Automation Systems, 10 Pack, 522082$4999 Pentair 520657 EasyTouch 8 auxiliary UOC motherboard Pentair EasyTouch 8 Auxiliary UOC Motherboard Replacement, 520657$88599 Pentair 8023304 four position plug-in screw terminal for ComPool and IntelliTouch Pentair 4 Position Plug-In Screw Terminal for ComPool IntelliTouch, 8023304$1799
Pentair 9321004 2-3/4 inch hose clamp for sensor hose Pentair 2-3/4 in. Hose Clamp for Sensor, ComPool, IntelliTouch and MiniMax Plus, 9321004$899

Product details

The Pentair 520946Z is the MobileTouch transceiver, a circuit board with the antenna attached, for EasyTouch and IntelliTouch pool and spa automatic control systems. It is the genuine Pentair part.

What the transceiver does

MobileTouch is a wireless handheld controller. The handheld does not talk to the pool equipment directly; it talks to this transceiver, which is wired into the control system and passes commands through. When the transceiver fails, the whole wireless side of the system goes quiet even though the panel itself still runs the pool normally.

Diagnosing before you order

A handheld that will not connect has more than one possible cause. A tired battery pack or a charging cradle that has stopped charging produces the same symptom from the deck, and both are separate Pentair parts. Confirm the handheld powers up and holds a charge before replacing the transceiver.

What you get

The transceiver circuit board with its antenna already attached, ready to go in place of the original.

Specifications
Brand Pentair
Manufacturer part number 520946Z
UPC 788379832735
Type Transceiver circuit board
Antenna Attached
System MobileTouch
Fits Pentair EasyTouch and IntelliTouch pool and spa automatic control systems
Shipping weight 0.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which systems does this transceiver work with?
Pentair EasyTouch and IntelliTouch pool and spa automatic control systems.
Does the antenna come with it?
Yes. The antenna is attached to the transceiver circuit board.
Is this the handheld remote?
No. This is the transceiver board that the MobileTouch handheld communicates with. The handheld, its battery kit and its cradle are separate parts.
My MobileTouch will not connect. Is this the part?
It can be, but rule out the simple causes first. A flat battery or a bad charging cradle looks the same from the poolside, and both are separate Pentair items.
Ask your own question
