Hayward SPX0710X32 Vari-Flo 1.5 in. side mount multiport valve for S200 and S240 sand filtersHayward Vari-Flo 1.5 in. Multiport Valve (S200 and S240), SPX0710X32 In stock$27499

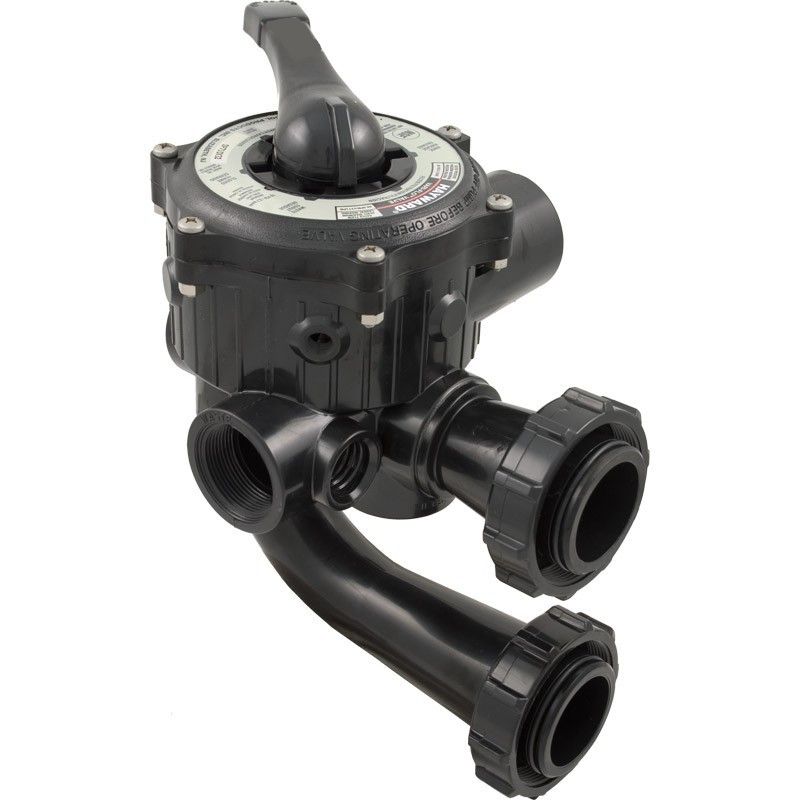

Hayward SPX0710X32 Vari-Flo 1.5 in. side mount multiport valve for S200 and S240 sand filters
Shop all Hayward

Hayward Vari-Flo 1.5 in. Multiport Valve (S200 and S240), SPX0710X32

Ask a questionMPN SPX0710X32
$27499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • S200 and S240 only Built for Hayward S200 and S240 sand filters with 1.5 in. plumbing ports.
  • Replaces SP071113 Retrofits onto any filter that came with the SP071113 valve.
  • Six functions Filter, backwash, waste, rinse, closed and recirculate on one lever action handle.
  • Sight glass An integral sight glass shows when the backwash water runs clear.
  • PermaGlass XL Molded from Hayward's PermaGlass XL material and engineered for maximum flow.
  • Check the markings SP710XA-13 below the pump port, S-200-N on the bottom sweep elbow, S 200 P on the top filter connection.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Vari-Flo 1.5 in. Multiport Valve (S200 and S240), SPX0710X32, SKU HAY-06-238. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Vari-Flo 1.5 in. Multiport Valve (S200 and S240), SPX0710X32
Hayward

Vari-Flo 1.5 in. Multiport Valve (S200 and S240), SPX0710X32

$27499
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$14799
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$599
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$18899
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2599
Subtotal

Similar products

Other products people compare with this one.

Hayward SP0715X62 Vari-Flo 2 in. side mount control valve for Pro Series sand filters Hayward Pro-Series Sand Filter Vari-Flo Control Valve with 2 in. Plumbing Ports and Gauge, SP0715X62$28299 Hayward SP071621 2 in. Vari-Flo top mount multiport valve, front view Hayward 2" Vari-Flo Top Mount Valve, SP071621$22899 Hayward SP0710XALL Vari-Flo XL 1.5 inch multiport valve kit Hayward Vari-Flo XL Multi-Port Valve Kit 1.5", SP0710XALL$16199 Hayward SPX0715X32 2 inch Vari-Flo multiport control valve assembly Hayward 2" Multiport Valve, SPX0715X32$39099 Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 CMP 27515-154-000 multiport valve, replacement for Hayward Vari-Flo SP0714T CMP Multiport Valve Compatible with Hayward® Vari-Flo® SP0714T, 27515-154-000$13199

Product details

The Hayward SPX0710X32 is the Vari-Flo multiport valve for the S200 and S240 sand filters. It is made for those two filters and their 1.5 in. plumbing, and it is the replacement and upgrade for any filter that came with the older SP071113 valve.

Six positions, one lever

Filter, backwash, waste, rinse, closed and recirculate are selected with the lever action handle. An integral sight glass shows the backwash water, so you can watch it run clear before switching to rinse.

Built for flow

The valve body is molded from Hayward's PermaGlass XL material and engineered for maximum flow through the filter.

Confirm the fit

Before ordering, look for SP710XA-13 stamped into the valve body below the pump port, S-200-N on the bottom sweep elbow and S 200 P on the top filter connection. The valve to filter port center line measures 5 in. If your valve matches, this is the part.

Specifications
Brand Hayward
Manufacturer part number SPX0710X32
UPC 610377034975
Type Vari-Flo multiport valve, side mount
Positions 6: filter, backwash, waste, rinse, closed, recirculate
Plumbing ports 1.5 in.
Valve to filter port center line 5 in.
Fits Hayward S200 and S240 sand filters
Replaces Hayward SP071113
Material PermaGlass XL
Sight glass Integral
Markings SP710XA-13 below pump port; S-200-N on bottom sweep elbow; S 200 P on top filter connection
Shipping weight 5.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,10299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does this valve fit?
Only the Hayward S200 and S240 sand filters with 1.5 in. plumbing ports. It also retrofits onto any filter that originally had the SP071113 valve.
How do I confirm I have the right valve?
Check the old valve for the markings: SP710XA-13 stamped below the pump port, S-200-N on the bottom sweep elbow and S 200 P on the top filter connection. The distance from the valve to the filter port center line is 5 in.
What are the six positions?
Filter for normal running, backwash to flush the sand bed, rinse to settle it afterward, waste to bypass the filter to the drain, recirculate to move water without filtering, and closed.
What is the sight glass for?
It shows the water leaving on backwash. Run the backwash until the glass clears, then switch to rinse.
