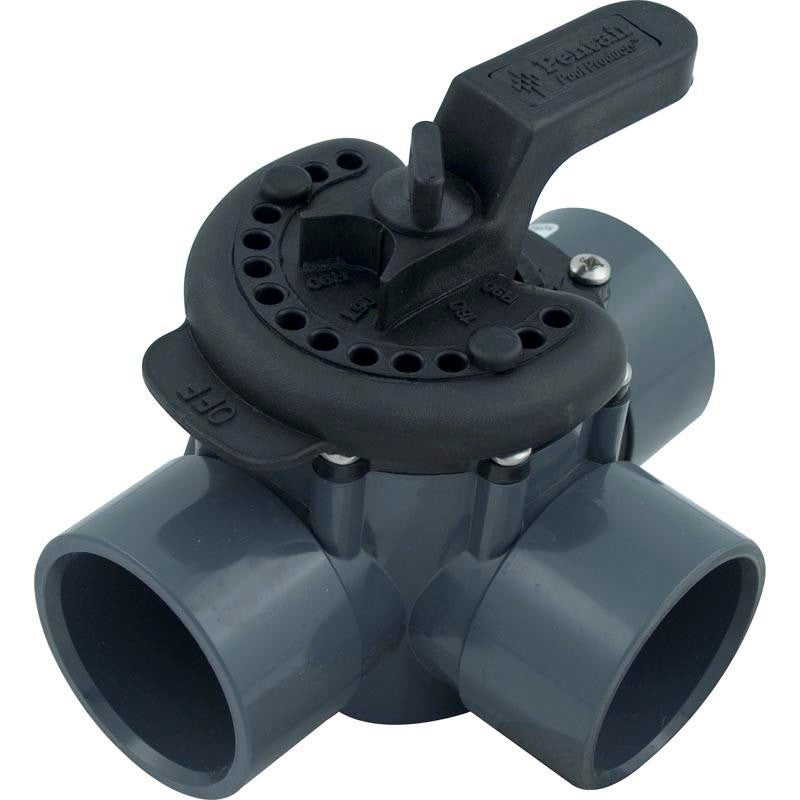

Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in.Pentair Three Port Diverter Valve 2" x 2.5", 263028 In stock$5799
Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in.
Shop all Pentair

Pentair Three Port Diverter Valve 2" x 2.5", 263028

Ask a questionMPN 263028
$5799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Three ports one valve to split, blend or switch flow between two lines.
  • Fits three pipe sizes accepts 1.5 in., 2 in. and 2.5 in. PVC.
  • Inlet on any port plumb the feed into whichever port suits the layout.
  • Adjustable stops set the handle travel in the field to limit or fix the diverter position.
  • Compool line the Pentair Compool three port diverter, part 263028.
  • Other sizes available a 1.5 in. x 2 in. three port and a 2 in. x 2.5 in. two port are also offered.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Three Port Diverter Valve 2" x 2.5", 263028, SKU PAC-56-4102. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Three Port Diverter Valve 2" x 2.5", 263028
Pentair

Three Port Diverter Valve 2" x 2.5", 263028

$5799
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1899
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$35699
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Jandy 4715 Neverlube 3-port diverter valve, 1-1/2 in. x 2 in., top view Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715$7199 Pentair Rainbow R172288 chemical resistant 1-1/2 in. x 2 in. spring check valve Pentair Chemical Resistant 1-1/2" x 2" Check Valve, R172288$7499 Jandy 7305 spring check valve, 2 in. internal by 2-1/2 in. external ports Jandy 2 in. / 2-1/2 in. Check Valve, 7305$8099 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 Hayward SP0723 Trimline 2-way ball valve, 1-1/2 inch mpt by 1-1/2 inch fpt Hayward Trimline 2-Way Ball Valve, 1-1/2" mpt x 1-1/2" fpt, SP0723$3999 Pentair 263029 two port PVC diverter valve, 2 in. x 2-1/2 in. Pentair Two Port Diverter Valve, 2 in. x 2-1/2 in., 263029$5199 Hayward PSV3S2DGR 2 in by 2-1/2 in PSV Series 3-way diverter valve in PVC Hayward 2" x 2-1/2" PSV Series 3-Way Diverter Valve, PVC, PSV3S2DGR$5299 Hayward PSV3SDGR 1-1/2 in by 2 in PSV Series 3-way diverter valve in PVC Hayward 1-1/2" x 2" PSV Series 3-Way Diverter Valve, PVC, PSV3SDGR$5399 Jandy 7235 two way check valve with 1-1/2 inch and 2 inch ports Jandy Check Valve, 1-1/2" / 2", 7235$6399 Pentair 263037 three port diverter valve, 1-1/2 inch by 2 inch Pentair Three Port Diverter Valve 1-1/2" x 2", 263037$4999
Pentair 263042 black CPVC straight check valve for pool plumbing Pentair Check Valve, CPVC, 2", 263042$8299 Hayward PSCV2S2DGR 2 in. x 2-1/2 in. straight PVC check valve, gray Hayward 2 in. x 2-1/2 in. Straight PVC PSV Check Valve, PSCV2S2DGR$5499 Hayward PSV2S2DGR PSV series 2-way diverter valve, 2 in. x 2-1/2 in. PVC Hayward PSV Series 2-Way Diverter Valve, 2 in. x 2-1/2 in. PVC, PSV2S2DGR$5099 Hayward PSV2SDGR 1-1/2 inch by 2 inch PSV Series 2-way PVC diverter valve Hayward 1-1/2" x 2" PSV Series 2-Way Diverter Valve, PVC, PSV2SDGR$4299 Hayward SP0735 1-1/2 in. 4 way ball valve Hayward 1-1/2" 4 Way Ball Valve, SP0735$8099 PoolMiser RP-402 replacement float valve PoolMiser Valve Only, RP-402$3199 Praher OV3-1500U 1-1/2 inch 3 port valve with unions Praher 3 Port Valve, 1-1/2" with Union, OV3-1500U$6399 Hayward SP0729 1-1/2 in. 2-way Econoline ABS ball valve Hayward 1-1/2" 2-Way Econoline ABS Ball Valve, SP0729$3799 Praher 200-010 2 inch single union ball valve, socket by socket Praher 2" Single Union Blocked Ball Valve Skt/Skt, 200-010$3699 Jandy 3407 Space Saver two port positive seal valve Jandy Valve 2 Port 1.5-2" Space Saver, 3407$6799

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair 263028 is a three port diverter valve from the Compool line, sized 2 in. x 2.5 in. It accepts 1.5 in., 2 in. and 2.5 in. PVC, so it fits most residential pool plumbing without adapters.

Plumb it the way the pad needs

The inlet can be on any of the three ports, which gives you freedom in how the valve sits on the manifold. Stop positions are field adjustable, so you can limit the handle travel or lock the diverter at a fixed blend.

Other versions

Pentair also offers a 1.5 in. x 2 in. three port and a 2 in. x 2.5 in. two port version of this valve if your plumbing calls for either.

Specifications
Brand Pentair
Manufacturer part number 263028
UPC 788379644307
Type Three port diverter valve
Size 2 in. x 2.5 in.
Accepts 1.5 in., 2 in. and 2.5 in. PVC
Stop positions Field adjustable
Inlet Any port
Line Compool
Shipping weight 1.75 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What pipe sizes does it take?
It accepts 1.5 in., 2 in. and 2.5 in. PVC plumbing.
Does the inlet have to be on the center port?
No. The valve can be plumbed with the inlet at any port.
Can I limit how far the handle turns?
Yes. The stop positions are field adjustable, so you can restrict travel or fix the diverter where you want it.
Is this the same as the Compool valve?
Yes. This is the Pentair Compool three port diverter valve, part 263028.
Ask your own question
