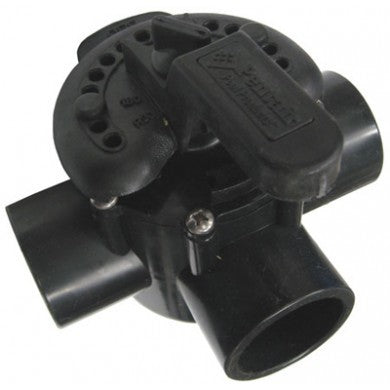

Pentair 263035 three way CPVC diverter valve, 1-1/2 inch by 2 inchPentair 3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035 In stock$8999
Pentair 263035 three way CPVC diverter valve, 1-1/2 inch by 2 inch
Shop all Pentair

Pentair 3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035

Ask a questionMPN 263035
$8999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Three way Diverts, shuts off or mixes, depending on how you set it in the plumbing.
  • CPVC body Chemical resistant CPVC, rated to withstand pressure up to 150 psi.
  • Maintenance free seal The diverter seal is designed to run without service and hold an optimum positive seal.
  • High flow rate Built for a high flow rate so it does not become the restriction in the line.
  • Field adjustable stops Stop positions can be set on site to match how the valve is used.
  • Reinforced handle A fiberglass reinforced handle takes the force of turning a valve under pressure.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair 3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035, SKU PAC-56-4105. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair 3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035
Pentair

3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035

$8999
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Jandy 4715 Neverlube 3-port diverter valve, 1-1/2 in. x 2 in., top view Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715$7199 Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in. Pentair Three Port Diverter Valve 2" x 2.5", 263028$5799 Pentair Rainbow R172288 chemical resistant 1-1/2 in. x 2 in. spring check valve Pentair Chemical Resistant 1-1/2" x 2" Check Valve, R172288$7499 Jandy 4717 NeverLube 3 port diverter valve, 2 in. x 2-1/2 in. Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717$9999 Jandy 7305 spring check valve, 2 in. internal by 2-1/2 in. external ports Jandy 2 in. / 2-1/2 in. Check Valve, 7305$8099 Jandy 4716 Neverlube positive seal two way diverter valve, 2 in. x 2-1/2 in. Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716$9299 Pentair 263029 two port PVC diverter valve, 2 in. x 2-1/2 in. Pentair Two Port Diverter Valve, 2 in. x 2-1/2 in., 263029$5199 Jandy 4944 NeverLube 3 port valve, 2-1/2 in. by 2 in. Jandy Neverlube 3 Port Valve, 2-1/2" x 2", 4944$10399 Hayward PSV3S2DGR 2 in by 2-1/2 in PSV Series 3-way diverter valve in PVC Hayward 2" x 2-1/2" PSV Series 3-Way Diverter Valve, PVC, PSV3S2DGR$5099 Hayward PSV3SDGR 1-1/2 in by 2 in PSV Series 3-way diverter valve in PVC Hayward 1-1/2" x 2" PSV Series 3-Way Diverter Valve, PVC, PSV3SDGR$5399
Jandy 7235 two way check valve with 1-1/2 inch and 2 inch ports Jandy Check Valve, 1-1/2" / 2", 7235$6399 Pentair 263037 three port diverter valve, 1-1/2 inch by 2 inch Pentair Three Port Diverter Valve 1-1/2" x 2", 263037$4999 Pentair 263042 black CPVC straight check valve for pool plumbing Pentair Check Valve, CPVC, 2", 263042$7999 Hayward PSV2S2DGR PSV series 2-way diverter valve, 2 in. x 2-1/2 in. PVC Hayward PSV Series 2-Way Diverter Valve, 2 in. x 2-1/2 in. PVC, PSV2S2DGR$5099 Hayward PSCV2S2DGR 2 in. x 2-1/2 in. straight PVC check valve, gray Hayward 2 in. x 2-1/2 in. Straight PVC PSV Check Valve, PSCV2S2DGR$5299 Hayward SP0735 1-1/2 in. 4 way ball valve Hayward 1-1/2" 4 Way Ball Valve, SP0735$8099 Pentair 230148 1.5 in. 6 port low profile T-valve kit Pentair 1.5 in. 6 Port Low Profile T-Valve Kit, 230148$13299 Jandy 4718 Neverlube 2 port dial valve with 2-1/2 inch and 3 inch PVC connections Jandy Neverlube Valve 2 Port, 2-1/2" x 3", 4718$8999 Praher OV3-1500U 1-1/2 inch 3 port valve with unions Praher 3 Port Valve, 1-1/2" with Union, OV3-1500U$5299 Hayward PSV3S2 3-way PSV Series CPVC diverter valve, 2 in. x 2.5 in. Hayward 3-Way PSV Series Valve, CPVC 2" x 2.5", PSV3S2$8899

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair 263035 is a three way CPVC diverter valve in the 1-1/2 inch by 2 inch size. It is the workhorse valve of an equipment pad: send water one way, send it the other, shut a line off, or blend two of them.

Built for the pad

The body is CPVC, chemical resistant and rated to withstand pressure up to 150 psi. The diverter seal is maintenance free and designed to hold an optimum positive seal, and the whole valve is built for a high flow rate so it does not choke the line it sits in.

Setting it up

The stop positions are field adjustable, so the handle travel can be set to match what the valve is doing. Pentair designs these valves so they can be plumbed with the inlet at any port, which gives you room to work with the pipe you already have. The handle is fiberglass reinforced, which matters the first time you turn a valve against real system pressure.

Specifications
Brand Pentair
Manufacturer part number 263035
UPC 788379644321
Type 3-way diverter valve
Material CPVC
Size 1-1/2" x 2"
Pressure rating Withstands pressure up to 150 psi
Seal Maintenance free diverter seal, optimum positive seal
Handle Fiberglass reinforced
Stops Field adjustable stop positions
Applications Diverting, shut-off or mixing
Shipping weight 1.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What size plumbing does it take?
This valve is the 1-1/2" by 2" size. Pentair builds the diverter valve family to accept 1.5", 2" and 2.5" PVC plumbing across the range, so order by the size in the listing.
Can I use it as a shutoff instead of a diverter?
Yes. The three way valve is used for diverting, for shut-off, or for mixing, and it can be plumbed with the inlet at any port.
Does the seal need servicing?
No. Pentair specifies a maintenance free diverter seal that holds a positive seal.
How much pressure will it take?
It withstands pressure up to 150 psi, and the body is chemical resistant CPVC.
