Jandy R0408600 cam and microswitch kitJandy Cam and Microswitch Kit, R0408600 In stock$6099
Jandy R0408600 cam and microswitch kit
Shop all Jandy

Jandy Cam and Microswitch Kit, R0408600

Ask a questionMPN R0408600
$6099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy The factory kit R0408600, not an aftermarket switch pack.
  • Cam and switches together Both parts come as one kit, which is how they wear and how they are replaced.
  • Sets the stop points The cam trips the microswitches that tell the actuator where to stop, so a worn cam gives a valve that overshoots or never stops.
  • The usual first failure Microswitches typically give out well before the motor or the gear train in a valve actuator.
  • Cheaper than a new actuator Rebuilding the switch pack costs a fraction of a complete valve actuator.
  • Confirm your model Actuator internals differ between generations, so check that R0408600 is the kit called out for yours.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Cam and Microswitch Kit, R0408600, SKU R0408600. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Cam and Microswitch Kit, R0408600
Jandy

Cam and Microswitch Kit, R0408600

$6099
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Jandy

1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715

$7199
Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717
Jandy

NeverLube Valve 3 Port, 2" x 2-1/2", 4717

$9999
Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716
Jandy

2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716

$9299
Jandy Cover O-Ring, 3 in. ID, 1132
Jandy

Cover O-Ring, 3 in. ID, 1132

$1799
Jandy Neverlube 3 Port Valve, 2-1/2" x 2", 4944
Jandy

Neverlube 3 Port Valve, 2-1/2" x 2", 4944

$10399
Subtotal

Similar products

Other products people compare with this one.

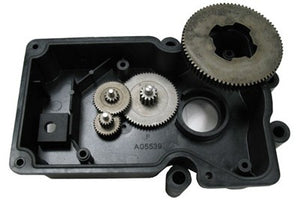

Jandy R0411800 Aqualink 20 foot power cord kit for JVA 2444 valve actuators Jandy Aqualink Power Cord Kit 20' JVA 2444, R0411800$7599 Jandy R0411600 gear kit for the 2444 valve actuator Jandy Gear Kit for 2444 Valve Actuator, R0411600$3499 Jandy R0408700 center plate kit for the JVA 2444 and 4424 valve actuator Jandy Center Plate Kit for JVA 2444/4424 Valve Actuator, R0408700$4699

Product details

The Jandy R0408600 is the cam and microswitch kit for a Jandy valve actuator, supplied as the genuine factory part.

How the actuator knows where to stop

A valve actuator has no idea where the valve is pointing. It relies on a cam that turns with the drive and physically trips a microswitch at each end of travel. Those switches are what cut the motor at the right moment. When a switch contact fails or the cam wears round at its lobe, the actuator loses that reference: it runs past the port, hunts back and forth, or drives until it stalls and buzzes. All of that reads to the owner like a dead actuator, when the motor and gears are usually fine.

What you get and what to check

The cam and the microswitches come together in one kit, which is the sensible way to buy them, because the cam wear and the switch wear happen at the same time and replacing only one leaves the other to fail shortly after. Actuator internals have changed across generations, so before ordering, check that R0408600 is the kit called out for your particular actuator. Fitting a switch pack that is close but not correct wastes a trip and can leave the cam timing wrong.

Specifications
Brand Jandy
Manufacturer part number R0408600
UPC 052337021029
Type Cam and microswitch kit
Application Jandy valve actuator
Shipping weight 1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$67399 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2599 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$70099 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24899 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$32699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

What does this kit do?
It replaces the cam and the microswitches inside a Jandy valve actuator. The cam turns with the drive and trips a switch at each end of travel, which is what tells the actuator to stop.
Is it a genuine Jandy part?
Yes. R0408600 is the Jandy factory kit.
My valve turns past the port or will not stop. Is this the fix?
That is the classic symptom of a worn cam or a failed microswitch, and this kit replaces both. Confirm the kit called out for your actuator model before ordering.
Do I need a whole new actuator?
Often not. If the motor still drives the valve and only the stopping behavior is wrong, the cam and switches are the parts that fail first and they are replaceable on their own.
