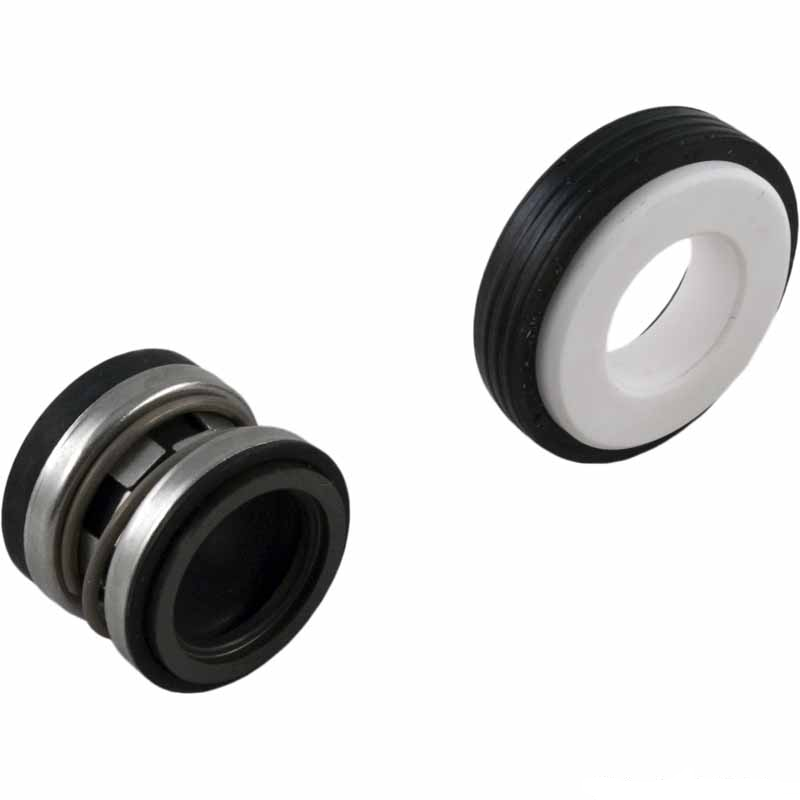

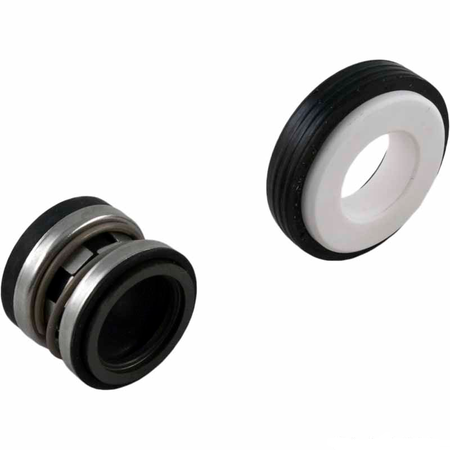

Jandy R0479400 mechanical shaft seal, 5/8 in. inside diameterJandy Mechanical Seal, 5/8" ID, R0479400 In stock$3499
Jandy R0479400 mechanical shaft seal, 5/8 in. inside diameter
Shop all Jandy

Jandy Mechanical Seal, 5/8" ID, R0479400

Ask a questionMPN R0479400
$3499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy the R0479400 Pro Series carbon and ceramic mechanical shaft seal.
  • 5/8 in. inside diameter for pumps whose impeller rides on a straight, unstepped motor shaft.
  • Fits Stealth SHPF and SHPM serial number P08FF0001 and later, revision P and higher.
  • Fits ePump and FloPro Zodiac Jandy ePump JEP variable speed and Flo Pro FHPM and VS-FHP models.
  • Older Stealth pumps differ revision N and earlier used a double stepped shaft and take the 13/16 in. seal instead.
  • Replace with the impeller fit a new seal every time the impeller comes off to keep water out of the motor.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Mechanical Seal, 5/8" ID, R0479400, SKU TLD-101-2032. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Mechanical Seal, 5/8" ID, R0479400
Jandy

Mechanical Seal, 5/8" ID, R0479400

$3499
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$11799
Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800
Jandy

Pump Housing Body for FHPM FloPro & VS FloPro, R0479800

$24999
Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000
Jandy

2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000

$4999
Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601
Jandy

Pump Body for Stealth SHPF/SHPM Pumps, R0445601

$38199
Jandy 0.5 HP to 3 HP Diffuser with O-Ring and Hardware, R0445400
Jandy

0.5 HP to 3 HP Diffuser with O-Ring and Hardware, R0445400

$7899
Subtotal

Similar products

Other products people compare with this one.

Jandy R0445500 mechanical shaft seal, 13/16 in. ID, shown with both seal sizes for illustration Jandy Mechanical Shaft Seal, 13/16" ID, R0445500$3399 Jandy R0446200 lid seal o-ring for Stealth and ePump pool pumps Jandy Lid Seal, R0446200$3299 Jandy R0449100 pump lid seal gasket with o-ring Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999 SuperPro GOKIT82V-9 Viton gasket and o-ring kit for Jandy SHPF and SHPM Stealth pumps SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$4999 Generic 5/8 inch inside diameter carbon and ceramic mechanical shaft seal for Jandy pumps U.S. Seal Mechanical Seal, 5/8" ID (Generic), PS-4231-OS$1899 Jandy R0480100 pump strainer basket for FloPro FHPM and FHP series pumps Jandy Pump Basket for FHPM/FHP Series Pumps, R0480100$3099 Jandy R0446000 drain plug with o-ring, set of 2 Jandy Drain Plug with O-Ring (Set of 2), R0446000$2099 Jandy R0448900 pump filter basket for PlusHP, MaxHP and WaterFeature pumps Jandy Filter Basket for PHPF/PHPM/MHPM Series Pumps, R0448900$3099 Jandy R0446300 pump backplate o-ring Jandy O-Ring, Backplate, R0446300$1899 Jandy R0479000 blue pressure O-ring for Stealth, WaterFall and ePump pumps Jandy Blue Pressure O-Ring, R0479000$2399
Jandy R0446500 diffuser and impeller hardware O-ring kit Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3799 Jandy R0480300 backplate o-ring for FloPro FHPM and VS-FHP series pumps Jandy Backplate O-Ring for FHPM and VS-FHP Series Pumps, R0480300$2299 Jandy R0327301 2 in. by 2 in. tailpiece O-ring and union nut kit, set of two Jandy 2" x 2" Tailpiece O-Ring and Union Nut Kit, Set of 2, R0327301$4899 Jandy R0480200 lid O-ring for FloPro pool pumps Jandy FloPro Lid O-Ring, FHP, R0480200$2099 Jandy R0449200 tail piece O-ring for MaxHP, PlusHP and WaterFeature pumps Jandy Tail Piece O-Ring, R0449200$2199 Jandy R0546400 FloPro large base spacer Jandy FloPro Base Spacer, Large, R0546400$4299 Jandy R0515400 reverse thread impeller screw with O-ring Jandy Impeller Screw with O-Ring, R0515400$1699 Jandy R0622000 Pro Series diffuser o-ring Jandy Pro Series Diffuser O-Ring, R0622000$1599 Jandy R0446101 2 inch by 2.5 inch pump union tail piece Jandy 2" x 2.5" Pump Unions, 0.75 HP to 2.5 HP, R0446101$5599 Jandy R0479701 Flo Pro FHPM pump diffuser with o-ring and screw Jandy Diffuser with O-Ring & Screw FHPM 1.5-2.5 HP, R0479701$5599

Product details

The Jandy R0479400 is the Pro Series mechanical shaft seal, a carbon and ceramic pair with a 5/8 in. inside diameter on the ceramic. It is the genuine Jandy part for Stealth SHPF and SHPM pumps from serial number P08FF0001 onward, for the Zodiac Jandy ePump JEP variable speed pumps, and for the Flo Pro FHPM and VS-FHP variable speed models.

5/8 in. or 13/16 in.

Stealth pumps changed shafts partway through production. Revision N and earlier impellers sat on a double stepped shaft and need a seal with a 13/16 in. inside diameter on the ceramic. Revision P and later have no step where the impeller mounts, and those pumps take this 5/8 in. seal. Check the revision or measure the shaft before ordering.

When to replace it

The shaft seal is what keeps pool water out of the motor. Replace it every time the impeller comes off, and any time water weeps from the joint between the pump body and the motor. It is a small part that saves a motor.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

5 Key 5 on the Jandy Stealth PumpFits every model in the drawing.See it on the diagramAll Jandy Stealth, PlusHP & FloPro Pump Parts 47 parts and the drawing
Specifications
Brand Jandy
Manufacturer part number R0479400
UPC 052337033152
Type Mechanical shaft seal, carbon and ceramic
Inside diameter 5/8 in. on the ceramic
Fits Jandy Stealth SHPF and SHPM, serial number P08FF0001 and up
Also fits Jandy ePump JEP variable speed, Flo Pro FHPM and VS-FHP
Not for Stealth revision N and lower, which take the 13/16 in. seal
Part type Pool pump part
Shipping weight 0.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$84099 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

How do I know whether my Stealth takes the 5/8 in. or the 13/16 in. seal?
Look at the motor shaft where the impeller mounts. Revision P and higher have no step on the shaft and take this 5/8 in. seal. Revision N and lower have a double stepped shaft and take the 13/16 in. seal, sold separately. Stealth pumps from serial number P08FF0001 onward use this one.
Which pumps does it fit?
Jandy Stealth SHPF and SHPM pumps from serial P08FF0001, the Zodiac Jandy ePump JEP variable speed, and the Flo Pro FHPM and VS-FHP variable speed pumps.
When should the shaft seal be replaced?
Any time the impeller is removed or replaced, and whenever water drips from between the pump body and the motor. A worn seal lets water reach the motor bearings.
Is this the carbon and ceramic style?

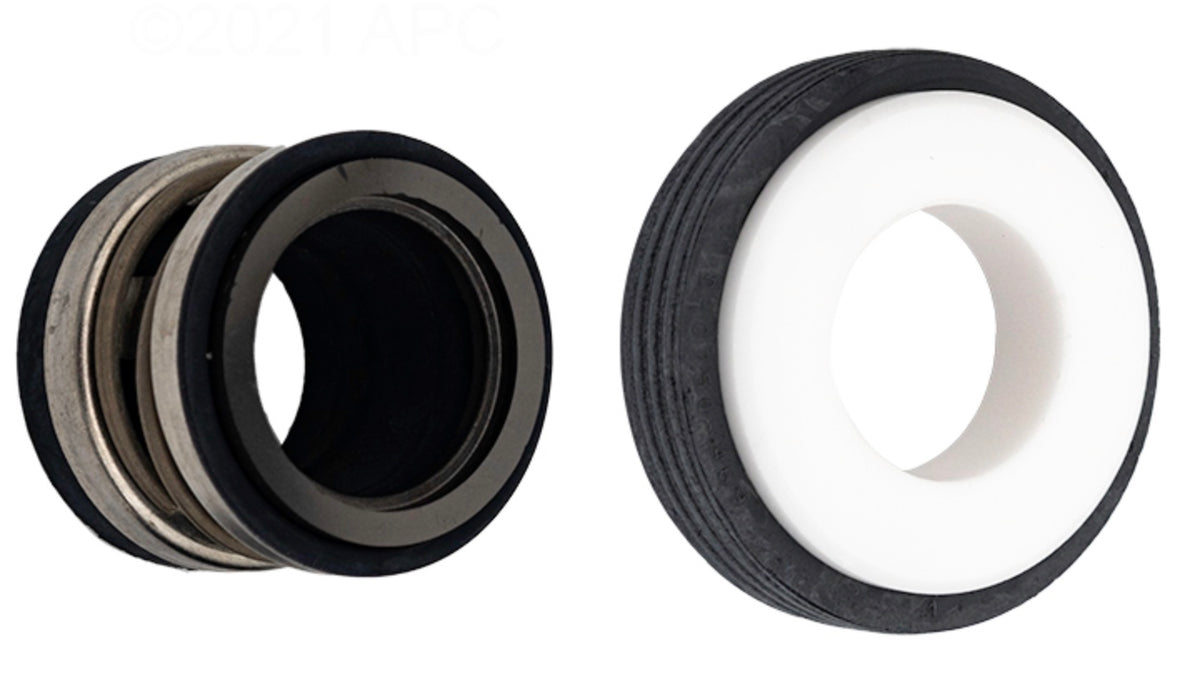

Yes. One half is carbon, the other is ceramic, and the ceramic half has the 5/8 in. inside diameter.
Ask your own question
