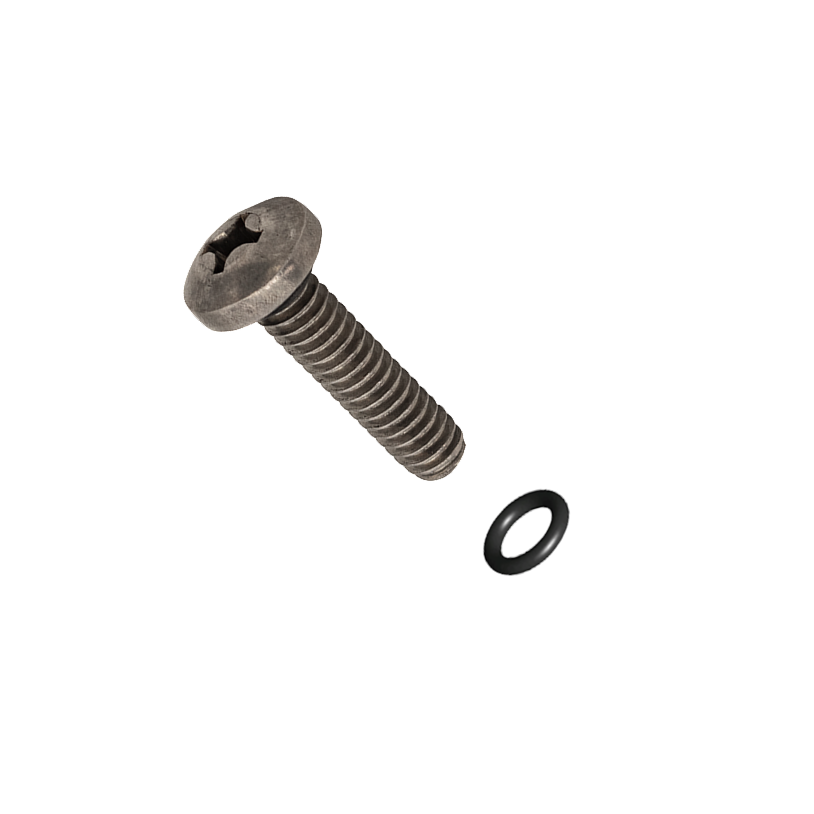

Jandy R0515400 reverse thread impeller screw with O-ringJandy Impeller Screw with O-Ring, R0515400 In stock$1699
Jandy R0515400 reverse thread impeller screw with O-ring
Shop all Jandy

Jandy Impeller Screw with O-Ring, R0515400

Ask a questionMPN R0515400
$1699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Reverse thread The screw is reverse threaded to Jandy specification, so it tightens against the direction the impeller turns.
  • O-ring included One screw and one O-ring, so the seal is replaced at the same time as the fastener.
  • Fits a wide Jandy range Used across ePump, FloPro, Stealth, PlusHP, WaterFall and WaterFeature pumps.
  • Correct size 1/4 inch by 20 thread, one inch long.
  • Corrosion resistant Made to stand up to pool water and chemical exposure.
  • Genuine Jandy Factory part R0515400 rather than a hardware store screw.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Impeller Screw with O-Ring, R0515400, SKU TLD-101-2047. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Impeller Screw with O-Ring, R0515400
Jandy

Impeller Screw with O-Ring, R0515400

$1699
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$12099
Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800
Jandy

Pump Housing Body for FHPM FloPro & VS FloPro, R0479800

$25699
Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000
Jandy

2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000

$5099
Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601
Jandy

Pump Body for Stealth SHPF/SHPM Pumps, R0445601

$39399
Jandy Mechanical Seal, 5/8" ID, R0479400
Jandy

Mechanical Seal, 5/8" ID, R0479400

$3599
Subtotal

Similar products

Other products people compare with this one.

Jandy R0446000 drain plug with o-ring, set of 2 Jandy Drain Plug with O-Ring (Set of 2), R0446000$2099 Jandy R0449100 pump lid seal gasket with o-ring Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999 Jandy R0446300 pump backplate o-ring Jandy O-Ring, Backplate, R0446300$1999 Jandy R0479000 blue pressure O-ring for Stealth, WaterFall and ePump pumps Jandy Blue Pressure O-Ring, R0479000$2499 Jandy R0480300 backplate o-ring for FloPro FHPM and VS-FHP series pumps Jandy Backplate O-Ring for FHPM and VS-FHP Series Pumps, R0480300$2399 Jandy R0480200 lid O-ring for FloPro pool pumps Jandy FloPro Lid O-Ring, FHP, R0480200$2099 Jandy R0449200 tail piece O-ring for MaxHP, PlusHP and WaterFeature pumps Jandy Tail Piece O-Ring, R0449200$2299 Jandy R0622000 Pro Series diffuser o-ring Jandy Pro Series Diffuser O-Ring, R0622000$1699 Generic 5/8 inch inside diameter carbon and ceramic mechanical shaft seal for Jandy pumps U.S. Seal Mechanical Seal, 5/8" ID (Generic), PS-4231-OS$1999 Jandy R0479603 1.5 HP impeller with o-ring and screw for the FloPro FHPM pump Jandy 1.5 HP Impeller with O-Ring and Screw, FHPM, R0479603$5999
Jandy R0479602 1 HP pump impeller with o-ring and screw Jandy 1 HP Impeller with O-Ring and Screw, R0479602$5999 Jandy R0479605 2-1/2 HP FloPro impeller with screw and back-up plate O-ring Jandy 2-1/2 HP Impeller with Screw and Back-Up Plate O-Ring, R0479605$5999 Jandy R0807201 1.5 HP impeller kit with screw and o-ring Jandy 1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201$6099 Jandy R0807205 3 HP SHP impeller kit with screw and o-ring Jandy 3 HP SHP Impeller Kit with Screw and O-Ring, R0807205$6099 Jandy R0807203 0.75 HP impeller kit for Stealth and PlusHP pumps Jandy .75 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807203$6299 Jandy R0479701 Flo Pro FHPM pump diffuser with o-ring and screw Jandy Diffuser with O-Ring & Screw FHPM 1.5-2.5 HP, R0479701$5699 Jandy R0479702 diffuser with O-ring and screw Jandy Diffuser with O-Ring and Screw, R0479702$5699 Jandy R0446500 diffuser and impeller hardware O-ring kit Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3899 Jandy R0480000 clear pump lid with locking ring for FloPro pumps Jandy Lid with Lock Ring, R0480000$7223 Jandy R0445400 diffuser kit with o-rings, screws and washers for 0.5 to 3 HP pumps Jandy 0.5 HP to 3 HP Diffuser with O-Ring and Hardware, R0445400$8199

Product details

The Jandy R0515400 is the impeller screw with O-ring used across most of the Jandy pump line. It is a 1/4 inch by 20 screw, one inch long, with a reverse thread, and it ships with the O-ring that seals it.

Why the reverse thread matters

The impeller turns constantly while the pump runs. A conventional right hand thread in that position tends to back itself off, so Jandy specifies a left hand, reverse thread screw. That is the single reason a similar looking fastener from a hardware bin is not a substitute, and it is also why the screw comes off the opposite way to what most people expect.

When you need it

Anyone pulling an impeller for a seal change, a clog or a wear inspection is handling this screw, and it is common for the head to be chewed or the O-ring to be flattened by the time it comes out. Replacing both while the pump is open is cheap insurance against a leak path at the impeller.

Fitment

The screw covers the ePump and ePump Pro variable speed pumps, the FloPro and VS FloPro families, FloPro FHPM, WaterFall SWF, WaterFeature WFTR, Stealth SHPF and SHPM, and PlusHP PHPF and PHPM.

Specifications
Brand Jandy
Manufacturer part number R0515400
UPC 052337052030
Part type Pool pump part
Type Impeller screw with O-ring
Thread size 1/4 inch - 20
Length 1 inch
Thread type Reverse
Included 1 screw and 1 O-ring
Fits Jandy ePump Pro Series 2.2, 2.7 and 3.8 HP VS with 2-Aux Relays (2020 to present); ePump Variable Speed (2008 to present); ePump + SVRS Variable Speed (2013 to present); FloPro 0.85 HP VS (2013 to present); FloPro 1.65 HP VS (2013 to 2021); FloPro 2.7 HP VS (2011 to 2021); FloPro FHPM Series (2008 to present); VS FloPro 2-Aux Relay (2019 to present); WaterFall SWF Series; WaterFeature WFTR; Stealth SHPF/SHPM Series; PlusHP PHPF/PHPM Series
Shipping weight 0.03 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

Why is the thread reversed?
The impeller spins in one direction and a standard thread would work itself loose. Jandy specifies a reverse thread here, which is why a hardware store screw is not a substitute.
Does the O-ring come with it?
Yes. The part is supplied as one screw and one O-ring.
What size is the screw?
1/4 inch by 20 thread, one inch long, with a reverse thread.
Which Jandy pumps does it fit?
A broad range, including the ePump and ePump Pro variable speed pumps, FloPro and VS FloPro, FloPro FHPM, WaterFall SWF, WaterFeature WFTR, Stealth SHPF and SHPM, and PlusHP PHPF and PHPM.
Ask your own question
