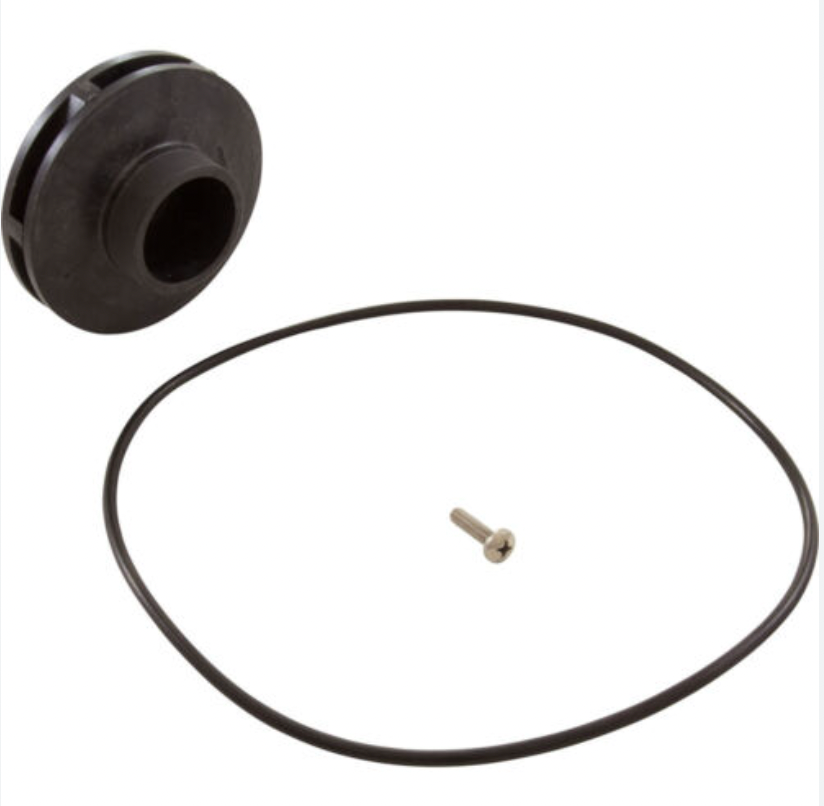

Jandy R0807201 1.5 HP impeller kit with screw and o-ringJandy 1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201 In stock$5999
Jandy R0807201 1.5 HP impeller kit with screw and o-ring
Shop all Jandy

Jandy 1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201

Ask a questionMPN R0807201
$5999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete kit The 1.5 HP impeller arrives with its screw and o-ring, the two small parts that are easiest to lose or damage during the swap.
  • Horsepower specific Built for the 1.5 HP wet end, so the impeller has to match the horsepower of the pump it goes into.
  • Three pump families Covers the Stealth series SHPF and SHPM, the PlusHP series PHPF and PHPM, and the ePump variable speed range.
  • ePump models listed JEP1.5, JEP2.0, VSSHP220 and VSSHP270 all take this 1.5 HP impeller kit.
  • Restores flow A worn or packed impeller shows up as weak returns and lazy skimming well before the pump itself gives up.
  • Genuine Jandy Zodiac Pool Systems factory part R0807201, not an aftermarket casting.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy 1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201, SKU JDY-101-1006. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy 1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201
Jandy

1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201

$5999
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$11799
Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800
Jandy

Pump Housing Body for FHPM FloPro & VS FloPro, R0479800

$24999
Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000
Jandy

2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000

$4999
Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601
Jandy

Pump Body for Stealth SHPF/SHPM Pumps, R0445601

$38199
Jandy Mechanical Seal, 5/8" ID, R0479400
Jandy

Mechanical Seal, 5/8" ID, R0479400

$3499
Subtotal

Similar products

Other products people compare with this one.

Jandy R0807203 0.75 HP impeller kit for Stealth and PlusHP pumps Jandy .75 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807203$6099 Jandy R0807205 3 HP SHP impeller kit with screw and o-ring Jandy 3 HP SHP Impeller Kit with Screw and O-Ring, R0807205$5899 Jandy R0479603 1.5 HP impeller with o-ring and screw for the FloPro FHPM pump Jandy 1.5 HP Impeller with O-Ring and Screw, FHPM, R0479603$5899 Jandy R0807200 impeller kit for SHP Stealth and PHP pumps Jandy SHP Stealth and PHP Impeller Kit, 2 HP Full Rated, R0807200$5999 Jandy R0479602 1 HP pump impeller with o-ring and screw Jandy 1 HP Impeller with O-Ring and Screw, R0479602$5899 Jandy R0479605 2-1/2 HP FloPro impeller with screw and back-up plate O-ring Jandy 2-1/2 HP Impeller with Screw and Back-Up Plate O-Ring, R0479605$5899 Jandy R0446500 diffuser and impeller hardware O-ring kit Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3799 Jandy R0479702 diffuser with O-ring and screw Jandy Diffuser with O-Ring and Screw, R0479702$5599 Jandy R0445400 diffuser kit with o-rings, screws and washers for 0.5 to 3 HP pumps Jandy 0.5 HP to 3 HP Diffuser with O-Ring and Hardware, R0445400$7899 Jandy R0479701 Flo Pro FHPM pump diffuser with o-ring and screw Jandy Diffuser with O-Ring & Screw FHPM 1.5-2.5 HP, R0479701$5599
Jandy R0327301 2 in. by 2 in. tailpiece O-ring and union nut kit, set of two Jandy 2" x 2" Tailpiece O-Ring and Union Nut Kit, Set of 2, R0327301$4899 Jandy R0807202 impeller kit for Stealth and PlusHP pool pumps Jandy Impeller Kit for Stealth SHPF/SHPM and PlusHP PHPF/PHPM Pumps, R0807202$6199 Jandy R0480000 clear pump lid with locking ring for FloPro pumps Jandy Lid with Lock Ring, R0480000$8899 SuperPro GOKIT82V-9 Viton gasket and o-ring kit for Jandy SHPF and SHPM Stealth pumps SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$4999 Jandy R0479604 FHPF 2 HP impeller with screw and o-ring Jandy FHPF 2 HP Impeller Kit, R0479604$5899 Jandy R0446200 lid seal o-ring for Stealth and ePump pool pumps Jandy Lid Seal, R0446200$3299 Jandy R0480100 pump strainer basket for FloPro FHPM and FHP series pumps Jandy Pump Basket for FHPM/FHP Series Pumps, R0480100$3099 Jandy R0445500 mechanical shaft seal, 13/16 in. ID, shown with both seal sizes for illustration Jandy Mechanical Shaft Seal, 13/16" ID, R0445500$3399 Jandy R0448900 pump filter basket for PlusHP, MaxHP and WaterFeature pumps Jandy Filter Basket for PHPF/PHPM/MHPM Series Pumps, R0448900$3099 Jandy R0446101 2 inch by 2.5 inch pump union tail piece Jandy 2" x 2.5" Pump Unions, 0.75 HP to 2.5 HP, R0446101$5599

Product details

This is the Jandy R0807201 impeller kit for 1.5 HP pumps, supplied with the impeller screw and the o-ring that seals it. It is the genuine Zodiac Pool Systems part.

What it fits

The kit covers three Jandy pump families at 1.5 HP: the ePump variable speed range, which includes JEP1.5, JEP2.0, VSSHP220 and VSSHP270, the Stealth series SHPF and SHPM, and the PlusHP series PHPF and PHPM. The impeller is matched to horsepower rather than to a single model, so confirm the horsepower of your wet end before ordering.

When to replace it

An impeller that is packed with debris or worn at the vanes still spins, so the pump sounds normal while the pool tells a different story: weak returns, slow skimming and low pressure at the filter with a clean basket. Pulling the wet end and fitting a fresh impeller restores the flow the pump was built to move.

The small parts matter

The screw and o-ring are included for a reason. Both are easy to distort or drop during removal, and reusing a flattened o-ring is a common cause of a rebuild that never quite primes.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

3 Key 3 on the Jandy Stealth PumpFor the SHPF1.5 (SHPF1.5), SHPM2.0 (SHPM2.0).See it on the diagramAll Jandy Stealth, PlusHP & FloPro Pump Parts 47 parts and the drawing
Specifications
Brand Jandy
Manufacturer part number R0807201
UPC 052337077767
Type Impeller kit with screw and o-ring
Horsepower 1.5
Series SHP Stealth, PHP PlusHP
Fits Jandy ePump variable speed pump JEP1.5, JEP2.0, VSSHP220, VSSHP270; Stealth series pump SHPF, SHPM; PlusHP series pump PHPF, PHPM
Shipping weight 0.8 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this impeller kit fit?
The Jandy ePump variable speed models JEP1.5, JEP2.0, VSSHP220 and VSSHP270, the Stealth series SHPF and SHPM, and the PlusHP series PHPF and PHPM.
Does the kit include the screw and o-ring?
Yes. The impeller comes with the impeller screw and the o-ring, so you are not hunting for the small parts mid job.
Will a 1.5 HP impeller work in my 2.0 HP pump?
No. The impeller is matched to the horsepower of the wet end. Order the impeller that matches the horsepower of your pump.
How do I know the impeller is the problem?
Weak returns, poor skimming and low filter pressure with a clean basket and a full pot usually point at an impeller that is packed with debris or worn down.
