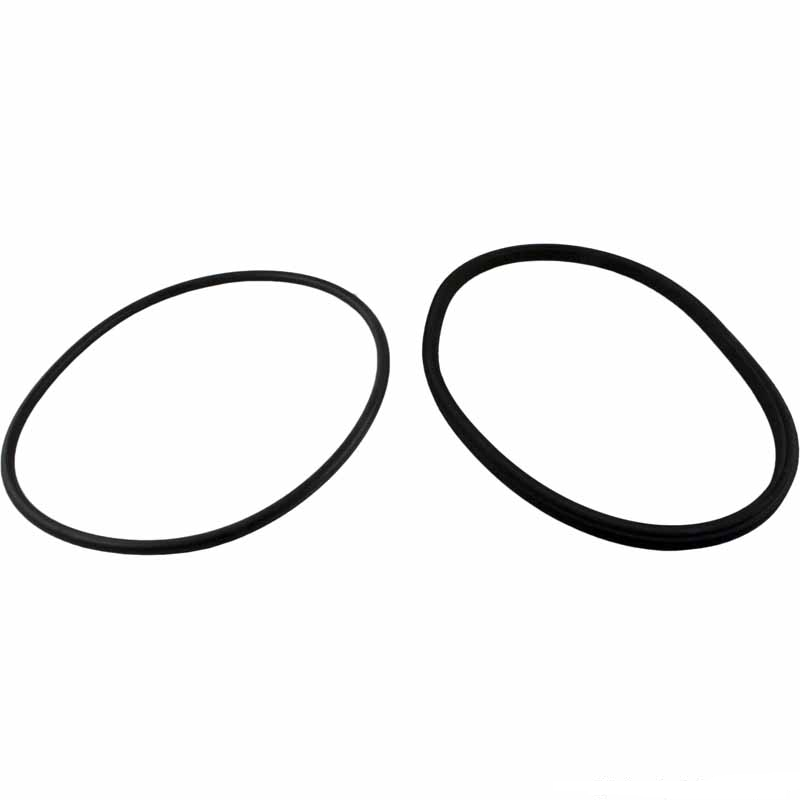

Jandy R0446200 lid seal o-ring for Stealth and ePump pool pumpsJandy Lid Seal, R0446200 In stock$3399
Jandy R0446200 lid seal o-ring for Stealth and ePump pool pumps
Shop all Jandy

Jandy Lid Seal, R0446200

Ask a questionMPN R0446200
$3399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two o-rings in the kit one standard round cross section o-ring and one square cross section o-ring, both the same size.
  • Size 8-1/2 in. outside diameter, 8 in. inside diameter.
  • Fits Jandy Stealth SHPF and SHPM series pumps.
  • Fits Jandy ePump JEP2.0 and JEP1.5 variable speed pumps.
  • Stops air leaks at the lid a hardened or flattened lid seal is the usual reason a Jandy pump loses prime or shows bubbles in the pot.
  • Genuine Jandy OEM part number R0446200.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Lid Seal, R0446200, SKU TLD-101-2019. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Lid Seal, R0446200
Jandy

Lid Seal, R0446200

$3399
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$12099
Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800
Jandy

Pump Housing Body for FHPM FloPro & VS FloPro, R0479800

$25699
Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000
Jandy

2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000

$5099
Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601
Jandy

Pump Body for Stealth SHPF/SHPM Pumps, R0445601

$39399
Jandy Mechanical Seal, 5/8" ID, R0479400
Jandy

Mechanical Seal, 5/8" ID, R0479400

$3599
Subtotal

Similar products

Other products people compare with this one.

Jandy R0449100 pump lid seal gasket with o-ring Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999 Jandy R0445500 mechanical shaft seal, 13/16 in. ID, shown with both seal sizes for illustration Jandy Mechanical Shaft Seal, 13/16" ID, R0445500$3499 Jandy R0480200 lid O-ring for FloPro pool pumps Jandy FloPro Lid O-Ring, FHP, R0480200$2099 Jandy R0480100 pump strainer basket for FloPro FHPM and FHP series pumps Jandy Pump Basket for FHPM/FHP Series Pumps, R0480100$3199 Jandy R0446000 drain plug with o-ring, set of 2 Jandy Drain Plug with O-Ring (Set of 2), R0446000$2099 Jandy R0448900 pump filter basket for PlusHP, MaxHP and WaterFeature pumps Jandy Filter Basket for PHPF/PHPM/MHPM Series Pumps, R0448900$3199 Jandy R0446300 pump backplate o-ring Jandy O-Ring, Backplate, R0446300$1999 Jandy R0479000 blue pressure O-ring for Stealth, WaterFall and ePump pumps Jandy Blue Pressure O-Ring, R0479000$2499 Jandy R0446500 diffuser and impeller hardware O-ring kit Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3899 Jandy R0480300 backplate o-ring for FloPro FHPM and VS-FHP series pumps Jandy Backplate O-Ring for FHPM and VS-FHP Series Pumps, R0480300$2399
Jandy R0327301 2 in. by 2 in. tailpiece O-ring and union nut kit, set of two Jandy 2" x 2" Tailpiece O-Ring and Union Nut Kit, Set of 2, R0327301$4999 Generic 5/8 inch inside diameter carbon and ceramic mechanical shaft seal for Jandy pumps U.S. Seal Mechanical Seal, 5/8" ID (Generic), PS-4231-OS$1999 Jandy R0449200 tail piece O-ring for MaxHP, PlusHP and WaterFeature pumps Jandy Tail Piece O-Ring, R0449200$2299 Jandy R0546400 FloPro large base spacer Jandy FloPro Base Spacer, Large, R0546400$4499 SuperPro GOKIT82V-9 Viton gasket and o-ring kit for Jandy SHPF and SHPM Stealth pumps SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$5099 Jandy R0480000 clear pump lid with locking ring for FloPro pumps Jandy Lid with Lock Ring, R0480000$7223 Jandy R0515400 reverse thread impeller screw with O-ring Jandy Impeller Screw with O-Ring, R0515400$1699 Jandy R0622000 Pro Series diffuser o-ring Jandy Pro Series Diffuser O-Ring, R0622000$1699 Jandy R0479701 Flo Pro FHPM pump diffuser with o-ring and screw Jandy Diffuser with O-Ring & Screw FHPM 1.5-2.5 HP, R0479701$5699 Jandy R0479702 diffuser with O-ring and screw Jandy Diffuser with O-Ring and Screw, R0479702$5699

Product details

The Jandy R0446200 is the genuine lid seal for the Stealth SHPF and SHPM series pumps and the ePump JEP2.0 and JEP1.5 variable speed pumps. It seals the clear strainer lid to the pump body, and it is the first thing to check when a Jandy pump starts pulling air.

Two o-rings, one kit

The kit contains two o-rings of the same size, 8-1/2 in. outside diameter and 8 in. inside diameter. One has a standard round cross section, the other a square cross section. Match the profile of the seal you removed and keep the other as a spare.

When to replace it

Bubbles in the strainer pot, slow priming or a pump that loses prime after it shuts off all point to air getting in at the lid. If the seal is flattened, cracked or stiff it will not hold. Clean the groove, fit the new seal with a light coat of silicone lubricant and hand tighten the lid.

Specifications
Brand Jandy
Manufacturer part number R0446200
UPC 052337021937
Type Pump lid seal kit
Included 2 o-rings: one standard circular cross section, one square cross section
Outside diameter 8-1/2 in.
Inside diameter 8 in.
Fits Jandy Stealth SHPF and SHPM series pumps, Jandy ePump JEP2.0 and JEP1.5 variable speed pumps
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

Why are there two o-rings?
Jandy supplies both profiles in the one kit: a standard round section o-ring and a square section o-ring. They are the same 8-1/2 in. by 8 in. size. Use the one that matches the profile that came out of your lid.
Which pumps does it fit?
The Jandy Stealth SHPF and SHPM series and the Jandy ePump JEP2.0 and JEP1.5 variable speed pumps.
How do I know the lid seal needs replacing?
Air bubbles in the strainer pot, a pump that struggles to prime or loses prime when it stops, or a seal that is flattened, cracked or no longer springs back. Lubricate the new seal with a silicone o-ring lubricant such as Magic Lube before fitting.
What size is it?
8-1/2 in. outside diameter and 8 in. inside diameter for both o-rings.
Ask your own question
