Polaris R0536300 front housing volute with o-ring for new style PB4-60 booster pumpsPolaris Front Housing Volute Cover with O-Ring, R0536300 In stock$7499
Polaris R0536300 front housing volute with o-ring for new style PB4-60 booster pumps
Shop all Polaris

Polaris Front Housing Volute Cover with O-Ring, R0536300

Ask a questionMPN R0536300
$7499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • New style PB4-60 Fits Polaris PB4-60 booster pumps made from 2011 to current, serial number PB120111001 onward.

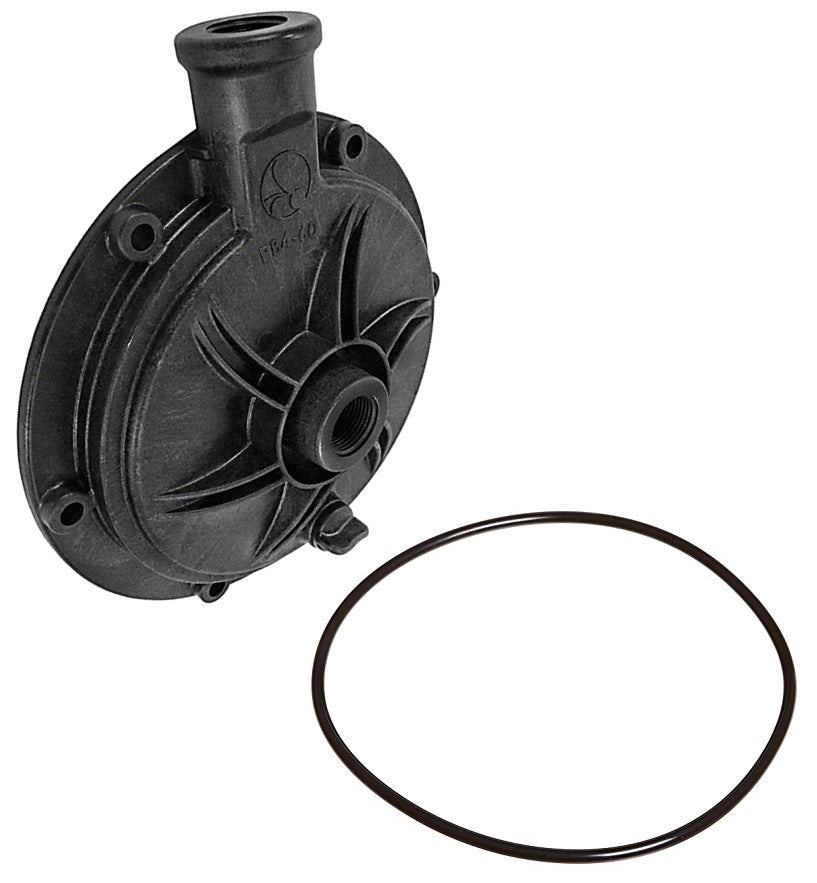

  • Drain plug and o-ring included The volute comes with its drain plug and o-ring, so it seals to the backplate out of the box.
  • Genuine Polaris Part number R0536300, the OEM housing for this pump.
  • Easy to identify Look at the ridges on your housing cover: curved means new style and this part fits, straight means old style.
  • Old style alternative Pumps with straight ridges take the P5 volute instead.
  • Common repair A cracked volute is a frequent cause of a booster pump spraying water, and the housing swaps without replacing the motor.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Polaris Front Housing Volute Cover with O-Ring, R0536300, SKU POL-101-5363. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Polaris Front Housing Volute Cover with O-Ring, R0536300
Polaris

Front Housing Volute Cover with O-Ring, R0536300

$7499
Aladdin GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump
Aladdin

GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump

$1699
Jandy Mechanical Shaft Seal, 13/16" ID, R0445500
Jandy

Mechanical Shaft Seal, 13/16" ID, R0445500

$3399
Polaris Genuine Replacement PB4-60 Booster Pump Impeller, R0536400
Polaris

Genuine Replacement PB4-60 Booster Pump Impeller, R0536400

$3499
Polaris Genuine OEM Booster Pump Impeller, Old Style PB4-60
Polaris

Genuine OEM Booster Pump Impeller, Old Style PB4-60

$4199
Polaris Quick Connect Install Kit for Booster Pumps, New Style, R0617100
Polaris

Quick Connect Install Kit for Booster Pumps, New Style, R0617100

$6299
Polaris Booster Pump Volute Assembly (PB4-60Q)
Polaris

Booster Pump Volute Assembly (PB4-60Q)

$7599
Subtotal

Similar products

Other products people compare with this one.

Polaris R0734300 PB4SQ o-ring set with drain plug kit Polaris PB4SQ O-Ring Set with Drain Plug Kit, R0734300$5499 Polaris R0536700 backplate for the new style PB4-60 booster pump Polaris Booster Pump Backplate, PB4-60 New Style, R0536700$7999 Polaris P19 six foot flexible reinforced pump hose for PB4-60 booster pump Polaris Genuine OEM 6' Pump Hose for PB4-60/PB4-60Q Booster Pump$4299 Polaris R0722800 PB4SQ booster pump impeller and diffuser kit Polaris R0722800 PB4SQ Boost Pump Impeller and Diffuser Kit$10199 Polaris R0537000 drain plug with o-ring for the PB4-60 booster pump Polaris Drain Plug with O-Ring for PB4-60, R0537000$1599 Polaris R0723100 PB4SQ booster pump housing body Polaris PB4SQ Booster Pump Housing Body, R0723100$12099 Polaris R0536600 new style backplate o-ring for PB4-60 booster pump Polaris PB4-60 Backplate O-Ring, New Style, R0536600$2499 Polaris P95 bracket o-ring for the PB4-60 booster pump Polaris PB4-60 Booster Pump Bracket O-Ring, P95$1799 Polaris O-299-9 bracket O-ring for the PB4-60 booster pump, also listed as P-95 Polaris Bracket O-Ring for PB4-60 Booster Pump, O-299-9$399 Polaris P40 genuine OEM shaft o-ring for the PB4-60 booster pump Polaris Genuine OEM O-Ring for Shaft, PB4-60 Booster Pump$399
Polaris R0747800 shaft seal for PB4SQ booster pump Polaris Genuine OEM Shaft Seal for PB4SQ Booster Pump, R0747800$3499 Polaris P55 OEM motor shaft seal for the PB4-60 booster pump Polaris Booster Pump OEM Shaft Seal$3399 Polaris P133 Softube quick connect adapter fitting, four pack Polaris Softube Quick Connect, 4 Pack, P133$3399 Polaris G133 genuine OEM hose barb and clamp for the PB4-60 booster pump Polaris Genuine OEM Hose Barb and Clamp, G133$1799 Polaris G16 3/4 in. NHTM x NPTM adapter fitting Polaris PB4-60 Booster Pump Adapter, 3/4 in. NHTM x NPTM, G16$1299

Product details

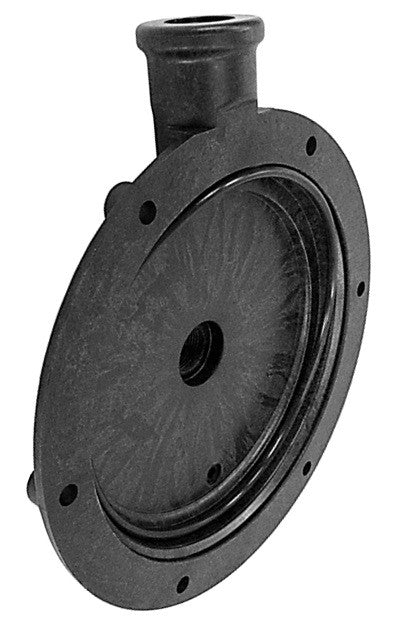

The Polaris R0536300 is the front housing volute for the new style PB4-60 booster pump. It ships with its drain plug and o-ring, so the housing goes back on the pump with a fresh seal.

Which PB4-60 do you have?

This volute fits PB4-60 pumps manufactured from 2011 to current, serial number PB120111001 and later. The quickest check is the housing cover: on the new style the ridges extending from the center hole are curved, on the old style they are straight. Straight ridges mean you need the P5 volute rather than this part.

What it fixes

A cracked or warped volute is one of the usual reasons a booster pump starts spraying water at the front. The housing comes off without disturbing the motor, and with the drain plug and o-ring already included there is nothing else to source for the housing itself.

While you are in there

If the pump has been leaking for a while, consider replacing the backplate o-ring and the 13/16 in. shaft seal at the same time. Both are separate parts.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

5 Key 5 on the Polaris PB4-60 Booster PumpFits every model in the drawing.See it on the diagramAll Polaris Booster Pump Parts 34 parts and the drawing
Specifications
Brand Polaris
Manufacturer part number R0536300
UPC 052337058513
Type Front housing volute
Fits Polaris PB4-60 booster pump, new style
Serial numbers PB120111001 and later
Model years 2011 to current
Included Drain plug and o-ring
Old style equivalent P5 volute
Shipping weight 1.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Polaris

Two women sitting at the edge of a pool with their feet in the water. Goodbye pool chores, hello swim time. Polaris

Polaris cleaners

Polaris 280 Pressure Side Automatic Pool Cleaner Polaris 3900 Sport Automatic Pool Cleaner Polaris 9550 4WD Sport Robotic Pool Cleaner with Remote, F9550 Polaris 3/4 HP Booster Pump, Complete, PB4-60
Shop Polaris cleaners

Genuine Polaris parts

Polaris Genuine OEM Tail Sweep Hose Scrubber, 9-100-3105 Polaris Genuine OEM 180/280 Factory Tune-up Kit Polaris Genuine OEM Back-up Valve, Complete, White (180, 280, 380, 3900) Polaris Genuine OEM 3900 All-Purpose Dual-Chamber Zippered SuperBag, 39-310
Shop Polaris parts
Robotic cleaners: a Polaris Freedom cordless robotic cleaner on a pool deckPressure cleaners: a Polaris 280 pressure side cleaner
Polaris makes pressure side, suction and robotic pool cleaners, booster pumps and genuine replacement parts.Shop all Polaris

Customer reviews

More from Polaris

Polaris Unibridge 5820 main drain cover bridge in white Polaris Unibridge Main Drain Cover, White, 5820$10699 Polaris 9-100-3105 tail sweep hose scrubber Polaris Genuine OEM Tail Sweep Hose Scrubber, 9-100-3105$799 Polaris 48-070 complete 31 ft feed hose assembly with backup valve and in-line filter Polaris Genuine OEM Complete 31-Foot Feed Hose with Backup Valve and In-Line Filter, 48-070$28999 Polaris 39-310 all purpose dual chamber zippered SuperBag for the 3900 Sport Polaris Genuine OEM 3900 All-Purpose Dual-Chamber Zippered SuperBag, 39-310$6199 Polaris 280 pressure side automatic pool cleaner, complete Polaris 280 Pressure Side Automatic Pool Cleaner$59900 Web Price Polaris A49 factory tune up kit for 180 and 280 pressure side pool cleaners Polaris Genuine OEM 180/280 Factory Tune-up Kit$34099 Polaris 3900 Sport F6 pressure side automatic pool cleaner Polaris 3900 Sport Automatic Pool Cleaner$99599 Polaris C10 MaxTrax tire for 180, 280, 360 and 380 pressure cleaners Polaris Genuine OEM Tire, MaxTrax (180/280/380/360)$2199 Polaris G52 complete back-up valve, white, for 180, 280, 380 and 3900 Sport cleaners Polaris Genuine OEM Back-up Valve, Complete, White (180, 280, 380, 3900)$11299 Polaris C11 genuine black tire for 180, 280, 360 and 380 pool cleaners Polaris Genuine OEM Tire, Black$2299
Polaris 9-100-3100 Polaris 360 feed hose complete, corrugated hose with swivels and floats Polaris 360 Feed Hose Complete, Genuine OEM, 9-100-3100$24699 Polaris R0912100 K13 all purpose zipper debris bag with tail scrubber for the Polaris 280 cleaner Polaris All Purpose Zipper Bag K13 with Tail Scrubber for 280 Pool Cleaner, R0912100$3699 Polaris R0765500 replacement brush for the 7000 above ground pool cleaner Polaris Brush for 7000 Above Ground Cleaner, R0765500$5799 Polaris 9-100-1005 complete internal frame for 360 and 380 pressure side cleaners Polaris Genuine OEM Frame Complete (360/380), 9-100-1005$11099 Polaris 9-100-3102 genuine 6 ft cuffless feed hose for the Polaris 360 pool cleaner Polaris 360 Pool Cleaner Feed Hose, Genuine OEM 6 Ft Replacement Hose 9-100-3102, No Cuffs$3499 Polaris R0765400 7240 Sport replacement brush Polaris Genuine OEM 7240 Sport Brush, R0765400$5699 Polaris R0897800 fine filter canister for Epic and EVO robotic cleaners Polaris Epic 8520 Fine Filter Canister, R0897800$7799 Polaris 9-100-9010 factory tune-up kit for the 380 and 360 pressure cleaners Polaris Genuine OEM 380/360 Factory Tune-Up Kit, 9-100-9010$22099 Polaris D20 genuine hose swivel for 180, 280, 380, 3900 and 480 Pro cleaners Polaris Genuine OEM Hose Swivel for 380/280/180 Pool Cleaners$2599 Polaris C60 genuine wheel ball bearing for 280 and 180 pressure cleaners Polaris Genuine OEM Wheel Ball Bearing (280/180)$1999

Questions and answers

What people ask about this product, answered by our pool techs.

How do I know whether I have the new style or old style PB4-60?
Look at the housing cover. The ridges radiating from the center hole are curved on the new style and straight on the old style. Curved ridges, or a serial number of PB120111001 or later, mean this R0536300 volute is the right one.
Does the o-ring come with it?
Yes. The volute includes the drain plug and the o-ring.
What if my pump is the old style?
Old style PB4-60 pumps, built before 2011 with straight ridges on the cover, use the P5 volute instead.
Do I need anything else for the repair?
If the pump has been apart or leaking, it is worth having the PB4-60 backplate o-ring and the 13/16 in. shaft seal on hand, both sold separately.
Ask your own question
