Jandy R0445200 pump back plate kit with shaft seal, o-ring and hardwareJandy Back Plate Kit, R0445200 In stock$18399

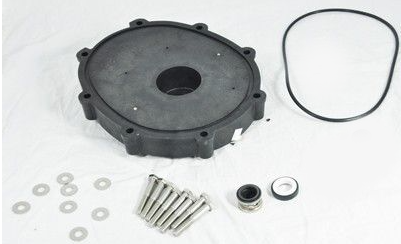

Jandy R0445200 pump back plate kit with shaft seal, o-ring and hardware
Shop all Jandy

Jandy Back Plate Kit, R0445200

Ask a questionMPN R0445200
$18399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Everything for the rebuild back plate, carbon seal half, ceramic seal half, o-ring, and 8 bolts with washers.
  • Shaft seal included the kit ships with the R0479400 mechanical seal, so there is no separate seal to order.
  • Fits the Jandy pump family Stealth SHPF and SHPM, PlusHP PHPM and PHPF, MaxHP MHPM, WaterFeature WFTR and ePump JEP.
  • Genuine Jandy OEM R0445200, UPC 052337021760.
  • Fresh seal seat a new back plate gives the shaft seal a flat, unpitted surface to seal against.
  • New fasteners eight bolts and washers, so corroded originals do not have to go back in.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Back Plate Kit, R0445200, SKU TLD-101-2030. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Back Plate Kit, R0445200
Jandy

Back Plate Kit, R0445200

$18399
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$11799
Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800
Jandy

Pump Housing Body for FHPM FloPro & VS FloPro, R0479800

$24999
Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000
Jandy

2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000

$4999
Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601
Jandy

Pump Body for Stealth SHPF/SHPM Pumps, R0445601

$38199
Jandy Mechanical Seal, 5/8" ID, R0479400
Jandy

Mechanical Seal, 5/8" ID, R0479400

$3499
Subtotal

Similar products

Other products people compare with this one.

Jandy R0479500 FloPro pump backplate kit Jandy FHP Flo Pro Backplate Kit, R0479500$10399 Jandy R0479605 2-1/2 HP FloPro impeller with screw and back-up plate O-ring Jandy 2-1/2 HP Impeller with Screw and Back-Up Plate O-Ring, R0479605$5899 Jandy R0807202 impeller kit for Stealth and PlusHP pool pumps Jandy Impeller Kit for Stealth SHPF/SHPM and PlusHP PHPF/PHPM Pumps, R0807202$6099 Jandy R0807203 0.75 HP impeller kit for Stealth and PlusHP pumps Jandy .75 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807203$6099 Jandy R0807201 1.5 HP impeller kit with screw and o-ring Jandy 1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201$5999 Jandy R0807200 impeller kit for SHP Stealth and PHP pumps Jandy SHP Stealth and PHP Impeller Kit, 2 HP Full Rated, R0807200$5899 Jandy R0479604 FHPF 2 HP impeller with screw and o-ring Jandy FHPF 2 HP Impeller Kit, R0479604$5899 Jandy R0807205 3 HP SHP impeller kit with screw and o-ring Jandy 3 HP SHP Impeller Kit with Screw and O-Ring, R0807205$5899 SuperPro GOKIT82V-9 Viton gasket and o-ring kit for Jandy SHPF and SHPM Stealth pumps SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$4999 Jandy R0327301 2 in. by 2 in. tailpiece O-ring and union nut kit, set of two Jandy 2" x 2" Tailpiece O-Ring and Union Nut Kit, Set of 2, R0327301$4899
Jandy R0446500 diffuser and impeller hardware O-ring kit Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3799 Jandy R0480000 clear pump lid with locking ring for FloPro pumps Jandy Lid with Lock Ring, R0480000$8899 Jandy R0445400 diffuser kit with o-rings, screws and washers for 0.5 to 3 HP pumps Jandy 0.5 HP to 3 HP Diffuser with O-Ring and Hardware, R0445400$7899 Jandy R0479603 1.5 HP impeller with o-ring and screw for the FloPro FHPM pump Jandy 1.5 HP Impeller with O-Ring and Screw, FHPM, R0479603$5899 Jandy R0479602 1 HP pump impeller with o-ring and screw Jandy 1 HP Impeller with O-Ring and Screw, R0479602$5899 Jandy R0446102 pump union, 2-1/2 inch slip by 3 inch spigot Jandy 2-1/2" Slip x 3" Spigot Pump Unions, 3 HP, R0446102$5699 Jandy R0446101 2 inch by 2.5 inch pump union tail piece Jandy 2" x 2.5" Pump Unions, 0.75 HP to 2.5 HP, R0446101$5599 Jandy R0479701 Flo Pro FHPM pump diffuser with o-ring and screw Jandy Diffuser with O-Ring & Screw FHPM 1.5-2.5 HP, R0479701$5599 Jandy R0479702 diffuser with O-ring and screw Jandy Diffuser with O-Ring and Screw, R0479702$5599 Jandy R0546400 FloPro large base spacer Jandy FloPro Base Spacer, Large, R0546400$4299

Product details

The Jandy R0445200 back plate kit is the genuine Jandy rebuild kit for the seal end of the Stealth, PlusHP, MaxHP, WaterFeature and ePump pumps. It puts a new back plate, a new mechanical seal and new hardware in one box.

In the box

One back plate, one carbon seal half and one ceramic seal half making up the R0479400 mechanical seal, one o-ring, and eight bolts with washers.

Why replace the plate with the seal

The ceramic half of the shaft seal seats in the back plate. If the plate is scored, pitted or cracked, a new seal will not hold for long. Replacing both at once, with fresh bolts instead of corroded originals, is the reliable way to stop a pump that leaks between the body and the motor.

Fits

Jandy Stealth SHPF and SHPM, PlusHP PHPM and PHPF, MaxHP MHPM, WaterFeature WFTR and the ePump JEP1.5 and JEP2.0 variable speed pumps.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

2 Key 2 on the Jandy Stealth PumpFor the SHPF0.5 (SHPF0.5), SHPF0.75 (SHPF0.75), SHPF1.0 (SHPF1.0), SHPF1.5 (SHPF1.5), SHPF2.0 (SHPF2.0), SHPF3.0 (SHPF3.0), SHPM0.75 (SHPM0.75), SHPM1.0 (SHPM1.0), SHPM1.5 (SHPM1.5), SHPM2.0 (SHPM2.0), SHPM2.5 (SHPM2.5).See it on the diagramAll Jandy Stealth, PlusHP & FloPro Pump Parts 47 parts and the drawing
Specifications
Brand Jandy
Manufacturer part number R0445200
UPC 052337021760
Type Pump back plate kit
Included 1 back plate, 1 mechanical seal carbon, 1 mechanical seal ceramic, 1 o-ring, 8 bolts and washers
Shaft seal R0479400
Fits Jandy Stealth SHPF and SHPM, PlusHP PHPM and PHPF, MaxHP MHPM, WaterFeature WFTR, ePump JEP1.5 and JEP2.0
Part type Pool pump part
Shipping weight 5.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$84099 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

Does the kit include the shaft seal?
Yes. Both halves of the mechanical seal, carbon and ceramic, are in the box, along with the o-ring.
Which pumps does it fit?
Jandy Stealth SHPF and SHPM, PlusHP PHPM and PHPF, MaxHP MHPM, WaterFeature WFTR and the ePump JEP variable speed pumps.
How many bolts come with it?
Eight bolts with washers, enough to replace the full set that holds the back plate to the pump body.
Do I need to buy a new o-ring separately?
No. The back plate o-ring is included in the kit.
