Jandy R0357400 tank clamp ring with rod assembly for CV, CL, DEV and DEL filtersJandy Tank Clamp Ring with Rod Assembly, R0357400 In stock$33999
Jandy R0357400 tank clamp ring with rod assembly for CV, CL, DEV and DEL filters
Shop all Jandy

Jandy Tank Clamp Ring with Rod Assembly, R0357400

Ask a questionMPN R0357400
$33999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy R0357400 is the Zodiac Jandy factory clamp ring for these filters.
  • Fits ten filter models CV340, CV460 and CV580 cartridge filters, CL340, CL460 and CL580, and DEV48, DEV60, DEL48 and DEL60 DE filters.
  • Ring, rod and knob Comes as the complete assembly, with the tightening rod and knob already on the ring.
  • Holds the tank together The clamp ring is what seals the top of the tank to the bottom under pressure.
  • Easy to open and close The knob tightens and releases the ring by hand for cartridge and grid cleaning.
  • About 23.5 in. across Approximate dimensions 23.5 in. by 23.5 in. by 2.25 in. deep.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Tank Clamp Ring with Rod Assembly, R0357400, SKU TLD-051-5039. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Tank Clamp Ring with Rod Assembly, R0357400
Jandy

Tank Clamp Ring with Rod Assembly, R0357400

$33999
Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Jandy

Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500

$69499
Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200
Jandy

Genuine Replacement Gauge with Air Release Assembly, R0357200

$8299
Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80
Jandy

2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80

$32799
Jandy CV Series Cartridge Filter Tank Top R0554700
Jandy

CV Series Cartridge Filter Tank Top R0554700

$53899
Jandy Top Housing Assembly CS100, CS150, R0461900
Jandy

Top Housing Assembly CS100, CS150, R0461900

$33699
Jandy Tank Body O-Ring, R0357800
Jandy

Tank Body O-Ring, R0357800

$6399
Subtotal

Similar products

Other products people compare with this one.

Jandy R0462900 bottom housing assembly for CS Series cartridge filters Jandy Bottom Housing Assembly for CS Series Cartridge Filters, R0462900$45499 Jandy R0462000 top housing assembly for CS200 and CS250 cartridge filters Jandy Top Housing Assembly CS200, CS250, R0462000$43599 Jandy R0465600 bulkhead assembly with o-ring for CV, CL, DEV and DEL filters Jandy Bulkhead Assembly with O-Ring for CV, CL, DEL and DEV Filters, R0465600$8399 Jandy R0358800 drain plug with O-ring for DEL series filters Jandy Drain Plug with O-Ring for DEL48/60 Filters, R0358800$7199 Jandy R0465400 tank bottom assembly for CV340, CV460 and CV580 cartridge filters Jandy Tank Bottom Assembly for CV340/460/580 Filters, R0465400$69999 Jandy R0357600 manifold assembly for CL and CV series cartridge filters Jandy Manifold Assembly CL / CV Series Cartridge Filters, R0357600$15199 Jandy R0357300 tank top for CL580 and DEL60 filters Jandy Tank Top CL580/DEL60, R0357300$61999 Jandy R0462100 inlet diffuser with locking tab for CS Series cartridge filters Jandy Inlet Diffuser with Locking Tab for CS Series Cartridge Filters, R0462100$5199 Jandy SEFL1002 sweep elbow Flowlink with 1/2 inch plug Jandy Sweep Elbow Flowlink with Plug, SEFL1002$3699

Product details

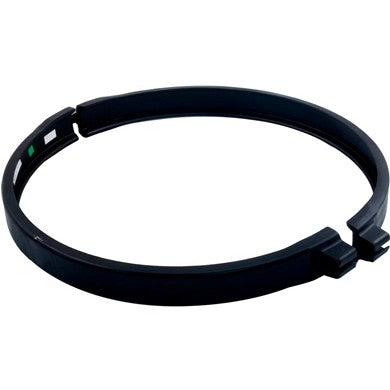

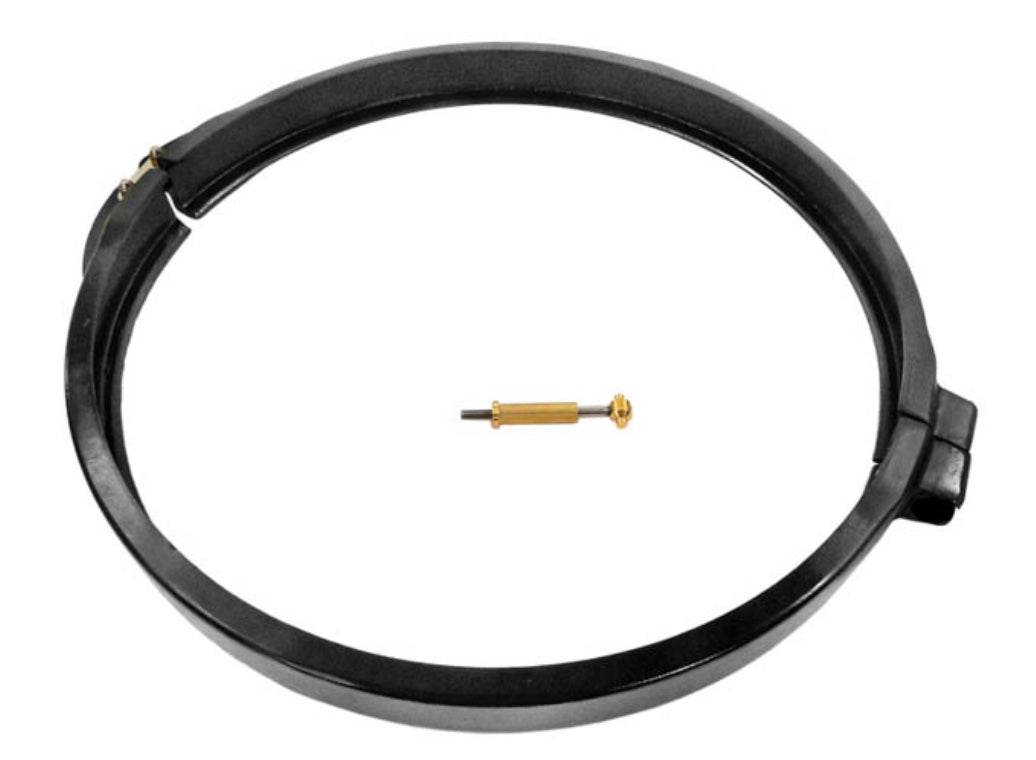

The Jandy R0357400 is the tank clamp ring with rod and knob assembly for the CV and CL series cartridge filters and the DEV and DEL series DE filters. It is the genuine Zodiac Jandy part, supplied as a complete assembly with the rod and knob already fitted.

What it does

The clamp ring wraps the seam between the top and bottom halves of the filter tank and holds them together under pressure. The knob on the rod tightens and releases the ring by hand, which is how you get into the tank to clean cartridges or grids. When the ring cracks, the rod strips or the knob breaks, the tank cannot be closed with confidence, and the whole assembly should be replaced.

Fit

It fits the CV340, CV460 and CV580, the CL340, CL460 and CL580, and the DEV48, DEV60, DEL48 and DEL60. The ring measures about 23.5 in. across and 2.25 in. deep.

Specifications
Brand Jandy
Manufacturer part number R0357400
UPC 052337017923
Part type Pool Filter Part
Also called Tank Clamp Ring with Knob Assembly
Fits Jandy CV340, CV460, CV580, CL340, CL460, CL580, DEV48, DEV60, DEL48, DEL60
Approximate dimensions 23.5" L x 23.5" W x 2.25" D
Shipping weight 9.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does this fit?
The Jandy CV340, CV460 and CV580 and CL340, CL460 and CL580 cartridge filters, and the DEV48, DEV60, DEL48 and DEL60 DE filters. They share the same tank split and the same clamp ring.
Does the knob come with it?
Yes. It is the full assembly: the ring, the tightening rod and the knob, ready to fit.
What does the clamp ring do?
It clamps the top half of the filter tank to the bottom half and holds that joint closed under operating pressure. A cracked ring, a stripped rod or a broken knob means the tank cannot be sealed safely, and the ring should be replaced rather than patched.
How big is it?
Roughly 23.5 in. by 23.5 in. and 2.25 in. deep. It is the ring that sits around the seam of the tank.
