Coverstar A1932 13 in. stainless steel adjustable walk-on lid bracket with mounting baseCoverstar 13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932 In stock$19499
Coverstar A1932 13 in. stainless steel adjustable walk-on lid bracket with mounting base
Shop all Coverstar

Coverstar 13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932

Ask a questionMPN A1932
$19499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Stainless steel throughout base and support arm are stainless, built to sit in a wet cover vault for years.
  • Adjustable height dial the arm in so the lid sits flush with the deck.
  • Carries heavy lids rated for aluminum, stone and concrete walk-on lids.
  • Bonding lug ready extra holes add rigidity and give a bonding lug somewhere to attach; lug not included.
  • Extension kit slots the arm is slotted to take Coverstar lid extension kits for wider lids.
  • Watch the overhang the lid should not extend more than 2 in. beyond the end of the support arm.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Coverstar 13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932, SKU CVR-701-3032. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Coverstar 13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932
Coverstar

13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932

$19499
Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide
Coverstar

A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide

$7599
Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel
Coverstar

H1070 Double Ball Bearing Rope Pulley, Stainless Steel

$2799
Coverstar Complete Control Switch Assembly, A0605
Coverstar

Complete Control Switch Assembly, A0605

$22499
Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100
Coverstar

100 ft PowerFlex Rope with Semi-Rigid Tab, C6100

$19699
Coverstar Slider Assembly, UG Retro, Set of 2, A1153
Coverstar

Slider Assembly, UG Retro, Set of 2, A1153

$7999
Coverstar E2000 115V Sealed Stainless Steel Motor
Coverstar

E2000 115V Sealed Stainless Steel Motor

$1,99899
Subtotal

Similar products

Other products people compare with this one.

Coverstar A2365 17.75 in stainless steel lid bracket extension kit Coverstar 17.75" Stainless Steel Lid Bracket 21-23" Extension Kit, A2365$11899 Coverstar A0150 walk-on HD steel lid bracket, 13 in, coated with 1/2 in threaded hole Coverstar Walk-on HD Steel Lid Bracket, 13 in, Coated, 1/2 in Threaded Hole, A0150$14130 Coverstar A0797 tube insert with screw for a 5 inch pool cover tube Coverstar Tube Insert with Screw for 5 Inch Tube, A0797$23699 Coverstar KA0190 APC repair UG slider, large channel, black, set of two Coverstar KA0190 APC Repair UG Slider Large Channel, Black, with Screws, Set of 2$13399 Coverstar A0041 3 in. white leading edge block insert assembly Coverstar Single CS1800/CS3000/Eclipse UG 3 in. Leading Edge White Block Insert Assembly, A0041$10499 Coverstar X0091 21 foot light gray encapsulation track shim Coverstar 21' Light Gray Encapsulation Track Shim for 801/403 Series, X0091$9799 Coverstar A0439 leading edge bar insert assembly set Coverstar Leading Edge Bar Insert Assembly Set, A0439$14899 FeherGuard FG-BH Blanket Handler solar reel end set with locking casters FeherGuard Blanket Handler Reel End Set, FG-BH$12099 FeherGuard FG-7B premium reel end kit for above ground pools FeherGuard Premium Reel End Kit for Above Ground Pools, FG7B$14699 FeherGuard FG-7B premium above ground solar cover reel ends kit FeherGuard Premium Above Ground Solar Cover Reel Ends Kit, FG-7B$10299
Coverstar A1420 adjustable lid bracket arm with mounting bolt, 13 in., walk-on rated Coverstar Adjustable Lid Bracket Arm with Mounting Bolt, 13 in., Walk-On, A1420$6199 Coverstar A0996 stainless steel guide feed with hardware for 403 and 801 series under guide systems Coverstar Guide Feed with Hardware for 403/801 Series Under Guide System, Stainless Steel, A0996$5499 Pooltux Stainless Steel Buckle 4 Bar | MH200 Pooltux Stainless Steel Buckle 4 Bar | MH200$1599 Coverstar Inclined Descender Kit for Flush Lid Panels Up to 22' | A1112 Coverstar Inclined Descender Kit for Flush Lid Panels Up to 22' | A1112$38199 Coverstar RP1003 guide feed for the Cover Pools under guide system Coverstar Guide Feed for Cover Pools Under Guide System, RP1003$9199 Coverstar A0020 non-motor end brake cone assembly for CS1800 pool covers Coverstar Non-Motor End Brake Cone Assembly, A0020$30099 Coverstar A0958 pulley endcap assembly, twist lock UT 817 Coverstar Pulley Endcap Assembly, Twist Lock UT 817, A0958$5799 Pooltux 10" Paver Tube with Anchor | 5009 Pooltux 10" Paver Tube with Anchor | 5009$2299 Coverstar C4062 semi rigid 3 inch tab for detachable rope Coverstar Tab Semi Rigid for Detach Rope 418, C4062$1499 Cypress CAB6503 precut 100 ft steel cable for winter pool covers Cypress Precut Steel Cable for Winter Pool Covers, 100 ft, CAB6503$1399

Product details

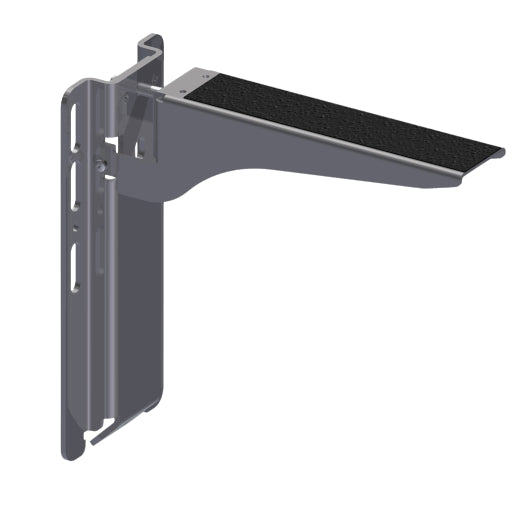

The Coverstar A1932 is a 13 in. adjustable walk-on lid bracket for automatic pool cover vaults. The mounting base and support arm are stainless steel, and it is rated for the full range of walk-on lid materials: aluminum, stone and concrete.

Designed for the vault

Extra holes in the bracket stiffen it and give a bonding lug a place to attach; the lug itself is not included. The support arm is slotted so Coverstar lid extension kits bolt on for wider lids. Keep the lid to no more than 2 in. of overhang past the end of the arm so the load stays on the steel.

In the box

One 13 in. lid top support arm plate, one mounting bracket and one bolt and screw set. If you only need to replace a damaged arm on an existing base, Coverstar sells the arm alone.

Specifications
Brand Coverstar
Manufacturer part number A1932
Type Adjustable walk-on lid bracket with mounting base
Arm length 13 in.
Material Stainless steel
Lid materials Aluminum, stone, concrete
Bonding lug holes Yes, bonding lug not included
Extension kit compatible Yes, slotted support arm
Maximum lid overhang 2 in. beyond the support arm
Included 13 in. lid top support arm plate, mounting bracket, bolt and screw set
Shipping weight 5.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Coverstar

Coverstar A1100 under track slider assembly for detachable rope set, black Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide$7599 Coverstar H1070 stainless steel double ball bearing rope pulley Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel$2799 Coverstar A0605 complete lever control switch assembly with key lock door Coverstar Complete Control Switch Assembly, A0605$22499 Coverstar E2000 115V sealed stainless steel automatic pool cover motor Coverstar E2000 115V Sealed Stainless Steel Motor$1,99899 Coverstar C6100 100 ft PowerFlex rope with semi-rigid tab Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100$19699 Coverstar A1153 under track rope slider assembly, retrofit, set of 2 Coverstar Slider Assembly, UG Retro, Set of 2, A1153$7999 Coverstar A0041 3 in. white leading edge block insert assembly Coverstar Single CS1800/CS3000/Eclipse UG 3 in. Leading Edge White Block Insert Assembly, A0041$10499 Coverstar C4062 semi rigid 3 inch tab for detachable rope Coverstar Tab Semi Rigid for Detach Rope 418, C4062$1499 Coverstar A2570 low voltage touchscreen pool cover controller Coverstar Touchscreen Pool Cover Controller, A2570$62899 Coverstar A0996 stainless steel guide feed with hardware for 403 and 801 series under guide systems Coverstar Guide Feed with Hardware for 403/801 Series Under Guide System, Stainless Steel, A0996$5499
Coverstar A1071 2-piece stainless steel guide feed assembly for automatic pool covers Coverstar 2-Piece Stainless Steel Guide Feed Assembly without Mounting Hardware, A1071$6099 Coverstar A2365 17.75 in stainless steel lid bracket extension kit Coverstar 17.75" Stainless Steel Lid Bracket 21-23" Extension Kit, A2365$11899 Coverstar M9886 stop block slider for 805 wheel assembly and STD TG 403 Coverstar Stop Block Slider for Wheel Assembly 805, STD TG 403, M9886$2099 Coverstar A0958 pulley endcap assembly, twist lock UT 817 Coverstar Pulley Endcap Assembly, Twist Lock UT 817, A0958$5799 Coverstar RP1003 guide feed for the Cover Pools under guide system Coverstar Guide Feed for Cover Pools Under Guide System, RP1003$9199 Coverstar M9678 walk-on lid bracket adjustable base, 8 inch with two mounting slots Coverstar Walk-On Lid Bracket Adjustable Base with 2 Mounting Slots, 8 Inch, M9678$9899 Coverstar A1157 12 inch walk on lid bracket arm Coverstar 12" Walk On Lid Bracket Arm, A1157$9399 Coverstar A1931 base plate bracket for 13 inch adjustable lid bracket Coverstar A1931 Base Plate Bracket for 13" Adjustable Lid Bracket$7799 Coverstar X0091 21 foot light gray encapsulation track shim Coverstar 21' Light Gray Encapsulation Track Shim for 801/403 Series, X0091$9799 Coverstar A1678 leading edge insert with caps for 2-1/2 inch aluminum leading edge Coverstar Leading Edge Insert and Caps for 2-1/2" Leading Edge (LE) Set, A1678$23699

Questions and answers

What people ask about this product, answered by our pool techs.

What comes in the box?
One 13 in. lid top support arm plate, one mounting bracket and one bolt and screw set. A bonding lug is not included.
Will it hold a stone or concrete lid?
Yes. The stainless base and arm are designed for aluminum, stone and concrete lids.
My lid is wider than 13 in. Can I still use this bracket?
The arm is slotted for Coverstar lid bracket extension kits, which extend the reach for wider lids. Whatever the length, keep the lid overhang to no more than 2 in. beyond the end of the arm.
Is this the whole bracket or just the arm?
The complete bracket: arm plate plus the mounting base. Coverstar also sells the arm on its own for replacing a bent arm on an existing base.
Ask your own question
