Coverstar A2570 low voltage touchscreen pool cover controllerCoverstar Touchscreen Pool Cover Controller, A2570 In stock$62899
Coverstar A2570 low voltage touchscreen pool cover controller
Shop all Coverstar

Coverstar Touchscreen Pool Cover Controller, A2570

Ask a questionMPN A2570
$62899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Any 3-wire system works with all Latham and Coverstar 3-wire motor systems.
  • Two control paths runs the cover directly or through a 121 Motor Controls or 3-Wire Limit control board.
  • Latham Mesh wireless link to multiple touchpads for control from more than one spot.
  • Wi-Fi alerts text or email notification whenever the cover opens or closes.
  • Cycle counter tracks how many times the cover has run, useful for service scheduling.
  • Retrofittable replaces the existing key switch or controller on an installed cover.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Coverstar Touchscreen Pool Cover Controller, A2570, SKU CVR-72-2464. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Coverstar Touchscreen Pool Cover Controller, A2570
Coverstar

Touchscreen Pool Cover Controller, A2570

$62899
Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide
Coverstar

A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide

$7599
Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel
Coverstar

H1070 Double Ball Bearing Rope Pulley, Stainless Steel

$2799
Coverstar Complete Control Switch Assembly, A0605
Coverstar

Complete Control Switch Assembly, A0605

$22499
Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100
Coverstar

100 ft PowerFlex Rope with Semi-Rigid Tab, C6100

$19699
Coverstar Slider Assembly, UG Retro, Set of 2, A1153
Coverstar

Slider Assembly, UG Retro, Set of 2, A1153

$7999
Coverstar E2000 115V Sealed Stainless Steel Motor
Coverstar

E2000 115V Sealed Stainless Steel Motor

$1,99899
Subtotal

Similar products

Other products people compare with this one.

Feherguard The Blanket Handler Pool Cover | FG-BH/L18M Feherguard The Blanket Handler Pool Cover | FG-BH/L18M$44599 Coverstar Inclined Descender Kit for Flush Lid Panels Up to 22' | A1112 Coverstar Inclined Descender Kit for Flush Lid Panels Up to 22' | A1112$38199 Rocky's Reel Systems 307 #3A portable residential reel end system with 3 inch hubs Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs$38199 Coverstar RP1003 guide feed for the Cover Pools under guide system Coverstar Guide Feed for Cover Pools Under Guide System, RP1003$9199 PoolTux 8 ft double chamber pool cover water tube in blue 16 gauge vinyl PoolTux 1'x8' 16 Gauge Double Pool Cover Water Tube, WTB-1001$1599 Swimline ACCCLI 5-1/2 inch cover clip for above ground pool winter covers Swimline Cover Clips for Above Ground Pool Winter Covers, 5-1/2 in., ACCCLI$399 Coverstar A0020 non-motor end brake cone assembly for CS1800 pool covers Coverstar Non-Motor End Brake Cone Assembly, A0020$30099 Coverstar A0797 tube insert with screw for a 5 inch pool cover tube Coverstar Tube Insert with Screw for 5 Inch Tube, A0797$23699 Coverstar A1932 13 in. stainless steel adjustable walk-on lid bracket with mounting base Coverstar 13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932$19499 Coverstar A0439 leading edge bar insert assembly set Coverstar Leading Edge Bar Insert Assembly Set, A0439$14899
Coverstar A0150 walk-on HD steel lid bracket, 13 in, coated with 1/2 in threaded hole Coverstar Walk-on HD Steel Lid Bracket, 13 in, Coated, 1/2 in Threaded Hole, A0150$14130 Coverstar KA0190 APC repair UG slider, large channel, black, set of two Coverstar KA0190 APC Repair UG Slider Large Channel, Black, with Screws, Set of 2$13399 Coverstar A2365 17.75 in stainless steel lid bracket extension kit Coverstar 17.75" Stainless Steel Lid Bracket 21-23" Extension Kit, A2365$11899 Coverstar A0041 3 in. white leading edge block insert assembly Coverstar Single CS1800/CS3000/Eclipse UG 3 in. Leading Edge White Block Insert Assembly, A0041$10499 FeherGuard FG-7B premium above ground solar cover reel ends kit FeherGuard Premium Above Ground Solar Cover Reel Ends Kit, FG-7B$10299 Coverstar X0091 21 foot light gray encapsulation track shim Coverstar 21' Light Gray Encapsulation Track Shim for 801/403 Series, X0091$9799 Coverstar A1420 adjustable lid bracket arm with mounting bolt, 13 in., walk-on rated Coverstar Adjustable Lid Bracket Arm with Mounting Bolt, 13 in., Walk-On, A1420$6199 Rockys Reel Systems 1.5 in plastic grommets for solar cover reel systems, pack of 50, part 553 Rocky Reel Systems Plastic Grommets for Solar Cover Reels, Pack of 50, 553$6199 Coverstar A0958 pulley endcap assembly, twist lock UT 817 Coverstar Pulley Endcap Assembly, Twist Lock UT 817, A0958$5799 Coverstar A0996 stainless steel guide feed with hardware for 403 and 801 series under guide systems Coverstar Guide Feed with Hardware for 403/801 Series Under Guide System, Stainless Steel, A0996$5499

Product details

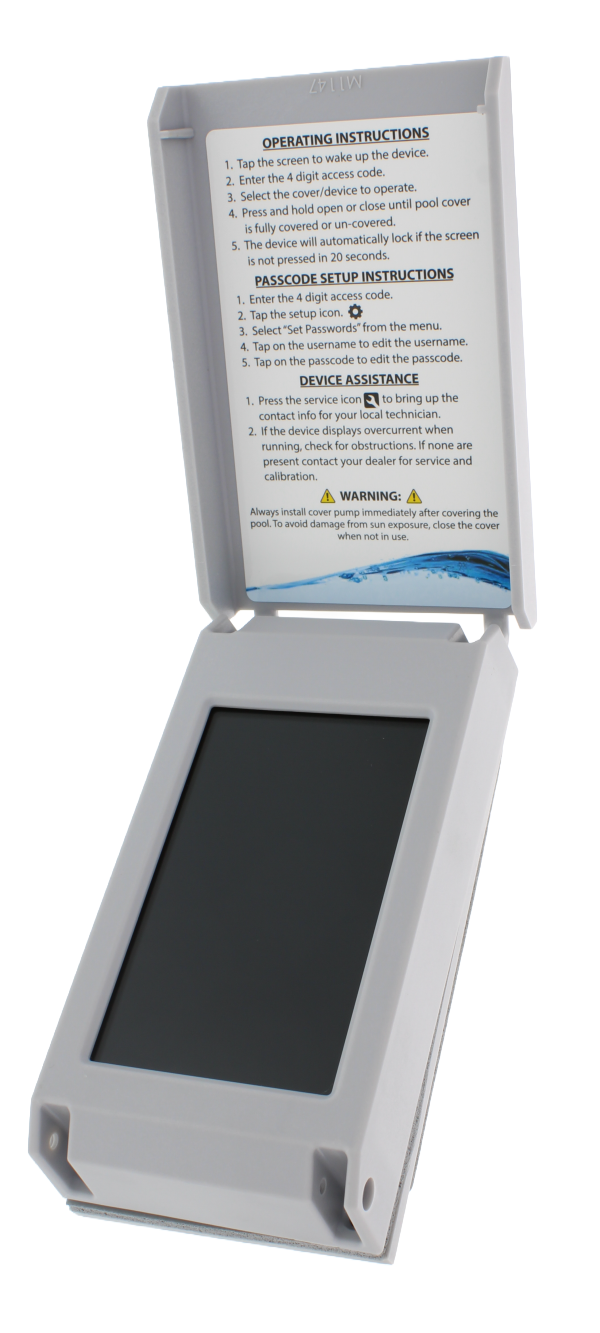

The Coverstar A2570 is a low voltage touchscreen controller for automatic pool covers. It works with all Latham and Coverstar 3-wire motor systems, either driving the cover directly or through a compatible 121 Motor Controls or 3-Wire Limit control board.

Control and monitoring

The touchscreen opens and closes the cover and keeps a running count of cover cycles, which helps with planning service. Built in Latham Mesh links the controller wirelessly to multiple touchpads, so the cover can be operated from more than one location around the pool.

Wi-Fi notifications

Connect the controller to Wi-Fi and it sends a text or email each time the cover opens or closes. That is useful for a second home, a rental or any pool where you want to know the cover is shut.

Retrofit

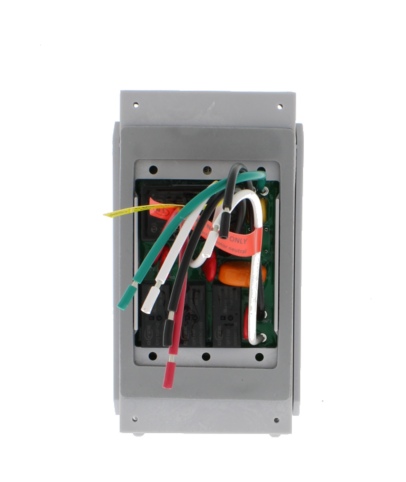

The A2570 is retrofittable onto existing Latham and Coverstar systems, replacing the original switch or controller. Wiring and setup should follow the Coverstar installation instructions and be done by someone comfortable with low voltage control wiring.

Specifications
Brand Coverstar
Manufacturer part number A2570
Type Low voltage touchscreen controller
Compatible motors All Latham/Coverstar 3-wire motor systems
Compatible boards 121 Motor Controls, 3-Wire Limit control boards
Wireless Latham Mesh, multi-touchpad
Notifications Wi-Fi, text or email on open and close
Cycle tracking Yes
Retrofit Yes
Shipping weight 1.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Coverstar

Coverstar A1100 under track slider assembly for detachable rope set, black Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide$7599 Coverstar H1070 stainless steel double ball bearing rope pulley Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel$2799 Coverstar A0605 complete lever control switch assembly with key lock door Coverstar Complete Control Switch Assembly, A0605$22499 Coverstar A1932 13 in. stainless steel adjustable walk-on lid bracket with mounting base Coverstar 13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932$19499 Coverstar E2000 115V sealed stainless steel automatic pool cover motor Coverstar E2000 115V Sealed Stainless Steel Motor$1,99899 Coverstar C6100 100 ft PowerFlex rope with semi-rigid tab Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100$19699 Coverstar A1153 under track rope slider assembly, retrofit, set of 2 Coverstar Slider Assembly, UG Retro, Set of 2, A1153$7999 Coverstar A0041 3 in. white leading edge block insert assembly Coverstar Single CS1800/CS3000/Eclipse UG 3 in. Leading Edge White Block Insert Assembly, A0041$10499 Coverstar C4062 semi rigid 3 inch tab for detachable rope Coverstar Tab Semi Rigid for Detach Rope 418, C4062$1499 Coverstar A0996 stainless steel guide feed with hardware for 403 and 801 series under guide systems Coverstar Guide Feed with Hardware for 403/801 Series Under Guide System, Stainless Steel, A0996$5499
Coverstar A1071 2-piece stainless steel guide feed assembly for automatic pool covers Coverstar 2-Piece Stainless Steel Guide Feed Assembly without Mounting Hardware, A1071$6099 Coverstar A2365 17.75 in stainless steel lid bracket extension kit Coverstar 17.75" Stainless Steel Lid Bracket 21-23" Extension Kit, A2365$11899 Coverstar M9886 stop block slider for 805 wheel assembly and STD TG 403 Coverstar Stop Block Slider for Wheel Assembly 805, STD TG 403, M9886$2099 Coverstar A0958 pulley endcap assembly, twist lock UT 817 Coverstar Pulley Endcap Assembly, Twist Lock UT 817, A0958$5799 Coverstar RP1003 guide feed for the Cover Pools under guide system Coverstar Guide Feed for Cover Pools Under Guide System, RP1003$9199 Coverstar M9678 walk-on lid bracket adjustable base, 8 inch with two mounting slots Coverstar Walk-On Lid Bracket Adjustable Base with 2 Mounting Slots, 8 Inch, M9678$9899 Coverstar A1157 12 inch walk on lid bracket arm Coverstar 12" Walk On Lid Bracket Arm, A1157$9399 Coverstar A1931 base plate bracket for 13 inch adjustable lid bracket Coverstar A1931 Base Plate Bracket for 13" Adjustable Lid Bracket$7799 Coverstar X0091 21 foot light gray encapsulation track shim Coverstar 21' Light Gray Encapsulation Track Shim for 801/403 Series, X0091$9799 Coverstar A1678 leading edge insert with caps for 2-1/2 inch aluminum leading edge Coverstar Leading Edge Insert and Caps for 2-1/2" Leading Edge (LE) Set, A1678$23699

Questions and answers

What people ask about this product, answered by our pool techs.

Will it work with my existing cover?
It works with all Latham and Coverstar 3-wire motor systems, directly or through a 121 Motor Controls or 3-Wire Limit control board. Confirm your cover uses a 3-wire motor before ordering.
Can I add it to a cover that is already installed?
Yes. The A2570 is retrofittable onto existing Latham and Coverstar systems.
How do the notifications work?
Once the controller is connected to Wi-Fi it sends a text or email each time the cover opens or closes, so you know the pool's status when you are away.
Can I control the cover from more than one place?
Yes. Built in Latham Mesh links the controller wirelessly to multiple touchpads.
