S.R. Smith 900-1000 replacement seat belt assembly for pool liftsS.R. Smith Replacement Seat Belt Assembly for PAL2, Splash!, aXs2 and PAL Pool Lifts, 900-1000$9974

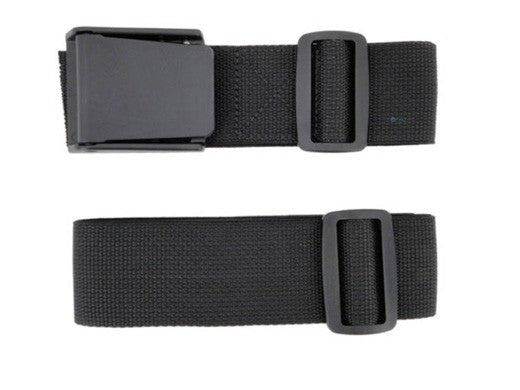

S.R. Smith 900-1000 replacement seat belt assembly for pool lifts
Shop all S.R. Smith

S.R. Smith Replacement Seat Belt Assembly for PAL2, Splash!, aXs2 and PAL Pool Lifts, 900-1000

Ask a questionMPN 900-1000
$9974
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fit Named in the PAL2, Splash!, aXs2 and CEC compliant PAL parts lists.
  • Material Nylon, water resistant belt with a latching buckle.
  • Rule S.R. Smith says the seat belt must be used during each use.
  • Replace when worn The manuals say not to use a belt that is damaged or worn.
  • Cleaning Rinse in fresh water after each use and disinfect daily with a 1:100 bleach solution.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About S.R. Smith Replacement Seat Belt Assembly for PAL2, Splash!, aXs2 and PAL Pool Lifts, 900-1000, SKU PSU-201906. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item S.R. Smith Replacement Seat Belt Assembly for PAL2, Splash!, aXs2 and PAL Pool Lifts, 900-1000
S.R. Smith

Replacement Seat Belt Assembly for PAL2, Splash!, aXs2 and PAL Pool Lifts, 900-1000

$9974
S.R. Smith Linak Battery Charger for aXs, PAL and Splash Lifts, 100-3500
S.R. Smith

Linak Battery Charger for aXs, PAL and Splash Lifts, 100-3500

$17999
S.R. Smith New Style Battery Charger for Multilift, PAL, Splash and aXs Pool Lifts, 1001530
S.R. Smith

New Style Battery Charger for Multilift, PAL, Splash and aXs Pool Lifts, 1001530

$17099
S.R. Smith Lift-Operator New Style Battery for multiLift, PAL, Splash! and aXs Pool Lifts, 1001495
S.R. Smith

Lift-Operator New Style Battery for multiLift, PAL, Splash! and aXs Pool Lifts, 1001495

$37299
S.R. Smith LiftOperator Intelligent 4-Button Control Box, 400-7000
S.R. Smith

LiftOperator Intelligent 4-Button Control Box, 400-7000

$58299
S.R. Smith Lift-Operator Old Style Battery for PAL, Splash! and aXs Pool Lifts, 100-2000
S.R. Smith

Lift-Operator Old Style Battery for PAL, Splash! and aXs Pool Lifts, 100-2000

$41899
S.R. Smith LiftLock2 Anchor Assembly, Cast 316L Stainless Steel, 300-6600L
S.R. Smith

LiftLock2 Anchor Assembly, Cast 316L Stainless Steel, 300-6600L

$43699
Subtotal

Similar products

Other products people compare with this one.

S.R. Smith LiftOperator Control Box Cover for S.R. Smith Pool Lifts, Tan, 910-1000T$9799 S.R. Smith LiftOperator 24 V CEC Compliant Battery, BC Version for Pool Lifts, 1001495-BC-R$45299 S.R. Smith 100-4300-R LiftOperator four button hand control S.R. Smith 4-Button LiftOperator Hand Control, 100-4300-R$23699 S.R. Smith 400-7000-BC LiftOperator Intelligent 4 button control box, BC version S.R. Smith LiftOperator Intelligent 4 Button Control Box, BC Version, 400-7000-BC$52412

Product details

The S.R. Smith 900-1000 is the seat belt assembly for the seat on PAL2, Splash!, aXs2 and PAL pool lifts: a nylon, water resistant belt with a latching buckle.

Where it fits

The part number appears in the parts lists for the PAL2 and PAL2 Hi/Lo, the Splash!, Splash! 300, Splash! Hi/Lo and Spa, Splash! Extended Reach and Extended Reach Hi/Lo, the aXs2, where it is listed in black, and the CEC compliant PAL and PAL Hi/Lo and Spa. It is also listed as 900-1000-R.

Use

S.R. Smith says the belt must be used during each use. To fasten it, thread the loose end through the buckle, pull it tight and press the latch down on the belt. To release, lift the latch and pull the loose end free.

Cleaning and replacement

Rinse the belt with fresh water between uses and disinfect it daily with a 1:100 solution of household bleach in fresh water, then rinse. After a contamination incident, soak it in the solution for 10 minutes. The manuals say not to use a belt that is damaged or worn, so keep a spare on hand.

From Pool School

Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read

Where this part goes

20 Key 20 on the S.R. Smith Splash! Pool LiftFits every model in the drawing.See it on the diagramAll S.R. Smith Splash! Pool Lift Parts 24 parts and the drawing
Specifications
Brand S.R. Smith
Model Seat Belt Assembly
Manufacturer part number 900-1000
Fits PAL2, Splash!, aXs2, PAL
Type Lift seat belt assembly
Material Nylon, water resistant
Color on aXs2 parts list Black
Also listed as 900-1000-R
Shipping weight 1.35 lb

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From S.R. Smith

A white diving board at the edge of a backyard pool. Pool better. S.R. Smith

S.R. Smith lighting

S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001 S.R. Smith RGB Treo LED Pool Light 12V, 30' Cord, FLED-C-TR-30 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN
Shop S.R. Smith equipment

S.R. Smith parts

S.R. Smith Cantilever Steel Jump Stand with Jig, Radiant White, 69-209-001 S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026 S.R. Smith 5W Replacement RGB LED Lamp, 12VAC, FLED-LAU-C S.R. Smith 18" Commercial Mounting Kit, 67-209-903-SS
Shop S.R. Smith parts
Pool slides: a curved slide set into a rock waterfall beside a backyard poolDiving boards: a white diving board over a backyard pool
S.R. Smith makes pool slides, diving boards, ladders, rails, in-pool furniture and pool lighting.Shop all S.R. Smith

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Which lifts does the 900-1000 seat belt fit?
The parts lists for the PAL2 and PAL2 Hi/Lo, every Splash! model, the aXs2, and the CEC compliant PAL and PAL Hi/Lo and Spa all name 900-1000.
When should I replace a pool lift seat belt?
S.R. Smith says not to use the belt if it is damaged or worn. Replace it as soon as the webbing frays or the latch will not hold.
How do I clean the seat belt?
Rinse the seat and belt with fresh water between uses and disinfect daily with 1 part household bleach to 100 parts fresh water, then rinse. After a contamination incident, soak the belt in that solution for 10 minutes and rinse well.
