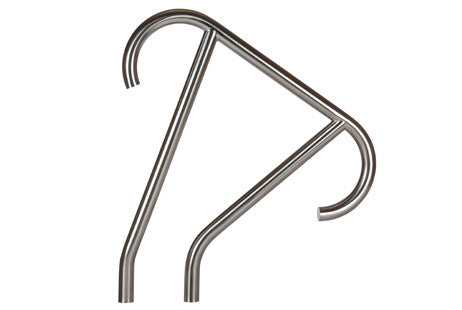

S.R. Smith MER-1001S-MG Meridian Series single pool hand rail, 316L marine grade stainless steelS.R. Smith Meridian Series Pool Hand Rail, Single, 316L Marine Grade Stainless Steel, 1.90 in. OD, MER-1001S-MG$65699
S.R. Smith MER-1001S-MG Meridian Series single pool hand rail, 316L marine grade stainless steel
Shop all S.R. Smith

S.R. Smith Meridian Series Pool Hand Rail, Single, 316L Marine Grade Stainless Steel, 1.90 in. OD, MER-1001S-MG

Ask a questionMPN MER-1001S-MG
$65699
FREE Delivery
Typically ships within 7 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Single rail MER-1001S-MG is one Meridian hand rail. S.R. Smith sells two rails together as MER-1001-MG.
  • 316L marine grade S.R. Smith builds the Meridian in 304 or 316L stainless, and the -MG suffix marks the 316L marine grade version.
  • 1.90 in. OD tubing Made from 1.90 in. outside diameter tube with a .065 in. wall, so it seats in anchors built for 1.90 in. tube.
  • Figure 4 retrofit Designed to go into an existing Figure 4 hand rail setting, which turns a rail upgrade into a swap rather than deck work.
  • Small deck friendly S.R. Smith designed the Meridian for pools where deck space is limited.
  • Matching anchors S.R. Smith recommends its AS-100B bronze, AS-100B-SS stainless or AS-100P universal plastic anchor with the EP-100F round escutcheon.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About S.R. Smith Meridian Series Pool Hand Rail, Single, 316L Marine Grade Stainless Steel, 1.90 in. OD, MER-1001S-MG, SKU PSU-150107. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item S.R. Smith Meridian Series Pool Hand Rail, Single, 316L Marine Grade Stainless Steel, 1.90 in. OD, MER-1001S-MG
S.R. Smith

Meridian Series Pool Hand Rail, Single, 316L Marine Grade Stainless Steel, 1.90 in. OD, MER-1001S-MG

$65699
Shade Science Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW
Shade Science

Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW

$24900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue
Shade Science

Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue

$21900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Poolguard PGRM-2 In-Ground Pool Alarm
American Granby

Poolguard PGRM-2 In-Ground Pool Alarm

$25199
S.R. Smith 20" U-Frame Fulcrum Cover, FC-200A-R
S.R. Smith

20" U-Frame Fulcrum Cover, FC-200A-R

$6499
Deck-O-Seal Pour Grade Joint Sealant Kit, Tan 96 oz., 4701033
Deck-O-Seal

Pour Grade Joint Sealant Kit, Tan 96 oz., 4701033

$15299
National Stock Sign Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148
National Stock Sign

Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148

$10899
Subtotal

Similar products

Other products people compare with this one.

Inter-Fab Spa 1900 single post stainless steel spa rail Inter-Fab Spa 1900 Single Post Spa Rail$37099 S.R. Smith DR-D3D50065-MG 50 in. marine grade stainless Designer Series deck to deck return stair rail S.R. Smith 50 in. Marine Grade Stainless Steel 3 Bend Designer Deck to Deck Return Stair Rail, DR-D3D50065-MG$91299 S.R. Smith 2HR-5-049 five foot 2 bend stainless steel pool stair rail S.R. Smith 5' 2 Bend Stainless Steel Handrail, .049", 2HR-5-049$50199 S.R. Smith DMS-102A deck mounted stainless steel hand rail with brace S.R. Smith Deck Mounted Hand Rail with Brace, .049 in., DMS-102A$67799 S.R. Smith DMS-102A-MG 54 inch drooped marine grade stainless deck mount pool handrail S.R. Smith 54" Drooped Stainless Steel Deck Mount Rail, .049" Marine Grade, DMS-102A-MG$85299 SuperPro RAIL4BWB 54 inch Classic 4-bend deck mounted handrail SuperPro 54" Classic 4-Bend Deck Mounted Handrail, RAIL4BWB$58999 S.R. Smith 2HR-6-049 6 ft 2-bend stainless steel pool stair rail S.R. Smith 6' 2 Bend Stainless Steel Handrail, .049", 2HR-6-049$44099 Saftron TRTD-130-G Triton Series return to deck handrail in gray Saftron Triton Series Return to Deck Mounted Handrail, .25" Thickness 1.90" OD, 30"W x 36"H, Gray, TRTD-130-G$59699 S.R. Smith DR-D3D50065-6 Designer Series deck to deck stair rail in Hammertone Gray S.R. Smith Gray Deck to Deck Stair Rail, DR-D3D50065-6$64399 S.R. Smith 3-Bend 5' Stair Rail with 1ft Ext. 304 SS | 3HR-5-049-1 S.R. Smith 3-Bend 5' Stair Rail with 1ft Ext. 304 SS | 3HR-5-049-1$74499
Designer Series deck to deck return stair rail in 304 stainless steel, part DR-D3D50065 S.R. Smith Designer Series Deck to Deck Return Stair Rail, 1.90 in. x .065 in. 304 Stainless Steel, DR-D3D50065$46299 S.R. Smith Deck Mounted 3 Bend 51in Stair Rail 304 SS | DMS-100A S.R. Smith Deck Mounted 3 Bend 51in Stair Rail 304 SS | DMS-100A$50699 S.R. Smith Residential 4 Bend Hand & Stair Rail 304 SS | DMS-101A S.R. Smith Residential 4 Bend Hand & Stair Rail 304 SS | DMS-101A$48299 S.R. Smith F4H-102 26 in. Figure 4 handrail pair in type 304 stainless steel S.R. Smith 26 in. Figure 4 Handrail Pair, 304 Stainless Steel, 1.90 in. OD, .049 in. Wall, F4H-102$38999 S.R. Smith Deck Mounted 3 Bend 51in Stair Rail PC Taupe | DMS-100A-TP S.R. Smith Deck Mounted 3 Bend 51in Stair Rail PC Taupe | DMS-100A-TP$58599 S.R. Smith Residential 3 Bend Stair Rail 5' Handrail | 3HR-5-049-2 S.R. Smith Residential 3 Bend Stair Rail 5' Handrail | 3HR-5-049-2$72099 S.R. Smith Residential Figure-4 Handrail Marine Grade | F4H-102-MG S.R. Smith Residential Figure-4 Handrail Marine Grade | F4H-102-MG$56799 S.R. Smith 30" Figure 4 Handrails .049 (Pair) | F4H-101 S.R. Smith 30" Figure 4 Handrails .049 (Pair) | F4H-101$62399 S.R. Smith 4' 3 Bend Stainless Steel Handrail w/ 1' Extensions on Both Ends .049 | 3HR-4-049-2 S.R. Smith 4' 3 Bend Stainless Steel Handrail w/ 1' Extensions on Both Ends .049 | 3HR-4-049-2$72399 S.R. Smith Deck Mounted 54" Braced Stair Rail 304 SS | DMS-102B S.R. Smith Deck Mounted 54" Braced Stair Rail 304 SS | DMS-102B$84499

From S.R. Smith

A white diving board at the edge of a backyard pool. Pool better. S.R. Smith

S.R. Smith lighting

S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001 S.R. Smith RGB Treo LED Pool Light 12V, 30' Cord, FLED-C-TR-30 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN
Shop S.R. Smith equipment

S.R. Smith parts

S.R. Smith Cantilever Steel Jump Stand with Jig, Radiant White, 69-209-001 S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026 S.R. Smith 5W Replacement RGB LED Lamp, 12VAC, FLED-LAU-C S.R. Smith 18" Commercial Mounting Kit, 67-209-903-SS
Shop S.R. Smith parts
Pool slides: a curved slide set into a rock waterfall beside a backyard poolDiving boards: a white diving board over a backyard pool
S.R. Smith makes pool slides, diving boards, ladders, rails, in-pool furniture and pool lighting.Shop all S.R. Smith

Product details

The S.R. Smith MER-1001S-MG is a single Meridian Series pool hand rail in 316L marine grade stainless steel, made from 1.90 in. OD tubing with a .065 in. wall and designed to retrofit into an existing Figure 4 rail setting.

What it is

The Meridian Series is S.R. Smith's decorative rail line, suited to pools where deck space is tight. S.R. Smith builds it in 304 stainless or 316L marine grade stainless, and the -MG suffix marks the 316L version. This listing is one rail; for both sides of an entry, the pair is MER-1001-MG.

Fit and replacement

Because the rail is designed for an existing Figure 4 setting, replacing an old Figure 4 rail is a swap: loosen the wedge in each anchor, lift the old rail out, set the Meridian rail in and tighten the wedges. The anchors must be made for 1.90 in. OD tube. For new anchors, S.R. Smith recommends its AS-100B 4 in. bronze anchor, AS-100B-SS 4 in. 304 stainless steel residential anchor or AS-100P universal plastic anchor, finished with the EP-100F round escutcheon.

Before you order

New anchors in an existing deck go into a core drilled hole at least 4 in. across for bronze or stainless, or 5 in. for the universal anchor, and at least 1/2 in. deeper than the anchor. Each anchor is set flush with the deck, wedge facing away from the pool, bonded to the deck rebar per the NEC or local code, and held in epoxy or cement of at least 3,000 PSI. 316L is the more corrosion resistant of the two stainless grades, which is why marine grade rails are the usual pick around salt pools.

Specifications
Brand S.R. Smith
Manufacturer part number MER-1001S-MG
UPC 840671130664
Series Meridian
Type Pool hand rail
Quantity Single rail
Pair part number MER-1001-MG
Material 316L marine grade stainless steel
Tube outside diameter 1.90 in. (50 mm)
Wall thickness .065 in. (1.6 mm)
Replaces Figure 4 hand rail, retrofits into the existing Figure 4 setting
Recommended anchors AS-100B 4 in. bronze anchor, AS-100B-SS 4 in. 304 stainless steel residential anchor, AS-100P universal plastic anchor, all for 1.90 in. OD tube
Recommended escutcheon EP-100F round escutcheon, 1.90 in.
Shipping weight 18 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Will the Meridian rail fit my existing Figure 4 rail anchors?
S.R. Smith designed the Meridian Series hand rail to retrofit into an existing Figure 4 setting, so MER-1001S-MG is meant to go into the anchors a Figure 4 rail came out of. The anchors must be sized for 1.90 in. OD tube.
Is MER-1001S-MG one rail or a pair?
One rail. MER-1001S-MG is the single Meridian hand rail, and S.R. Smith sells the pair as MER-1001-MG.
What is the difference between MER-1001S and MER-1001S-MG?
The stainless steel grade. S.R. Smith builds the Meridian hand rail in 304 stainless or 316L marine grade stainless, and the -MG at the end of MER-1001S-MG marks the 316L marine grade version.
How is the Meridian hand rail installed?
As a replacement, loosen the wedge in each deck anchor, lift the old rail out, set the MER-1001S-MG in and tighten the wedges. New anchors go in a core drilled hole at least 4 in. across for a bronze or stainless anchor, or 5 in. for a universal anchor, set flush with the wedge facing away from the pool and bonded to the deck rebar per the NEC or local code.
