S.R. Smith Rigid Front Caster for PAL2 and PAL Pool Lifts, 200-2000$164⁴²

S.R. Smith 200-2000 rigid front caster for PAL2 and PAL pool lifts

S.R. Smith Rigid Front Caster for PAL2 and PAL Pool Lifts, 200-2000

Name: S.R. Smith Rigid Front Caster for PAL2 and PAL Pool Lifts, 200-2000
Brand: S.R. Smith
SKU: PSU-182299
Price: 164.42 USD
Availability: BackOrder

Ask a questionMPN 200-2000

$164⁴²

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Position The front wheels on PAL lifts are rigid, and the rear wheels swivel and lock.
Fit Named in the PAL2, PAL2 Hi/Lo and CEC compliant PAL and PAL Hi/Lo and Spa parts lists.
Construction 5 in. ball bearing caster in stainless steel with a polyurethane tread.
Load The PAL2 and PAL each weigh 1060 lb, and the casters carry that weight whenever the lift moves.
Rear wheel The swivel caster with the total lock is a different part, 200-3000.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select S.R. Smith Rigid Front Caster for PAL2 and PAL Pool Lifts, 200-2000

S.R. Smith

Rigid Front Caster for PAL2 and PAL Pool Lifts, 200-2000

$164⁴²

Select

S.R. Smith

Linak Battery Charger for aXs, PAL and Splash Lifts, 100-3500

$179⁹⁹

Select

S.R. Smith

New Style Battery Charger for Multilift, PAL, Splash and aXs Pool Lifts, 1001530

$170⁹⁹

Select

S.R. Smith

Lift-Operator New Style Battery for multiLift, PAL, Splash! and aXs Pool Lifts, 1001495

$372⁹⁹

Select

S.R. Smith

LiftOperator Intelligent 4-Button Control Box, 400-7000

$582⁹⁹

Select

S.R. Smith

Lift-Operator Old Style Battery for PAL, Splash! and aXs Pool Lifts, 100-2000

$418⁹⁹

Select

S.R. Smith

LiftOperator Control Box Cover for S.R. Smith Pool Lifts, Tan, 910-1000T

$97⁹⁹

Subtotal

Similar products

Other products people compare with this one.

S.R. Smith 160-2300A gray pool lift footrest with hardware

S.R. Smith Pool Lift Footrest with Hardware for Splash!, aXs2 and PAL, Gray, 160-2300A$108⁶¹ S.R. Smith LiftOperator 24 V CEC Compliant Battery, BC Version for Pool Lifts, 1001495-BC-R$452⁹⁹

S.R. Smith 400-7000-BC LiftOperator Intelligent 4 button control box, BC version

S.R. Smith LiftOperator Intelligent 4 Button Control Box, BC Version, 400-7000-BC$524¹²

Product details

The S.R. Smith 200-2000 is the rigid front caster for the PAL2 and PAL portable pool lifts.

Where it fits

The PAL2, PAL2 Hi/Lo and the CEC compliant PAL and PAL Hi/Lo and Spa parts lists all name 200-2000. On these lifts the front wheels are rigid and the back wheels swivel to make the lift easier to move. The rear swivel caster is a separate part, 200-3000.

Construction

S.R. Smith lists the front caster as a 5 in. ball bearing wheel in stainless steel, fixed, with a polyurethane tread. The PAL2 and PAL each weigh 1060 lb, so the casters carry a heavy load every time the lift is moved.

Safe use

Move the lift only by its handle, on level ground with no more than a 2 degree slope. Before a transfer, lock both rear wheels and fully extend both stabilizer arms.

From Pool School

Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read

Where this part goes

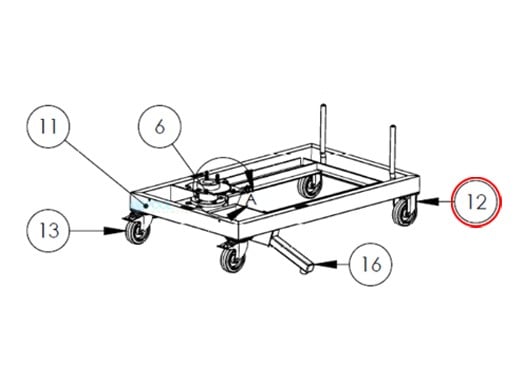

12 Key 12 on the S.R. Smith PAL2 Portable Pool LiftFits every model in the drawing.See it on the diagram All S.R. Smith PAL2 Pool Lift Parts 23 parts and the drawing

Specifications
Brand	S.R. Smith
Model	Rigid Caster
Manufacturer part number	200-2000
Fits	PAL2, PAL
Type	Fixed caster, front
Wheel size	5 in.
Bearing	Ball bearing
Material	Stainless steel, polyurethane tread
Rear caster	Swivel caster with total lock, part 200-3000
Shipping weight	2 lb

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From S.R. Smith

S.R. Smith lighting

S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR

S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001

S.R. Smith RGB Treo LED Pool Light 12V, 30' Cord, FLED-C-TR-30

S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN

Shop S.R. Smith equipment

S.R. Smith parts

S.R. Smith Cantilever Steel Jump Stand with Jig, Radiant White, 69-209-001

S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026

S.R. Smith 5W Replacement RGB LED Lamp, 12VAC, FLED-LAU-C

S.R. Smith 18" Commercial Mounting Kit, 67-209-903-SS

Shop S.R. Smith parts

S.R. Smith makes pool slides, diving boards, ladders, rails, in-pool furniture and pool lighting.Shop all S.R. Smith

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Which lifts use the 200-2000 caster?

The parts lists for the PAL2, PAL2 Hi/Lo and the CEC compliant PAL and PAL Hi/Lo and Spa all name it.

Is this the front or the rear wheel?

The front. S.R. Smith fits rigid front wheels and swivel rear wheels; the rear swivel caster is part 200-3000.

What do I need to do with the wheels before a transfer?

Lock both rear wheels and fully extend both stabilizer arms whenever the lift is in position. The manuals warn the lift could move during a transfer otherwise.
